be quiet! SILENT WINGS 4 | 120mm PWM Computer case Fan 12 cm Black 1 pc(s) Cooling

Keep temperatures in check with the be quiet! SILENT WINGS 4 | — fitment and noise details are in the spec table.

No compromise silence and performance
Silent Wings 4 120mm PWM combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM the perfect choice for the most demanding applications in high-end systems.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	1600 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Noise level (high speed)	18.9 dB
Type	Fan
Fan diameter	12 cm
Maximum airflow	48.7 cfm
Maximum air pressure	1.79 mmH2O
Airflow	82.74 m³/h
Mean time between failures (MTBF)	300000 h
Quantity per pack	1 pc(s)
Design
Product colour	Black
Certification	CE / ROHS / RU / UKCA / TÜV / WEEE
Cable length	0.5 m
Technical details
Compliance certificates	CE, RoHS, WEEE
Power
Rated voltage	12 V
Voltage	5 - 13.2 V
Rated current	0.12 A
Power consumption (typical)	1.44 W
Maximum current	0.13 A

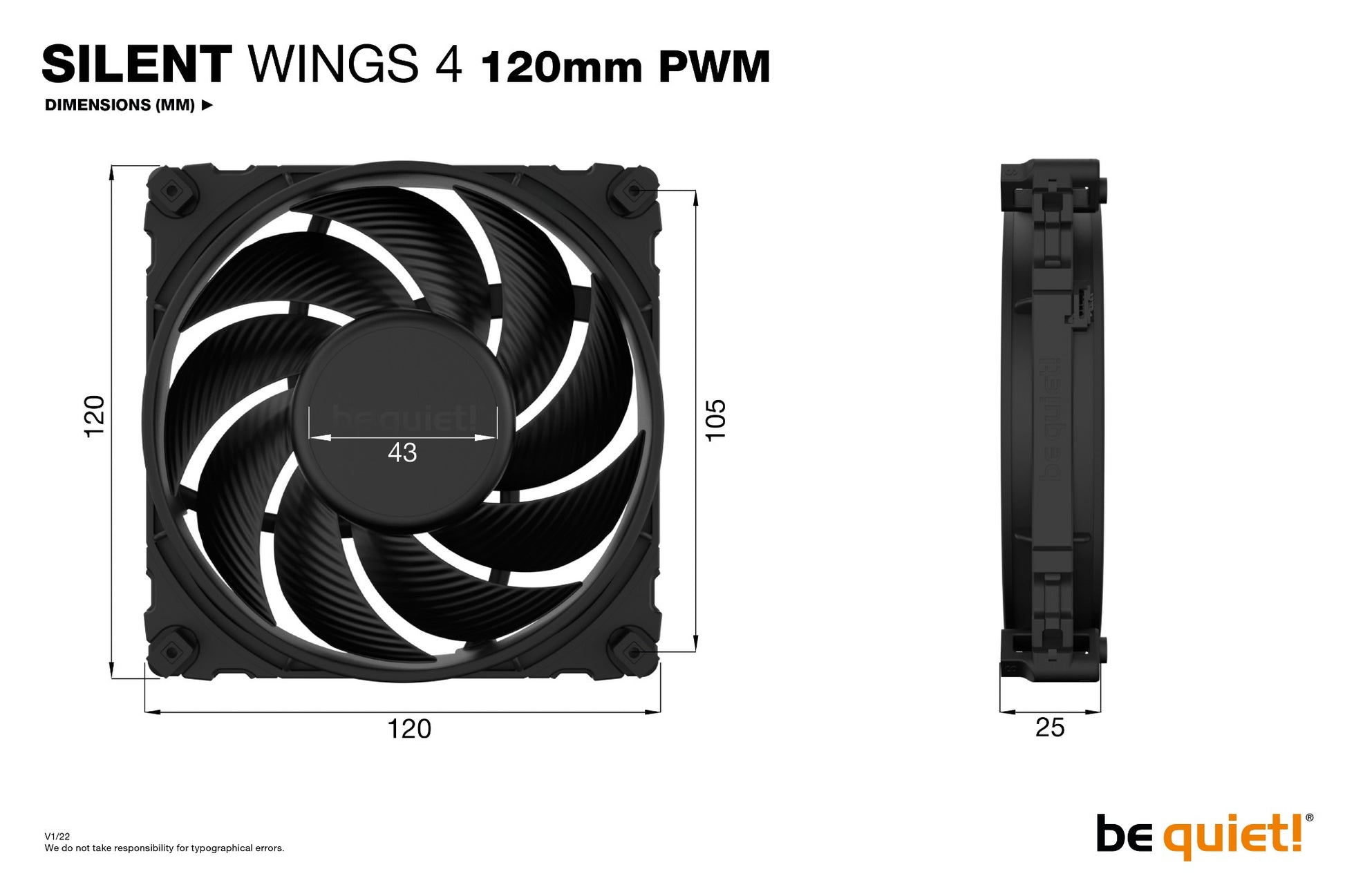

Weight & dimensions
Package depth	192 mm
Package width	141 mm
Package height	31 mm
Width	120 mm
Package weight	343 g
Depth	120 mm
Height	25 mm
Weight	190 g

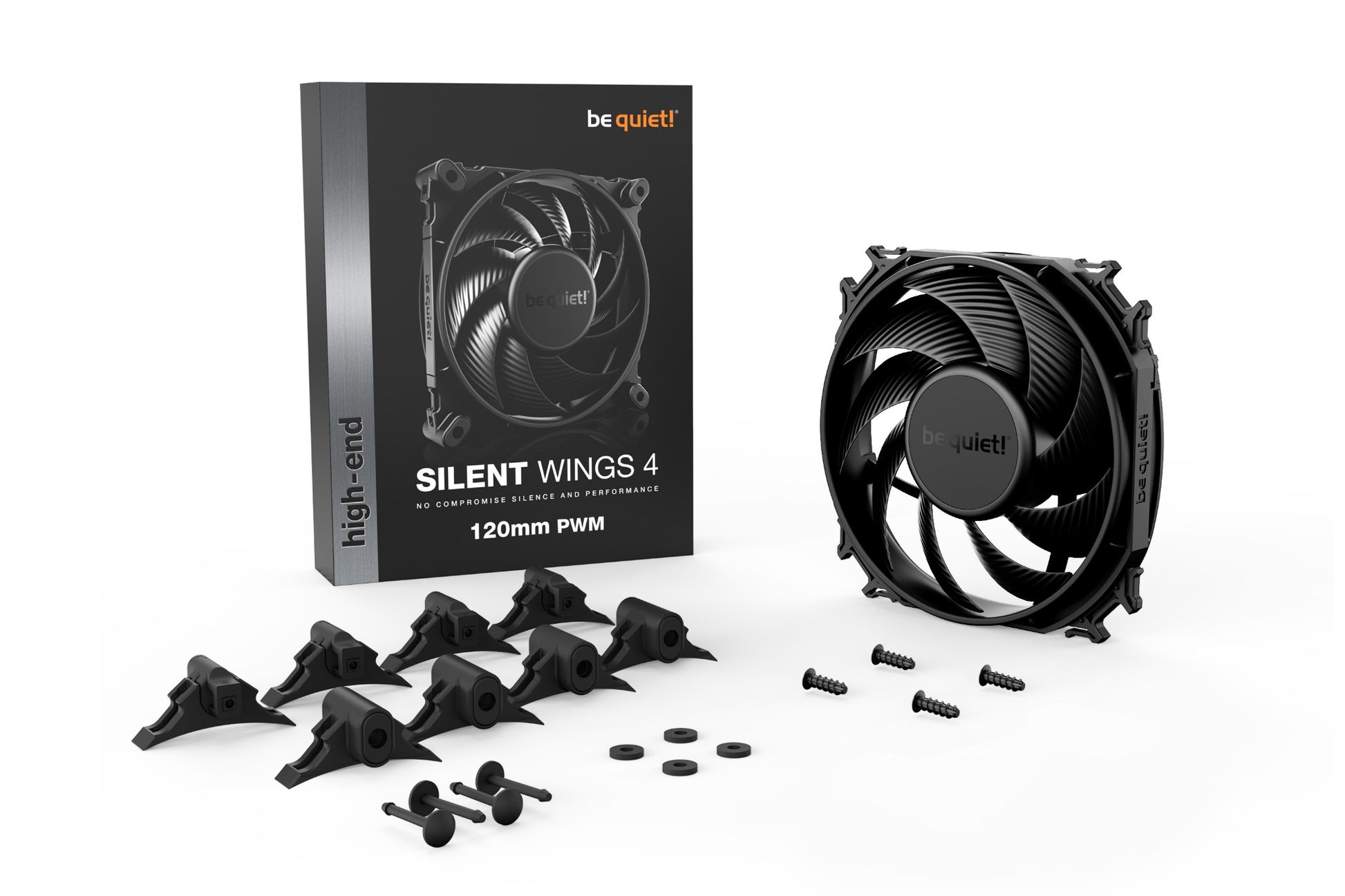

Packaging content
Screws included	Yes
Number of screws	4
Number of clips	4
Other features
Country of origin	China
Harmonized System (HS) code	84733080
Logistics data
Shipping (inner) case width	38.7 cm
Shipping (inner) case length	43.2 cm
Shipping (inner) case height	37.5 cm
Shipping (inner) case gross weight	14.9 kg
Products per shipping (inner) case	40 pc(s)

Downloads

• Datasheet (PDF)
