be quiet! Pure Power 13 M | 650W power supply unit 20+4 pin ATX ATX Black

Reliable power for your system: the be quiet! Pure Power 13 M — wattage and connector details are in the spec table.

Exceptional quiet, superior features
Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan speed	0 - 1800 RPM
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
EPS version	2.92

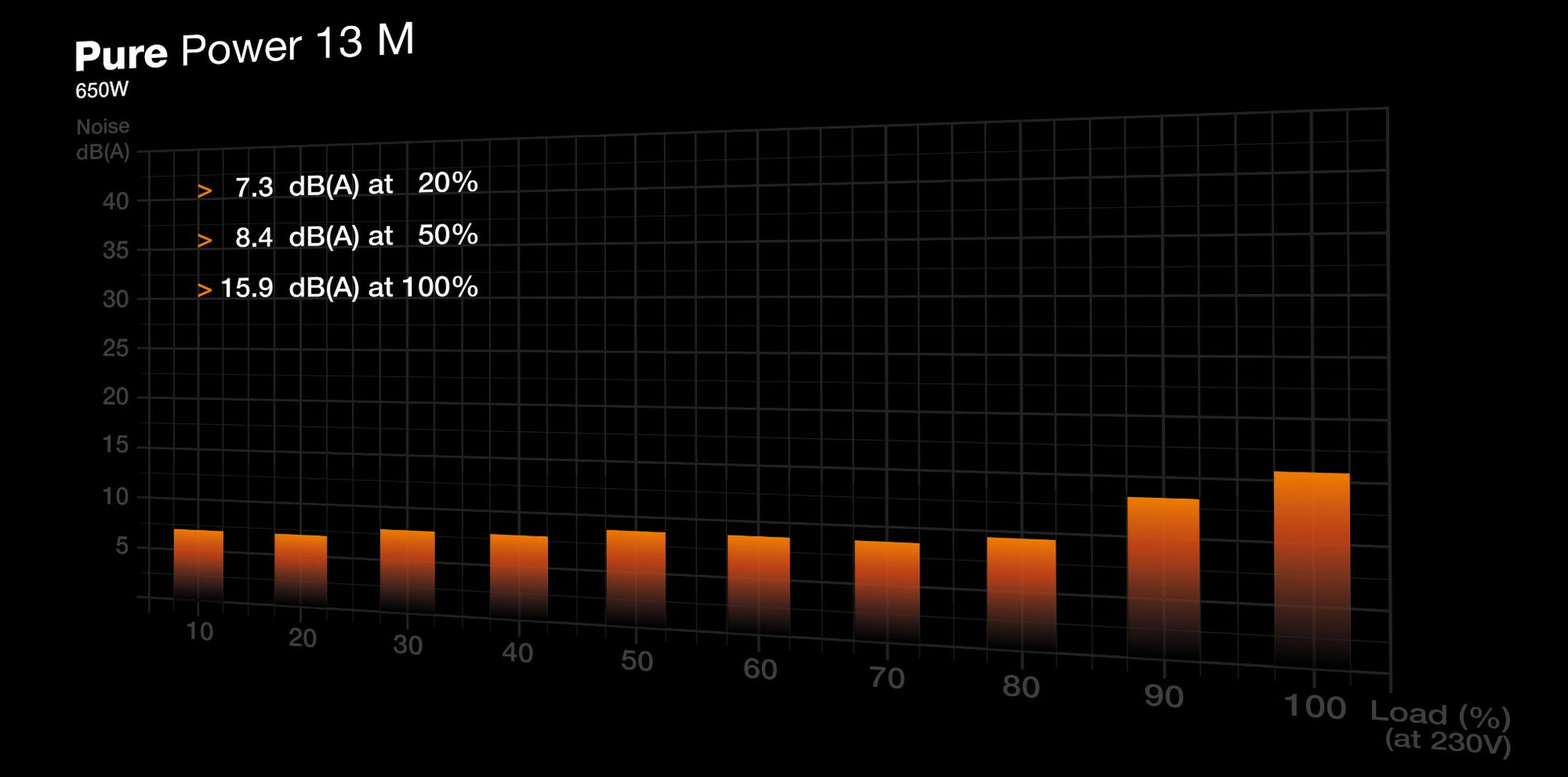

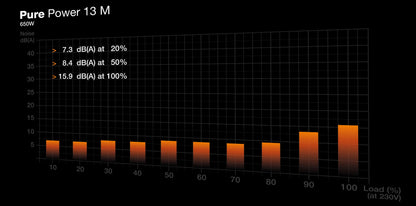

Noise level	30.2 dB
Mean time between failures (MTBF)	100000 h
Bearing technology	Rifle
Design
Product colour	Black
Illumination	No
Power
Total power	650 W
Maximum input current (@220V)	5 A
Peak power	720 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power factor	0.98
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	650 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V1)	54.1 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time	22.5 ms
Efficiency	92.8%
Number of +12V rail(s)	1
Ports & interfaces

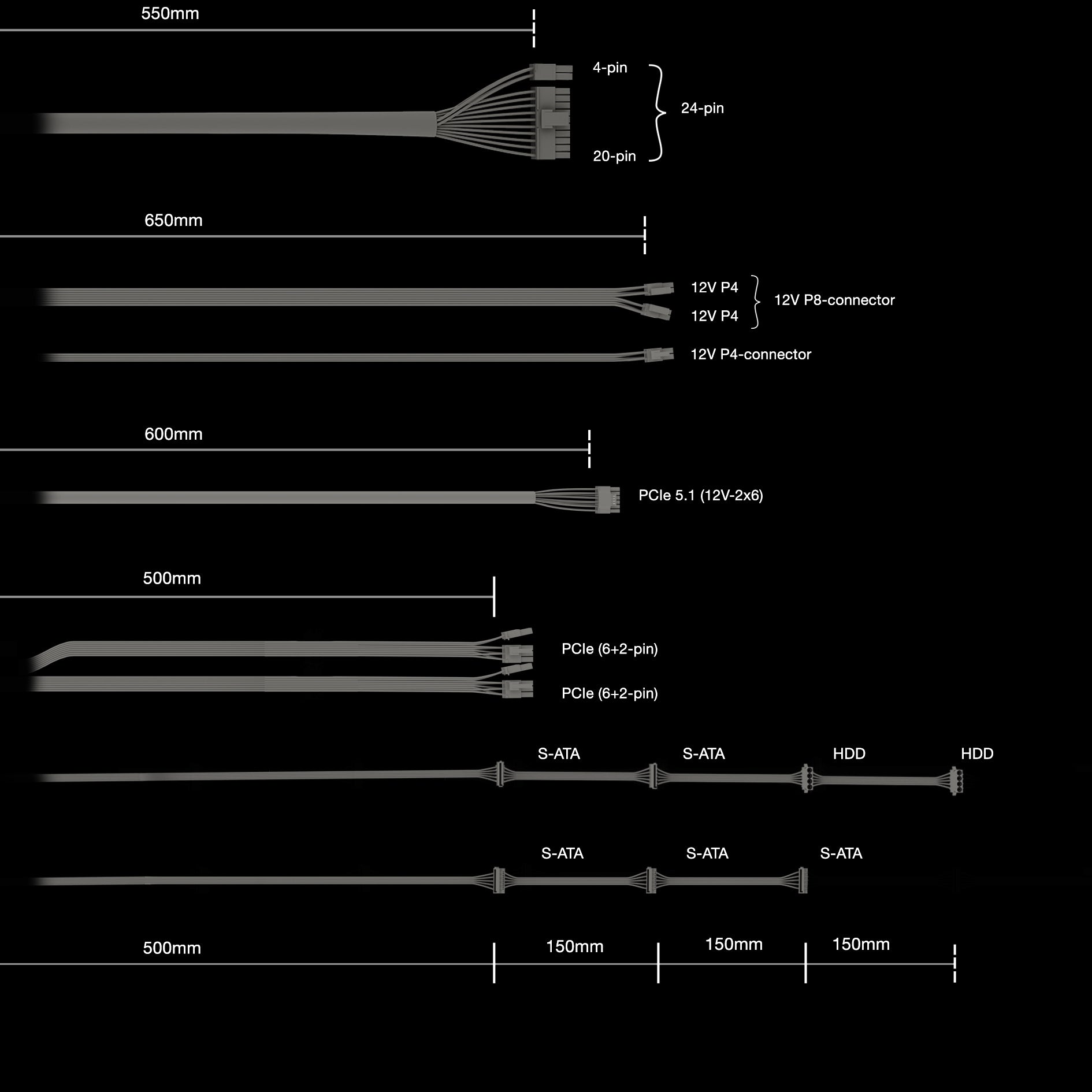

Motherboard power cable length	55 cm
SATA power cable length	500,650,800 mm
Peripheral (Molex) power cable length	800,950 mm
CPU power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
CPU P4 connector (4-pin)	3
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular
PCI Express power connectors (12-pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Shipping (inner) case width	32.5 cm
Shipping (inner) case length	58 cm
Shipping (inner) case height	23.3 cm
Products per shipping (inner) case	6 pc(s)
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Packaging content

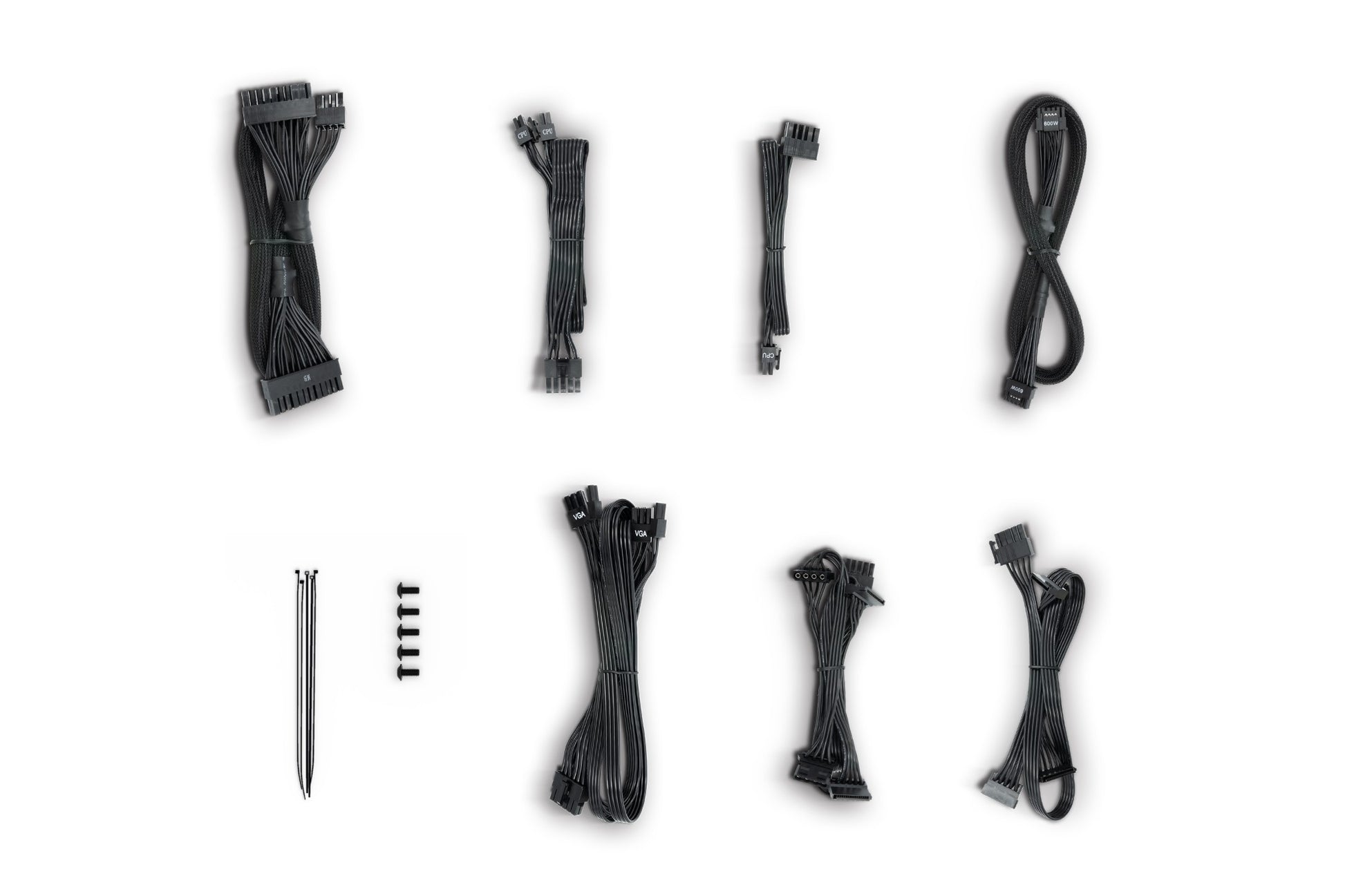

Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Screws included	Yes
Cable ties included	Yes
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	2.32 kg
Packaging data
Package depth	320 mm
Package width	210 mm
Package height	133 mm
Package weight	3.1 kg
Logistics data
Shipping (inner) case gross weight	20.9 kg

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
