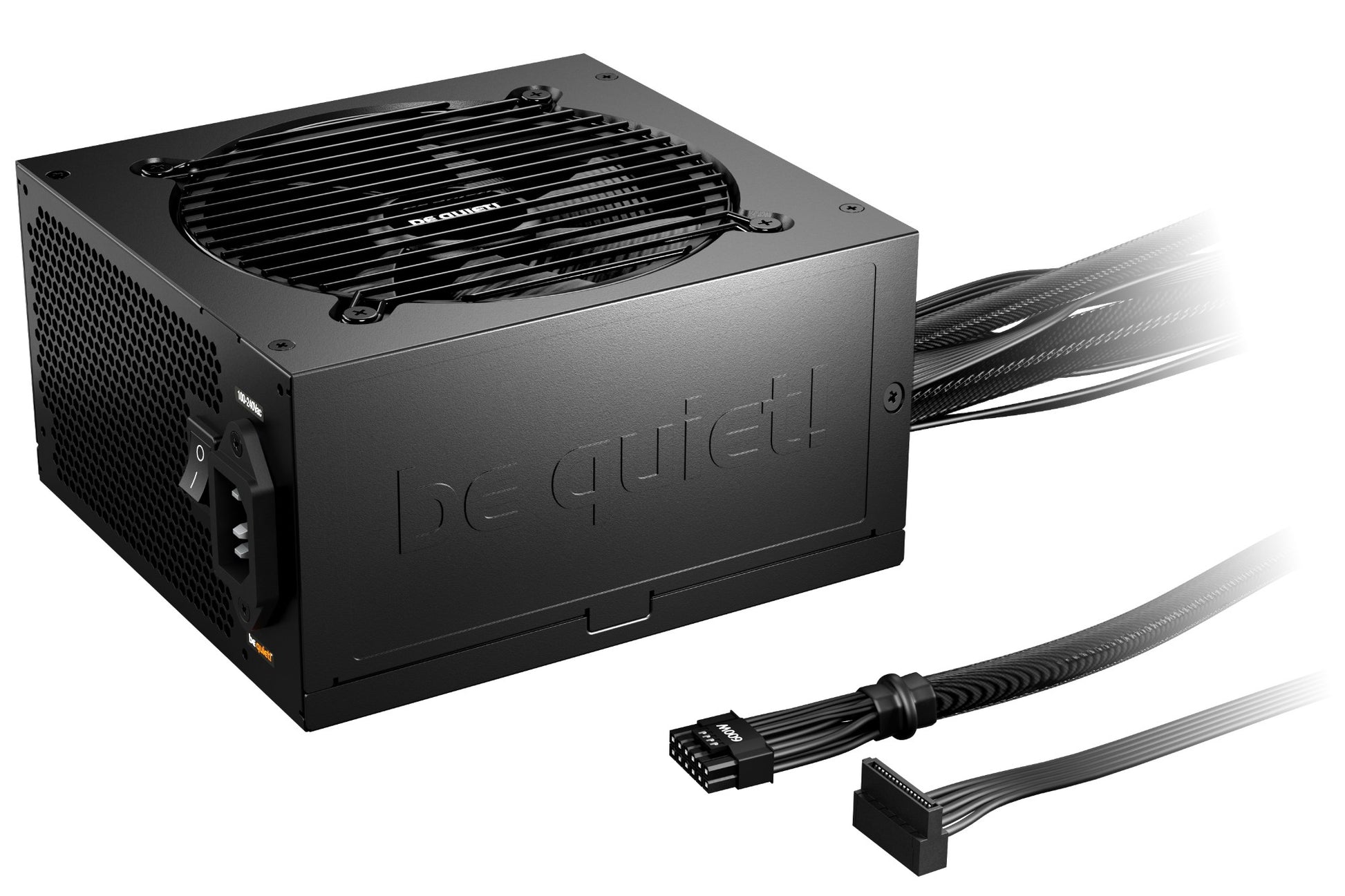

be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black

Reliable power for your system: the be quiet! PURE POWER 12 — wattage and connector details are in the spec table.

Exceptional quiet, superior features
Pure Power 12 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
EPS version	2.92

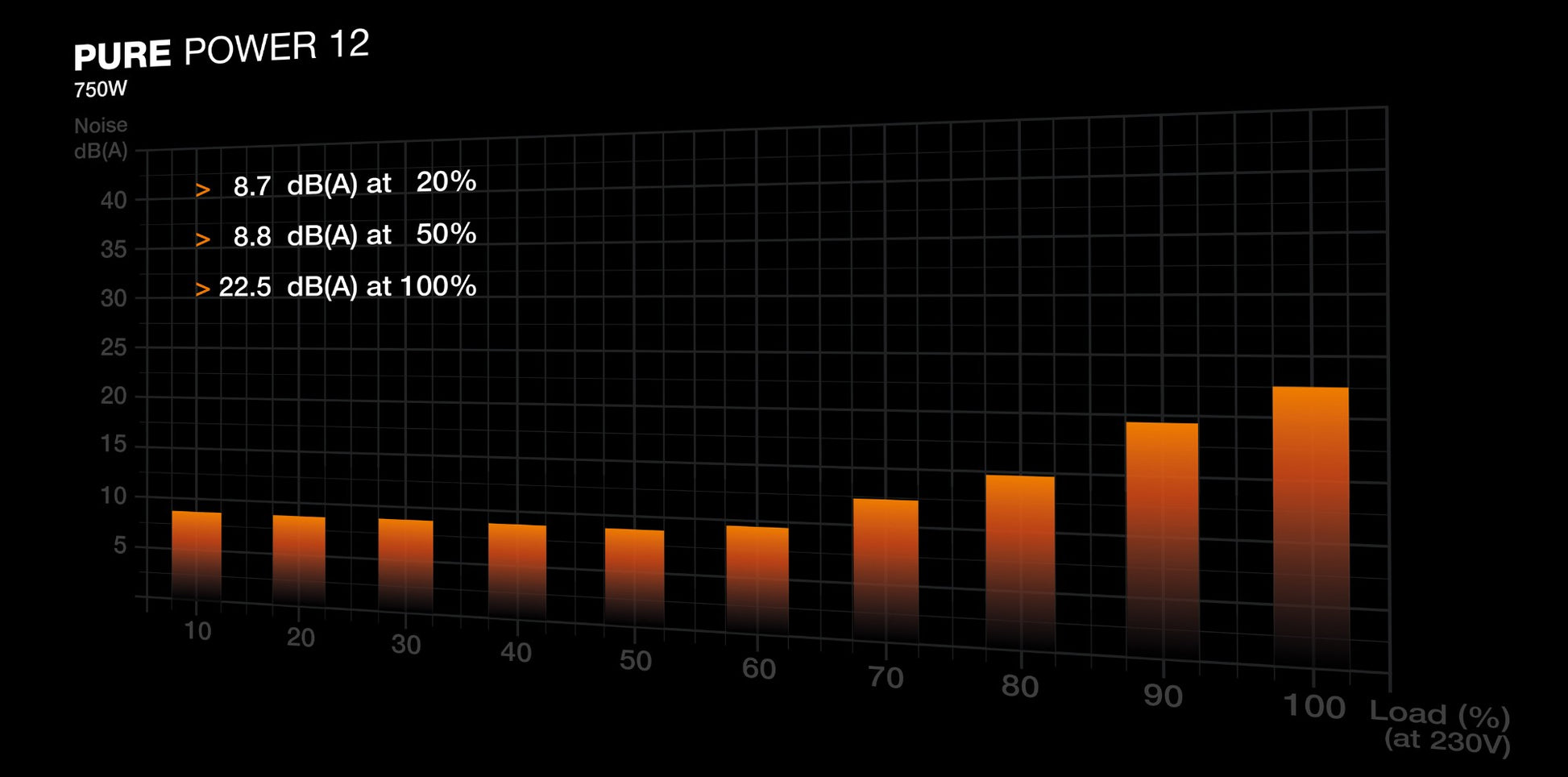

Noise level	22.5 dB
Mean time between failures (MTBF)	100000 h
Bearing technology	Rifle
Design
Product colour	Black
Illumination	No
Power
Total power	750 W
Maximum input current (@220V)	5 A
Peak power	820 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power factor	0.98
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V1)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time	17.04 ms
Efficiency	90.7%
Number of +12V rail(s)	1
Ports & interfaces

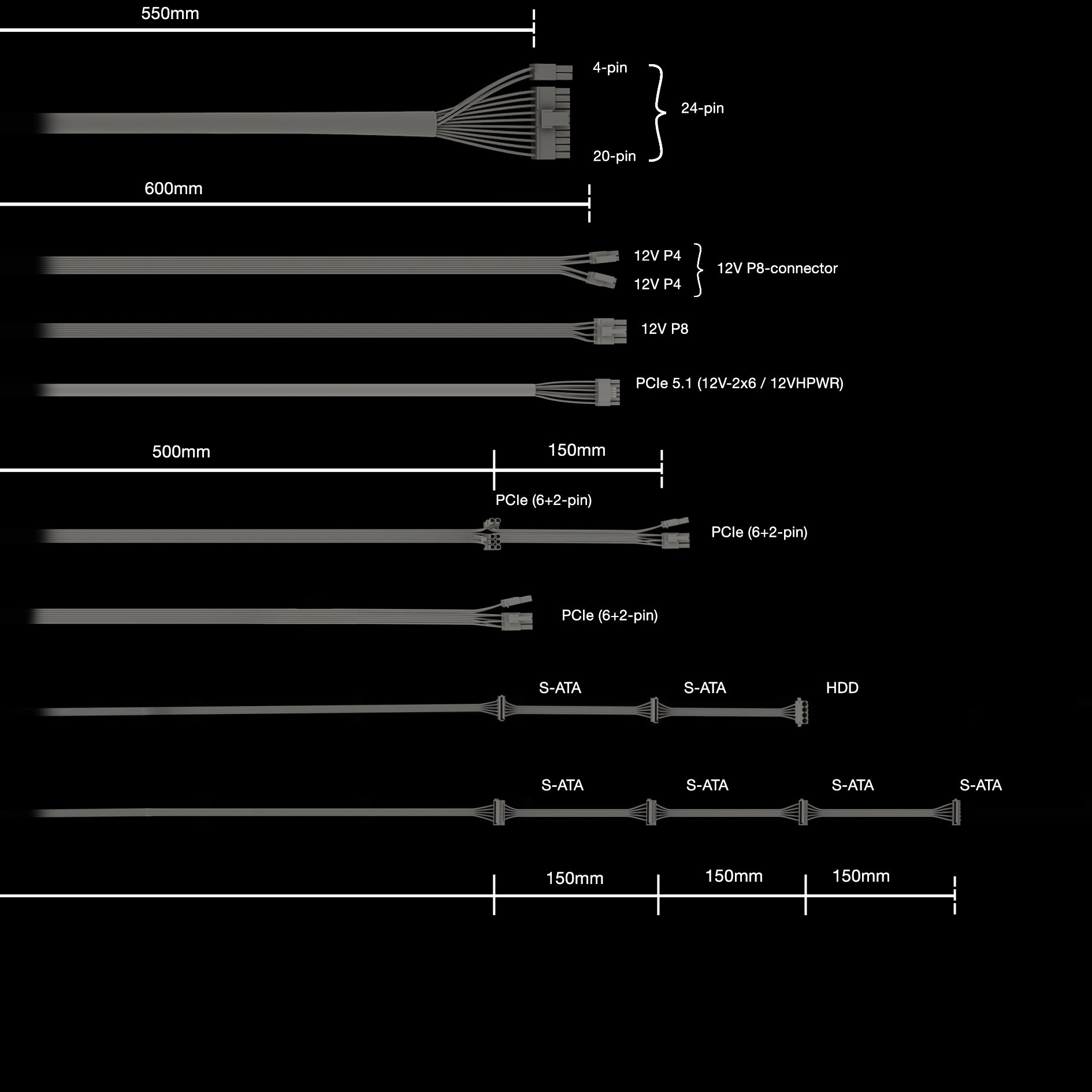

Motherboard power cable length	55 cm
SATA power cable length	500,650,800,950 mm
Peripheral (Molex) power cable length	800 mm
PCI Express power cable length	60 cm
CPU power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	1
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Non-Modular
PCI Express power connectors (12-pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Technical details
Shipping (inner) case width	34.5 cm
Shipping (inner) case net weight	19.2 kg
Shipping (inner) case length	44 cm
Shipping (inner) case height	41.8 cm
Products per shipping (inner) case	6 pc(s)
Sustainability certificates	ENERGY STAR, ErP, Triman
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus

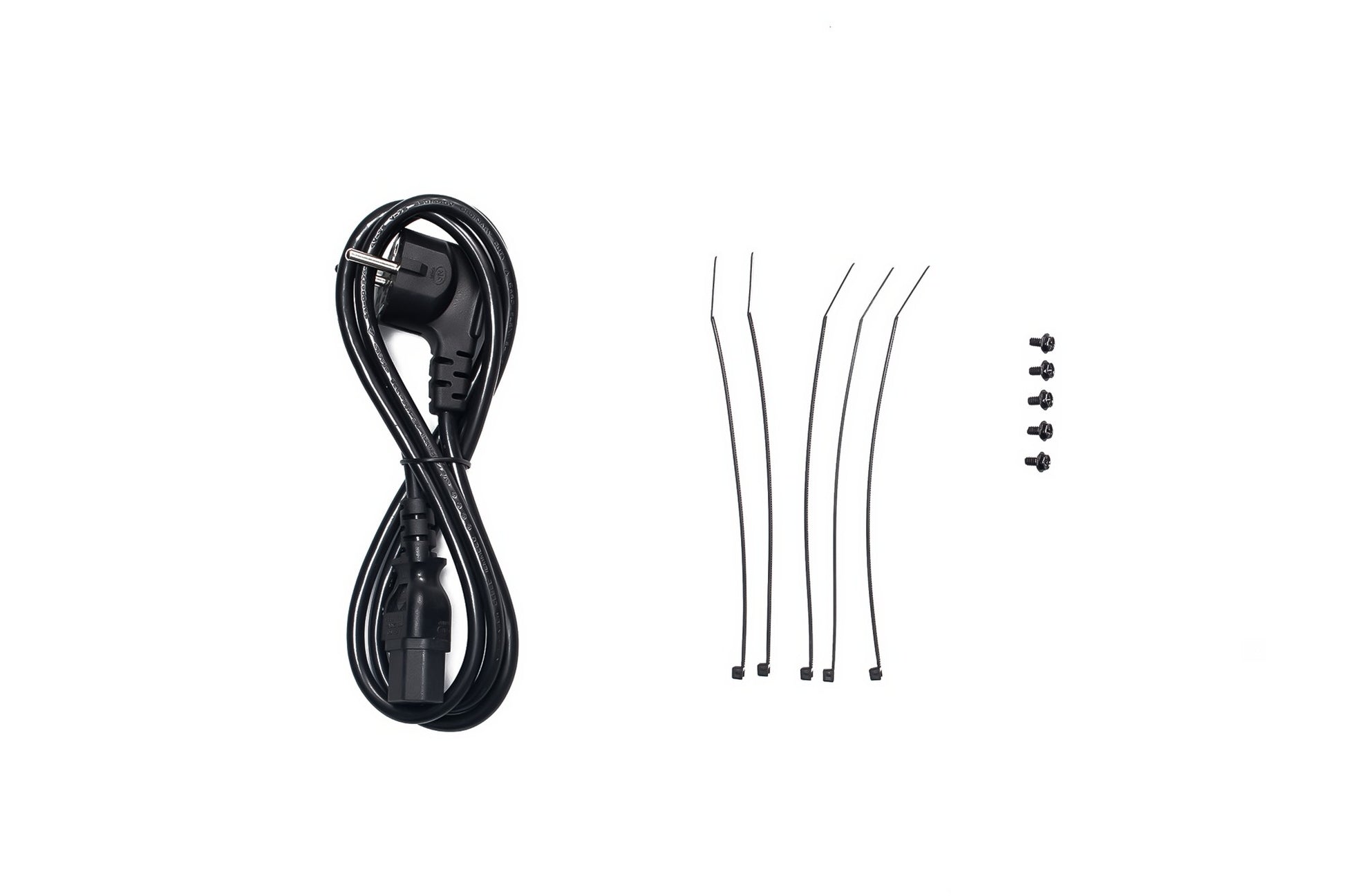

Packaging content
Cables included	AC
Cable tie(s) included	Yes
Screws included	Yes
Weight & dimensions
Width	86 mm
Depth	160 mm
Height	150 mm
Weight	2.6 kg
Packaging data
Package depth	320 mm
Package width	133 mm
Package height	210 mm
Package weight	3 kg
