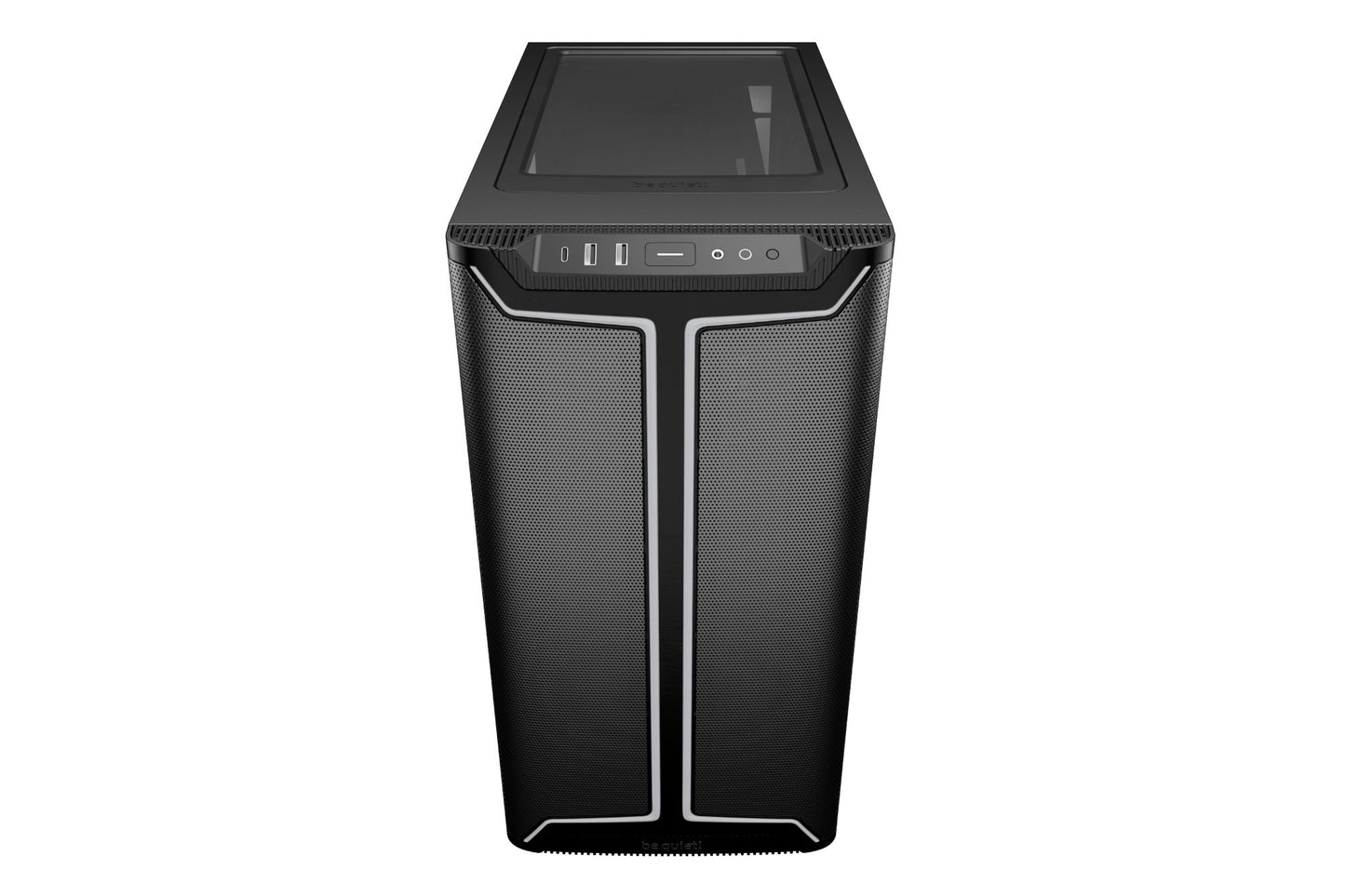

be quiet! Pure Base 501 DX Black Midi Tower PC Case
be quiet! Pure Base 501 DX Black Midi Tower PC Case
Regular price
£84.81 GBP
Regular price
Sale price
£84.81 GBP
Taxes included.
Quantity
Couldn't load pickup availability
House your next build in the be quiet! Pure Base: airflow, clearance and drive-bay details are all in the spec table.

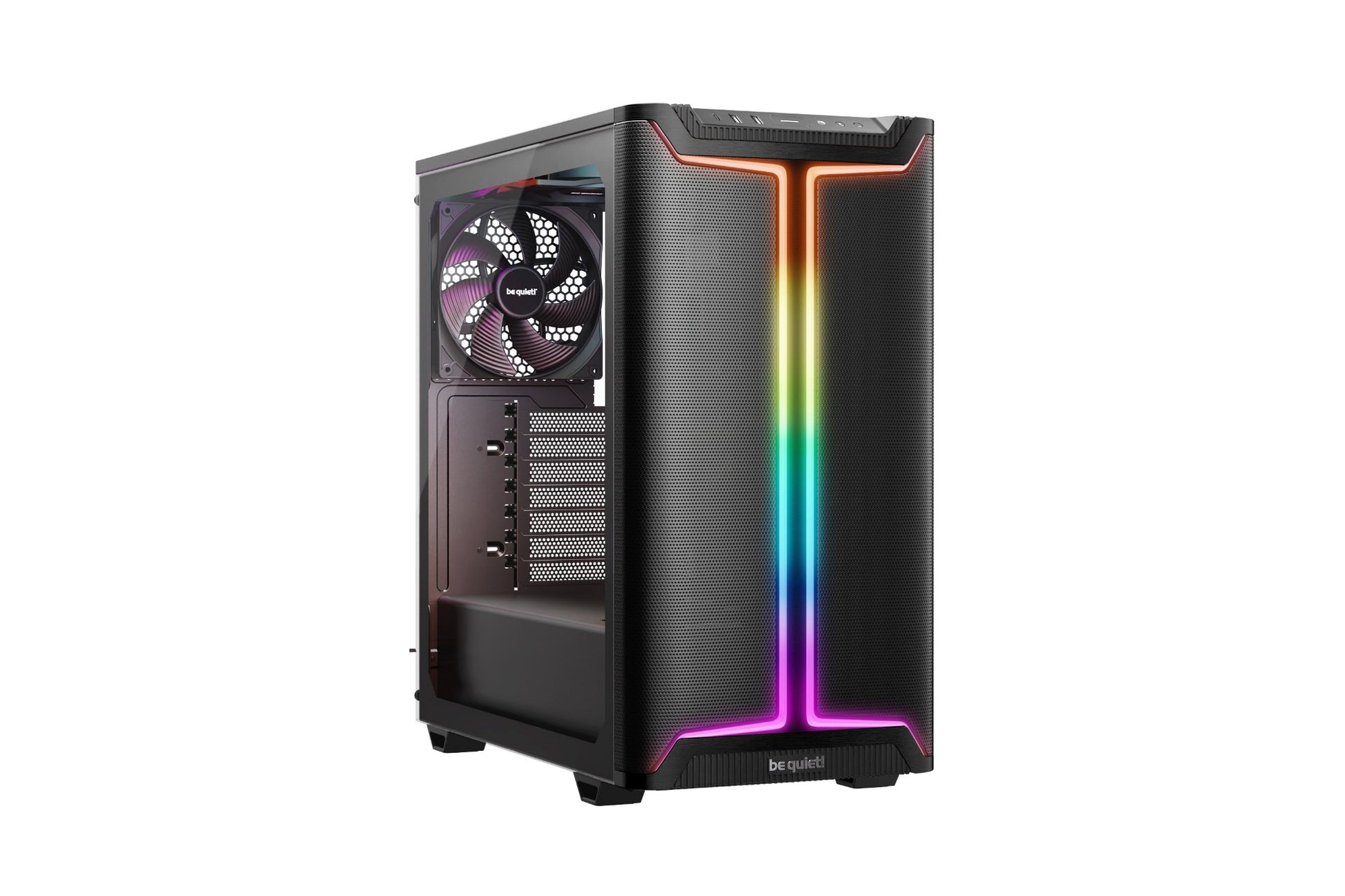

Impressive lighting and airflowPure Base 501 DX Black is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show.
Specifications
| Design | |
|---|---|
| Volume | 24.4 L |
| Fan connector | 4-pin |
| Anti-dust filter | Yes |
| Material | Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Suitable for | Gaming |
| Side window | Yes |
| Illumination location | Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum graphics card length | 36.8 cm |
| Maximum PSU length | 20 cm |
| Type | PC |
| Form factor | Midi Tower |
| Technical details | |
| Supported HDD sizes | 2.5,3.5" |
| Sustainability certificates | Triman |
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Power supply | |
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 0 |
| Cooling | |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240 mm |
| Noise level (high speed) | 21.9 dB |
| Maximum airflow | 57.4 cfm |
| Fan rated voltage | 5 - 13.2 V |
| Fan rated current | 0.06 A |
| Fan power consumption | 3.6 W |
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Top fans installed | 1x 140 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Maximum air pressure | 0.96 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Weight & dimensions | |

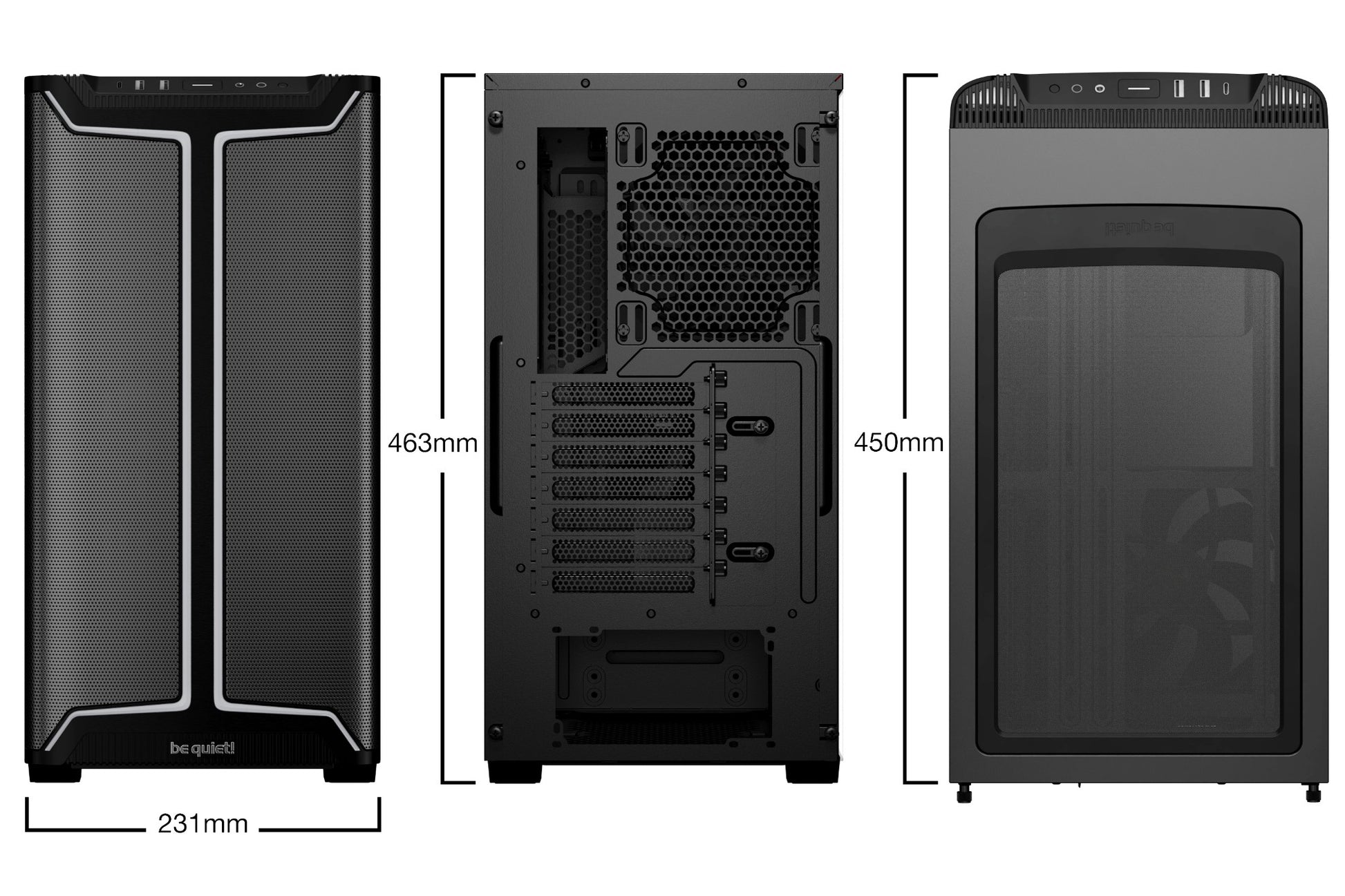

| Width | 231 mm |
| Depth | 450 mm |
| Height | 463 mm |
| Weight | 7.8 kg |
| Packaging data | |
| Package width | 292 mm |
| Package height | 503 mm |
| Package depth | 518 mm |
| Package weight | 9.2 kg |
