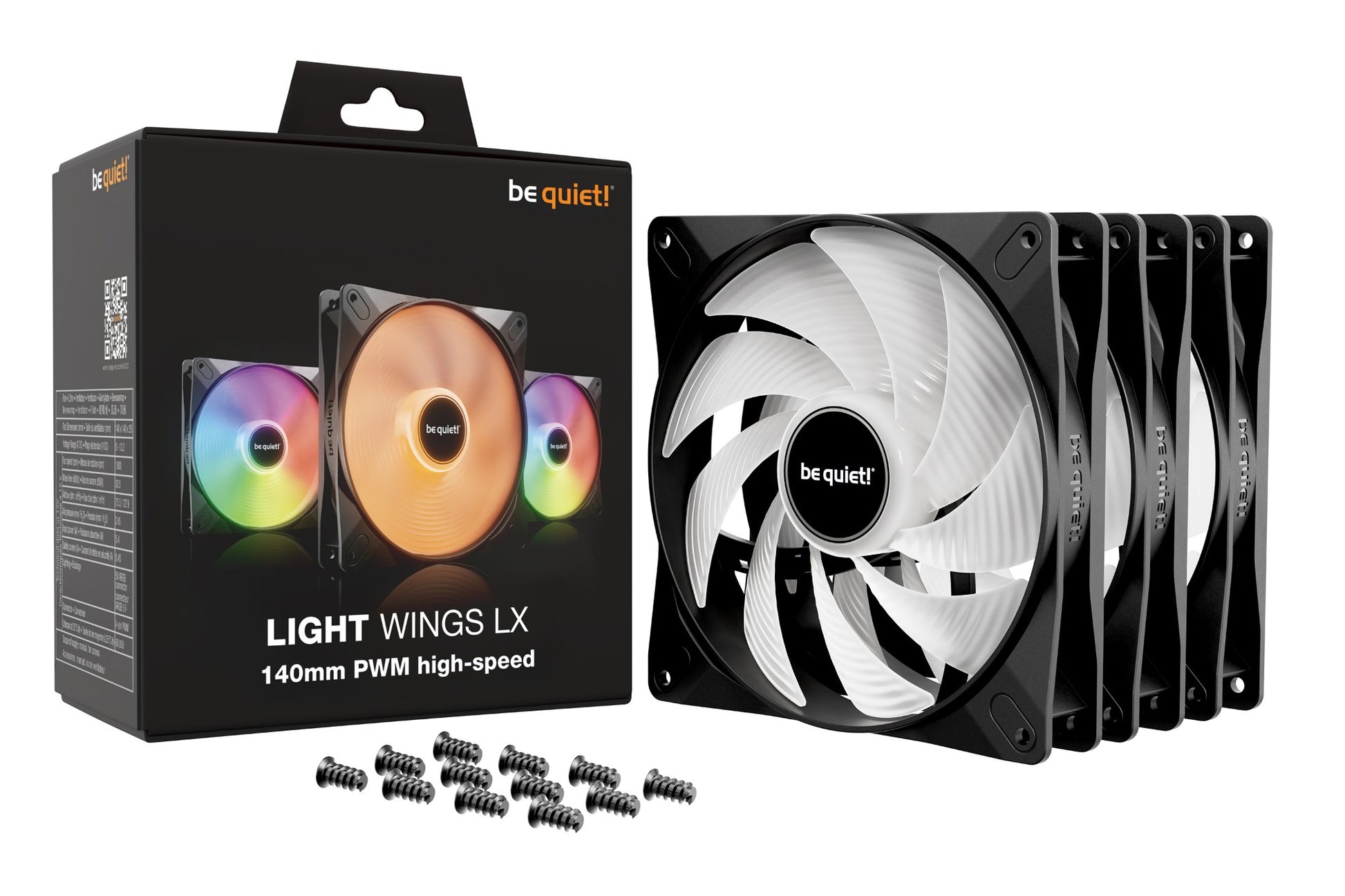

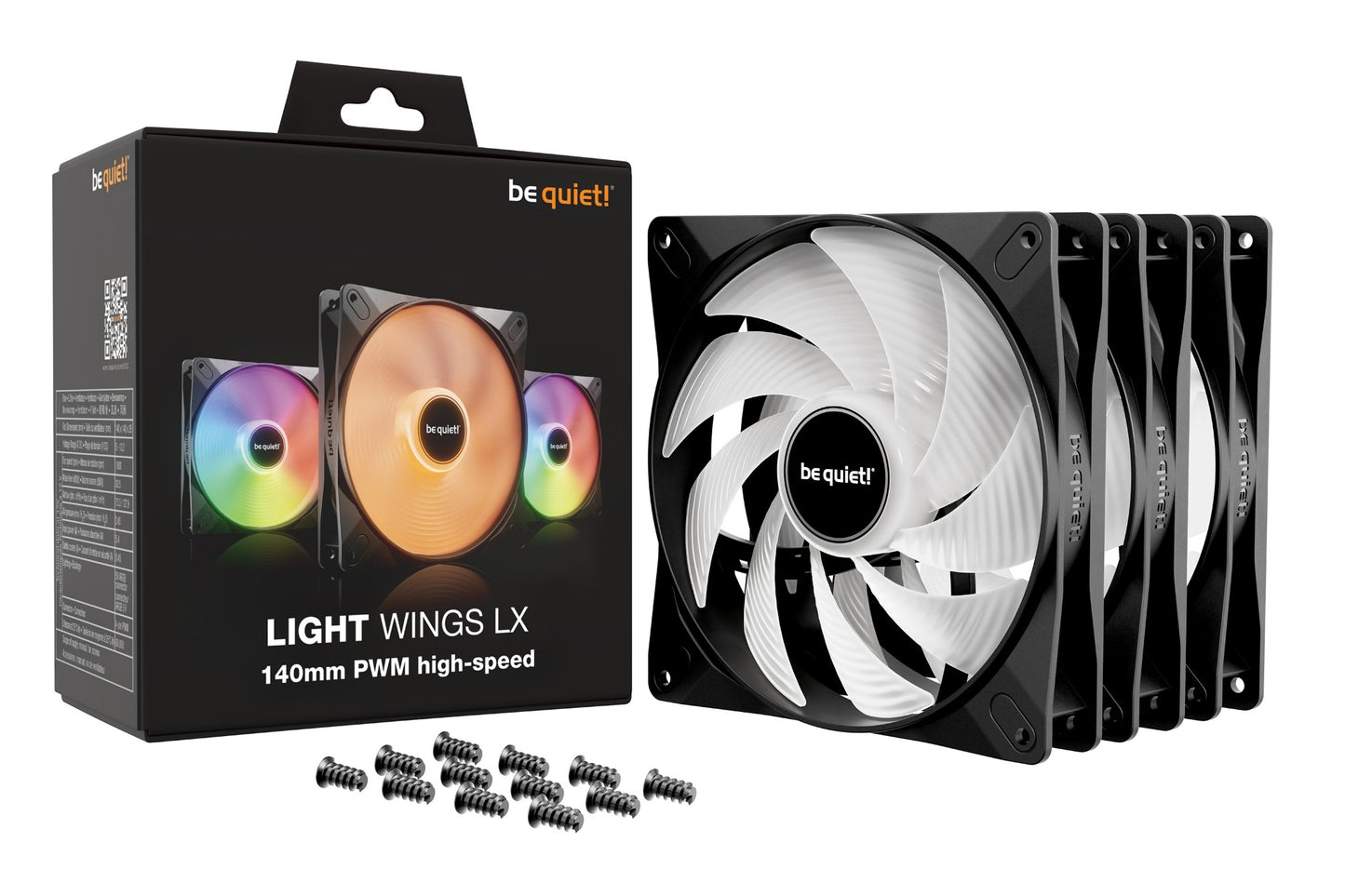

be quiet! LIGHT WINGS LX 140mm PWM High Speed 3-Pack Black Computer case Fan 14 cm 3 Cooling

Keep temperatures in check with the be quiet! LIGHT WINGS LX 140mm — fitment and noise details are in the spec table.

Great performance and impressive lighting

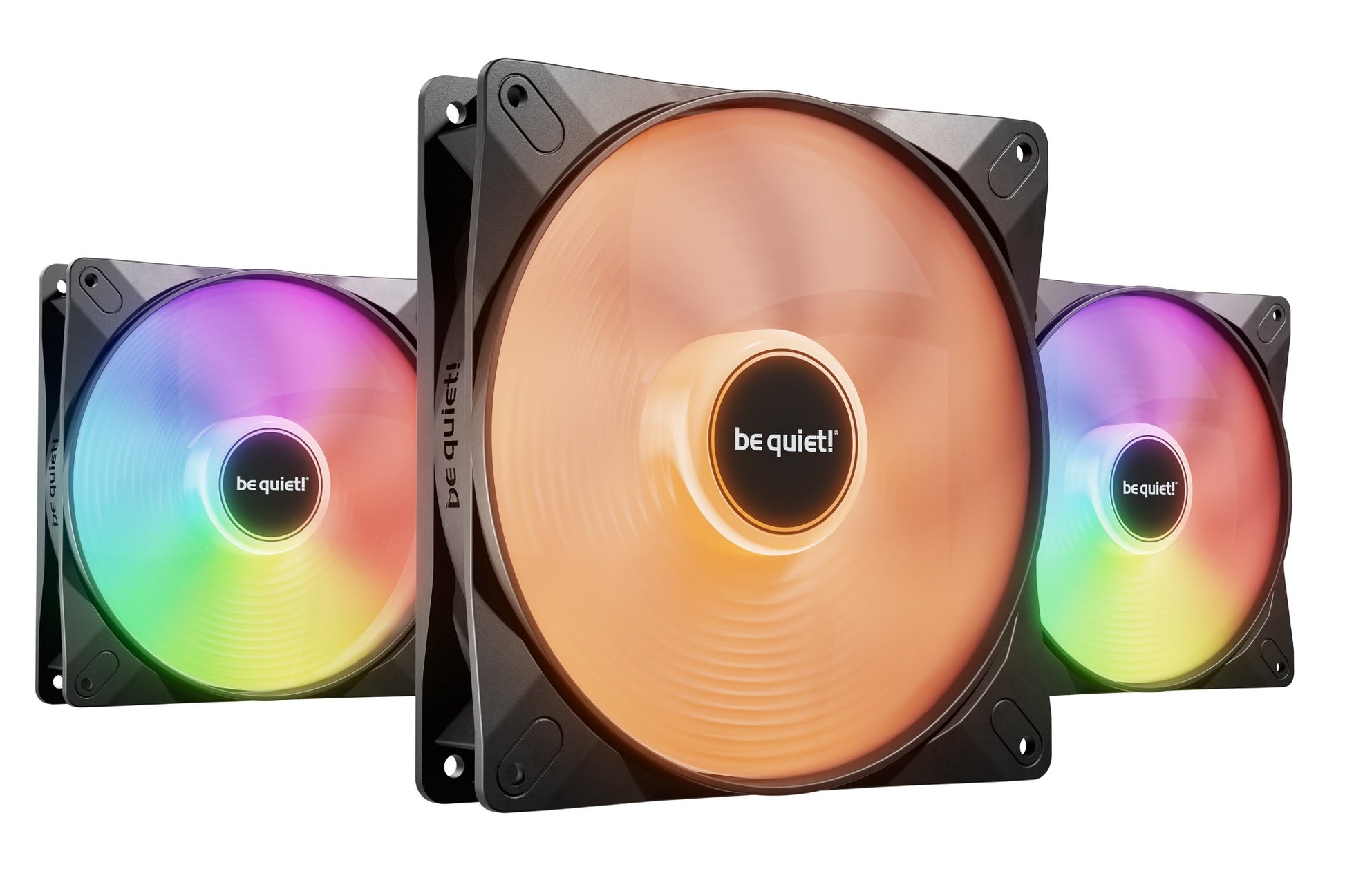

The Light Wings LX 140mm PWM high-speed Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	1800 RPM
Bearing type	Rifle bearing
Noise level (high speed)	30.5 dB
Type	Fan
Fan diameter	14 cm
Maximum airflow	75.3 cfm
Maximum air pressure	2.45 mmH2O
Airflow	127.9 m³/h
Number of fans	3 fan(s)
Mean time between failures (MTBF)	60000 h
Quantity per pack	3 pc(s)
Number of fan blades	9
Design
Illumination colour	Multi
Product colour	Black
Cable length	0.5 m
Illumination LED	Yes
Number of LEDs	16
Display type	Not applicable
LED connector type	3-pin
Technical details
Compliance certificates	CE, RoHS, UKCA, WEEE
Power
Rated voltage	12 V
Voltage	5 - 13.2 V
Maximum current	0.45 A
Fan power consumption	5.4 W
Fan voltage	12 V
Fan current	0.18 A
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 25 mm
Package depth	184 mm
Package width	80 mm
Package height	142 mm
Fan weight	169 g
Package weight	590 g
Height	140 mm
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Number of screws	12
Logistics data
Shipping (inner) case width	30.9 cm
Shipping (inner) case length	42.8 cm
Shipping (inner) case height	36 cm
Shipping (inner) case gross weight	12.6 kg
Products per shipping (inner) case	20 pc(s)

Downloads

• Datasheet (PDF)
