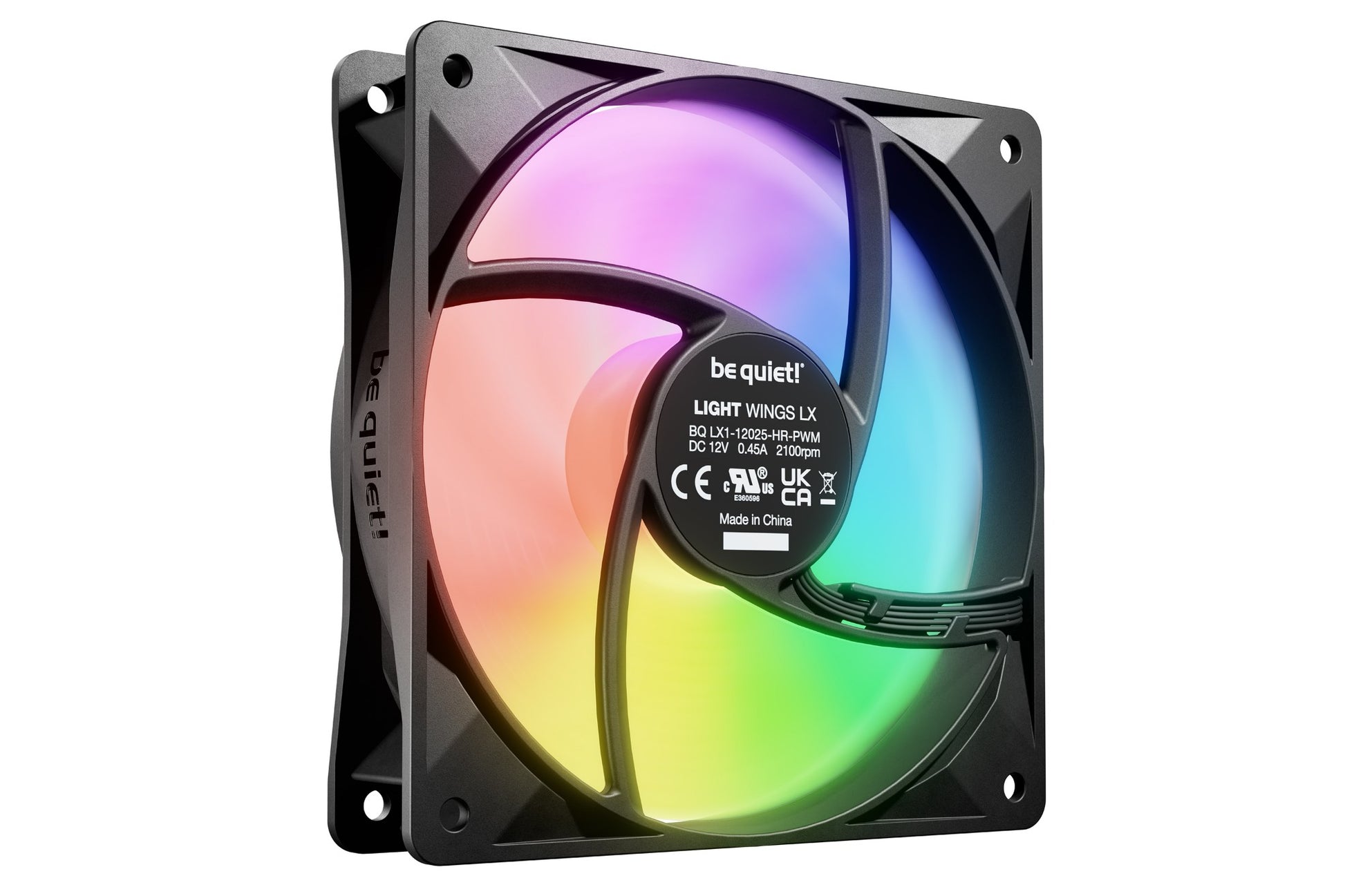

be quiet! LIGHT WINGS LX 120mm PWM high-speed Computer case Fan 12 cm Black 1 pc(s) Cooling

Keep temperatures in check with the be quiet! LIGHT WINGS LX 120mm — fitment and noise details are in the spec table.

Great performance and impressive lighting
The Light Wings LX 120mm PWM high-speed boasts optimized fan blades and an illuminated impeller for great performance and lighting.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	2100 RPM
Bearing type	Rifle bearing
Noise level (high speed)	30.9 dB
Type	Fan
Fan diameter	12 cm
Maximum airflow	61.8 cfm
Maximum air pressure	2.51 mmH2O
Airflow	105.1 m³/h
Number of fans	1 fan(s)
Mean time between failures (MTBF)	60000 h
Quantity per pack	1 pc(s)
Number of fan blades	9
Design
Illumination colour	Multi
Product colour	Black
Cable length	0.5 m
Illumination LED	Yes
Number of LEDs	16
Display type	Not applicable
LED connector type	3-pin
Technical details
Compliance certificates	CE, RoHS, UKCA, WEEE
Power
Voltage	5 - 13.2 V
Maximum current	0.45 A
Fan power consumption	5.4 W
Fan voltage	12 V
Fan current	0.15 A
Weight & dimensions
Package depth	164 mm
Package width	122 mm
Package height	27 mm
Width	120 mm
Package weight	210 g
Depth	25 mm
Height	120 mm
Weight	135 g
Packaging data
Package type	Box

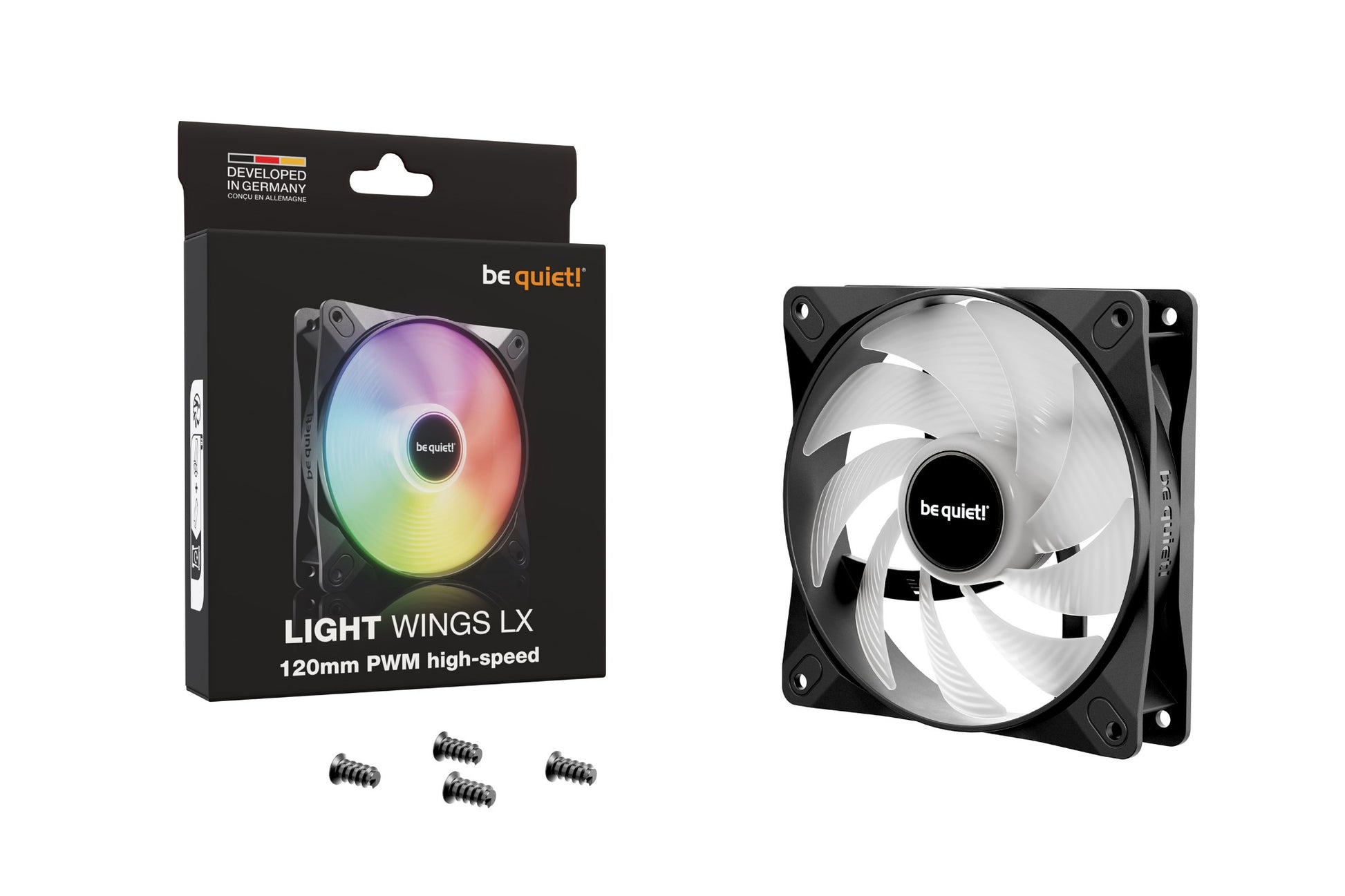

Packaging content
Screws included	Yes
Number of screws	4
Logistics data
Shipping (inner) case width	31.9 cm
Shipping (inner) case length	43.3 cm
Shipping (inner) case height	29 cm
Shipping (inner) case gross weight	10.9 kg
Products per shipping (inner) case	60 pc(s)
