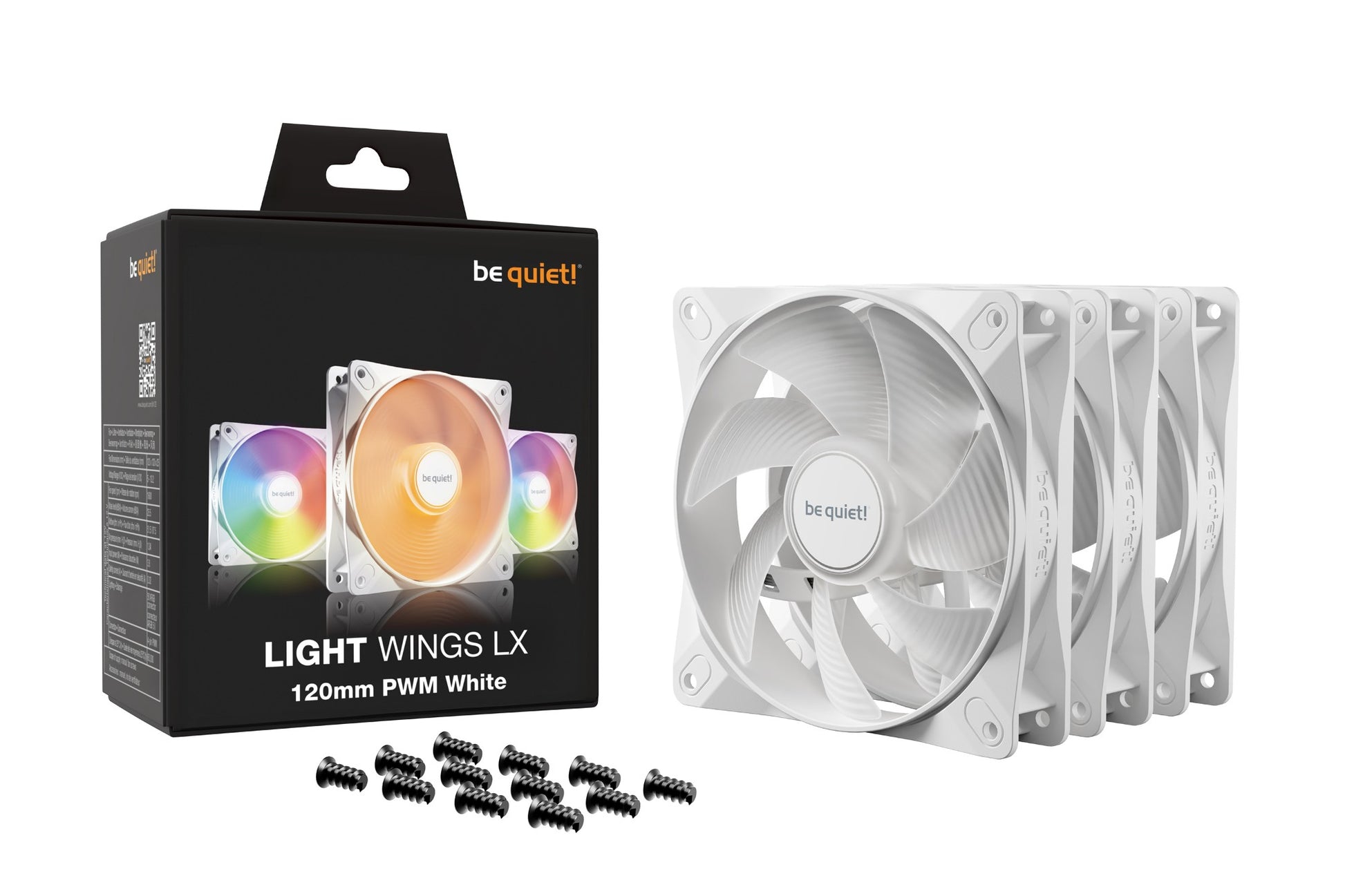

be quiet! LIGHT WINGS LX 120mm PWM 3-Pack White Computer case Fan 12 cm 3 pc(s) Cooling

Keep temperatures in check with the be quiet! LIGHT WINGS LX 120mm — fitment and noise details are in the spec table.

Great performance and impressive lighting

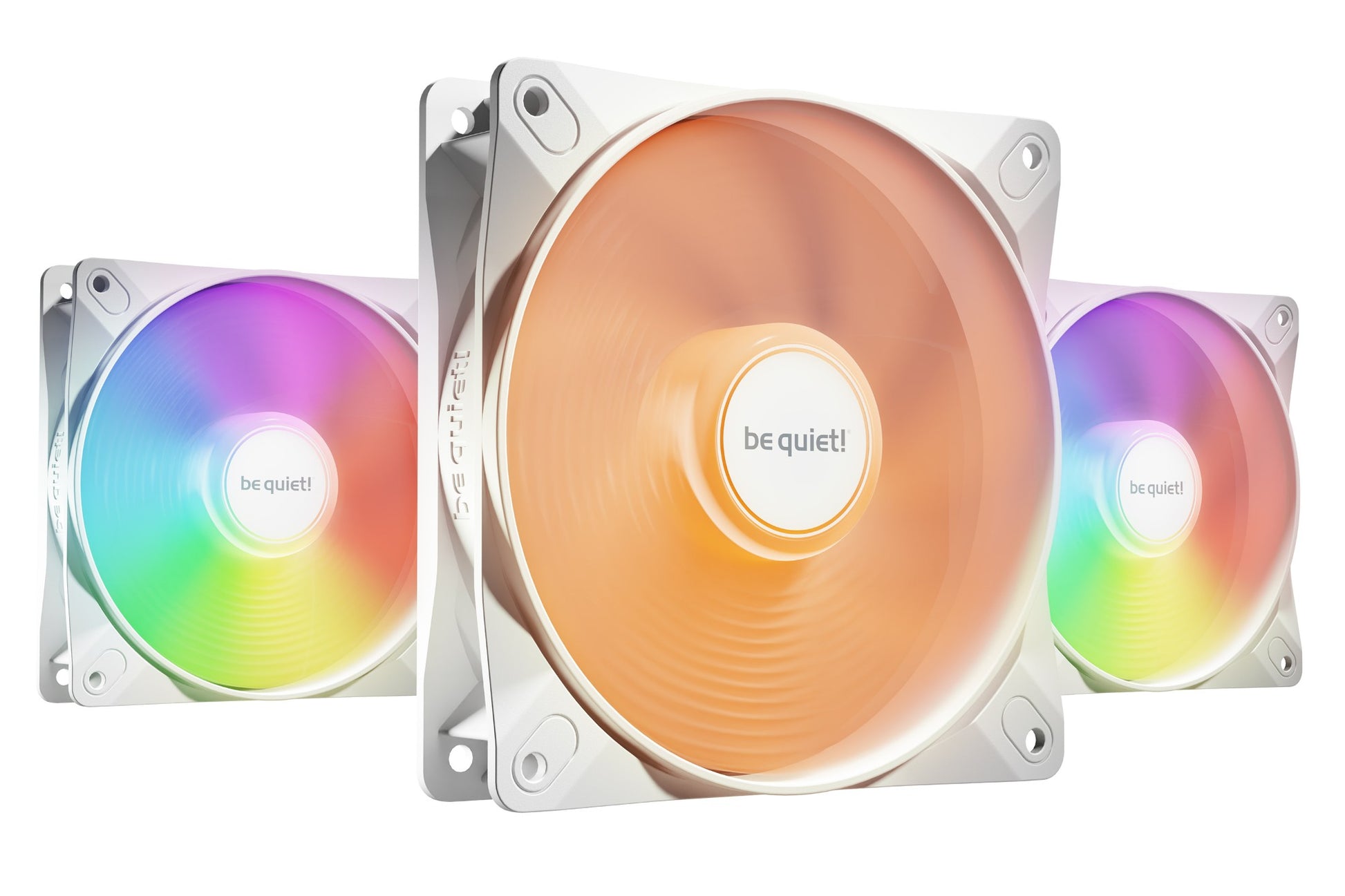

The Light Wings LX 120mm PWM White Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	1600 RPM
Bearing type	Rifle bearing
Noise level (high speed)	25.5 dB
Type	Fan
Fan diameter	12 cm
Maximum airflow	51.5 cfm
Maximum air pressure	1.34 mmH2O
Airflow	87.5 m³/h
Number of fans	3 fan(s)
Mean time between failures (MTBF)	60000 h
Quantity per pack	3 pc(s)
Number of fan blades	7
Design
Illumination colour	Multi
Product colour	White
Cable length	0.5 m
Illumination LED	Yes
Number of LEDs	16
Display type	Not applicable
LED connector type	3-pin
Technical details
Compliance certificates	CE, RoHS, UKCA, WEEE
Power
Rated voltage	12 V
Voltage	5 - 13.2 V
Maximum current	0.32 A
Fan power consumption	3.8 W
Fan voltage	12 V
Fan current	0.1 A
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	164 mm
Package width	122 mm
Package height	80 mm
Fan weight	133 g
Package weight	470 g
Height	120 mm
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Number of screws	12
Logistics data
Shipping (inner) case width	26.9 cm
Shipping (inner) case length	42.8 cm
Shipping (inner) case height	32 cm
Shipping (inner) case gross weight	10.2 kg
Products per shipping (inner) case	20 pc(s)
