be quiet! Light Wings LX 120 mm PWM Reverse Black Computer case Fan 12 cm 1 pc(s) Cooling

Keep temperatures in check with the be quiet! Light Wings LX — fitment and noise details are in the spec table.

Great performance and impressive lighting

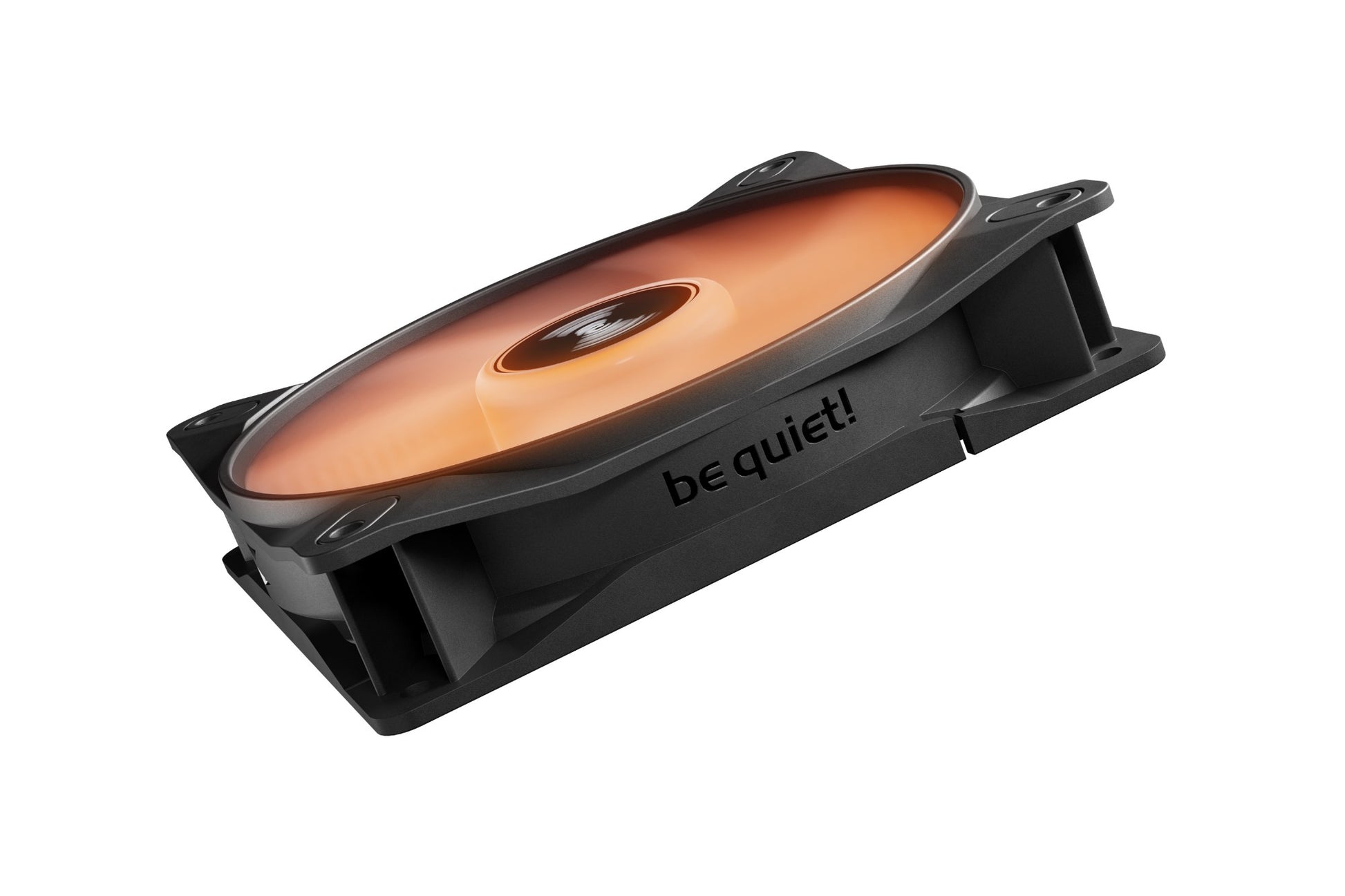

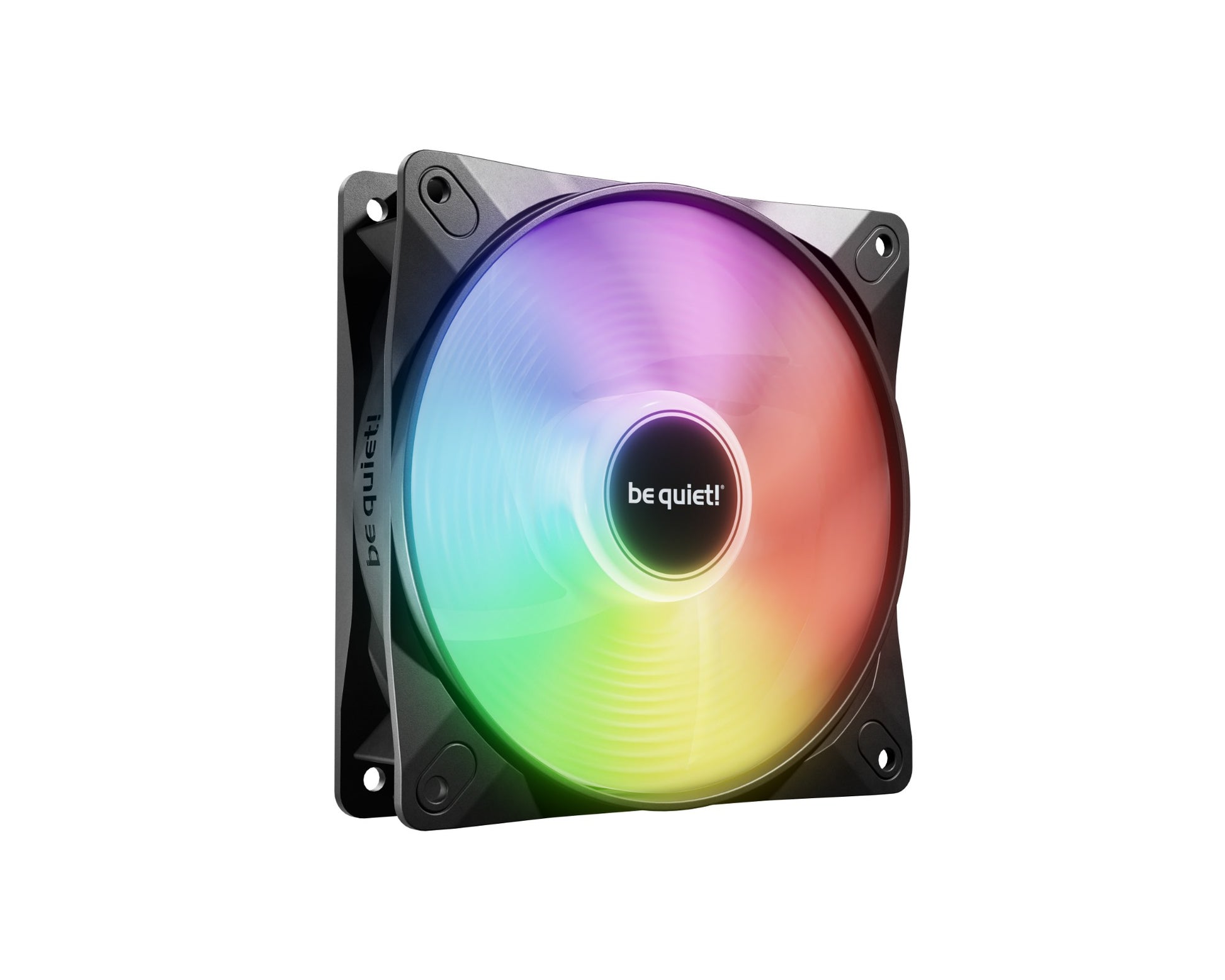

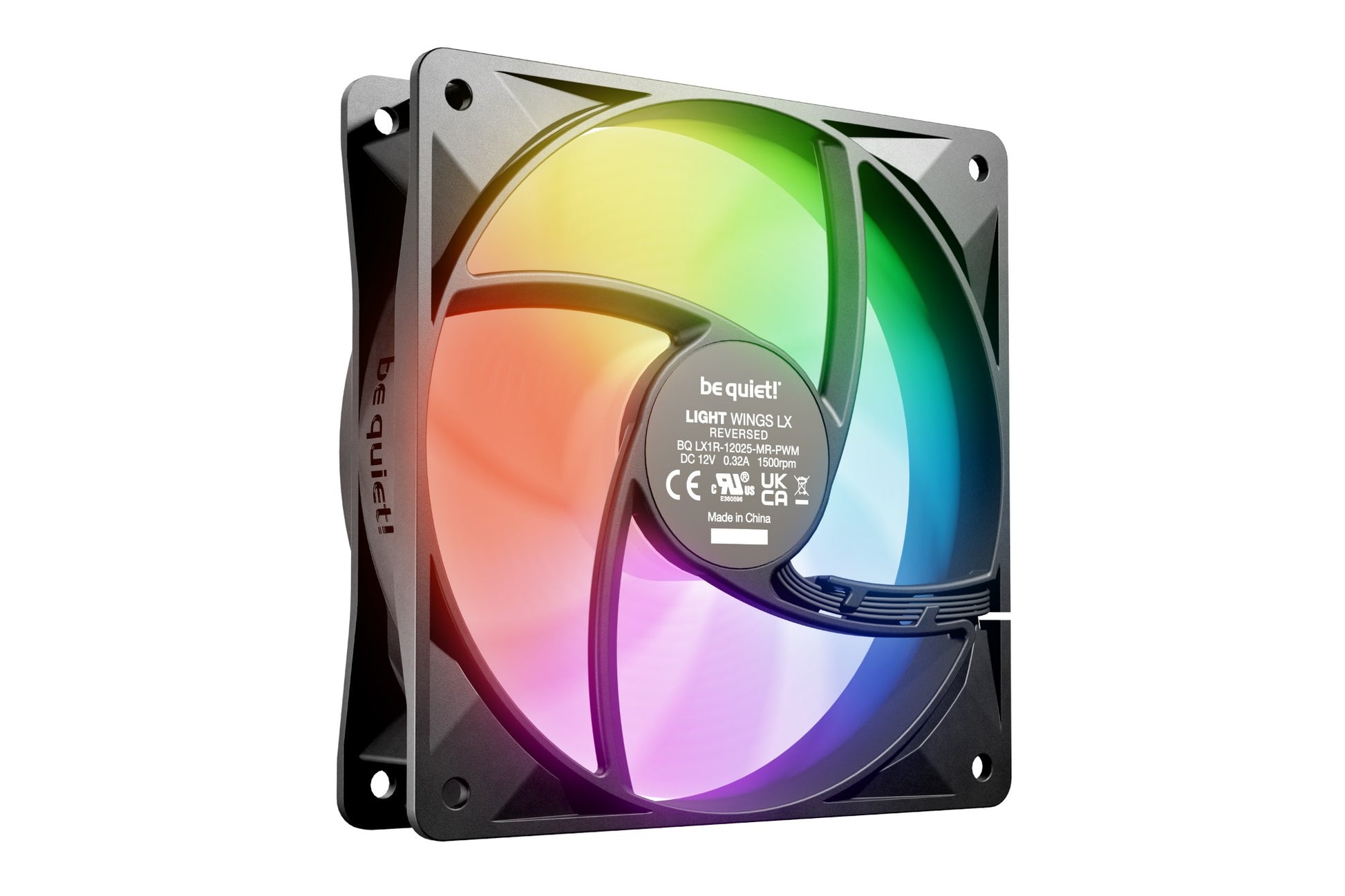

The Light Wings LX 120mm PWM Reverse Black boasts reversed fan blades and an illuminated impeller for great performance and lighting. This fan will take your system to the next level. The Light Wings LX 120mm PWM Reverse Black is particularly suited for color-rich ARGB builds. Not only does the fan provide unmistakable, high-quality lighting, but also reliable cooling.

Specifications

Performance
Suitable location	Computer case
Fan connector	3-pin
Pulse-width modulation (PWM) support	Yes

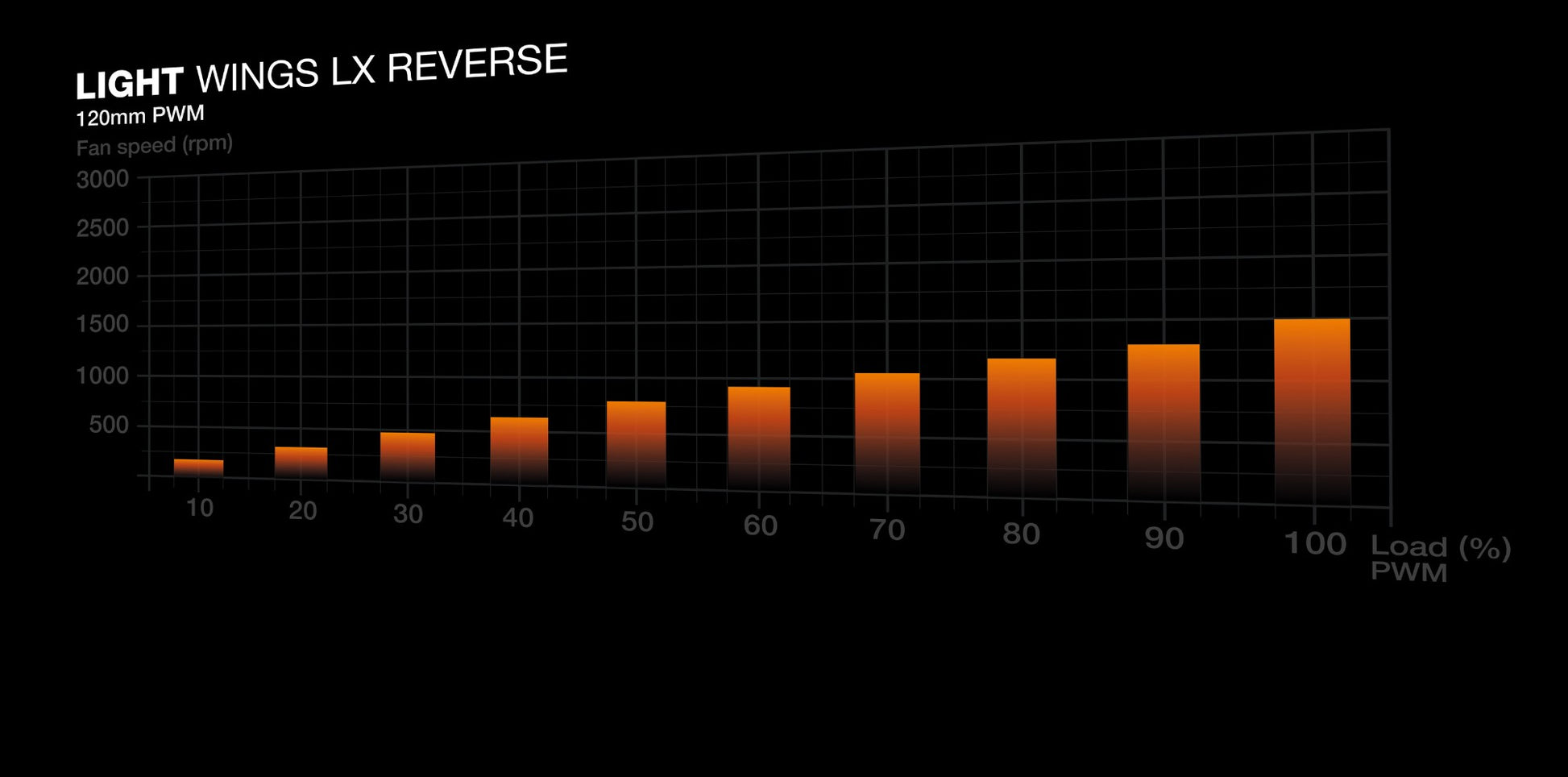

Rotational speed (max)	1500 RPM
Bearing type	Rifle bearing
Noise level (high speed)	28.5 dB
Type	Fan
Fan diameter	12 cm
Maximum airflow	48.8 cfm
Maximum air pressure	1.04 mmH2O
Airflow	83 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Fan's mean time to failure (MTTF)	60000 h
Design
Illumination colour	Multi
Product colour	Black
Cable length	0.5 m
Illumination LED	Yes
Display type	Not applicable
Technical details
Sustainability certificates	Triman
Compliance certificates	CE, RoHS, UKCA, WEEE
Power
Rated voltage	12 V
Voltage	5 - 13.2 V
Rated current	0.39 A
Fan power consumption	3.8 W
Fan current	0.1 A
Weight & dimensions

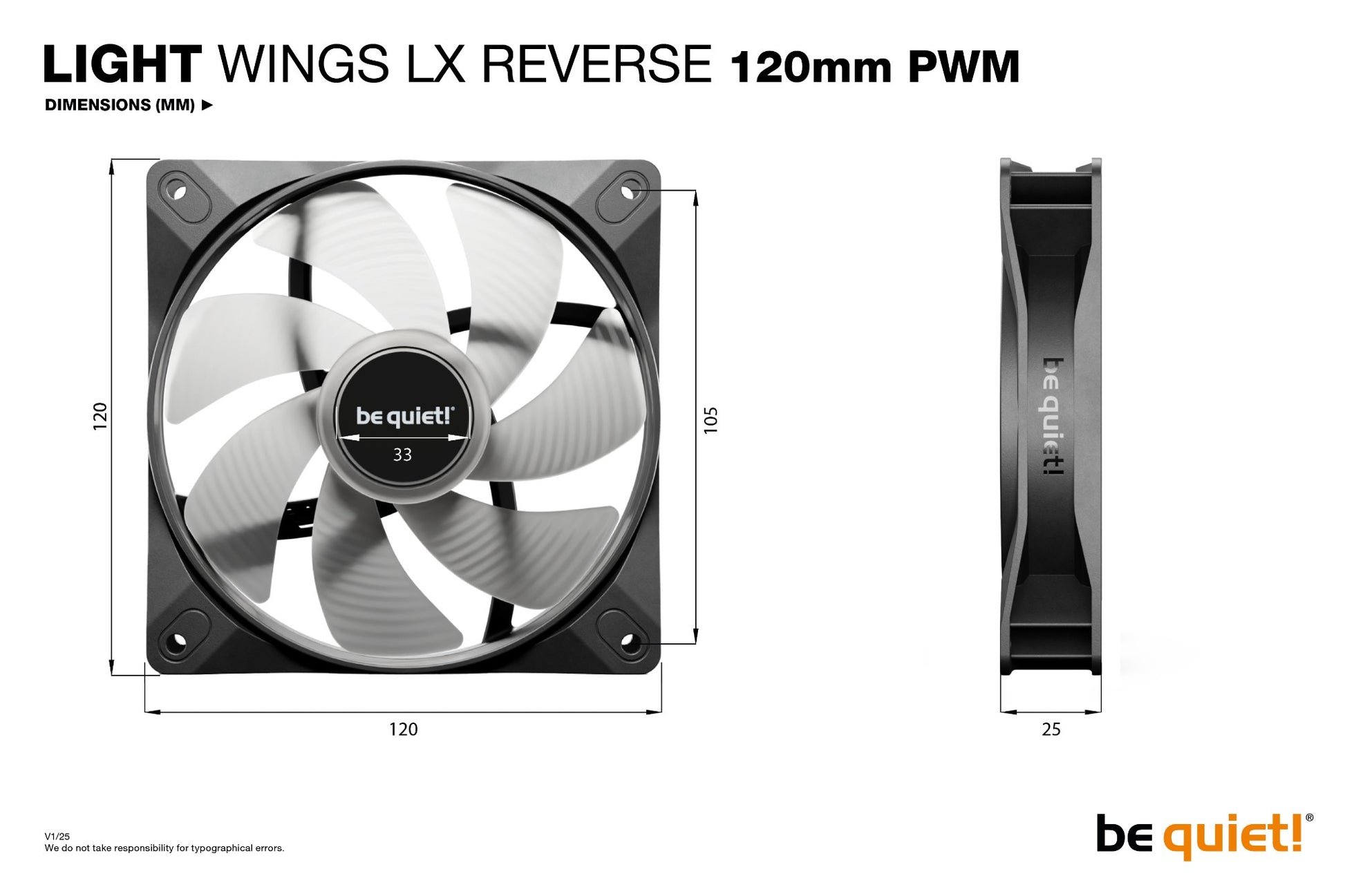

Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	27 mm
Package width	164 mm
Package height	122 mm
Fan weight	133 g
Package weight	170 g
Height	120 mm
Packaging content
Screws included	Yes
Number of screws	4
Logistics data
Shipping (inner) case width	43.3 cm
Shipping (inner) case length	31.9 cm
Shipping (inner) case height	29 cm
Shipping (inner) case gross weight	10.8 kg
Products per shipping (inner) case	60 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
