be quiet! Light Wings 140 mm PWM Reverse Black Computer case Fan 14 cm 1 pc(s) Cooling

Keep temperatures in check with the be quiet! Light Wings — fitment and noise details are in the spec table.

Impressive lighting, superior cooling

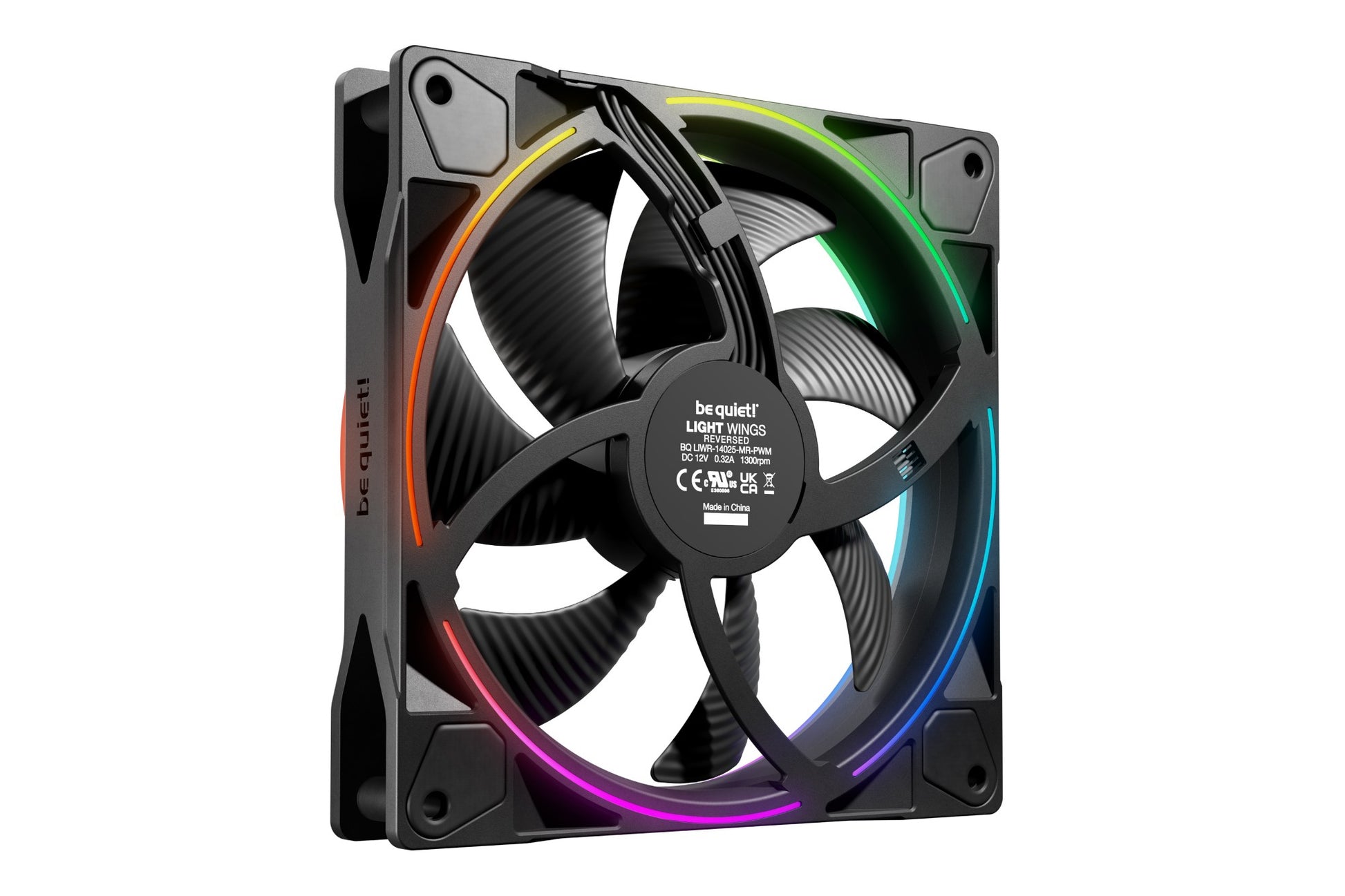

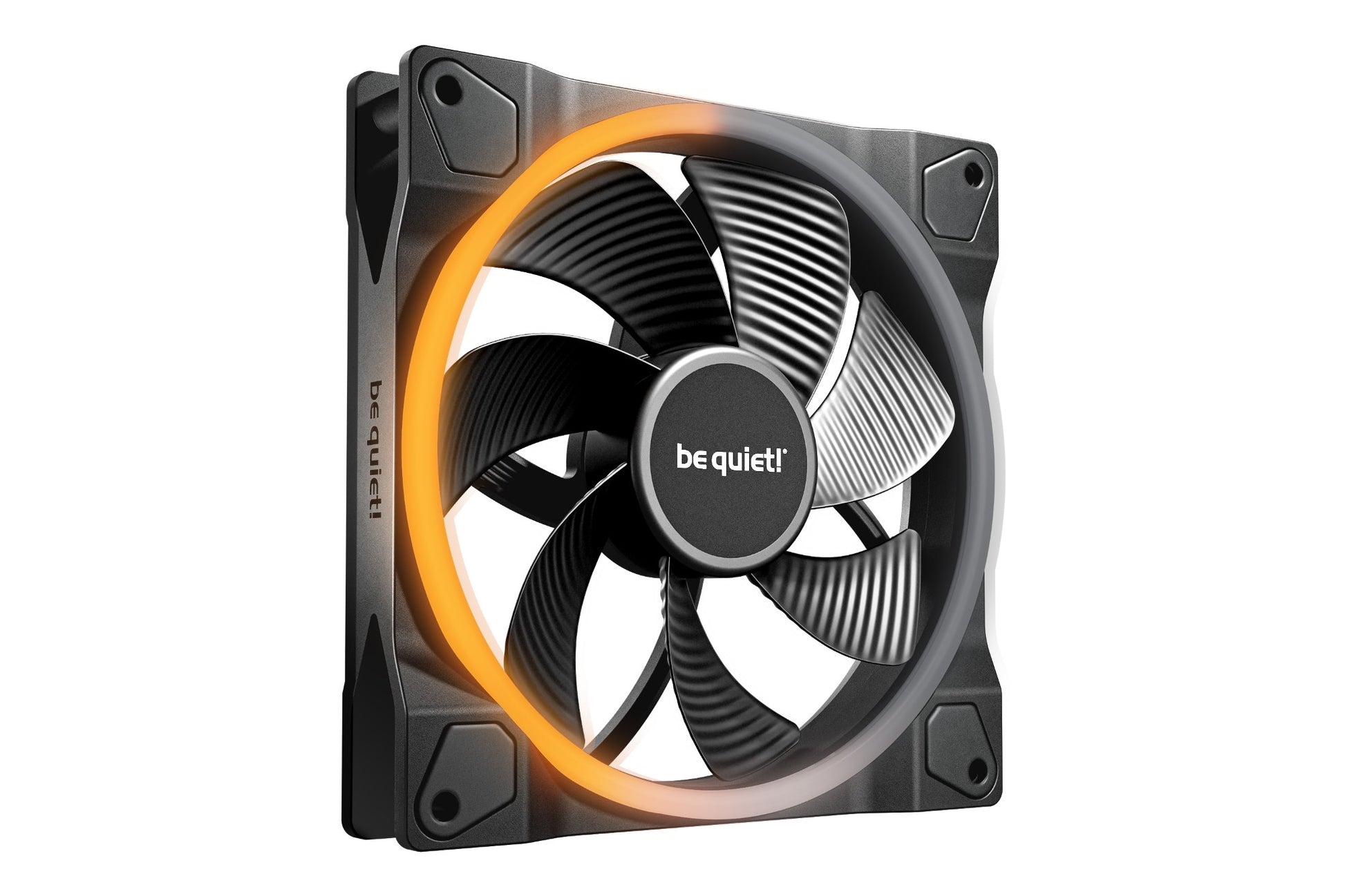

Light Wings 140mm PWM Reverse Black offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.

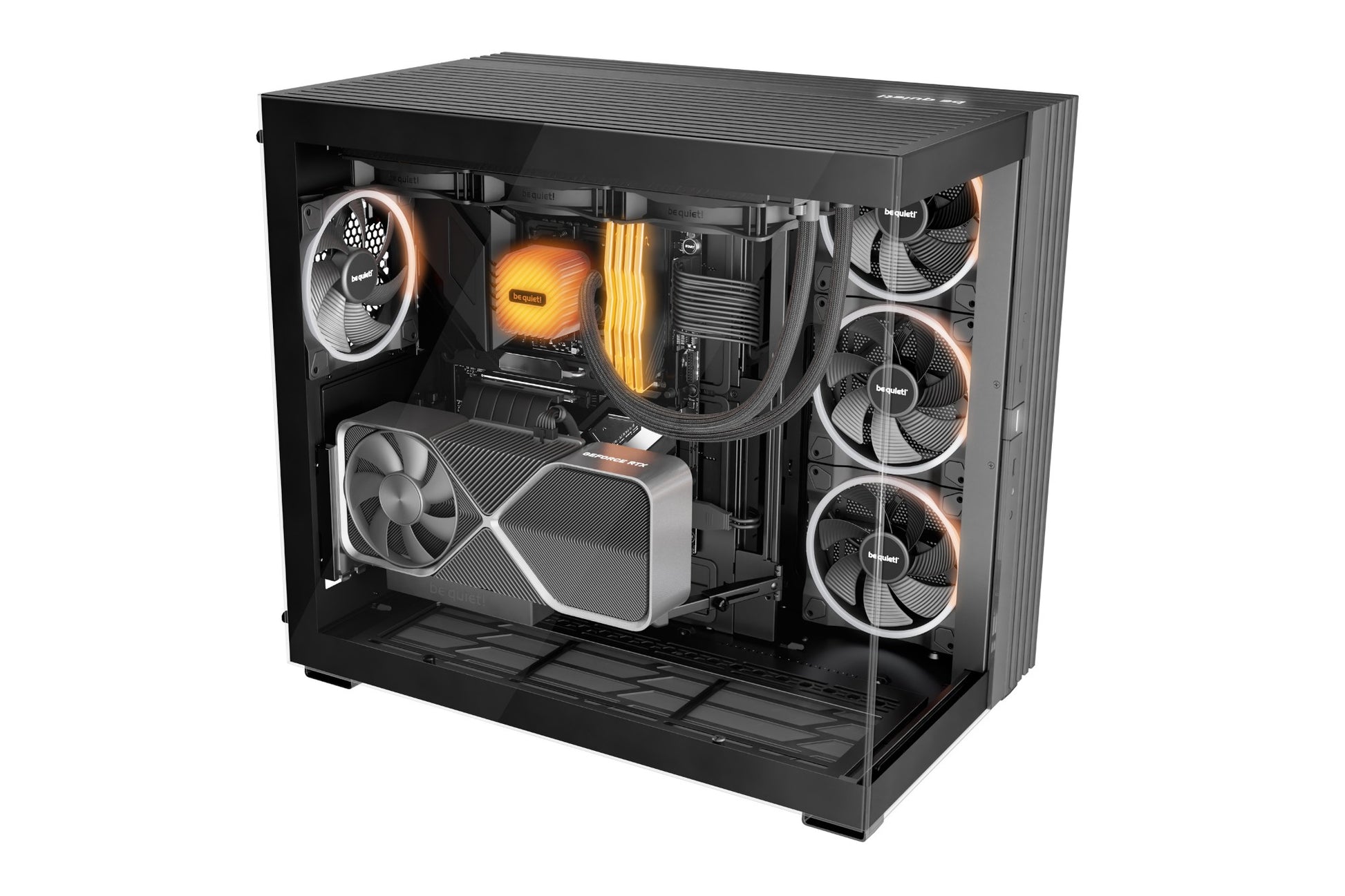

If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 140mm PWM Reverse Black is your fan of choice. Not only a visual highlight in any PC case when being used as a side or bottom intake, it’s also reliable and performant. This fan hits the sweet spot between performance, noise and ARGB lighting.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes

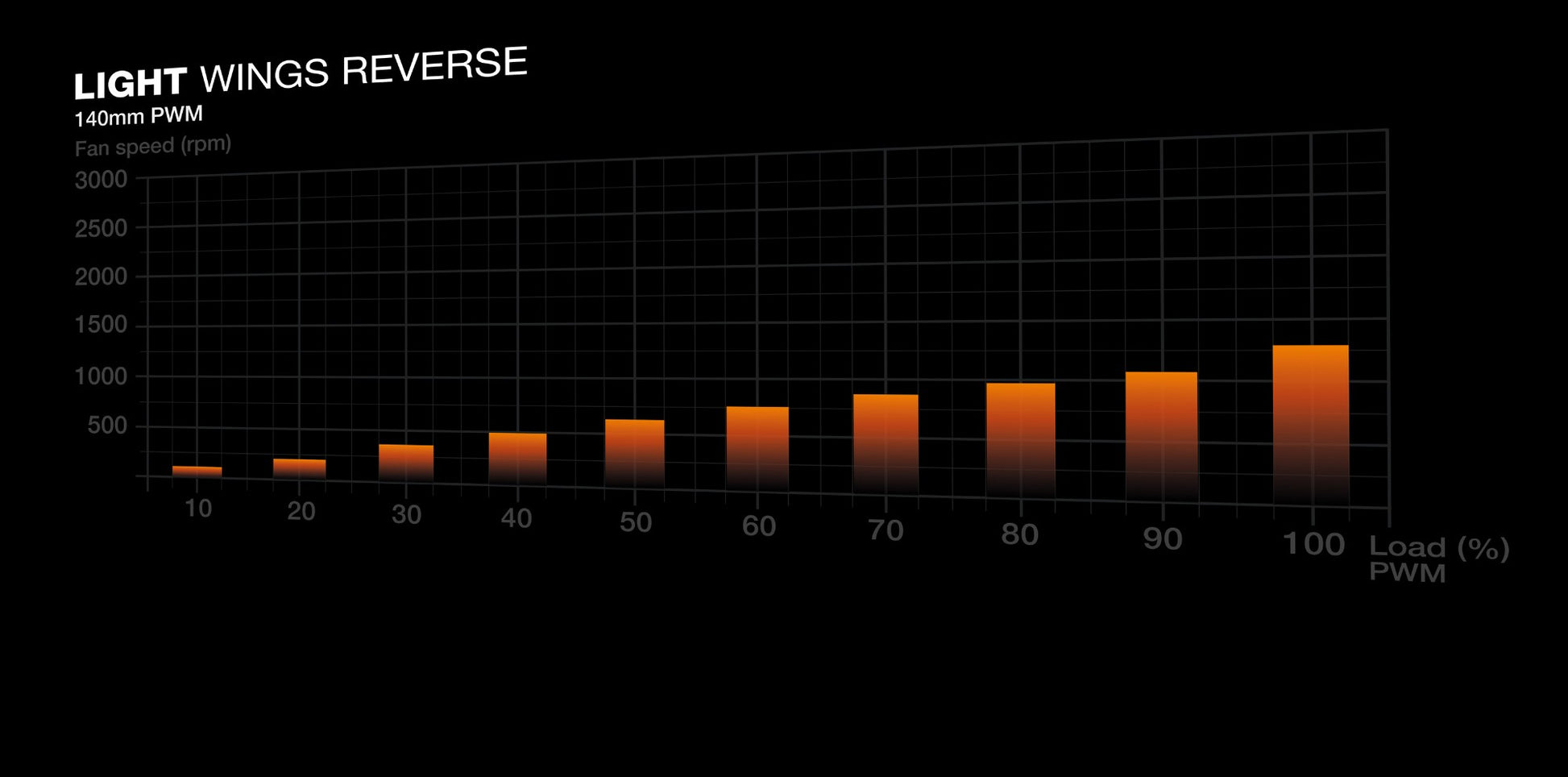

Rotational speed (max)	1300 RPM
Bearing type	Rifle bearing
Noise level (high speed)	25.5 dB
Type	Fan
Fan diameter	14 cm
Maximum airflow	51.4 cfm
Maximum air pressure	1.1 mmH2O
Airflow	87.3 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Fan's mean time to failure (MTTF)	60000 h
Design
Illumination colour	Multi
Product colour	Black
Cable length	0.5 m
Illumination LED	Yes
Display type	Not applicable
Technical details
Sustainability certificates	Triman
Compliance certificates	CE, RoHS, UKCA, WEEE
Power
Rated voltage	12 V
Voltage	5 - 13.2 V
Rated current	0.67 A
Fan power consumption	3.8 W
Fan current	0.08 A
Weight & dimensions

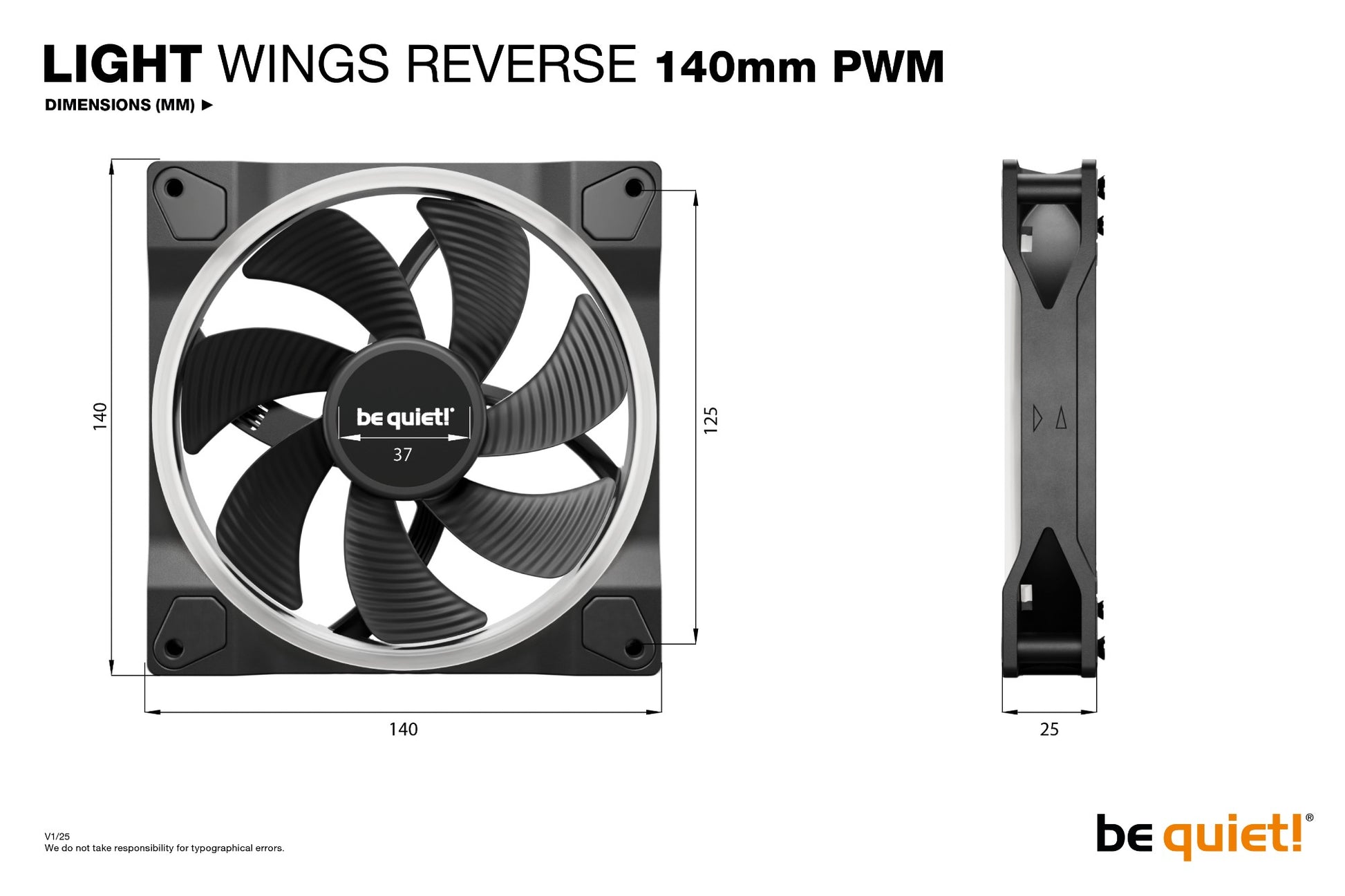

Fan dimensions (W x D x H)	140 x 140 x 25 mm
Package depth	29.5 mm
Package width	173 mm
Package height	153 mm
Fan weight	241 g
Package weight	330 g
Height	140 mm
Packaging content
Screws included	Yes
Number of screws	4
Logistics data
Shipping (inner) case width	32 cm
Shipping (inner) case length	47.8 cm
Shipping (inner) case height	20 cm
Shipping (inner) case gross weight	10.5 kg
Products per shipping (inner) case	30 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
