be quiet! Dark Power Pro 13 | 1600W power supply unit 20+4 pin ATX ATX Black
be quiet! Dark Power Pro 13 | 1600W power supply unit 20+4 pin ATX ATX Black
Regular price
£314.13 GBP
Regular price
Sale price
£314.13 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Reliable power for your system: the be quiet! Dark Power Pro 13 — wattage and connector details are in the spec table.
CUTTING EDGE TECHNOLOGIES AND PERFORMANCEThe be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| Product colour | Black |
| Illumination | No |
| Power | |
| Total power | 1600 W |
| Peak power | 1700 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 9 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V4) | 45 A |
| Max output current (+12V3) | 45 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 18 ms |
| Efficiency | 94.5% |
| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500,600,750,800,900,950,1050 mm |
| Peripheral (Molex) power cable length | 600,750,900,1050 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| ATX version | 3.1 |
| EPS version | 2.92 |

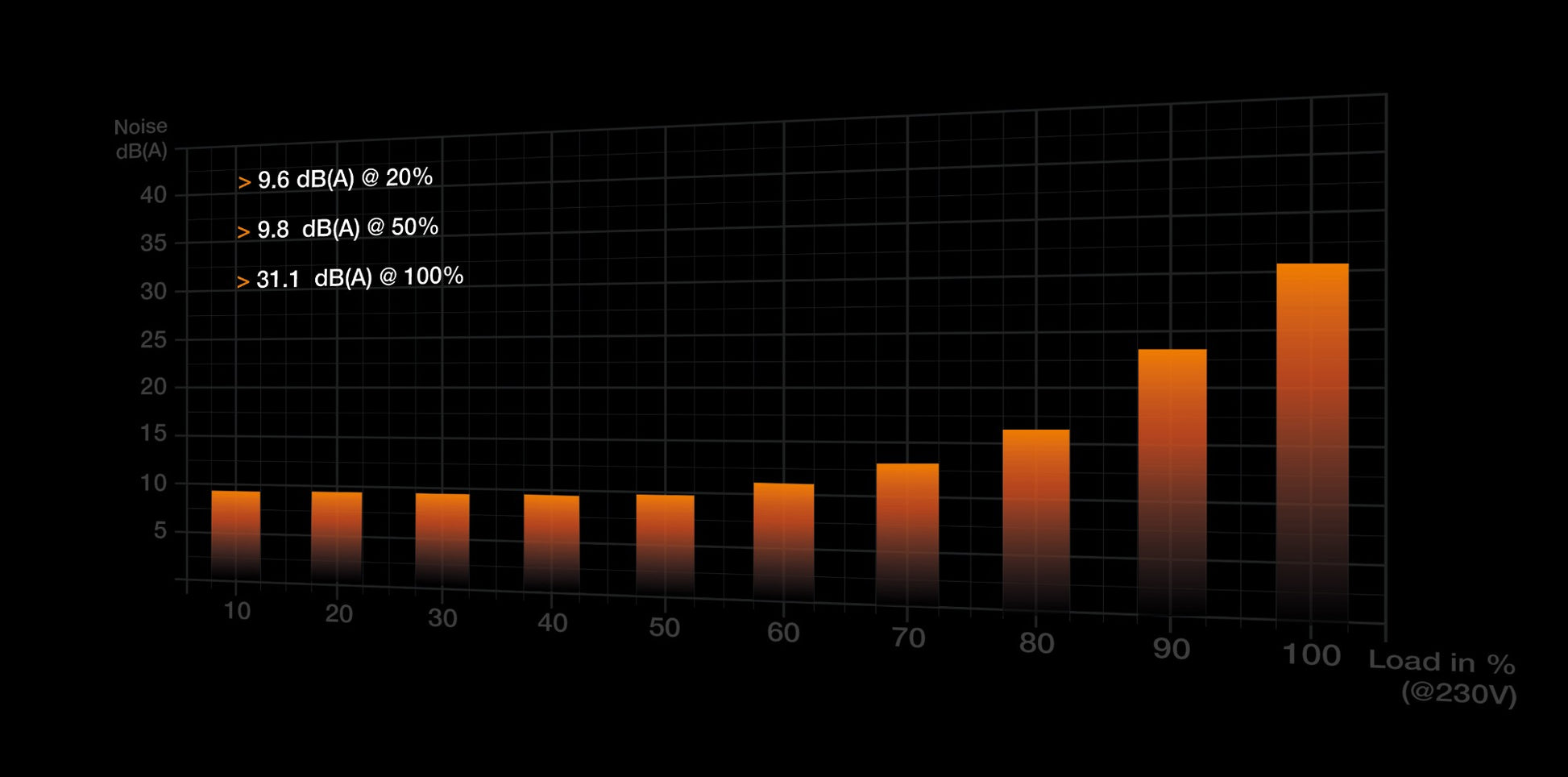

| Noise level | 31.1 dB |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Technical details | |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case net weight | 14.6 kg |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case height | 28.3 cm |
| Products per shipping (inner) case | 2 pc(s) |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Packaging content | |

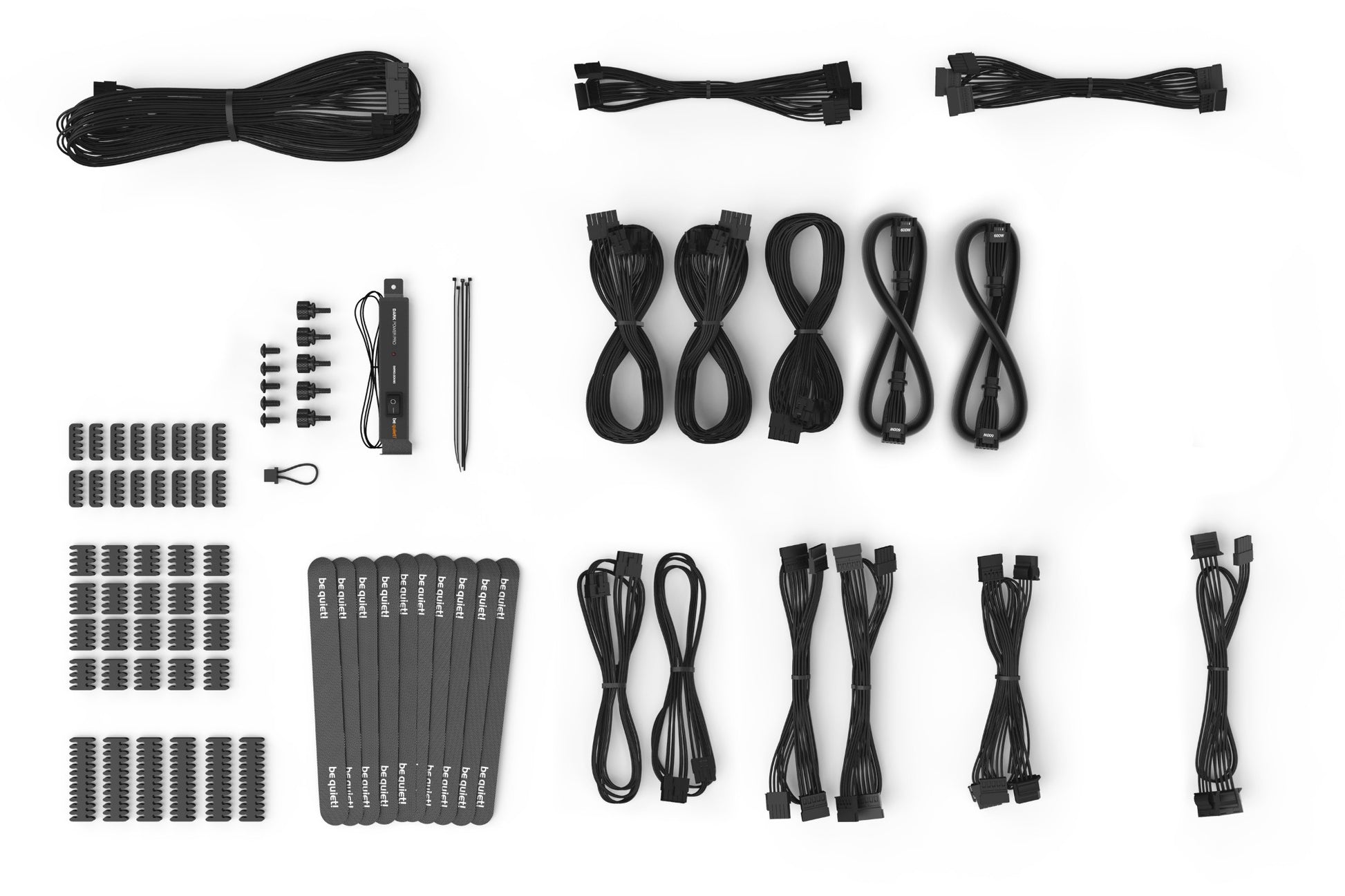

| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.44 kg |
| Packaging data | |
| Package depth | 417 mm |
| Package width | 253 mm |
| Package height | 152 mm |
| Package weight | 6.9 kg |
