AVer TR535 8 MP Black 3840 x 2160 pixels 60 fps Exmor CMOS 25.4 / 2.8 mm (1 / 2.8") Webcam

AVer TR535 8 MP Black 3840 x 2160 pixels 60 fps Exmor CMOS 25.4 / 2.8 mm (1 / 2.8") Webcam

£3,220.80 GBP
£3,220.80 GBP
Sale Sold out
Taxes included.
Condition

Look sharp on every call — the AVer TR535 8 MP Black upgrades your video with better optics than any built-in laptop camera.

Dual Lens Auto Tracking Camera

Enter the future of streaming excellence with AVer’s TR535 featuring AI auto tracking capabilities for diverse applications. The TR535 offers a stellar 30X zoom and a sweeping wide-angle view. The wide-angle lens captures the whole scene while the 4K PTZ camera zooms in for close-ups ensuring complete coverage. Fueled by four advanced AI-driven tracking modes the TR535 delivers unparalleled precision for broadcasting streaming and recording environments.

Upgrade to Dante AV-H with Dante Ready Licensing in 2025Q2.

• Dual Lens Design
• 4K Ultra HD
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Human Detection AI
• Voice Tracking (requires PTZ Link)
• 5-Year Warranty

Specifications

Camera
Megapixel (approx.) 8 MP
Sensor type Exmor CMOS
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Optical zoom 30x
Digital zoom 1x
Combined zoom 30x
Focal length range 4.5 - 135 mm
Minimum illumination 0.5 lx
White balance ATW, Auto, Indoor, Manual, One push, Outdoor
Closest focusing distance 0.1 m
Signal-to-Noise Ratio (SNR) 50 dB
Back Light Compensation (BLC) Yes
Gain control type Auto/Manual
Horizontal field of view (wide) 62.3°
Horizontal field of view (tele) 2.5°
PTZ control Yes
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Aperture range (F-F) 1.8 - 4.7
Auto exposure Yes
Slowest camera shutter speed 1 s
Network streaming Yes
Fastest camera shutter speed 1/10000 s
3D NR (Noise Reduction) Yes
Wide Dynamic Range (WDR) Yes
Light exposure modes Aperture priority AE, Shutter priority AE, IRIS priority AE
Field of view (wide) 69.2°
Field of view (tele) 2.8°
Vertical field of view (wide) 37.3°
Vertical field of view (tele) 1.4°
Flip & mirror Yes
PTZ protocols CGI, ONVIF, Pelco-P/D, UAC, UVC, VISCA
Camera type Dual camera
Second camera resolution 8 MP
Second camera field of view (FOV) angle 113°
Second camera F-number 2.22
Second camera lens type Wide-angle
Zoom capability Yes
Face tracking Yes
Voice tracking Yes
Video
Maximum video resolution 3840 x 2160 pixels
Maximum frame rate 60 fps
Resolution at capture speed 1280x720@50fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps, 3840x2160@25fps, 3840x2160@30fps, 3840x2160@60fps
Video formats supported H.264, H.265, M-JPEG
HD type 4K Ultra HD
Number of TV lines 1600
Design
Product colour Black
Tilt angle range -30 - 90°
Pan range -170 - 170°
LED indicators Power
Country of origin Taiwan
Web-based management Yes
Tilt speed (min) 0.1 °/sec
Tilt speed (max) 100 °/sec
Pan speed (min) 0.1 °/sec
Pan speed (max) 100 °/sec
Tally light Yes
Tilt preset speed 200 °/sec
Pan preset speed 200 °/sec

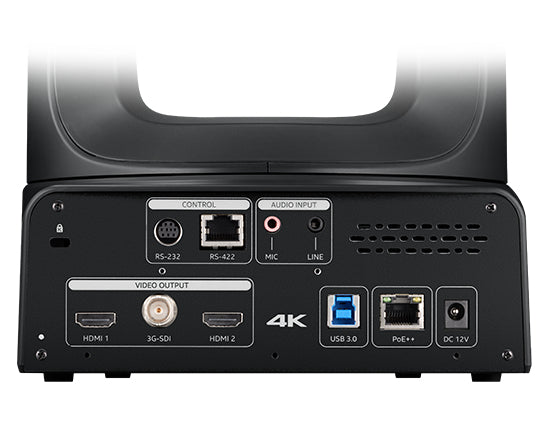

Ports & interfaces
HDMI ports quantity 2
RS-232 ports 1
DC-in jack Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 1
RS-422 ports 1
3G-SDI output Yes
Microphone in Yes
Line-in Yes
Power
DC input voltage 12 V
Input current 5 A
Power source type DC, PoE
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 20 - 95%
Technical details
Harmonized System (HS) code 8525801990
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
System requirements
Windows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Mobile operating systems supported iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3, iPadOS, iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5
Audio
Built-in speaker(s) Yes
Supported sample rates 48 kHz
Audio codecs AAC-LC (48K)
Protocols
Supported network protocols IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
Network
Bit rate range 512 - 64000 Kbit/s
Bit rate control Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Streaming capability Yes
Packaging content
Remote control included Yes
Packaging content Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x7), M2 x 4 mm Screw (x5), M3 x 6 mm Screw (x3), 1/4"-20L 6.5mm Screw (x2), Cable Fixing Plate (x2), Ceiling Mount Bracket (x2), Drilling Paper, Quick Start Guide
Performance
Remote control function Yes
Remote control type IR
Cable lock slot Yes
Cable lock slot type Kensington
Live video preview Yes
Tracking modes Presenter mode, Zone mode
Auto-tracking Yes
Logistics data
Products per pallet 42 pc(s)
Products per master (outer) case 1 pc(s)
Weight & dimensions
Width 202.5 mm
Depth 218.5 mm
Height 250.7 mm
Weight 3.6 kg
Packaging data
Package width 389 mm
Package depth 278 mm
Package height 310 mm
Package weight 6.6 kg
