ATEN US424 computer data switch

Control multiple machines from one keyboard, monitor and mouse with the ATEN US424 computer data.

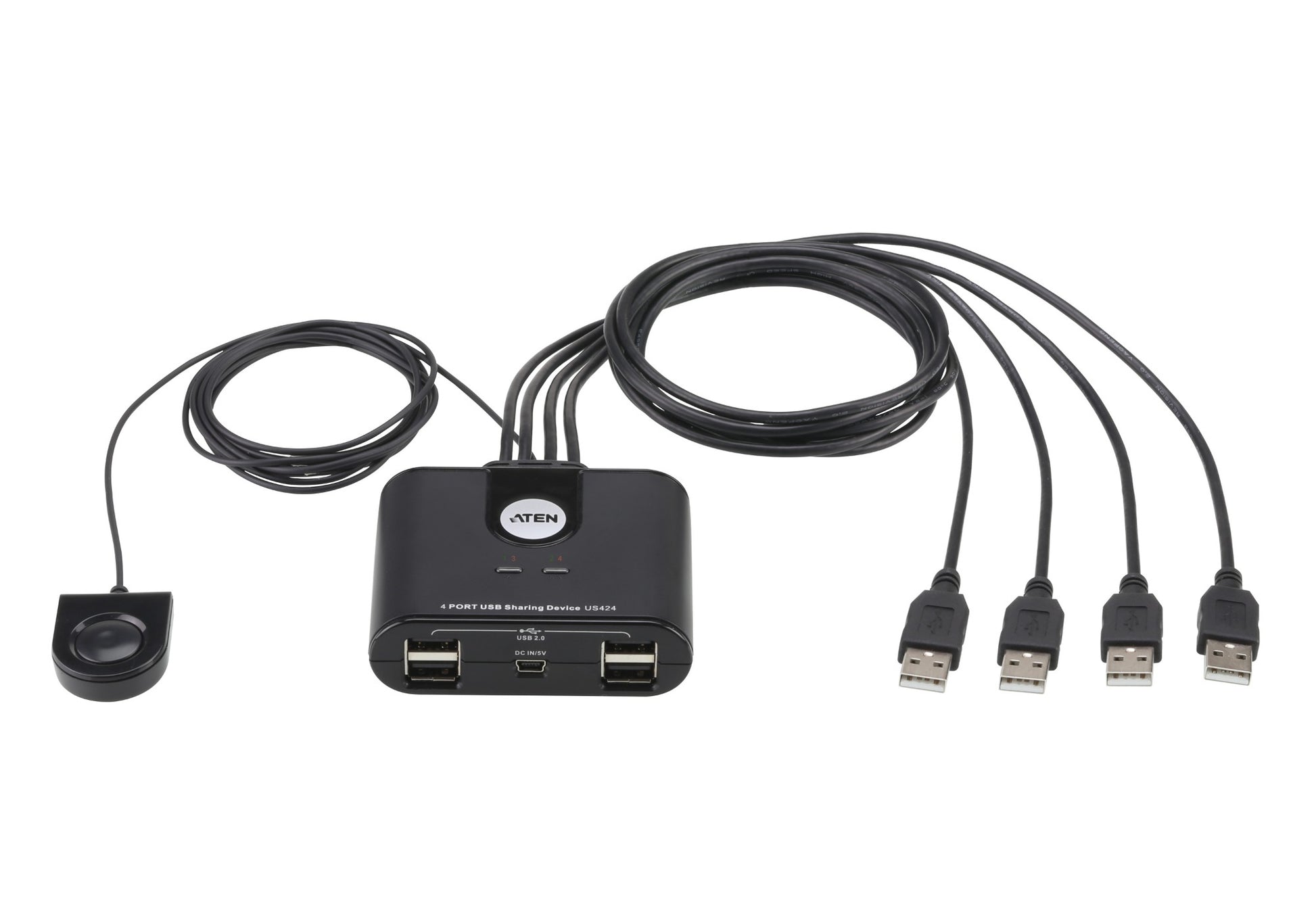

The US424 is a 4-port USB peripheral sharing device that enables 4 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US424 all-in-one design allows for a neat and tidy installation – no need to connect 4 separate USB cables to the computer, thus eliminating cable clutter.

For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US424 is the ideal way to share USB peripherals in a multimedia office environment.

Specifications

Ports & interfaces
USB 2.0 ports quantity	4
DC-in jack	Yes
Remote control in	1
Performance
LED indicators	Yes
Housing material	Plastic
Over current protection	Yes
Hot-Plug support	Yes
Remote control function	Yes
Remote control included	Yes
Product colour	Black
Power connector	USB Type-C
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	66.5 mm
Depth	82.4 mm
Height	25.3 mm
Weight	240 g
Packaging content
Quick start guide	Yes
Logistics data
Quantity per pack	1 pc(s)
