ATEN CS84U KVM switch Black, Grey
ATEN CS84U KVM switch Black, Grey
Regular price
£105.30 GBP
Regular price
Sale price
£105.30 GBP
Taxes included.
Quantity
Couldn't load pickup availability

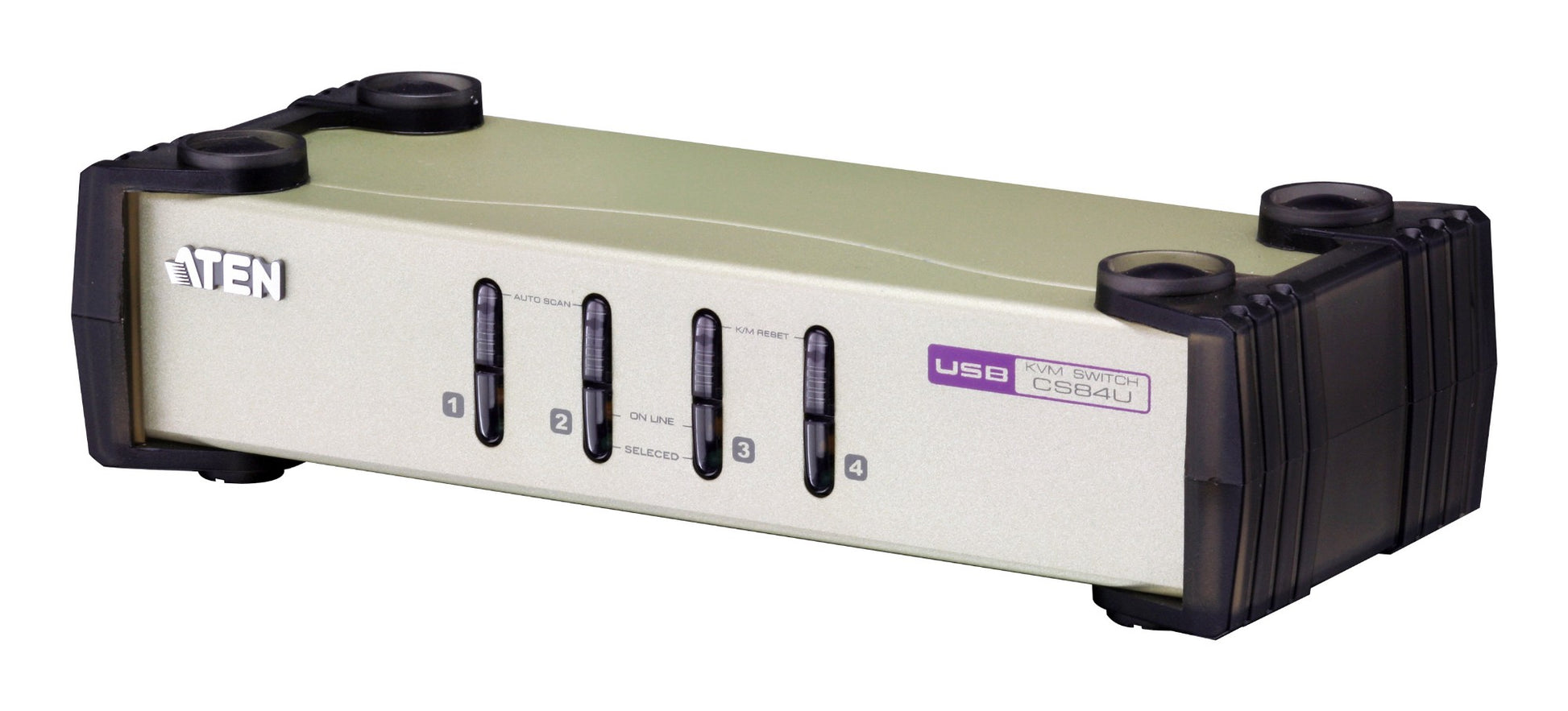

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS84U.
The CS84U enables quick access to up to 4 VGA-interfaced PCs via one KVM console and helps to expand your desktop workspace while keeping it tidy and organized for improved productivity.One Console Cable, Two Connection Options
CS84U offers two types of console KVM cables in different lengths for selection, allowing connection to either PS/2 or USB keyboard/mouse to flexibly accommodate installation requirements. Access to each PC can be quickly switched via pushbuttons, hotkey or mouse from the KVM console.
Smooth Cross-Platform Integration
The CS84U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Video DynaSync™
ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and assuring smooth desktop operation.
Specifications
| Ports & interfaces | |
|---|---|
| Console ports | USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 4 |
| DC-in jack | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Performance | |
| DDC2B support | Yes |
| HD type | QXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 3,5,10,20 s |
| Technical details | |
| Product colour | Black, Grey |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Design | |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 0.45 W |
| Input voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 770 g |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
