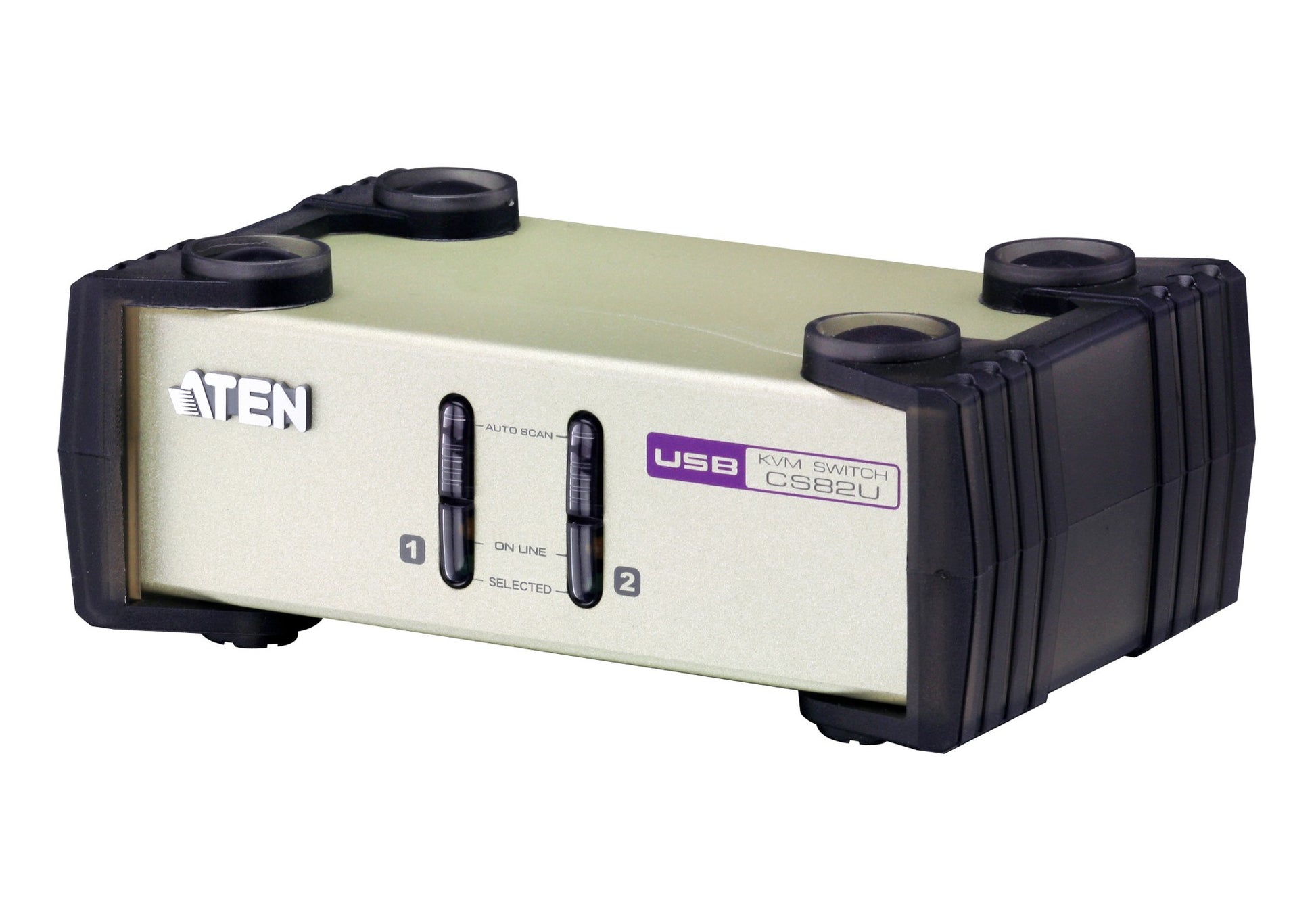

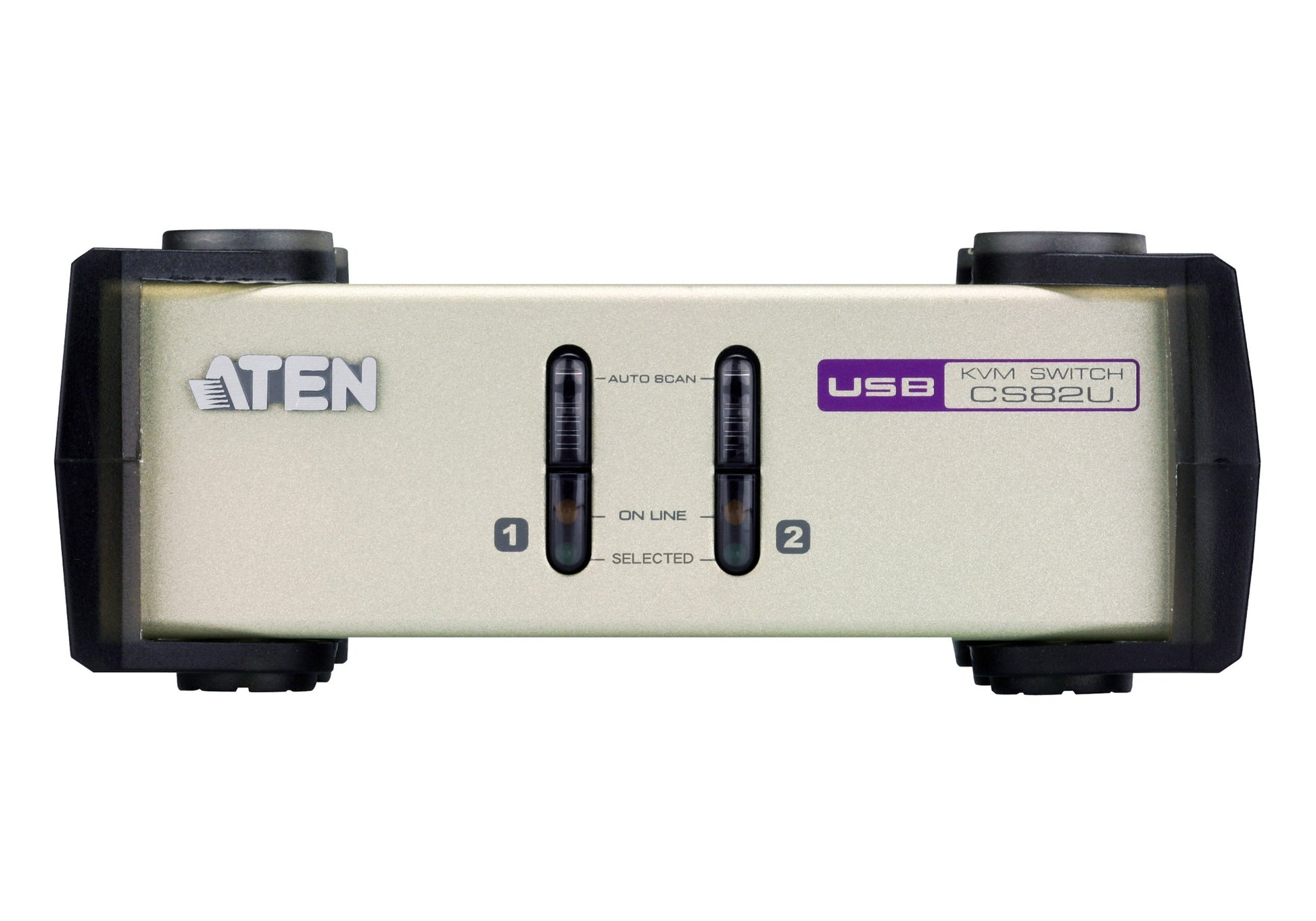

ATEN CS82U KVM switch Black, Light grey

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS82U.

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	PS/2, USB A, VGA (D-Sub)
USB connector type	USB Type-A
Number of computers controlled	2
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
PS/2 ports quantity	2
VGA (D-Sub) ports quantity	1
DC-in jack	Yes
USB 2.0 Type-A hub ports quantity	2
Performance
DDC2B support	Yes
HD type	QXGA
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Scan interval	3,5,10,20 s
Technical details
Product colour	Black, Light grey
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Design
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	1.1 W
Input voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	88 mm
Depth	140 mm
Height	55.5 mm
Weight	540 g
Packaging content
Quick installation guide	Yes
Manual	Yes
Other features
I/O ports	2x SPHD-18
