ATEN CS19216 KVM switch Rack mounting Black
ATEN CS19216 KVM switch Rack mounting Black
Regular price
£1,863.39 GBP
Regular price
Sale price
£1,863.39 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the ATEN CS19216.

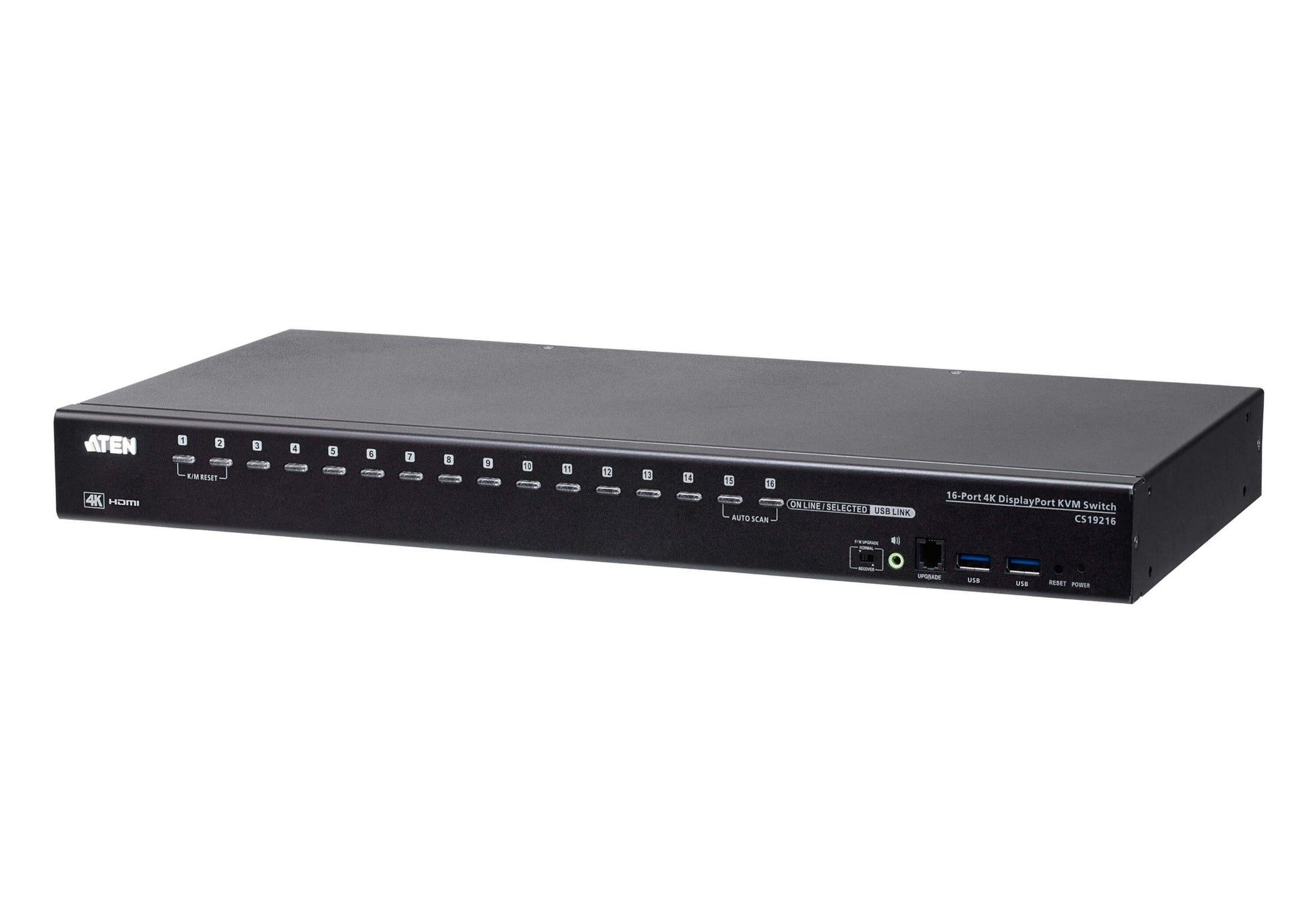

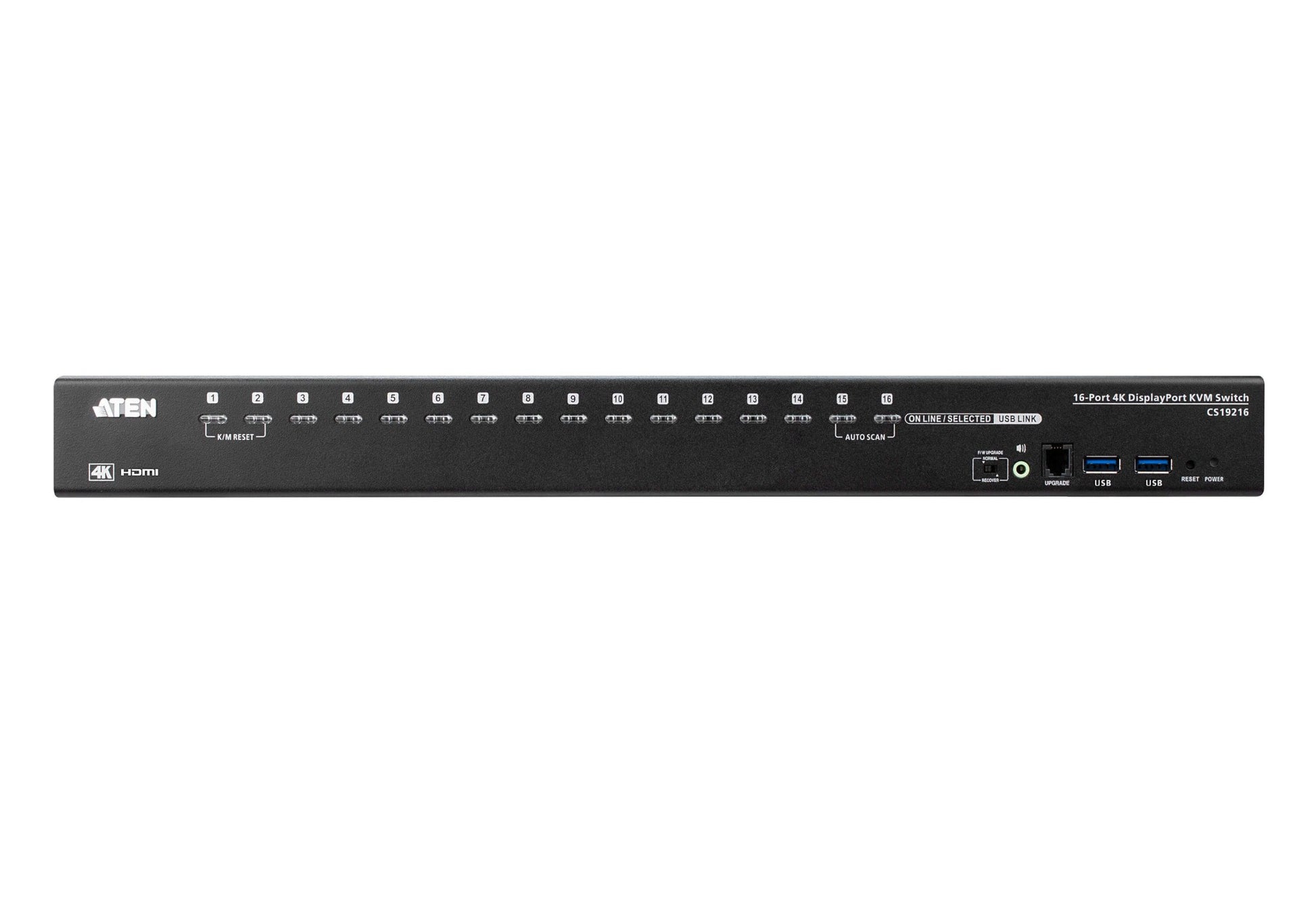

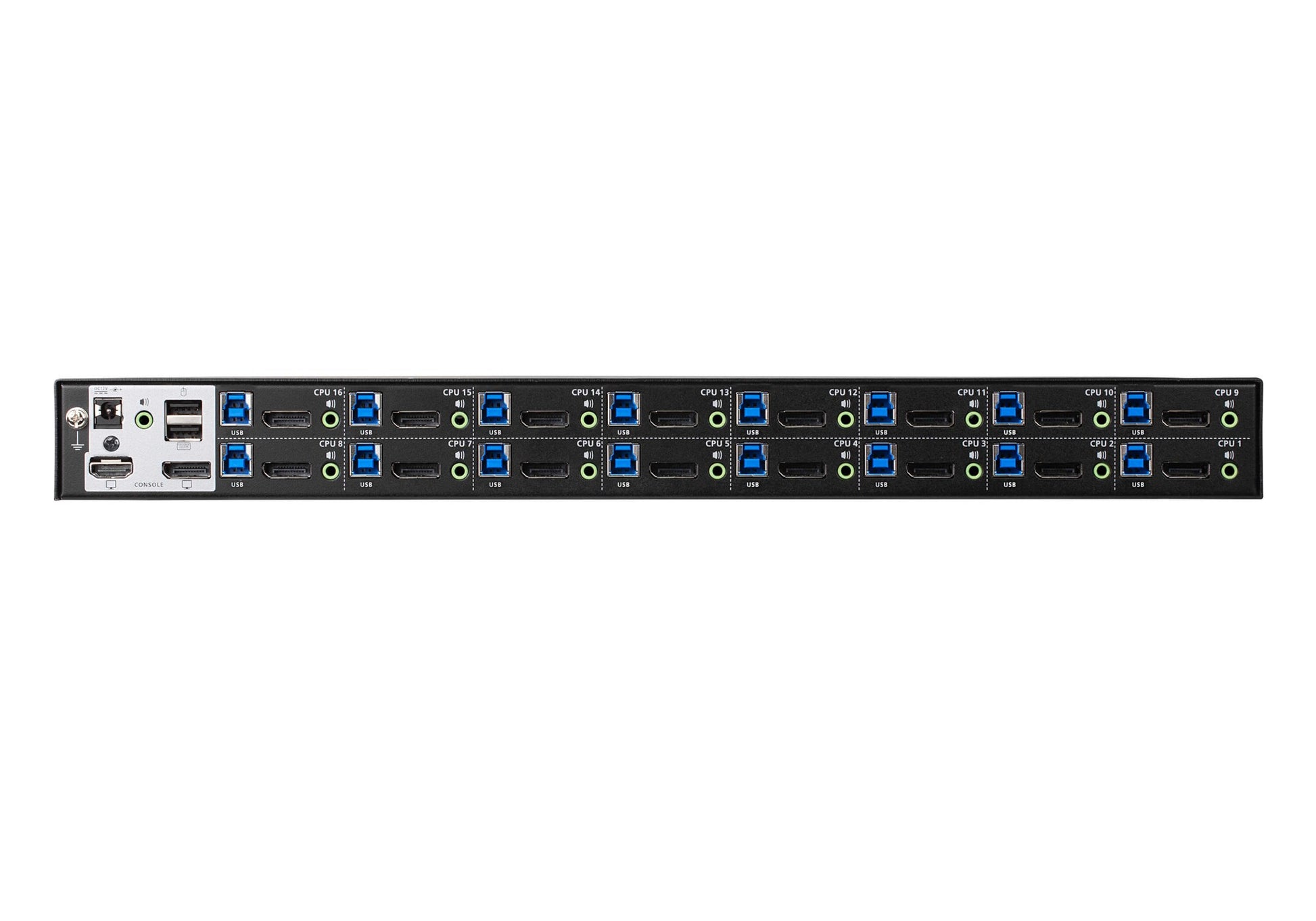

The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi-display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
With two patented ATEN technology – Video DynaSync™ and EDID Expert™, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.
Besides, the CS19216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the C19216 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19216 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.
Specifications
| Technical details | |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Scan interval | 255 s |
| Push button | Yes |
| On Screen Display (OSD) | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| USB hub | Yes |
| Cascadable | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| HDCP | Yes |
| USB connector type | USB Type-A, USB Type-B |
| DisplayPorts quantity | 16 |
| DisplayPort version | 1.2 |
| Serial ports quantity | 1 |
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 18 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Performance | |
| Firmware upgradeable | Yes |
| Design | |
| Rack capacity | 1U |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 26.66 W |
| External power adapter | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 214.3 mm |
| Height | 44 mm |
| Weight | 3.54 kg |
