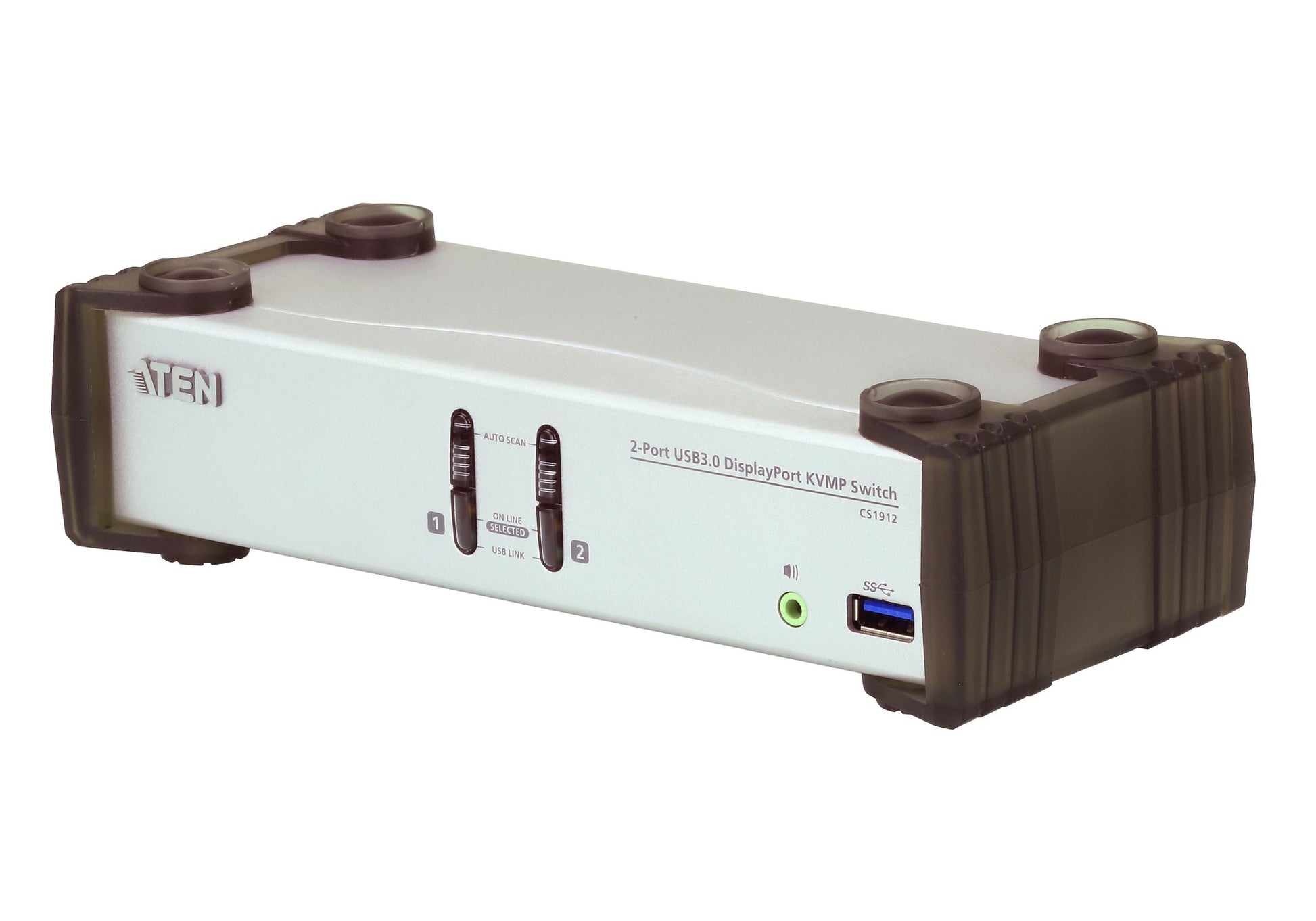

ATEN CS1912 KVM switch Black, Grey

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1912.

The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.

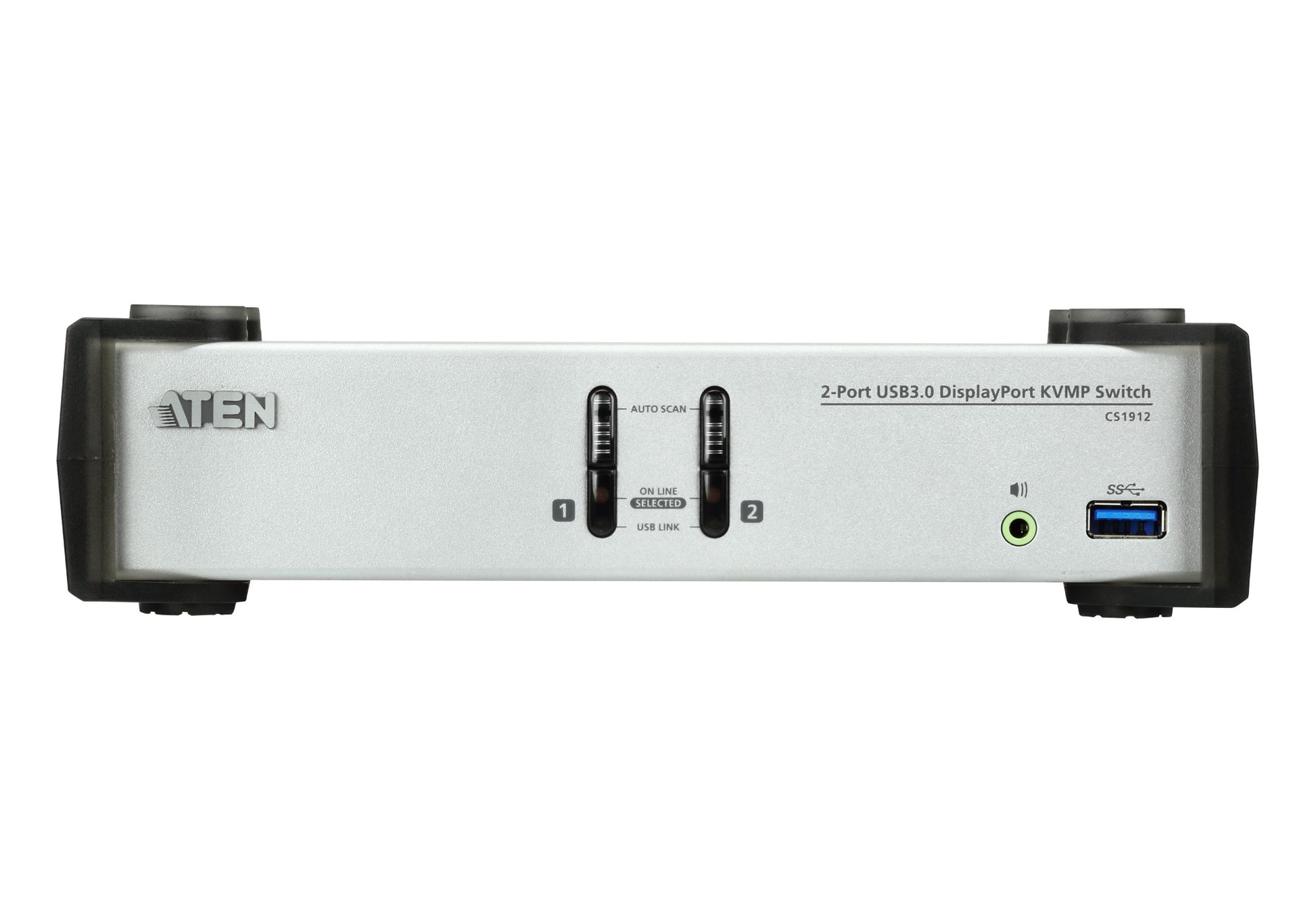

As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.

ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.

With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	DisplayPort, USB A
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A, USB Type-B
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	4
DC-in jack	Yes
USB hub	Yes
HDCP	Yes
Performance
Hot-Plug support	Yes
Maximum resolution	3840 x 2160 pixels
Scan interval	1,99 s
Automatic switching	Yes
Technical details
Product colour	Black, Grey
Rack mounting	No
Push button	Yes
LED indicators	Status, USB
Compliance certificates	RoHS
Design
Housing material	Metal, Plastic
Display
Built-in display	No
Power
Output voltage	5 V
Power consumption (typical)	3.3 W
External power adapter	Yes
System requirements
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	88 mm
Depth	210 mm
Height	55.5 mm
Weight	730 g
Packaging content

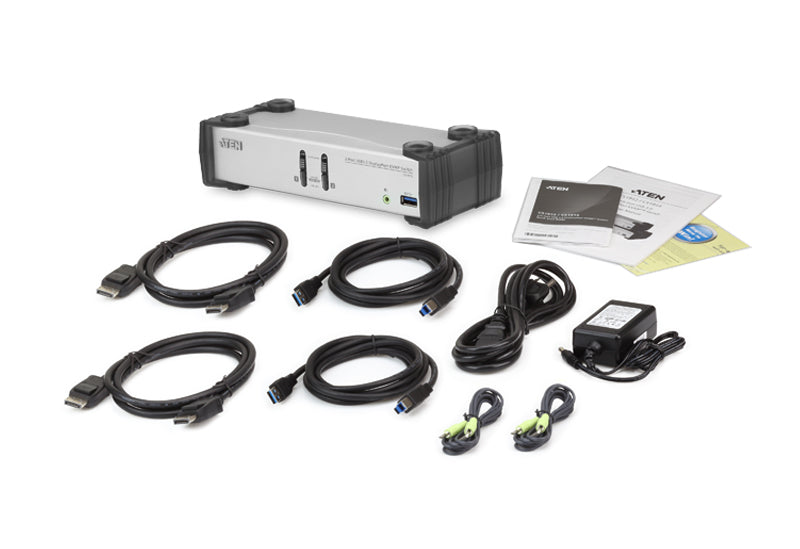

Cables included	Audio (3.5mm), DisplayPort, USB
Manual	Yes
AC adapter included	Yes
