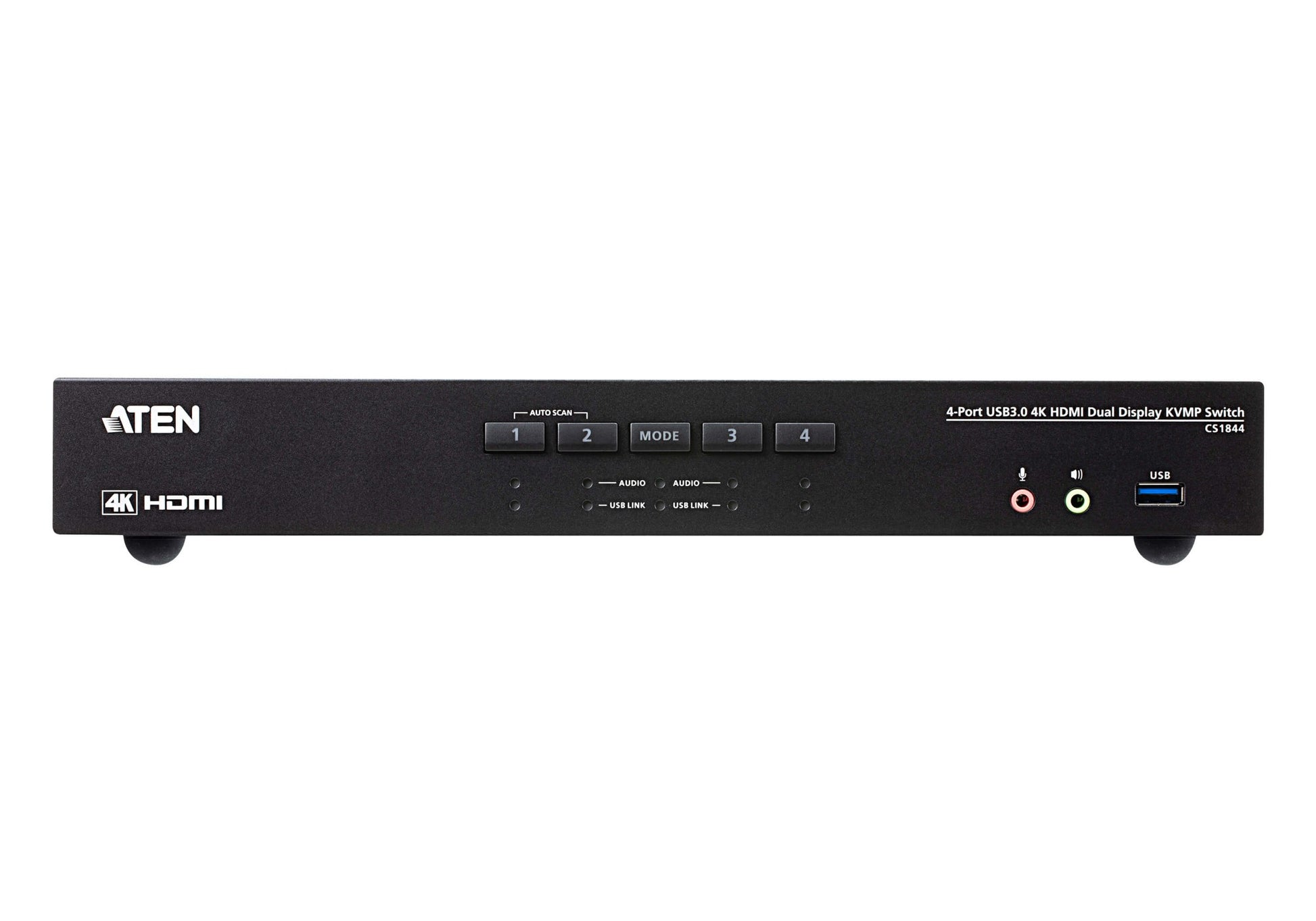

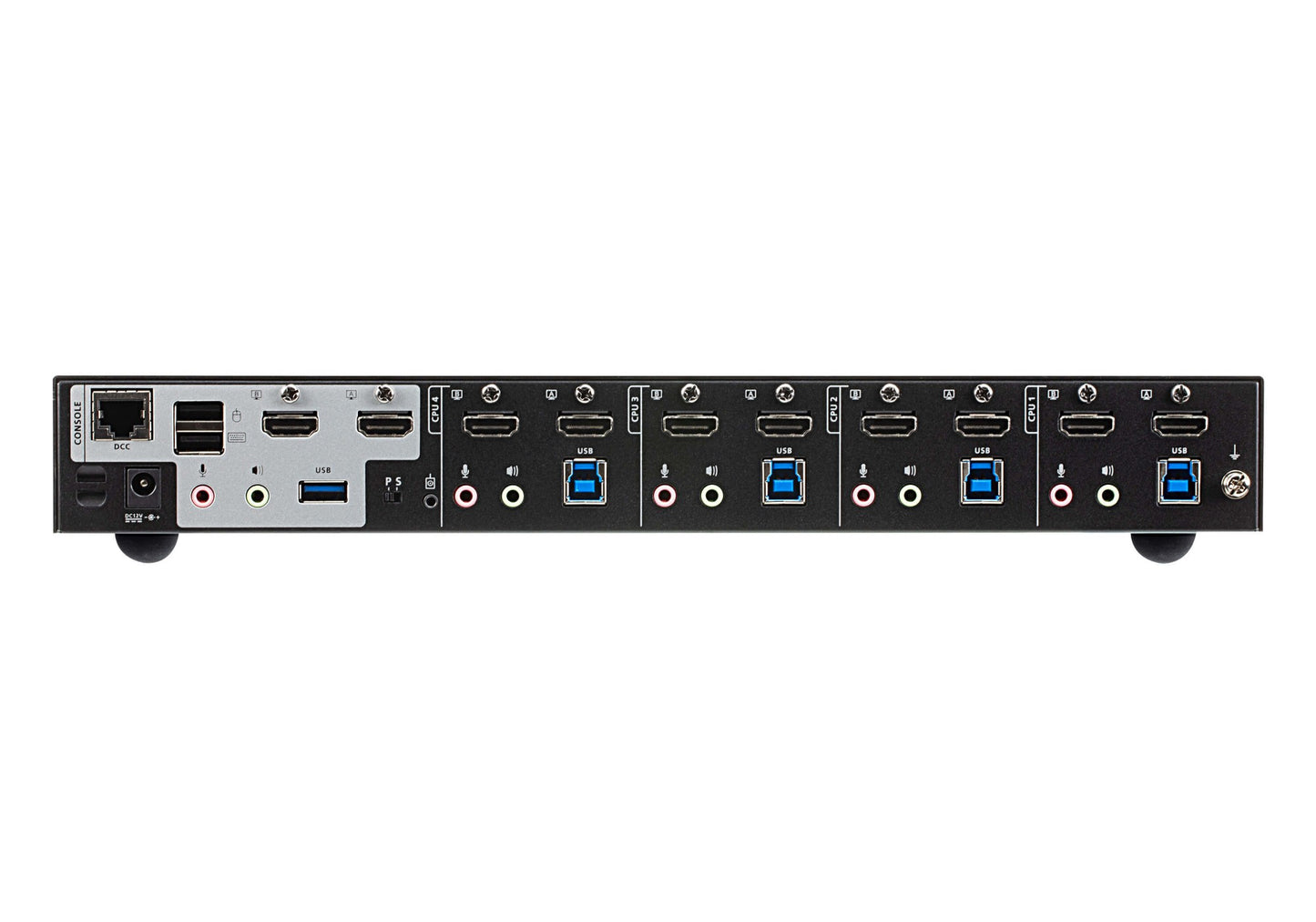

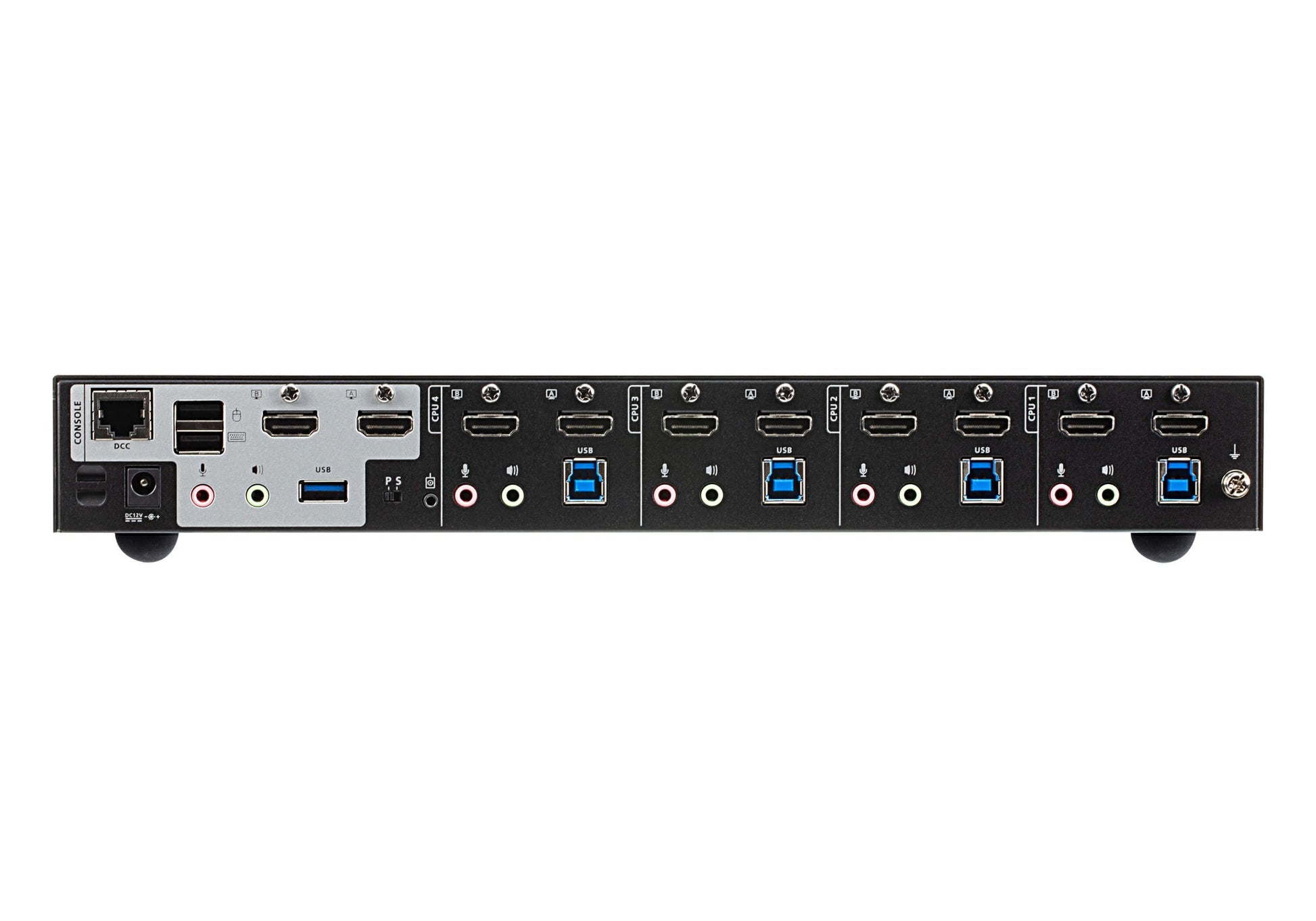

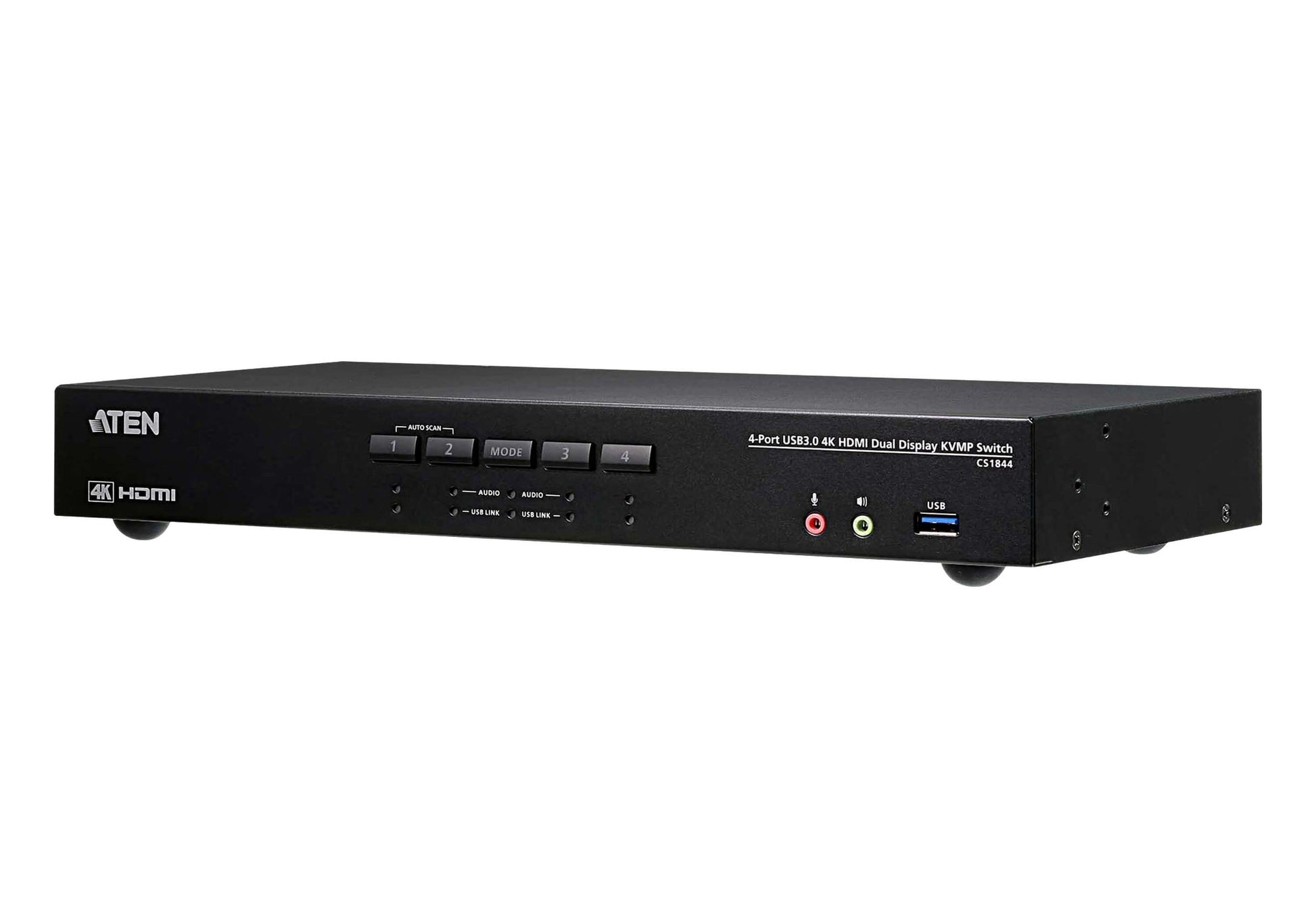

ATEN CS1844 KVM switch Black

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1844.

The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.

In addition, with patented ATEN technology – Video DynaSync™, which optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports, providing a smooth and uninterrupted user experience. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.

For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.

As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Number of microphone inputs	2
HDMI version	2.0
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Headphone outputs	2
HDMI ports quantity	10
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
HDCP	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Daisy chain	Yes
Firmware upgradeable	Yes
Auto scan delay (min)	1 s
Auto scan delay (max)	99 s
HD type	4K DCI
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Scan interval	5 s
Number of displays supported	4
Technical details
Product colour	Black
Push button	Yes
Hot keys	Yes
Compliance certificates	RoHS
Design
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	4.42 W
Input voltage	12 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	160.5 mm
Depth	335 mm
Height	44 mm
Weight	1.57 kg
Packaging content
Cables included	Audio (3.5mm), HDMI, USB
Manual	Yes
AC adapter included	Yes

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
