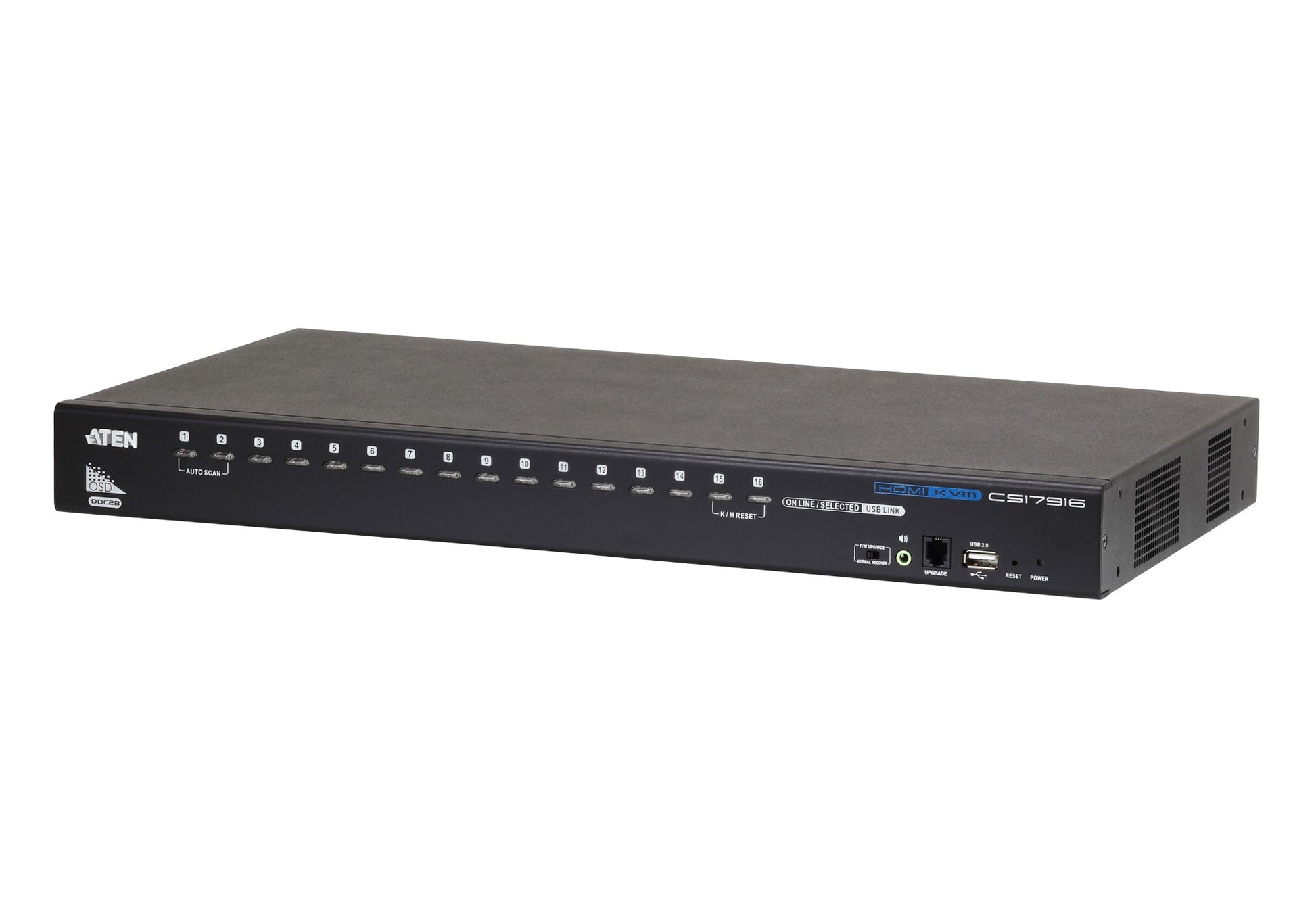

ATEN CS17916 KVM switch Rack mounting Black
ATEN CS17916 KVM switch Rack mounting Black
Regular price
£907.96 GBP
Regular price
Sale price
£907.96 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the ATEN CS17916.

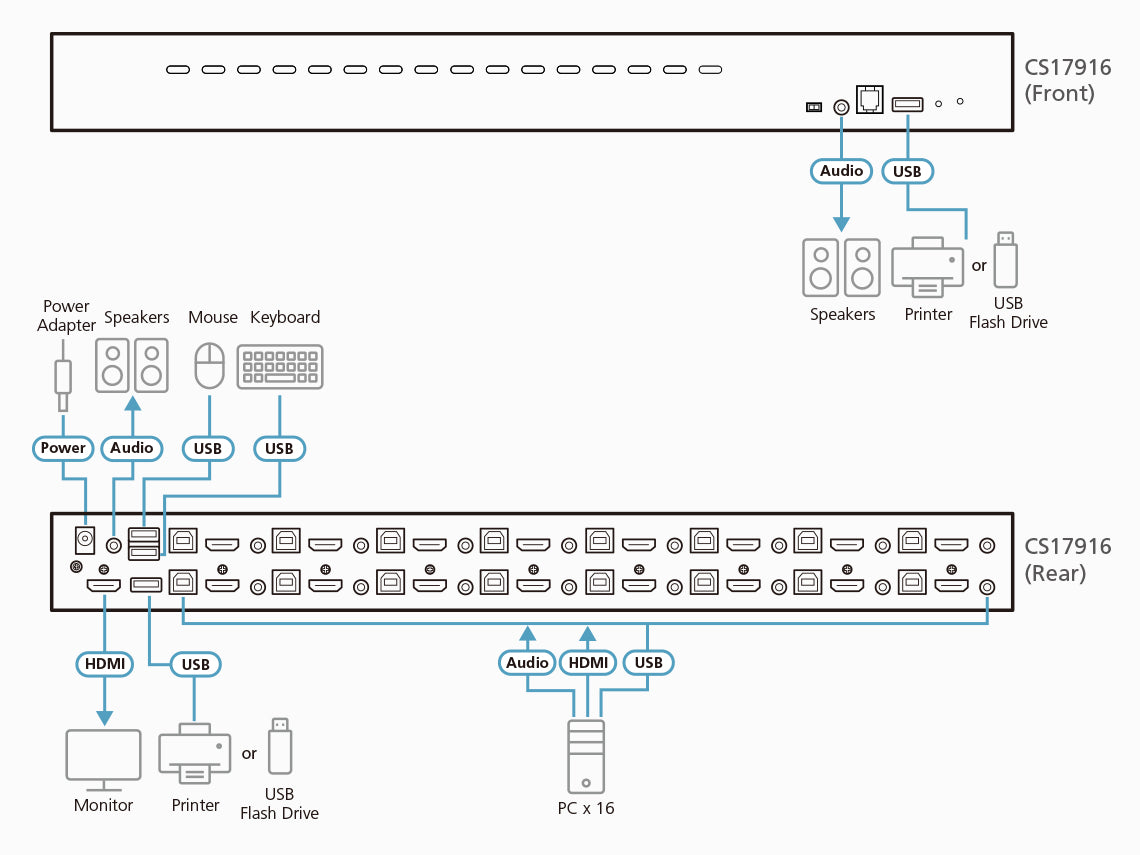

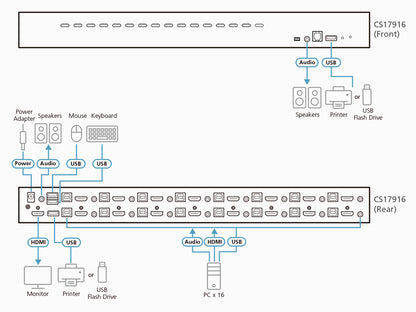

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.
The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB connector type | USB Type-A |
| Number of computers controlled | 256 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| HDCP | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Hot-Plug support | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| On Screen Display (OSD) | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Cascadable | Yes |
| Compliance certificates | RoHS |
| Design | |
| Keyboard language | Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English |
| Rack capacity | 1U |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 12.2 W |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 257.2 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | KVM |
| Quick installation guide | Yes |
