ATEN

ATEN CS1732B KVM switch

£114.87 GBP

Sale Sold out

Taxes included.

Condition New

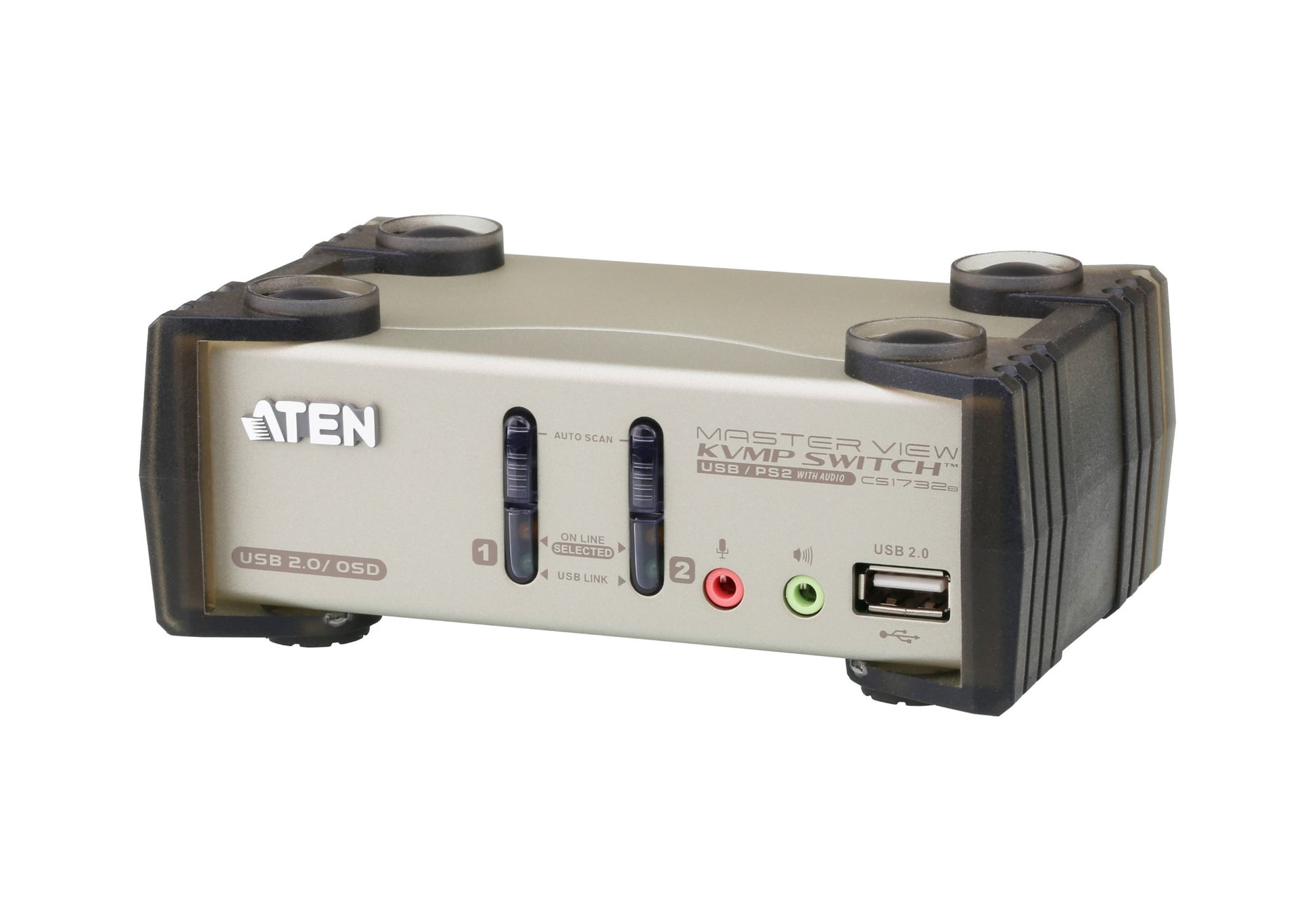

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1732B.

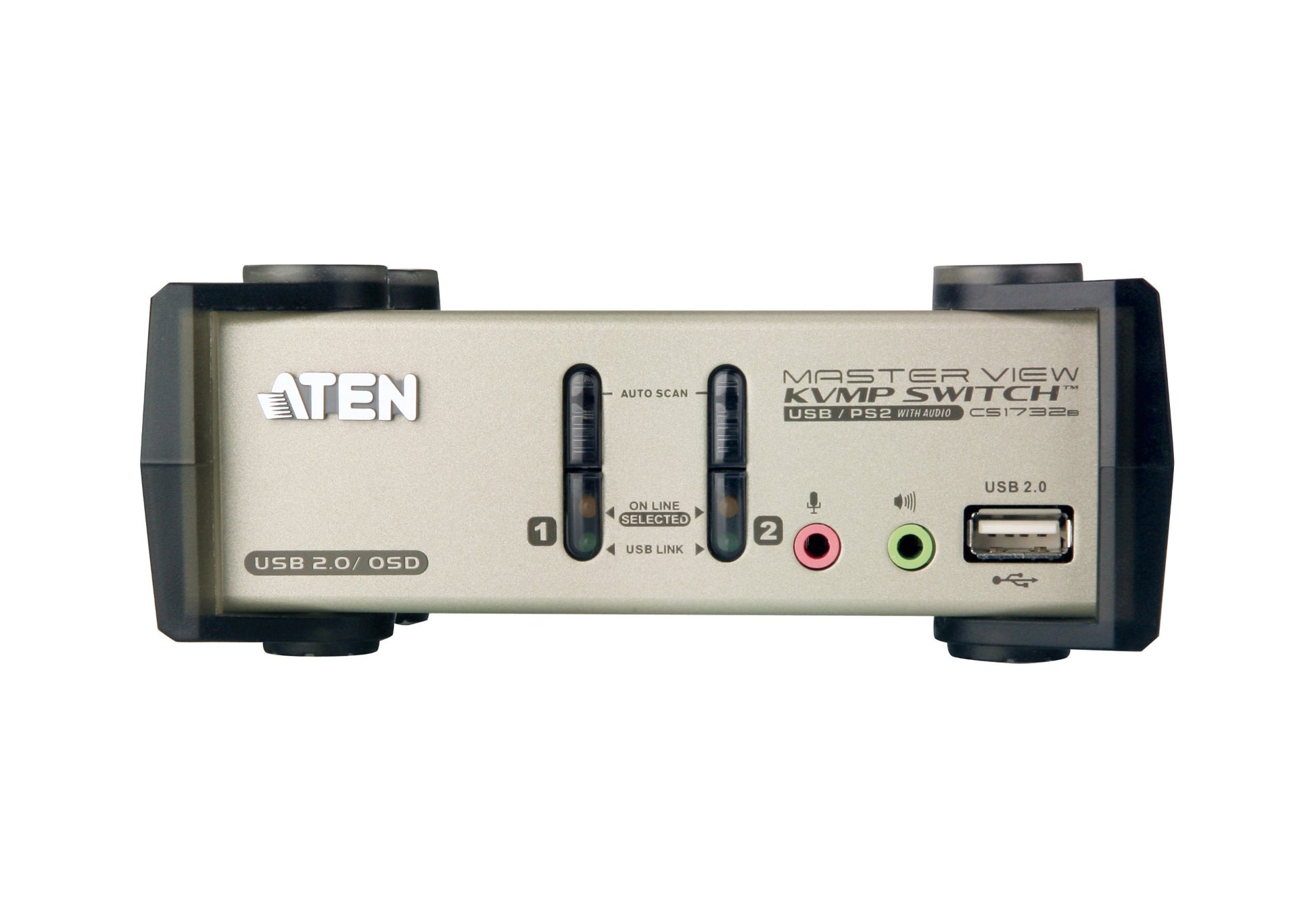

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.

Specifications

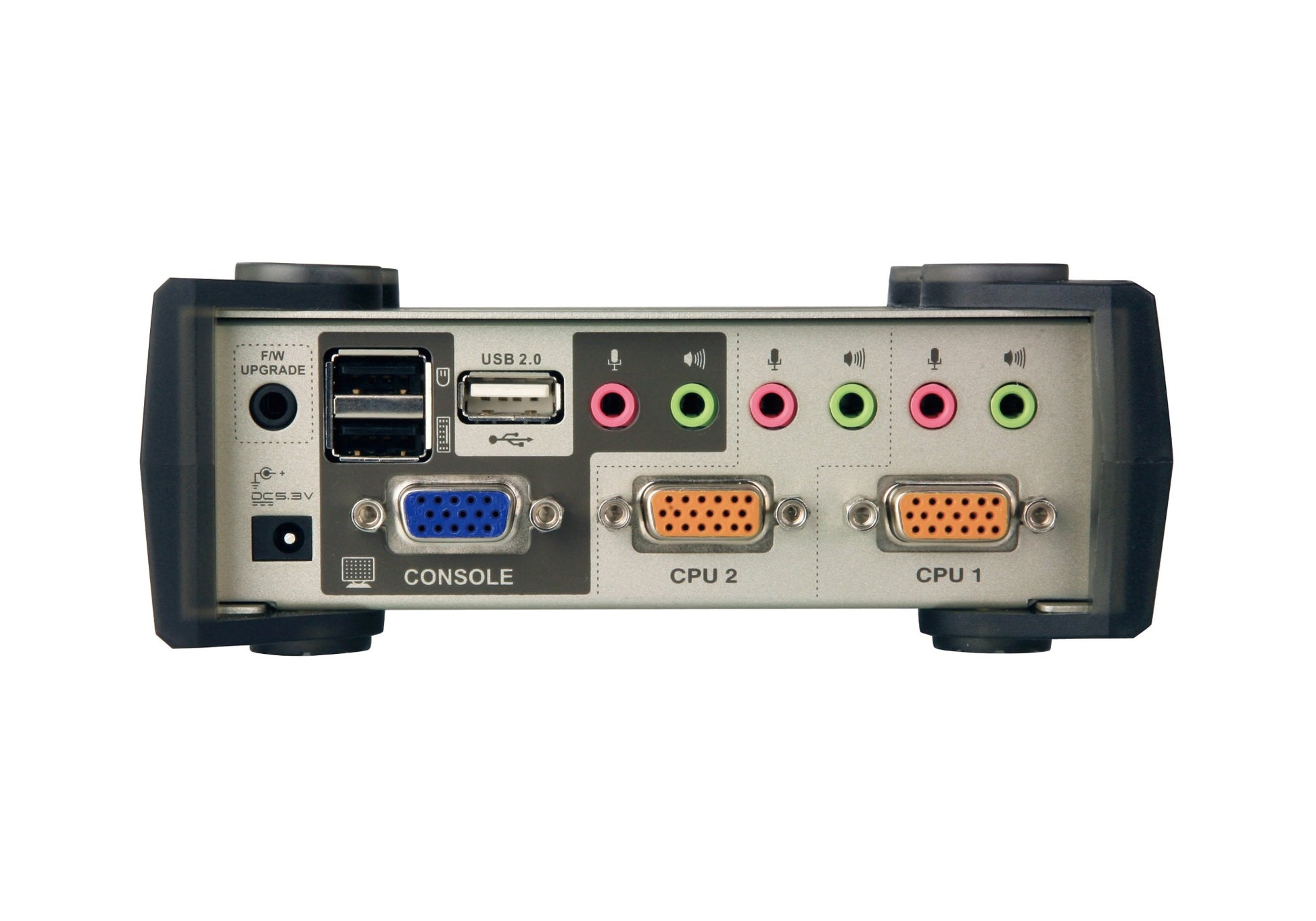

Ports & interfaces
Console ports	3.5mm headphone, 3.5mm mic
USB version	2.0
Number of computers controlled	2
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Audio connections	Yes
USB 2.0 ports quantity	2
Headphone outputs	4
USB hub	Yes
Cable length	1.2 m
Performance
DDC2B support	Yes
Firmware upgradeable	Yes
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
Technical details
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Network, USB
Hot keys	Yes
Design
Housing material	Metal
Power
Power source	DC
Power consumption (typical)	2.5 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	140 mm
Depth	88 mm
Height	55.5 mm
Weight	550 g
Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
