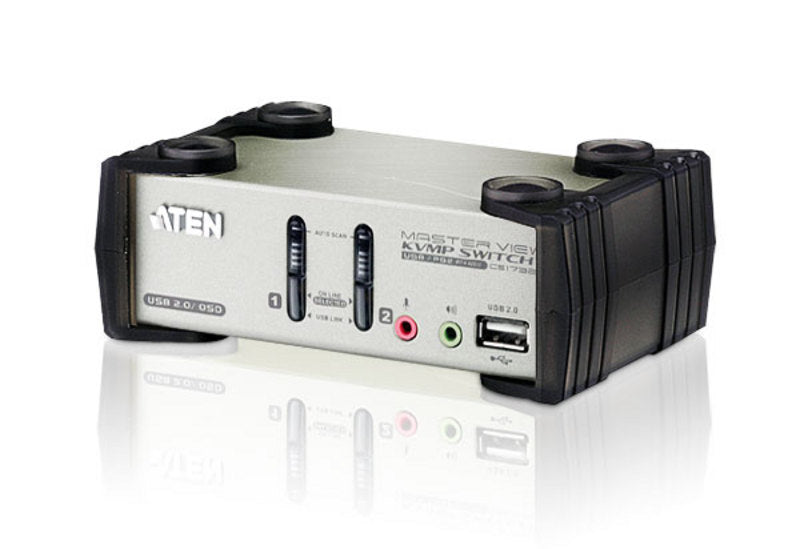

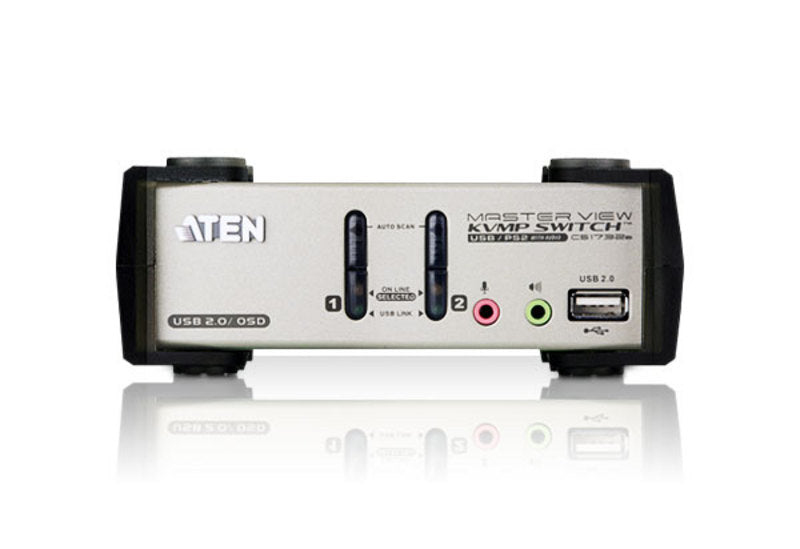

ATEN CS1732B-AT-E KVM switch Black, Metallic

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1732B-AT-E.

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions

Specifications

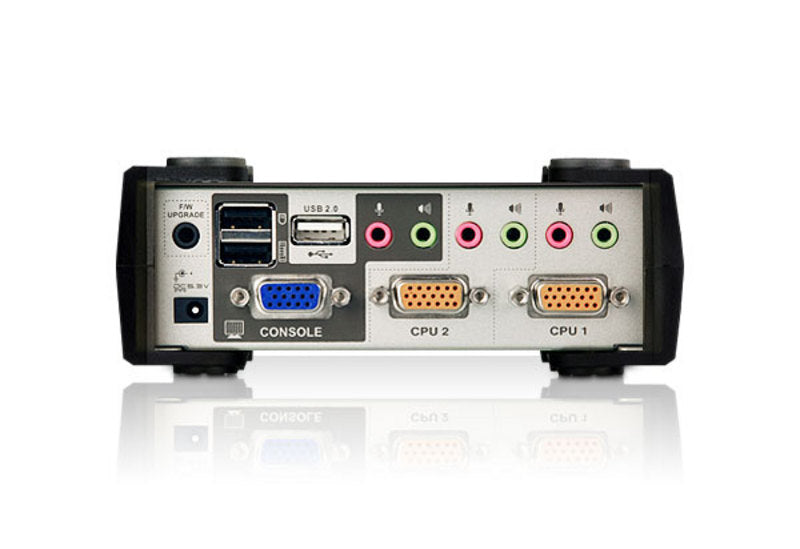

Ports & interfaces
Console ports	3.5mm headphone, 3.5mm mic
Number of microphone inputs	4
Number of computers controlled	2
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Audio connections	Yes
Headphone outputs	4
DC-in jack	Yes
USB hub	Yes
USB 2.0 Type-A hub ports quantity	2
Cable length	1.2 m
Performance
DDC2B support	Yes
Firmware upgradeable	Yes
HD type	QXGA
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
Technical details
Product colour	Black, Metallic
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Hot keys	Yes
Design
Housing material	Metal
Power
Power source	DC
Power consumption (typical)	2.5 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	140 mm
Depth	88 mm
Height	55.5 mm
Weight	1.15 kg
Package width	62 mm
Package depth	283 mm
Package height	173 mm
Package weight	1.34 kg
Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes

Downloads

• Datasheet (PDF)
