ATEN

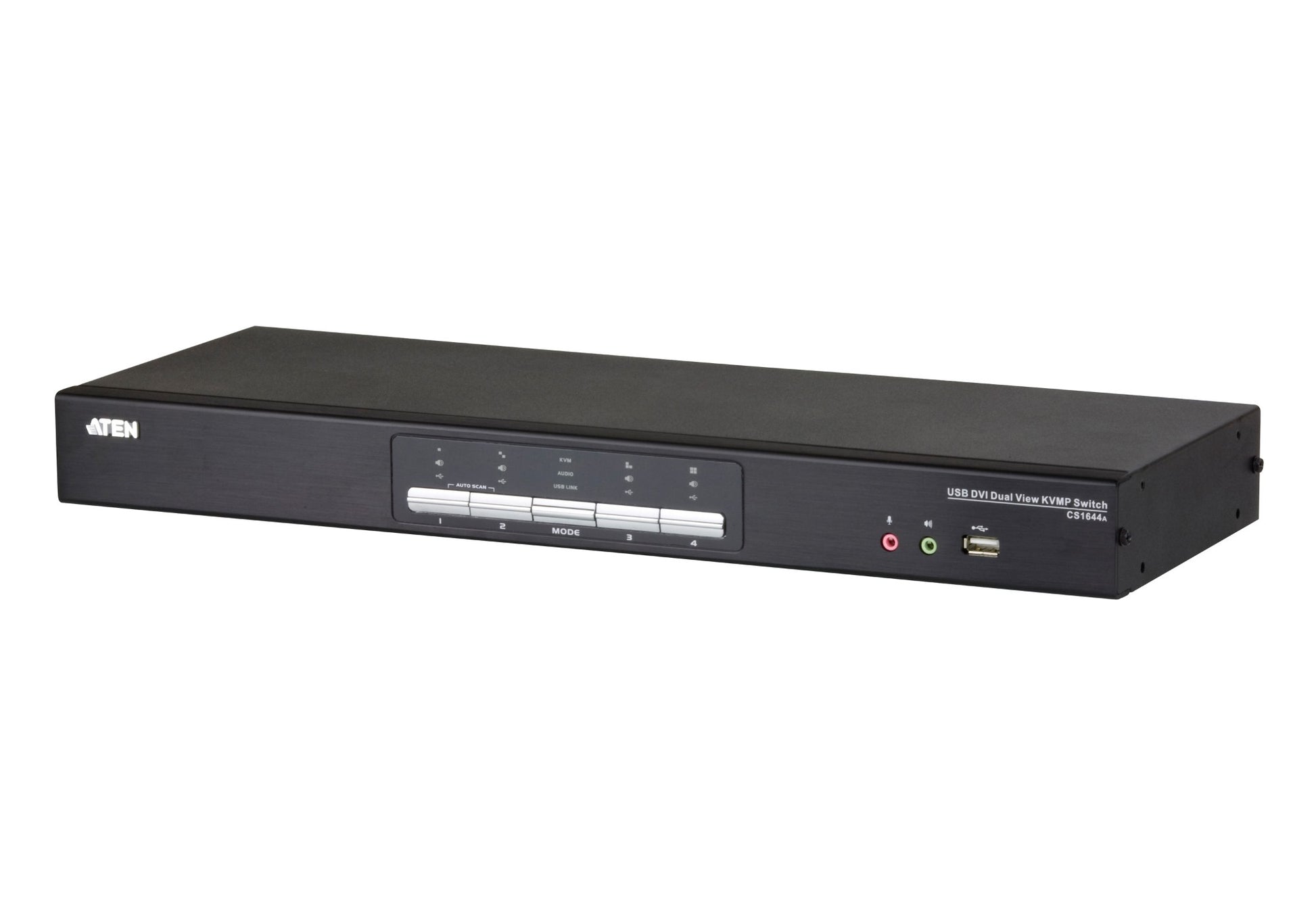

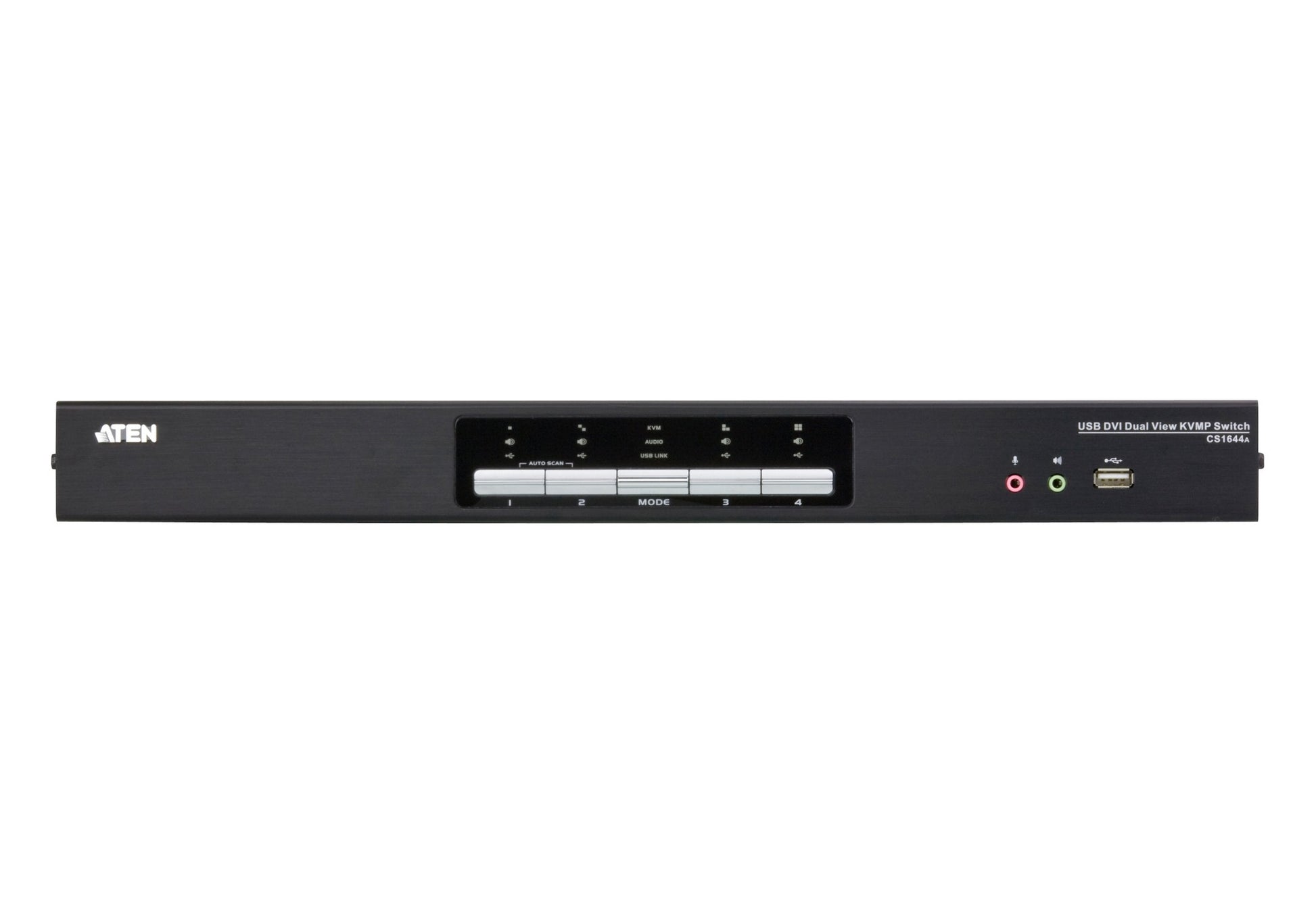

ATEN CS1644A KVM switch Rack mounting Black

£447.24 GBP

Sale Sold out

Taxes included.

Condition New

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1644A.

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.

The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.

Specifications

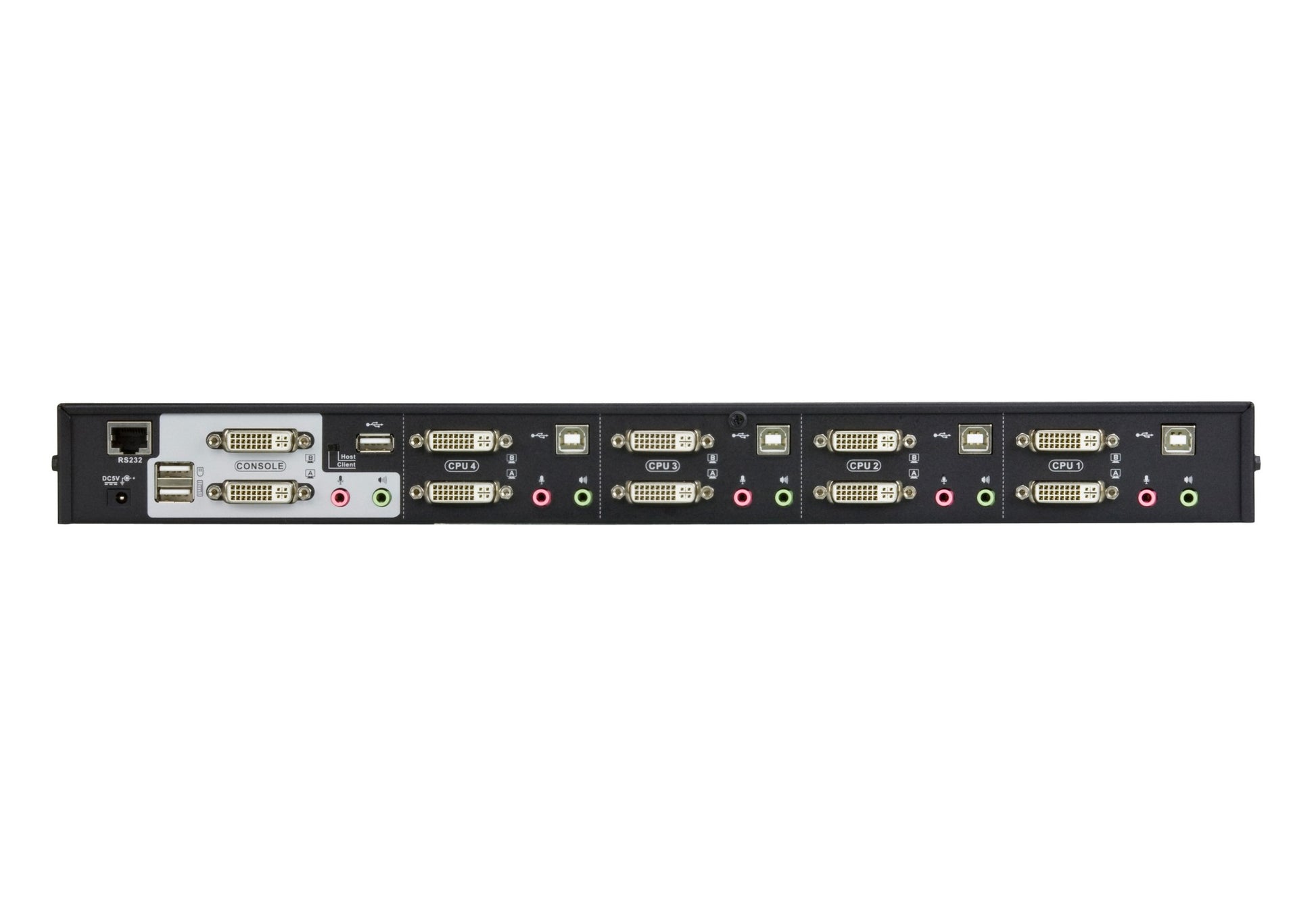

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB connector type	USB Type-A
Number of microphone inputs	4
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
Headphone outputs	4
DVI-I ports quantity	10
DC-in jack	Yes
HDCP	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Video bandwidth	60 Hz
Maximum resolution	2560 x 1600 pixels
Scan interval	1,99 s
Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
Hot keys	Yes
Compliance certificates	RoHS
Design
Rack capacity	1U
Housing material	Metal, Plastic
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	12.19 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	FreeBSD
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	437.2 mm
Depth	159.8 mm
Height	44 mm
Weight	2.32 kg
Packaging content
Cables included	KVM
Manual	Yes
Logistics data
Harmonized System (HS) code	85176200
