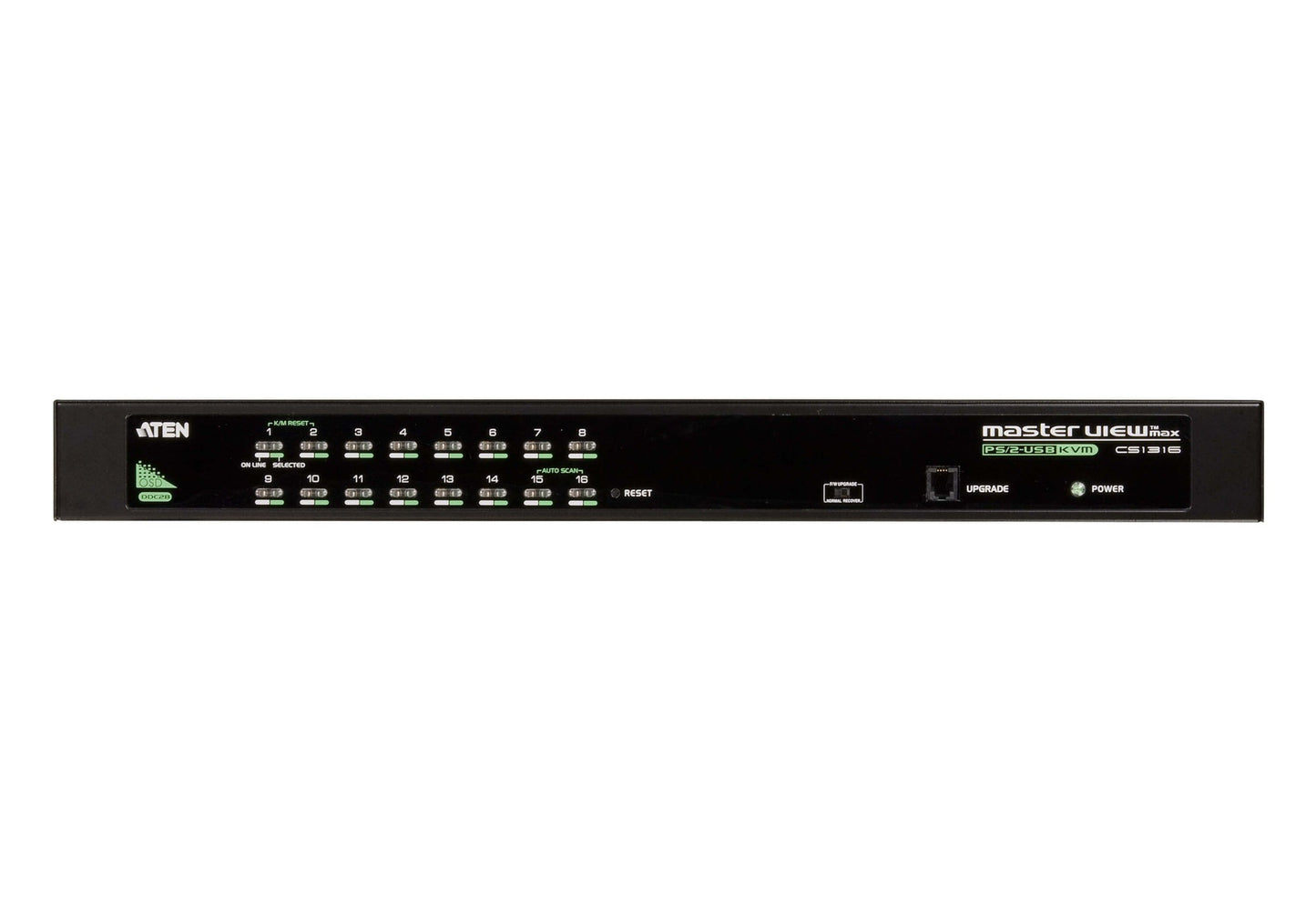

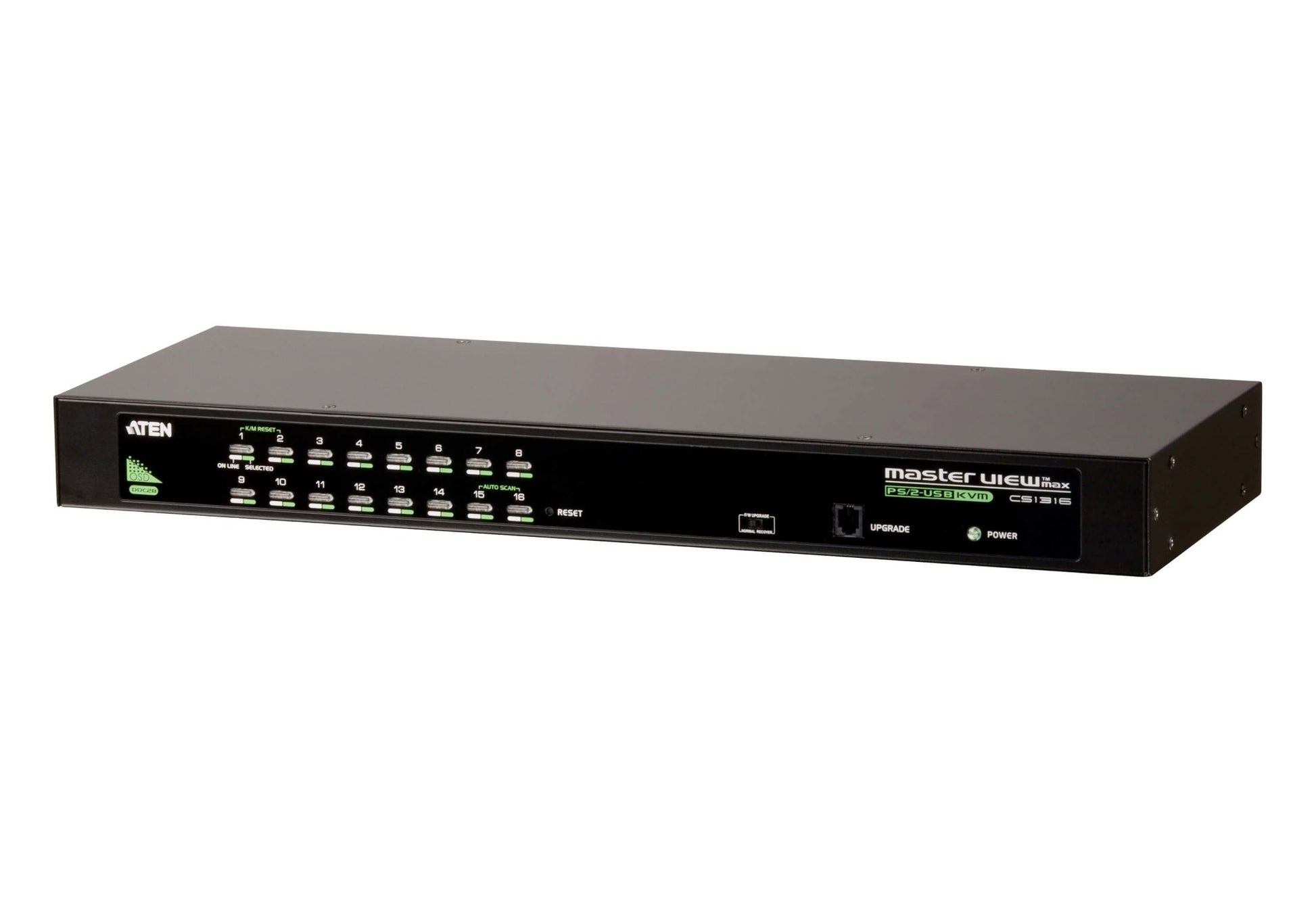

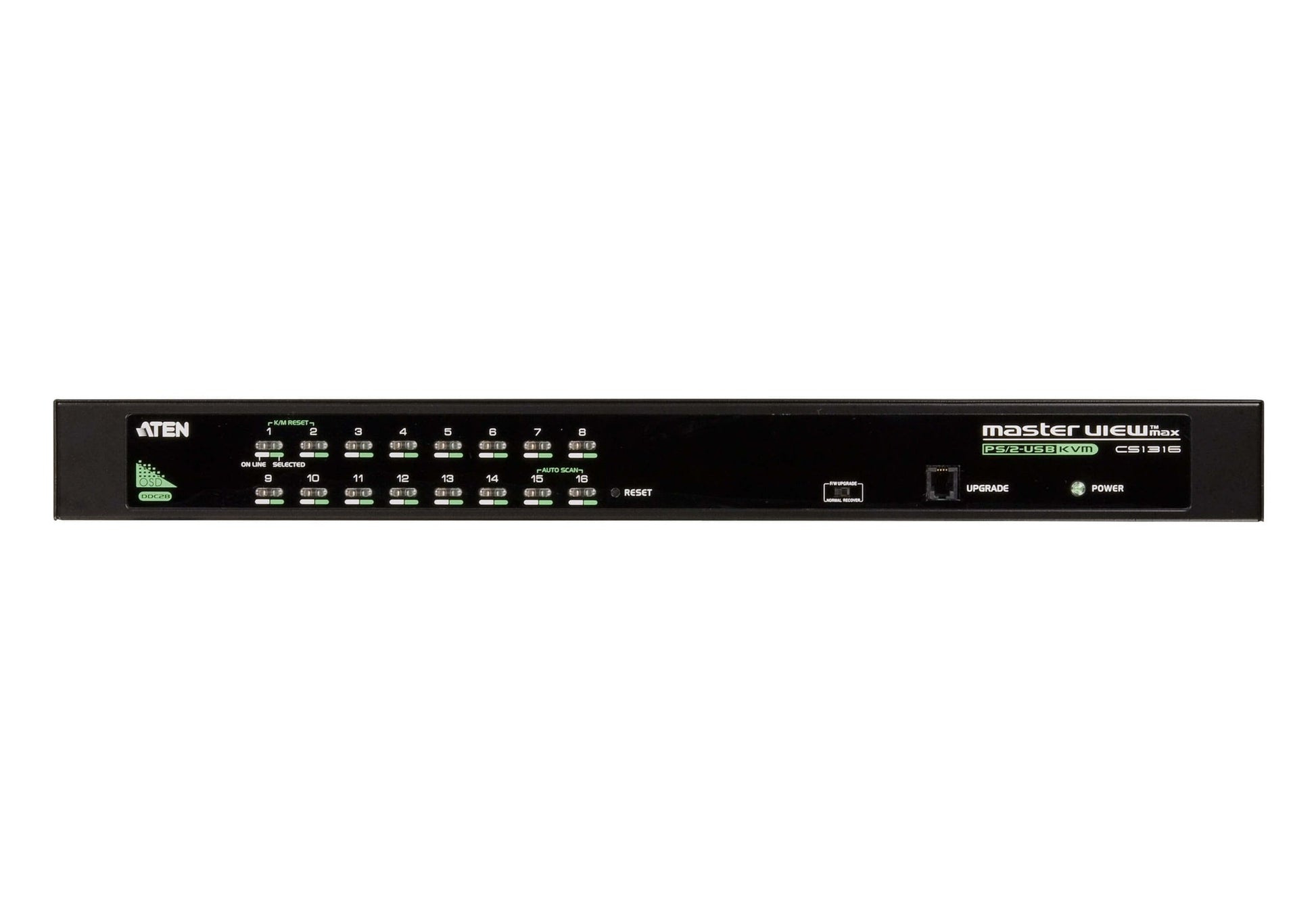

ATEN CS1316-AT-E KVM switch Rack mounting Black

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1316-AT-E.

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Specifications

Ports & interfaces

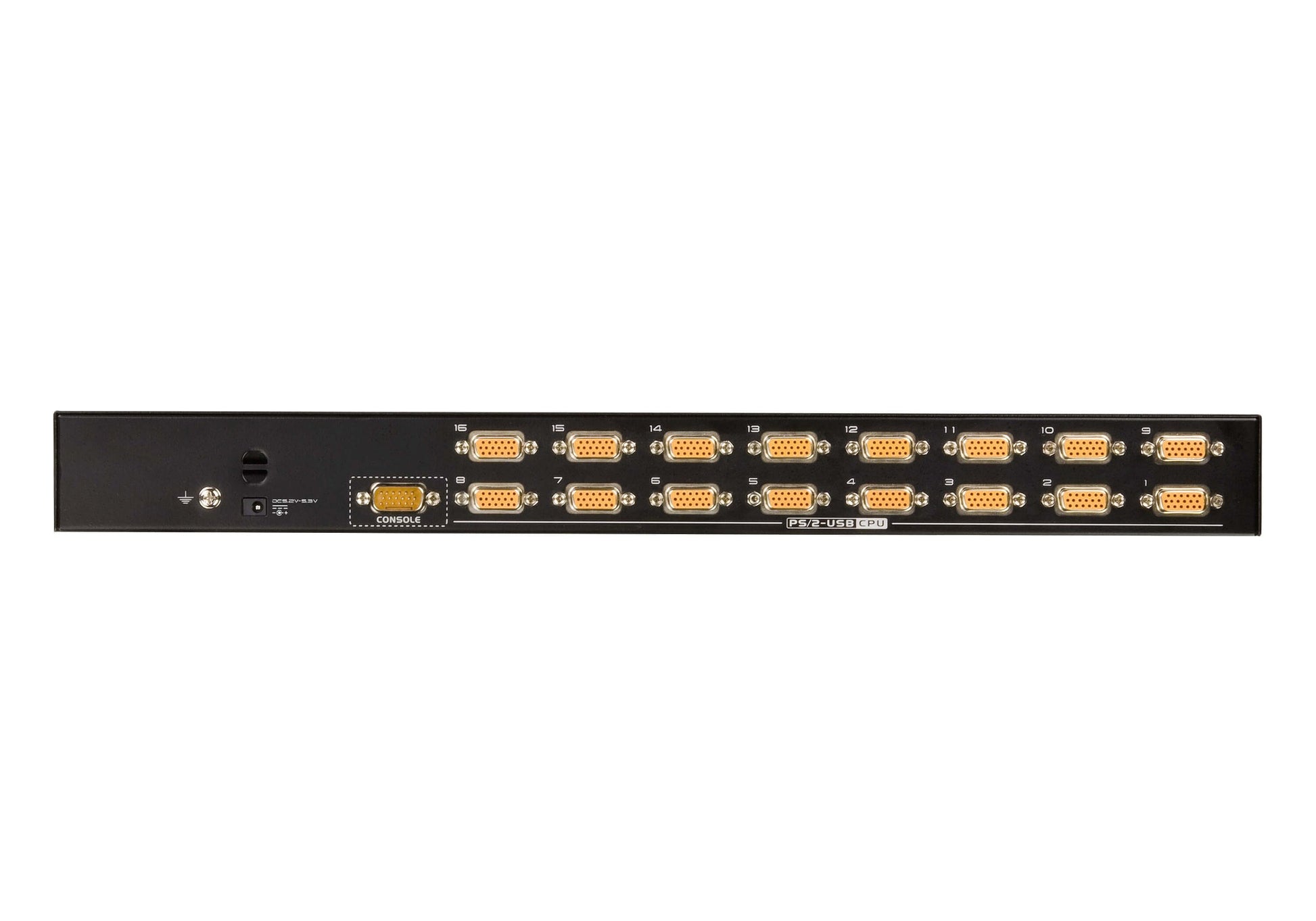

Console ports	VGA (D-Sub)
Number of computers controlled	256
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Performance
DDC2B support	Yes
Firmware upgradeable	Yes
HD type	QXGA
Hot-Plug support	Yes
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Hot keys	Yes
Cascadable	Yes
Design
Rack capacity	1U
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	6.5 W
Input voltage	5.3 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	437.2 mm
Depth	161.3 mm
Height	44 mm
Weight	2.5 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.87 kg
Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes

Downloads

• Datasheet (PDF)
