ATEN

ATEN CS1308 KVM switch Rack mounting Black

£193.01 GBP

Sale Sold out

Taxes included.

Condition New

Control multiple machines from one keyboard, monitor and mouse with the ATEN CS1308.

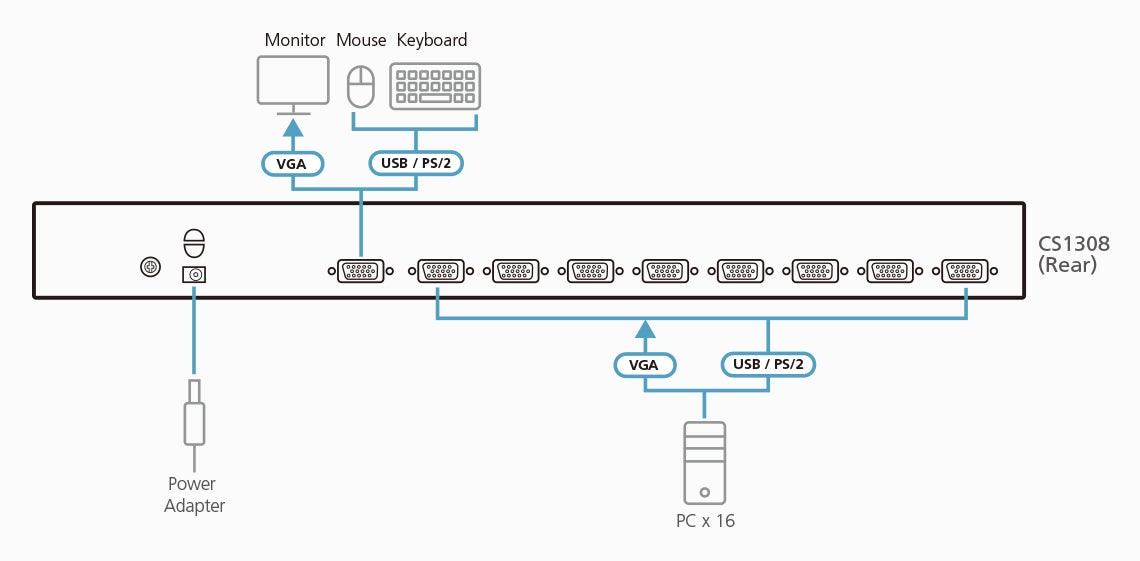

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.

Specifications

Ports & interfaces
Number of computers controlled	8
Keyboard port type	No
Mouse port type	No
Video port type	VGA
VGA (D-Sub) ports quantity	9
DC-in jack	Yes
Network
Ethernet LAN	No
Performance
Maximum resolution	2048 x 1536 pixels
Scan interval	255 s
Technical details
Product colour	Black
Rack mounting	Yes
LED indicators	Power
Compliance certificates	RoHS
Design
Rack capacity	1U
Housing material	Metal
Display
Built-in display	No
Power
Power consumption (typical)	5 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	433 mm
Depth	160 mm
Height	44 mm
Weight	1.89 kg
Packaging content
Manual	Yes
Other features
Connectivity technology	Wired
Power requirements	DC 5.3 V
Compatible operating systems	Windows 2000/XP/Vista, Linux, Mac, Sun
I/O ports	1 x RJ11
Logistics data
Harmonized System (HS) code	85176200
