ATEN CL6700MW KVM switch Rack mounting Black

Control multiple machines from one keyboard, monitor and mouse with the ATEN CL6700MW.

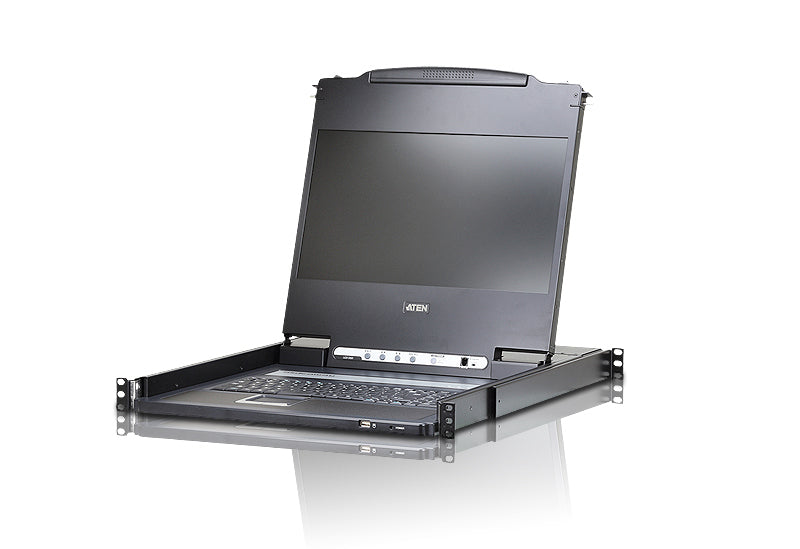

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-definition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

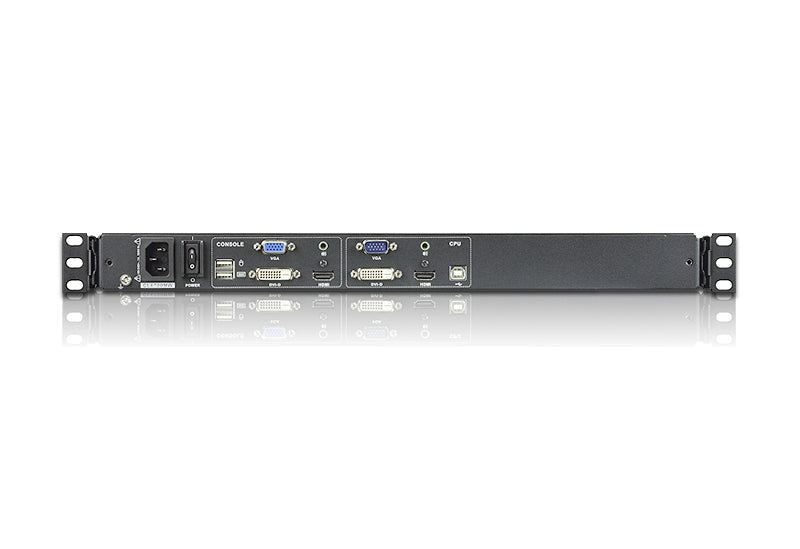

The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.

Features:
-Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
-Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
-Supports an external console with USB / DVI / VGA / HDMI connectors
-Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
-Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
-Audio support for connecting speakers
-Standard 105-key keyboard; Sun keyboard emulation
-Multiplatform support – Windows, Linux, Mac, and Sun
-Adjustable depth to fi t within the rack
-Firmware upgradeable
-Console lock – enables the console drawer to remain securely locked away in position when not in use
-DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
-Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Specifications

Ports & interfaces
Console USB ports quantity	3
Console ports	DVI-D, HDMI
USB connector type	USB Type-A, USB Type-B
Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
HDMI ports quantity	2
DVI-D ports quantity	2
Performance
DDC2B support	Yes
DDC/DDC2 supported	Yes
HD type	Full HD
Video bandwidth	60 Hz
Maximum resolution	1920 x 1080 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Power
Hot keys	Yes
Design
Keyboard language	Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English
Rack capacity	1U
Housing material	Metal
Display
Built-in display	Yes
Display	LCD
Display diagonal	43.9 cm (17.3")
Power
Input current	1 A
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	19.4 W
Input voltage	100-240 V
System requirements
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	480 mm
Depth	589.2 mm
Height	44 mm
Weight	11.4 kg
