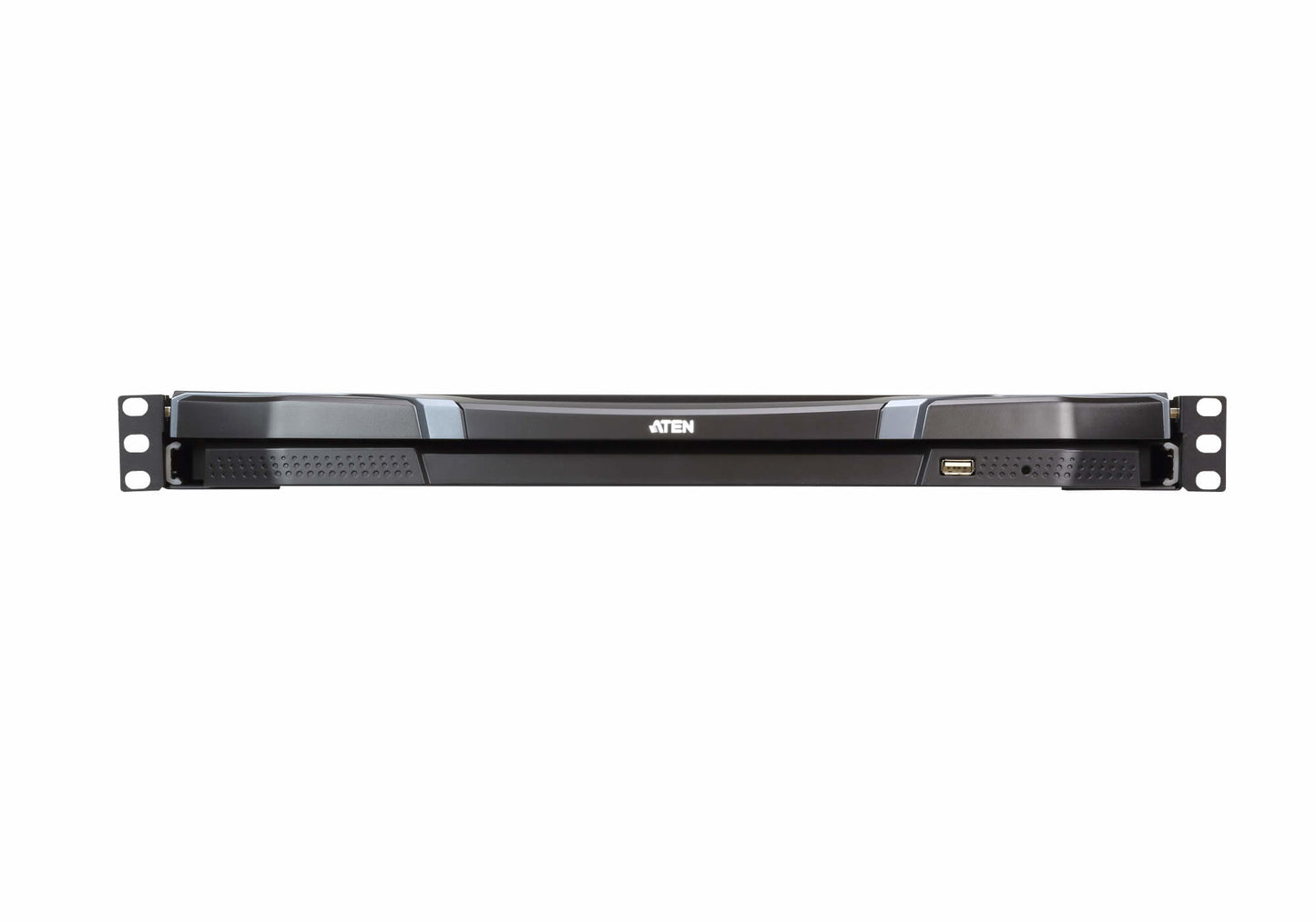

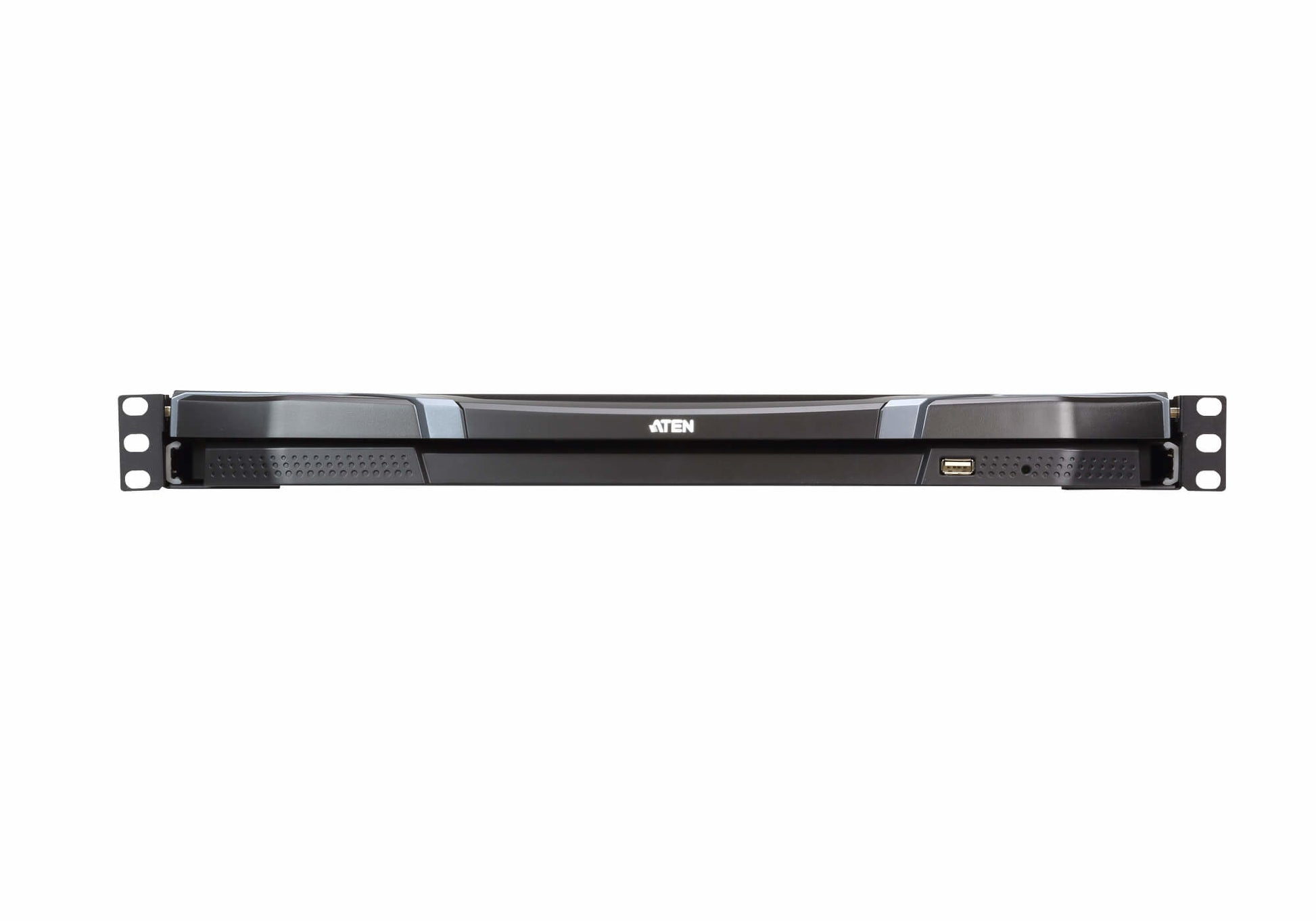

ATEN CL3800NW rack console 47 cm (18.5") 1920 x 1080 pixels Metal, Plastic Black 1U

Build a tidy install with the ATEN CL3800NW rack console 47 — dimensions and mounting details are in the spec table.

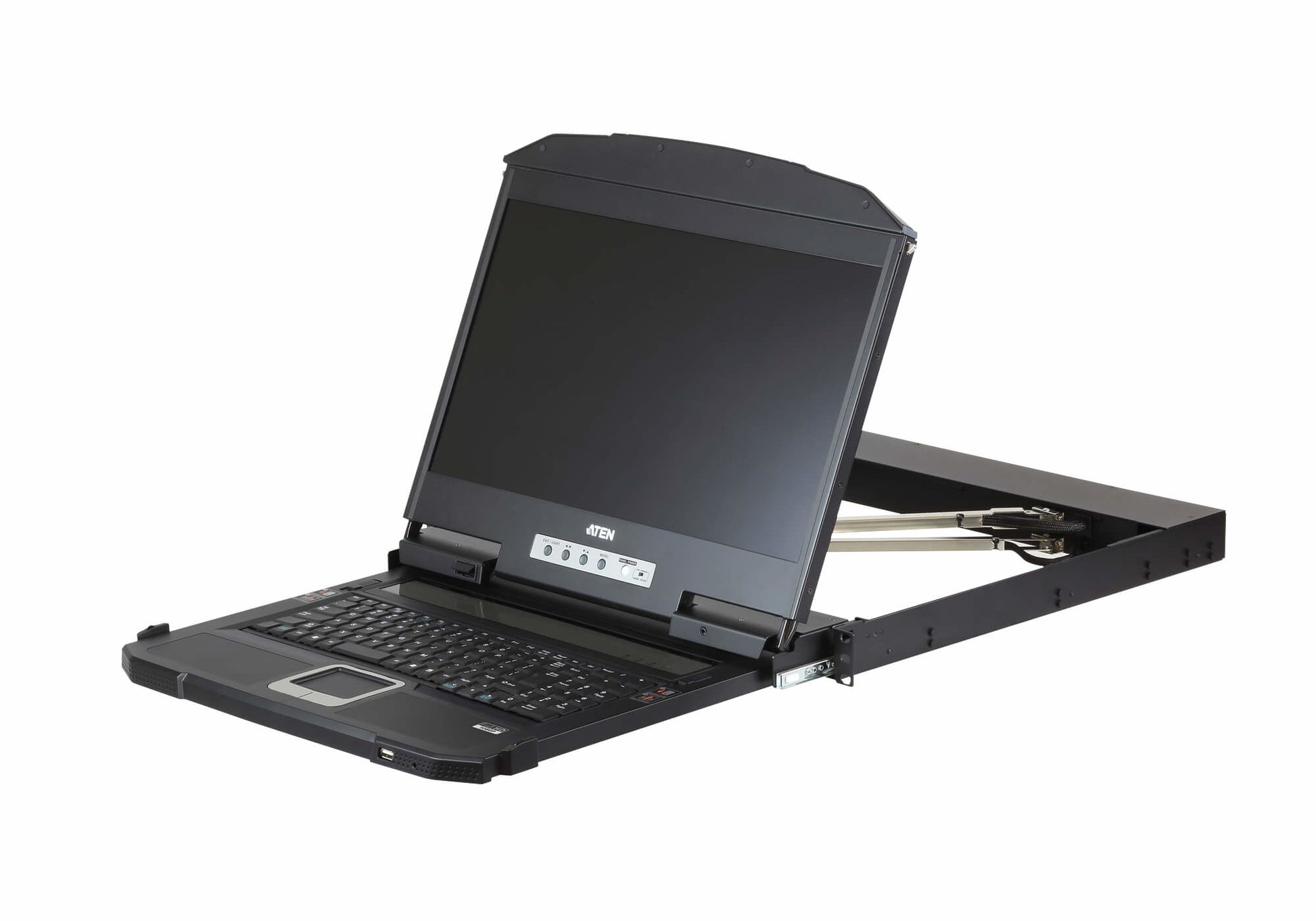

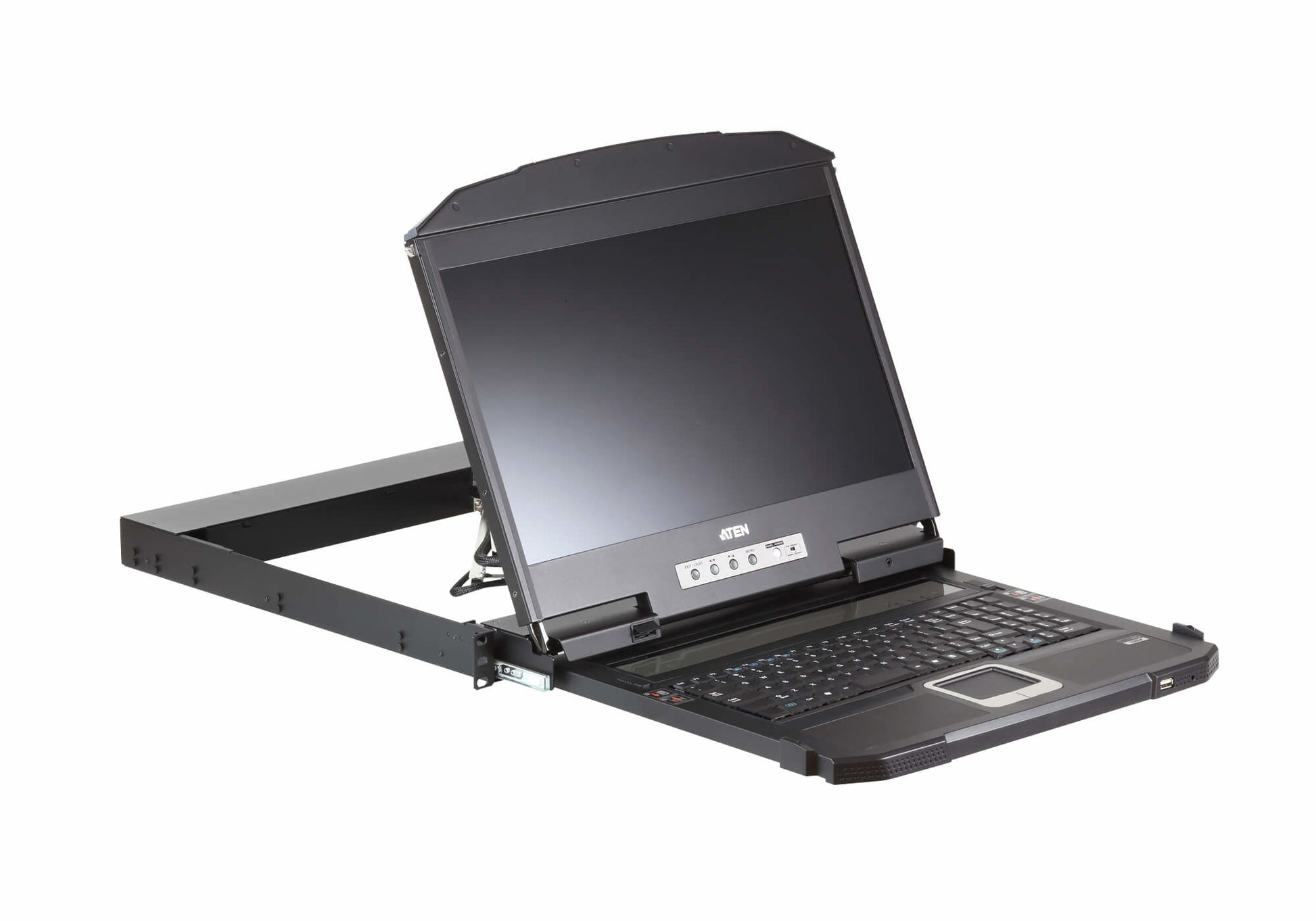

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.

The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.

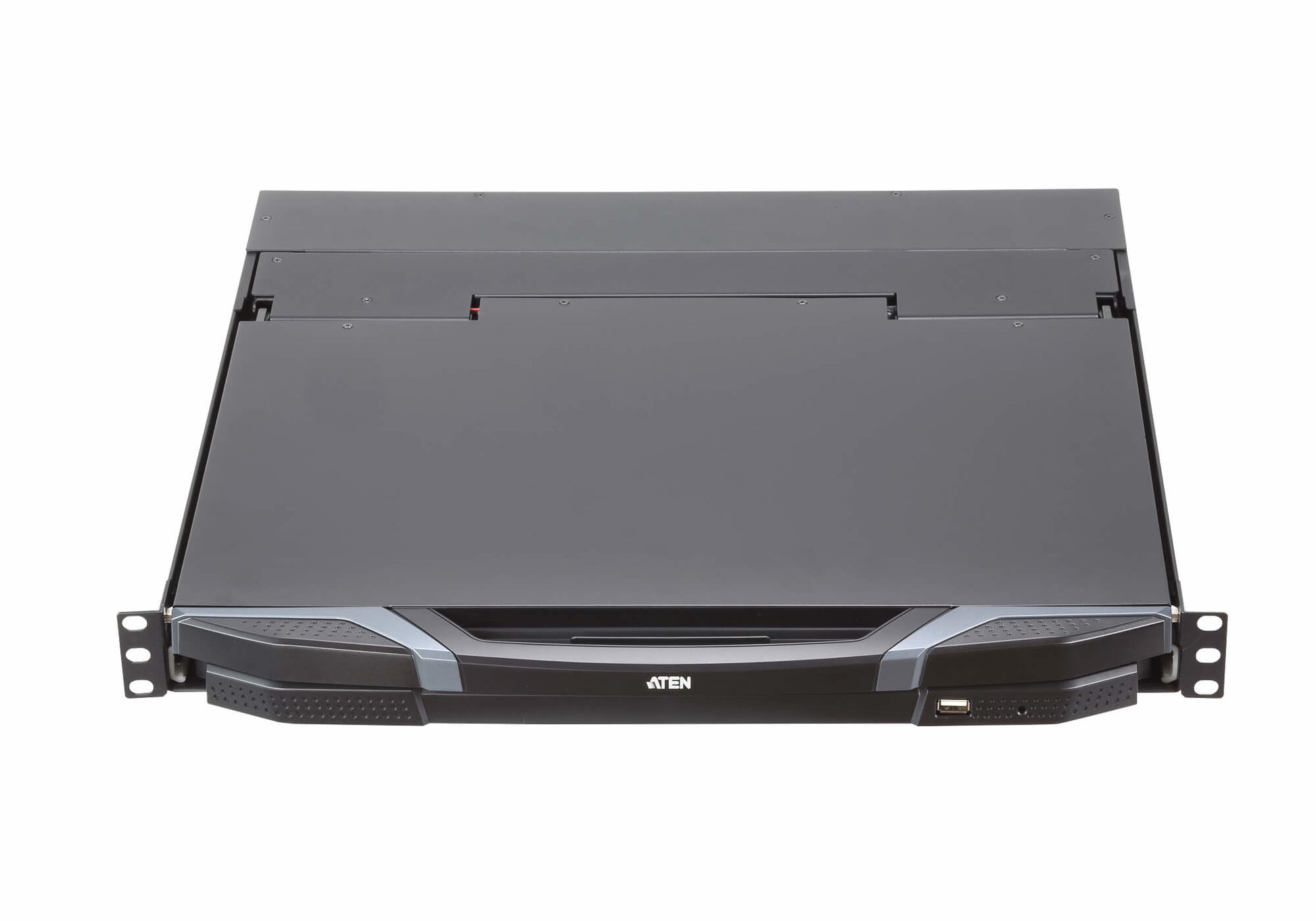

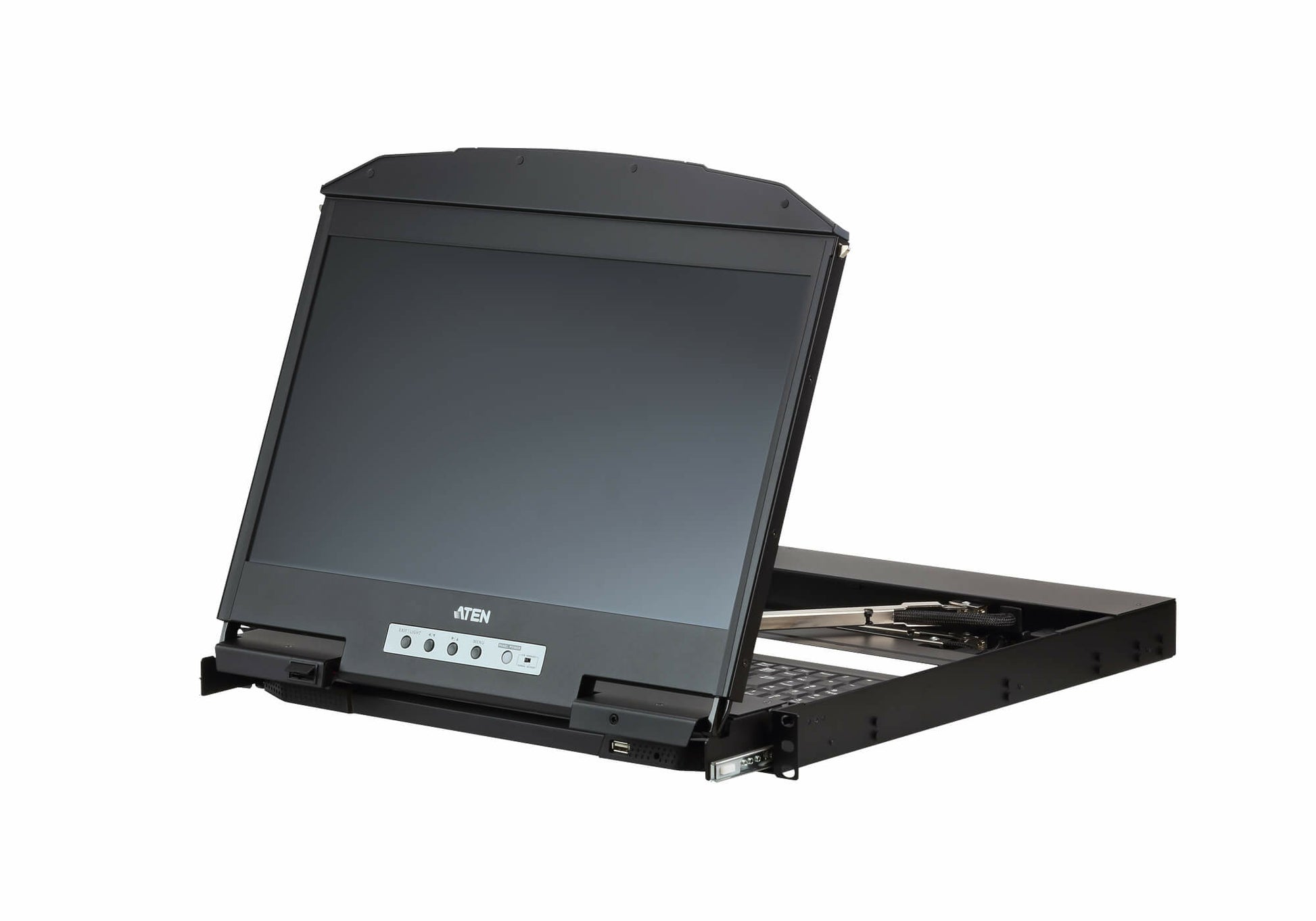

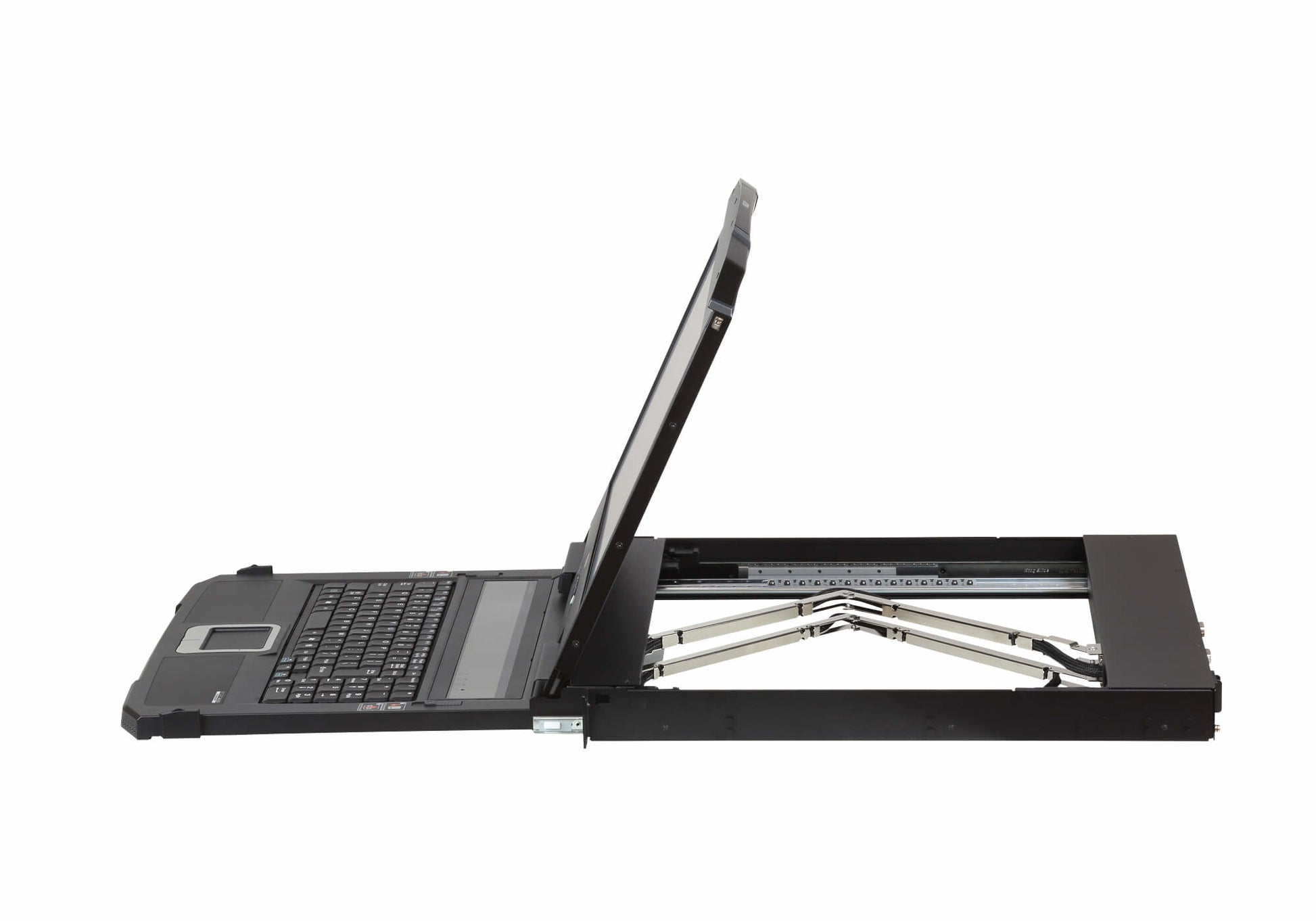

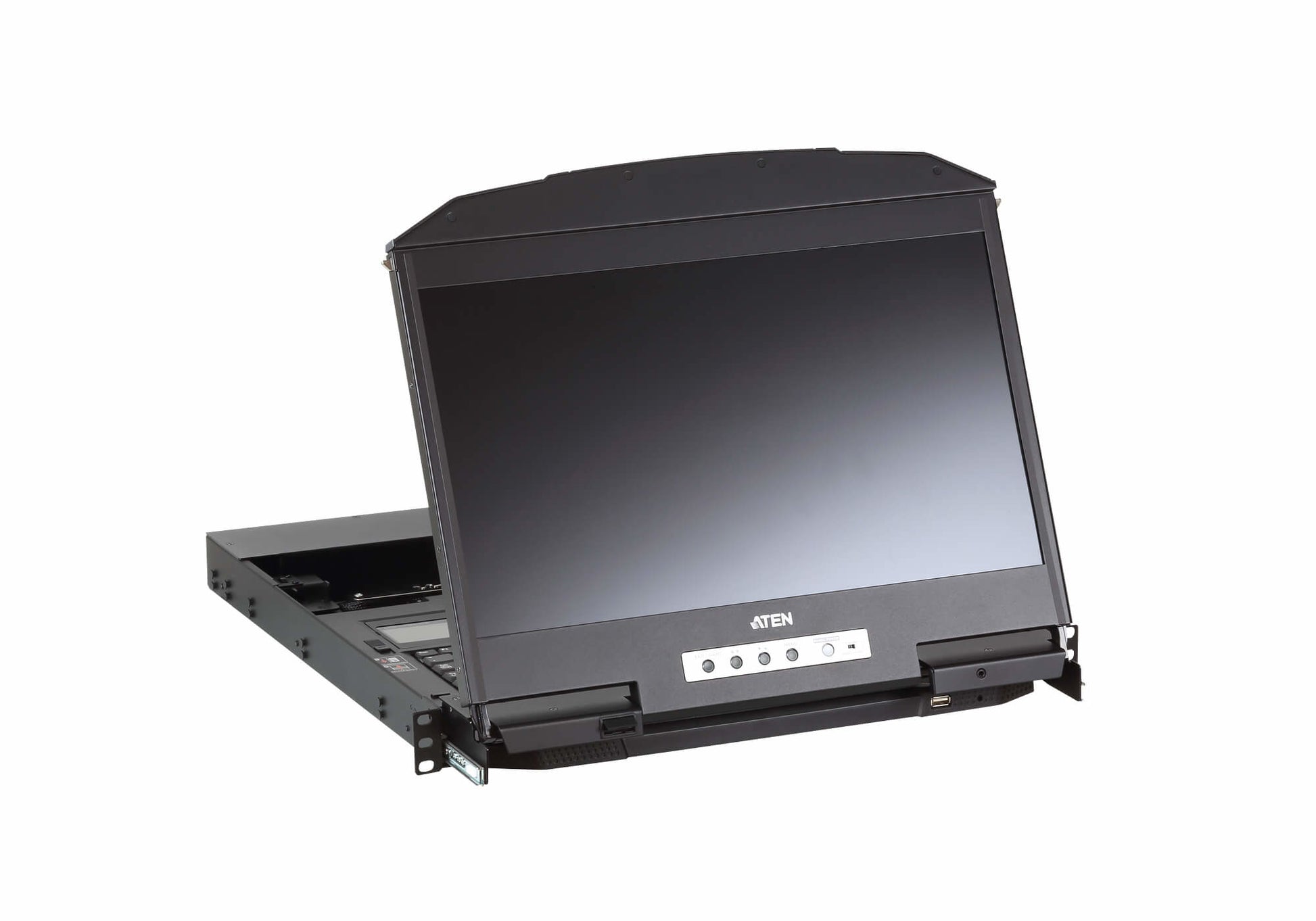

Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.

For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Specifications

Display
Response time	20 ms
Number of OSD languages	15
Display number of colours	16.78 million colours
Display type	LED
Display diagonal	47 cm (18.5")
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Pixel pitch	0.213 x 0.213 mm
Display resolution	1920 x 1080 pixels
Display brightness	350 cd/m²
Contrast ratio (typical)	1000:1
Technical details
LED indicators	Yes
Rack mounting	Yes
Rack capacity	1U
Operating relative humidity (H-H)	10 - 80%
Material	Metal, Plastic
Console port	HDMI/VGA/DVI/USB/3.5mm
Product colour	Black
Compliance certificates	RoHS
Ports & interfaces
Video port type	DVI/HDMI/VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2
3.5 mm (1/8-inch) out	Yes
Keyboard
Hot keys	Yes
Built-in touchpad	Yes
Keyboard number of keys	105
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Power supply type	AC
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	UL 60950-1, CAN/CSA
Weight & dimensions
Weight	9.61 kg
Width	480.6 mm
Height	514.2 mm
Depth	42.8 mm
