ATEN CL3108 rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U

Build a tidy install with the ATEN CL3108 rack console 47 — dimensions and mounting details are in the spec table.

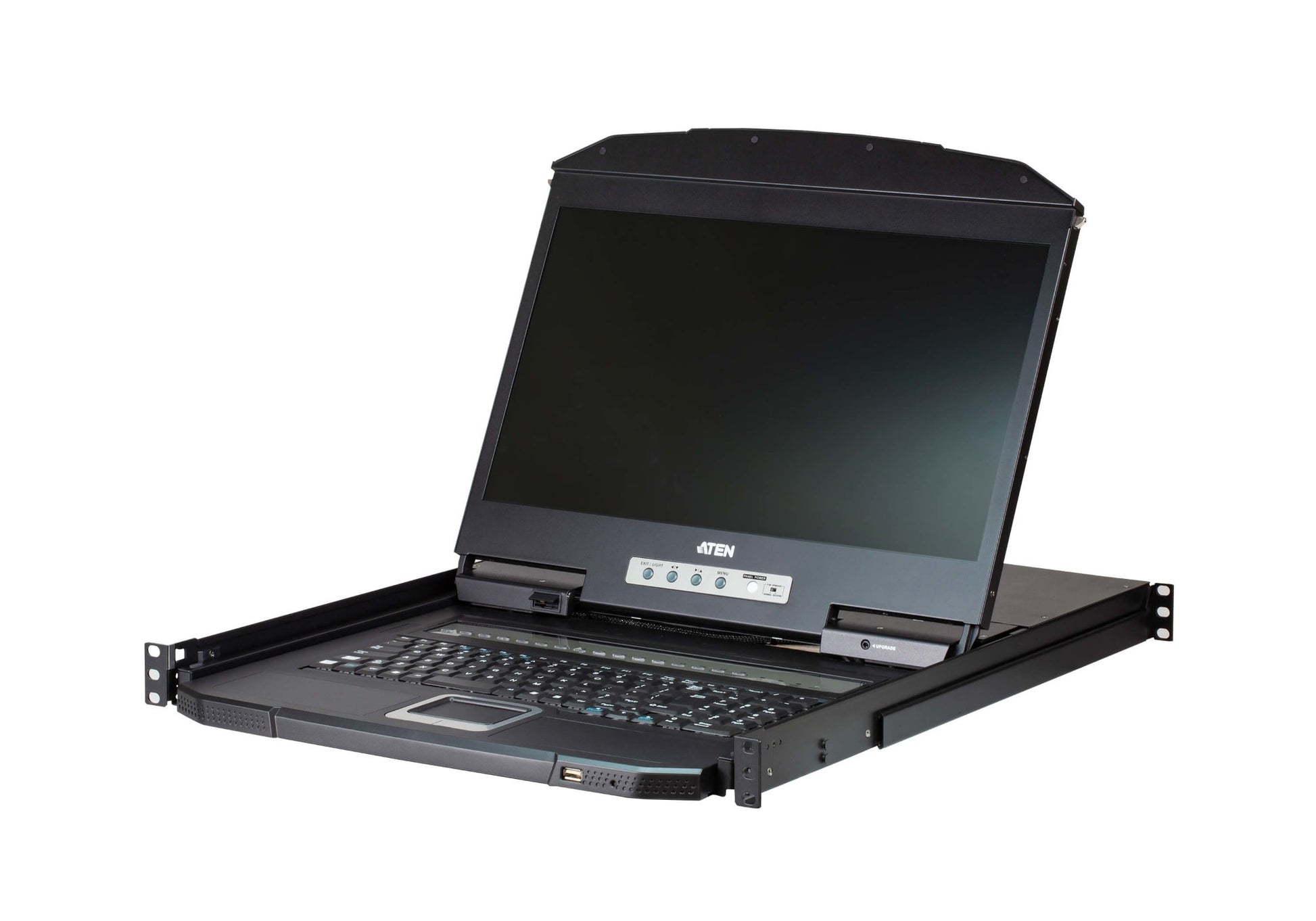

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Specifications

Display
Response time	5 ms
Display number of colours	16.78 million colours
Display type	LED
Display	TFT-LCD
Display diagonal	47 cm (18.5")
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
Pixel pitch	0.3 x 0.3 mm
On Screen Display (OSD)	Yes
Display resolution	1366 x 768 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Technical details
Rack mounting	Yes
Rack capacity	1U
Operating relative humidity (H-H)	0 - 80%
Material	Metal, Plastic
KVM switch ports quantity	8
Hot-Plug support	Yes
Product colour	Black
Built-in KVM switch	Yes
Ports & interfaces
Video port type	VGA
Mouse port type	USB, PS/2
Keyboard port type	USB, PS/2
3.5 mm (1/8-inch) in	Yes
Keyboard
Hot keys	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 / 60 Hz
Input current	1 A
Power supply type	AC
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	10.5 kg
Width	480.6 mm
Height	631.7 mm
Depth	42.8 mm
