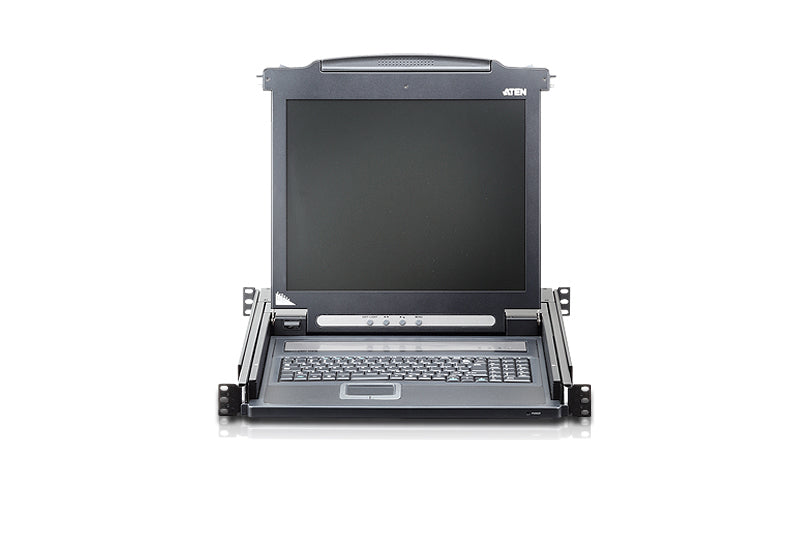

ATEN CL1000N KVM switch Rack mounting Black

Control multiple machines from one keyboard, monitor and mouse with the ATEN CL1000N.

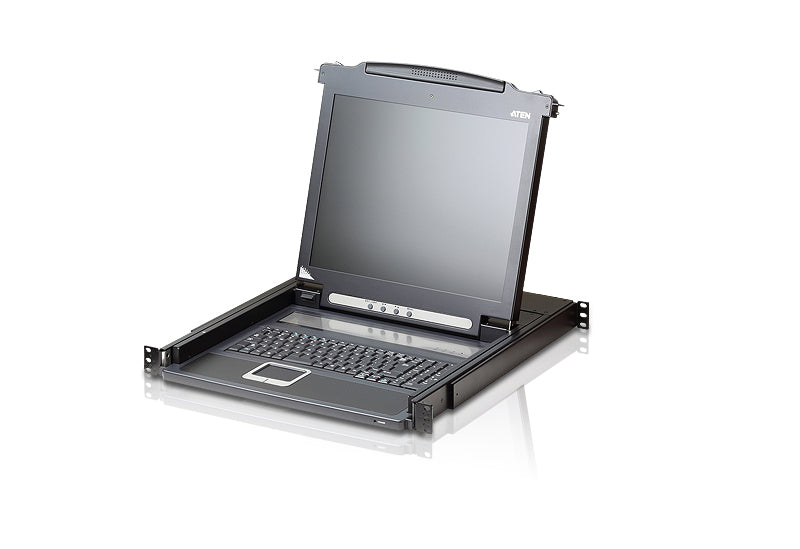

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Features:

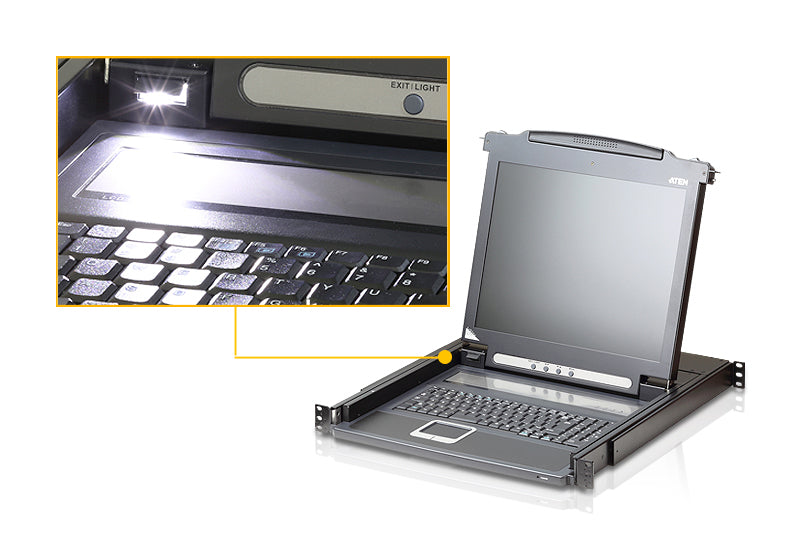

-Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
-Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
-LCD module rotates up to 115 degrees for a more comfortable viewing angle
-Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
-Compatible with most PS/2 KVM Switches
-Internal power supply
-Adjustable depth to fit within a rack
-High video resolution:
• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
-Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
-Improved design – optional single person installation kit

Note: Custom KVM cables or converters are available for USB support
* Compatible rack mounting kit:
CL1000M: 2X-010G, 2X-011G, 2X-012G
CL1000N: 2X-023G, 2X-024G, 2X-025G

Package Contents
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Power Cord
1x User Instructions

Specifications

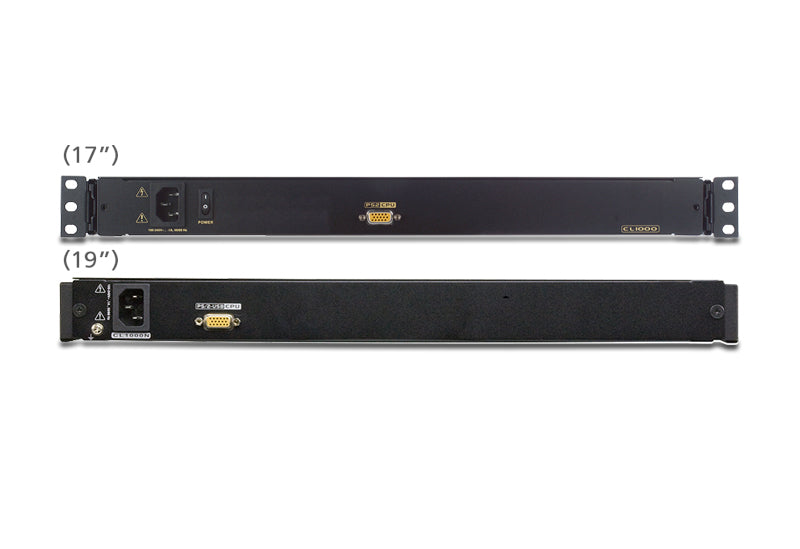

Ports & interfaces
Console ports	VGA (D-Sub)
Number of computers controlled	1
Keyboard port type	PS/2
Mouse port type	PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	1
DC-in jack	No
Performance
DDC2B support	Yes
DDC/DDC2 supported	Yes
HD type	WUXGA
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Compliance certificates	RoHS
Design
Rack capacity	1U
Housing material	Metal, Plastic
Display
Built-in display	Yes
Display	LCD
Display diagonal	48.3 cm (19")
Power
Input current	1 A
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	24 W
Input voltage	100-240 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	483 mm
Depth	585.2 mm
Height	44 mm
Weight	11.1 kg
Packaging content
Rack mount kit	Yes
Cables included	AC, KVM
Quick installation guide	Yes
