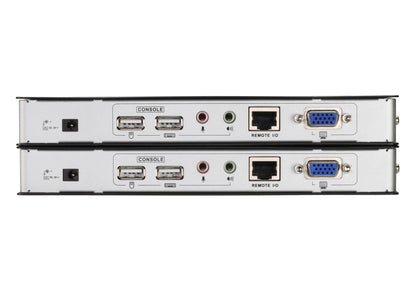

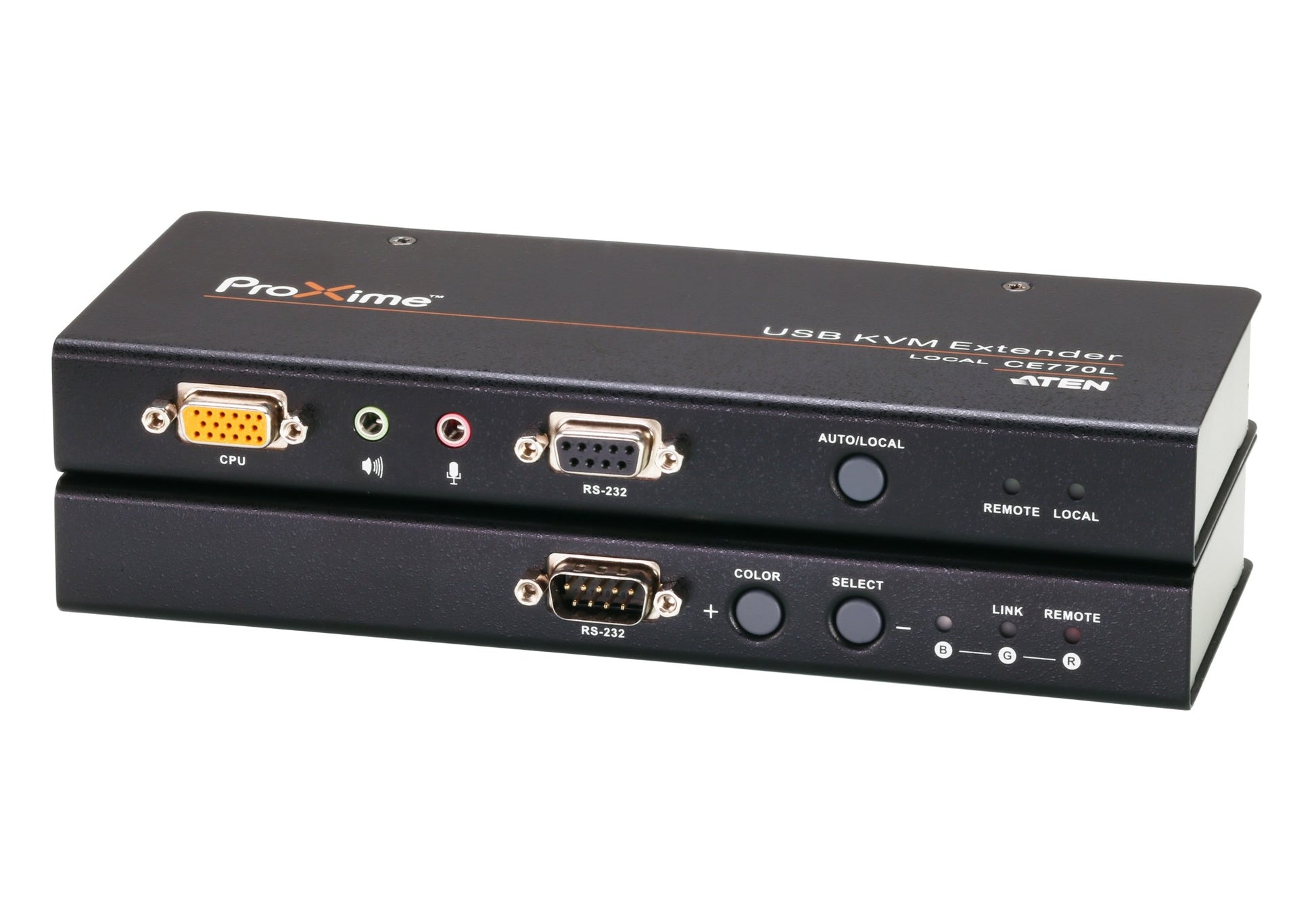

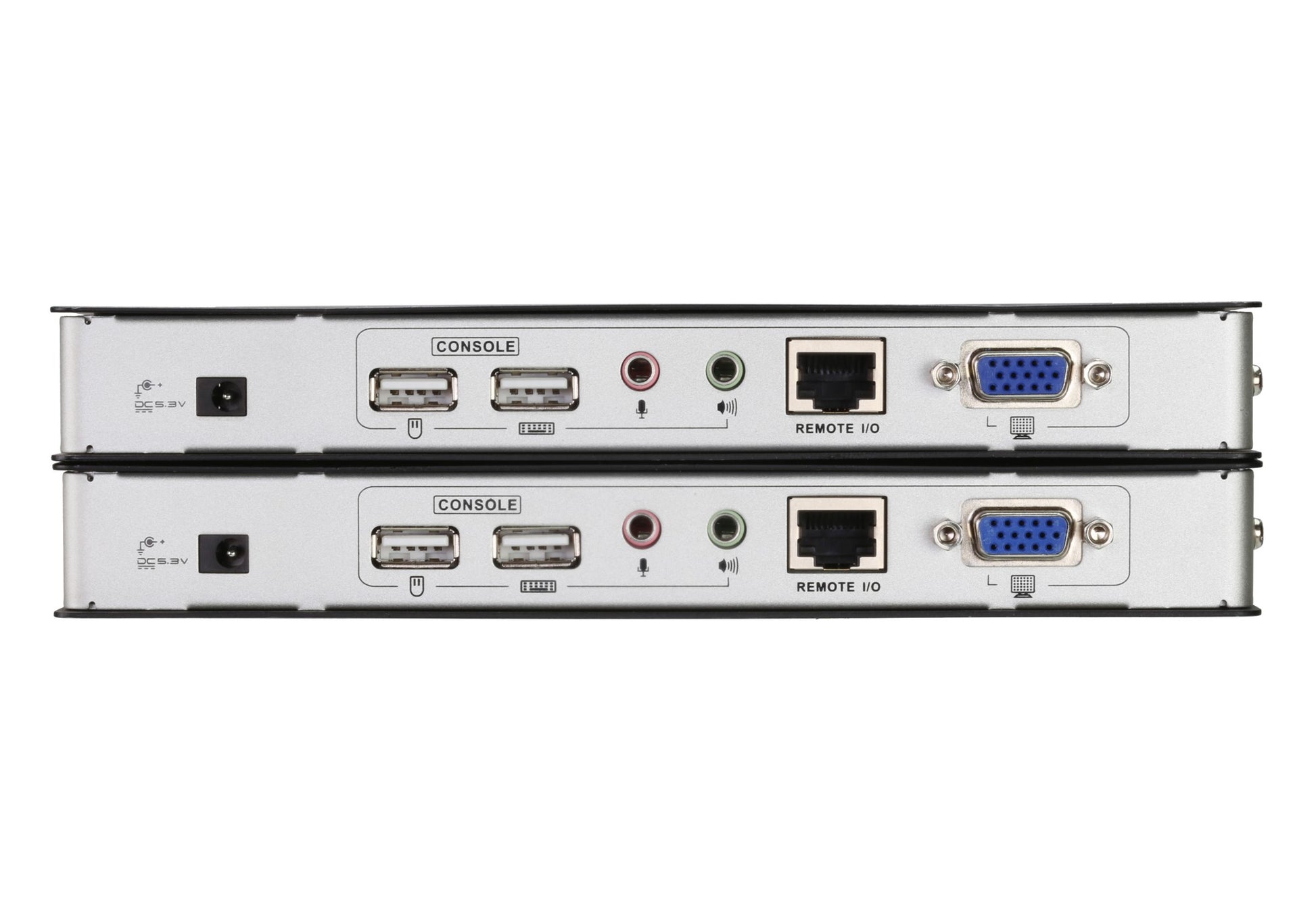

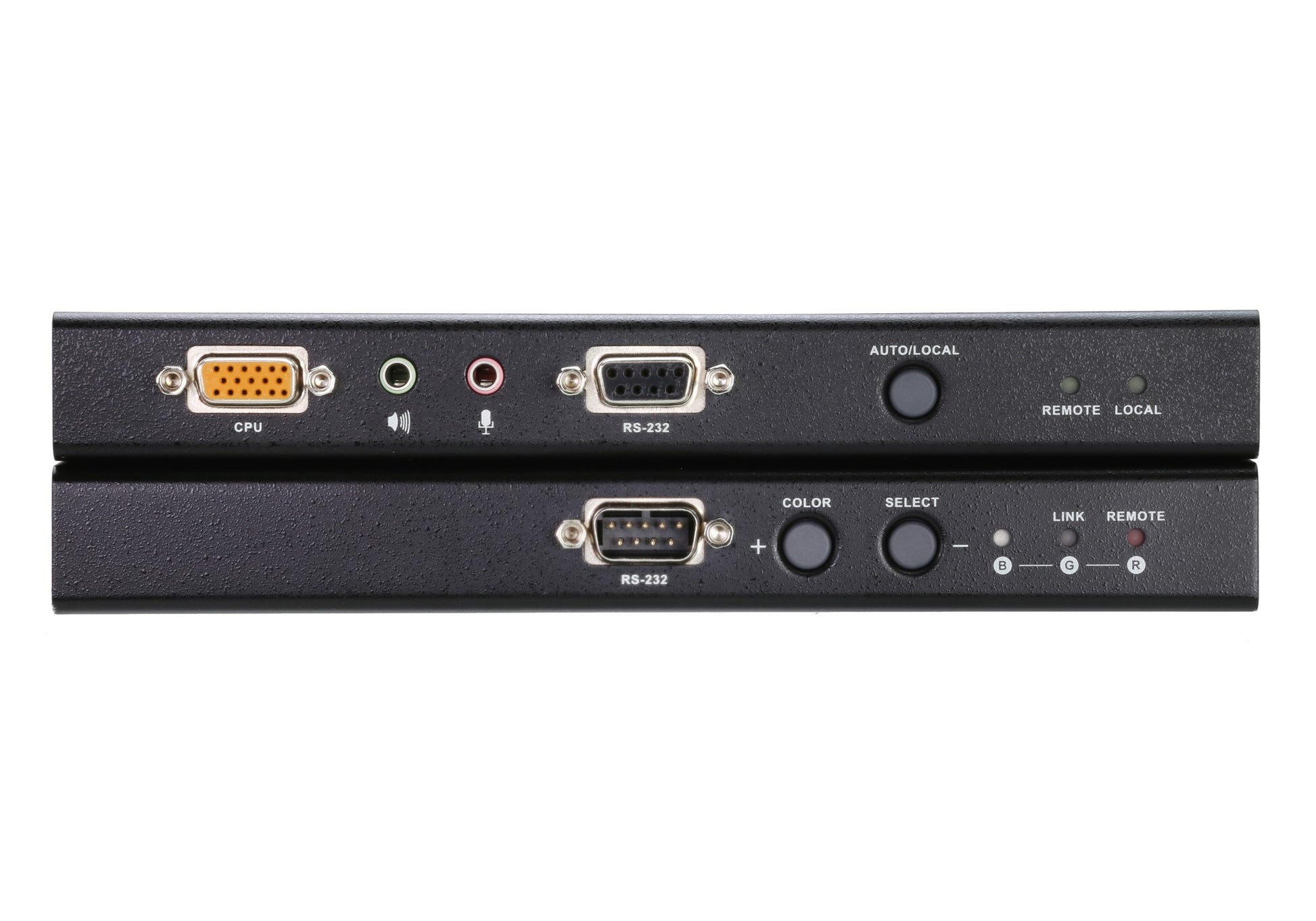

ATEN CE770 KVM extender Transmitter & receiver KVM Switch

Control multiple machines from one keyboard, monitor and mouse with the ATEN CE770.

The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console.

The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE770's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	300 m
Cable types supported	Cat5
Rack mounting	Yes
KVM port selection	Push-buttons
Product colour	Black
Material	Metal
USB 2.0 ports quantity	2
Transmitter
Transmitter local keyboard/mouse port type	USB
Receiver
Receiver local keyboard/mouse port type	USB
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Technical details
Weight	490 g
Maximum resolution	1920 x 1200 pixels
Dimensions (WxDxH)	202 x 86.4 x 25 mm
