ATEN

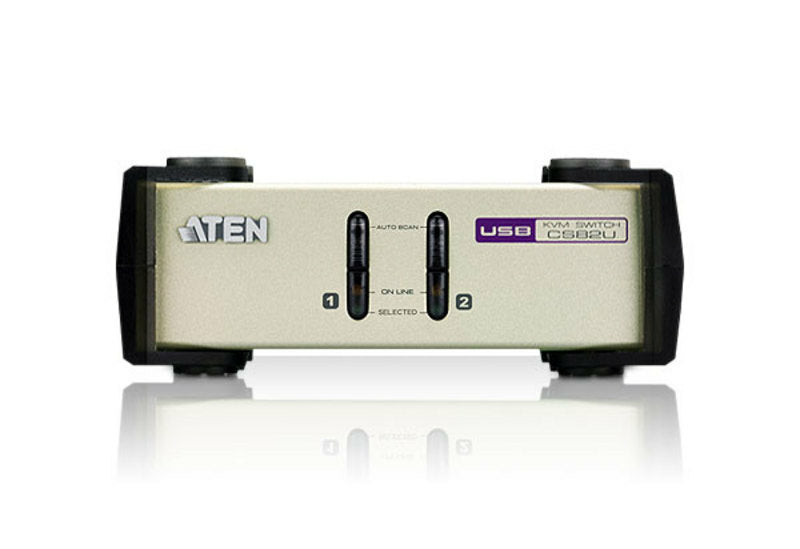

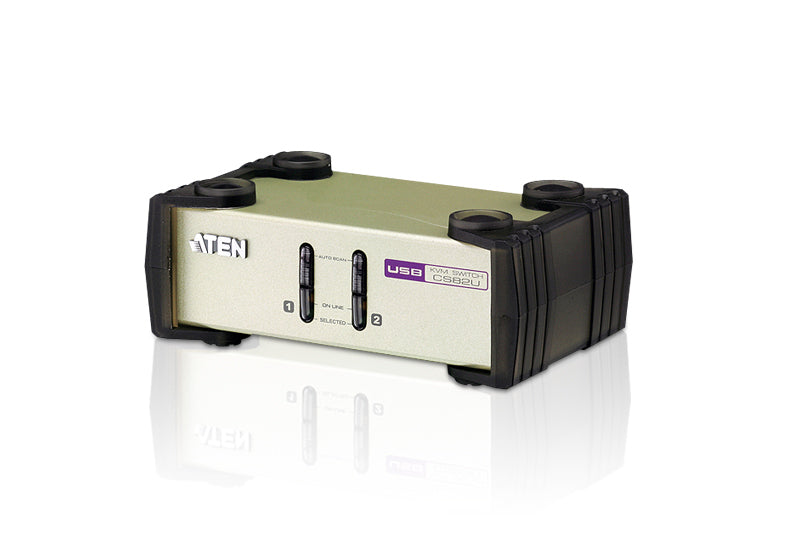

ATEN 2-Port USB - PS/2 VGA KVM Switch

£66.73 GBP

Sale Sold out

Taxes included.

Condition New

Control multiple machines from one keyboard, monitor and mouse with the ATEN 2-Port.

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	USB A, VGA (D-Sub)
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
VGA (D-Sub) ports quantity	2
DC-in jack	Yes
Performance
DDC2B support	Yes
HD type	QXGA
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Scan interval	3,5,10,20 s
Technical details
Product colour	Light grey
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Design
Housing material	Metal
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	0.72 W
Input voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	88 mm
Depth	140 mm
Height	55.5 mm
Weight	869 g
Package width	59 mm
Package depth	239 mm
Package height	175 mm
Package weight	981 g
Packaging content
Quick installation guide	Yes
Manual	Yes
Logistics data
Master (outer) case width	328 mm
Master (outer) case length	497 mm
Master (outer) case height	196 mm
Master (outer) case gross weight	10.4 kg
Products per master (outer) case	10 pc(s)
Master (outer) case net weight	8.69 kg
Harmonized System (HS) code	85176200
