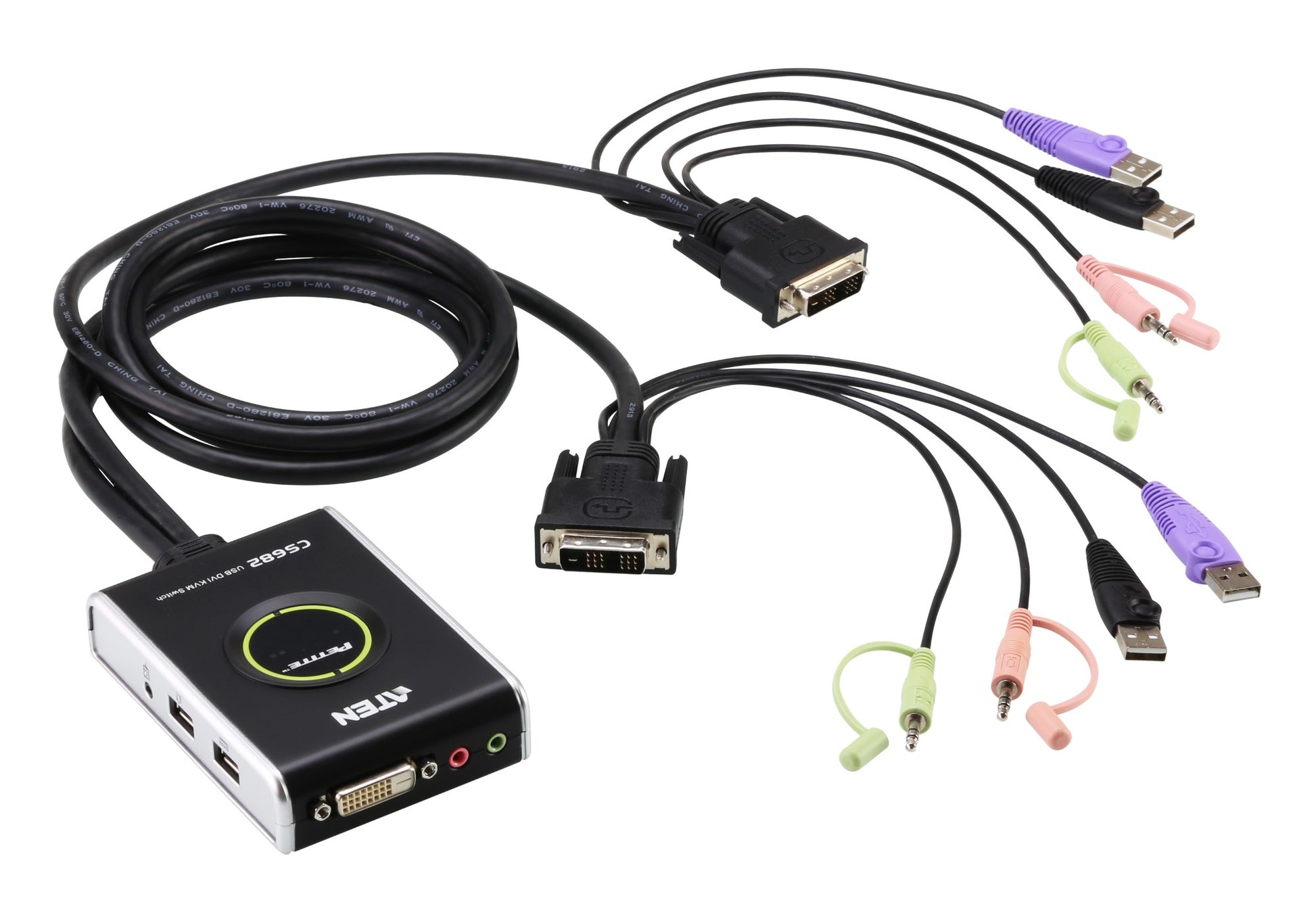

ATEN 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
ATEN 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
Regular price
£81.96 GBP
Regular price
Sale price
£81.96 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the ATEN 2-Port.
The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.Furthermore, the CS682 features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to new hotkeys, the CS682 offers the latest mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer.
Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-D, USB A |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DVI-D ports quantity | 3 |
| Cable length | 1.2 m |
| HDCP | Yes |
| Performance | |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 3,5,10,20 s |
| Technical details | |
| Product colour | Black |
| LED indicators | Yes |
| Hot keys | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Design | |
| Wired remote switch | Yes |
| Remote switch cable length | 1.8 m |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power consumption (typical) | 3.23 W |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 78 mm |
| Depth | 111.5 mm |
| Height | 24 mm |
| Weight | 490 g |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
