ATEN

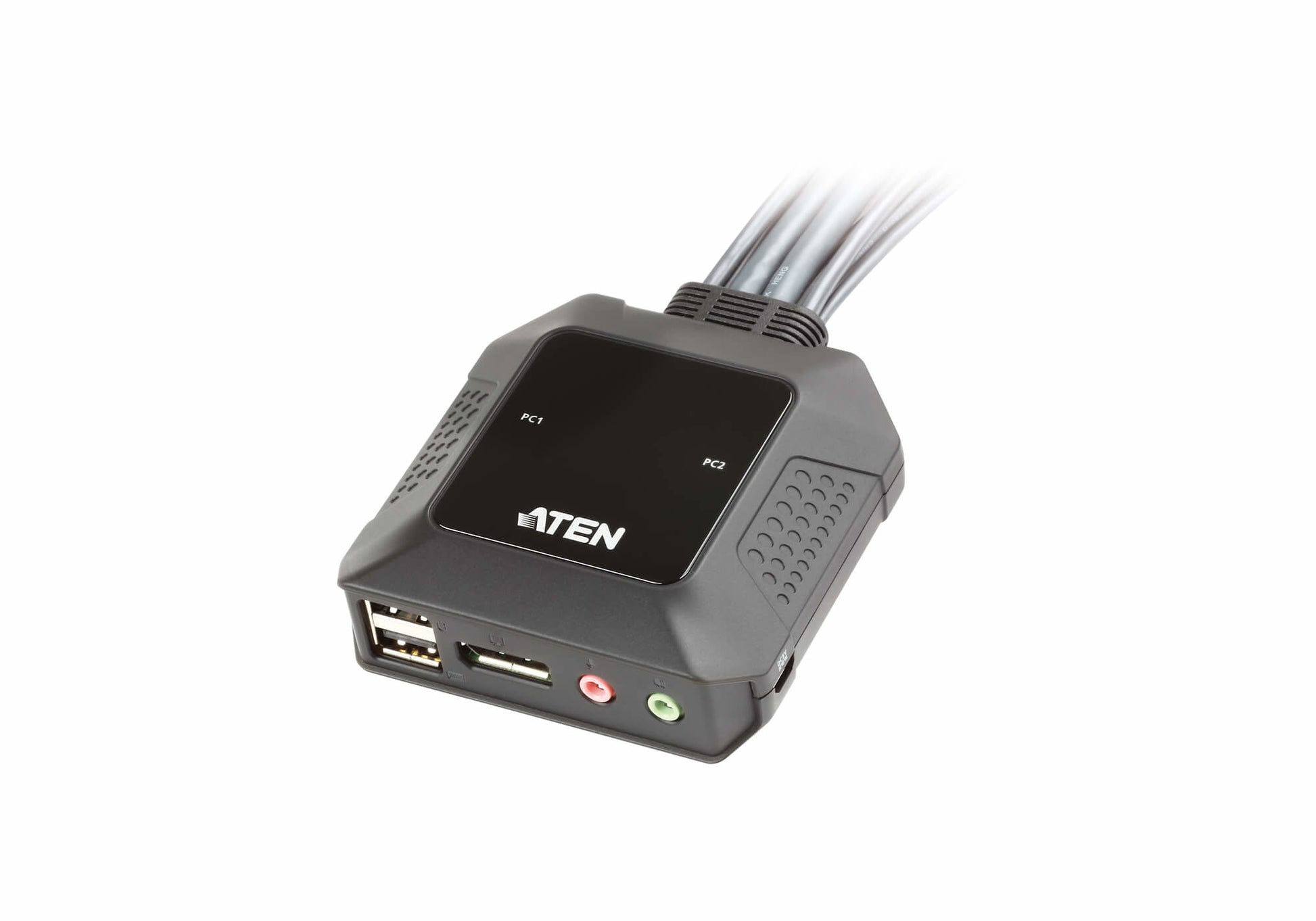

ATEN 2-Port USB DisPlayPort Cable KVM Switch
ATEN 2-Port USB DisPlayPort Cable KVM Switch
Regular price
£71.52 GBP
Regular price
Sale price
£71.52 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the ATEN 2-Port.

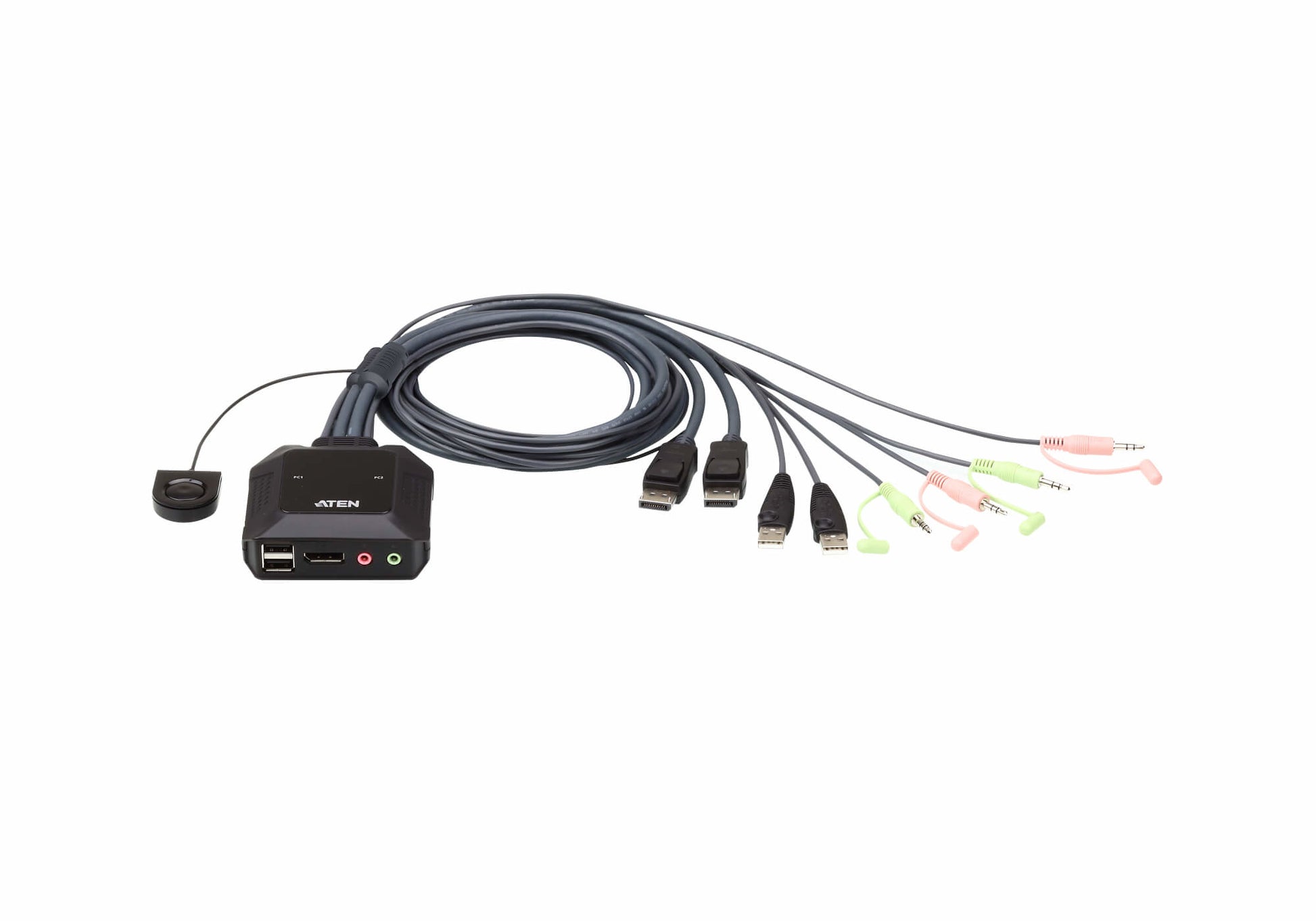

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |

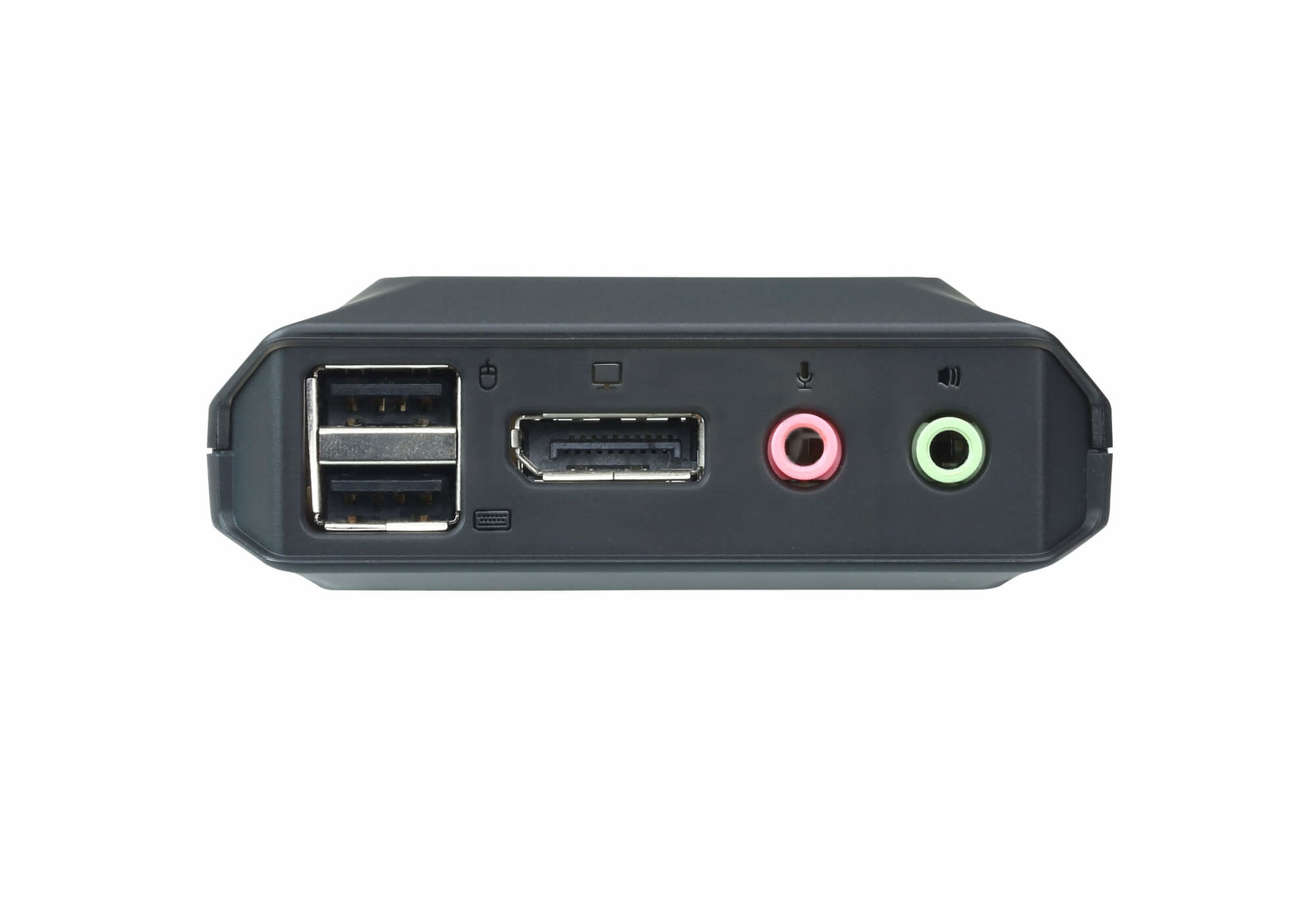

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type | Micro-USB B, USB Type-A |
| Number of microphone inputs | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.1 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 1 |
| Cable length | 1.2 m |
| HDCP | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Hot-Plug support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Design | |
| Wired remote switch | Yes |
| Remote switch cable length | 1.8 m |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| USB powered | Yes |
| Power consumption (typical) | 1.38 W |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 84.2 mm |
| Depth | 83.4 mm |
| Height | 30.4 mm |
| Weight | 360 g |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 225 mm |
| Package weight | 435 g |
| Packaging content | |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 9.33 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case net weight | 7.2 kg |
| Harmonized System (HS) code | 85176200 |
