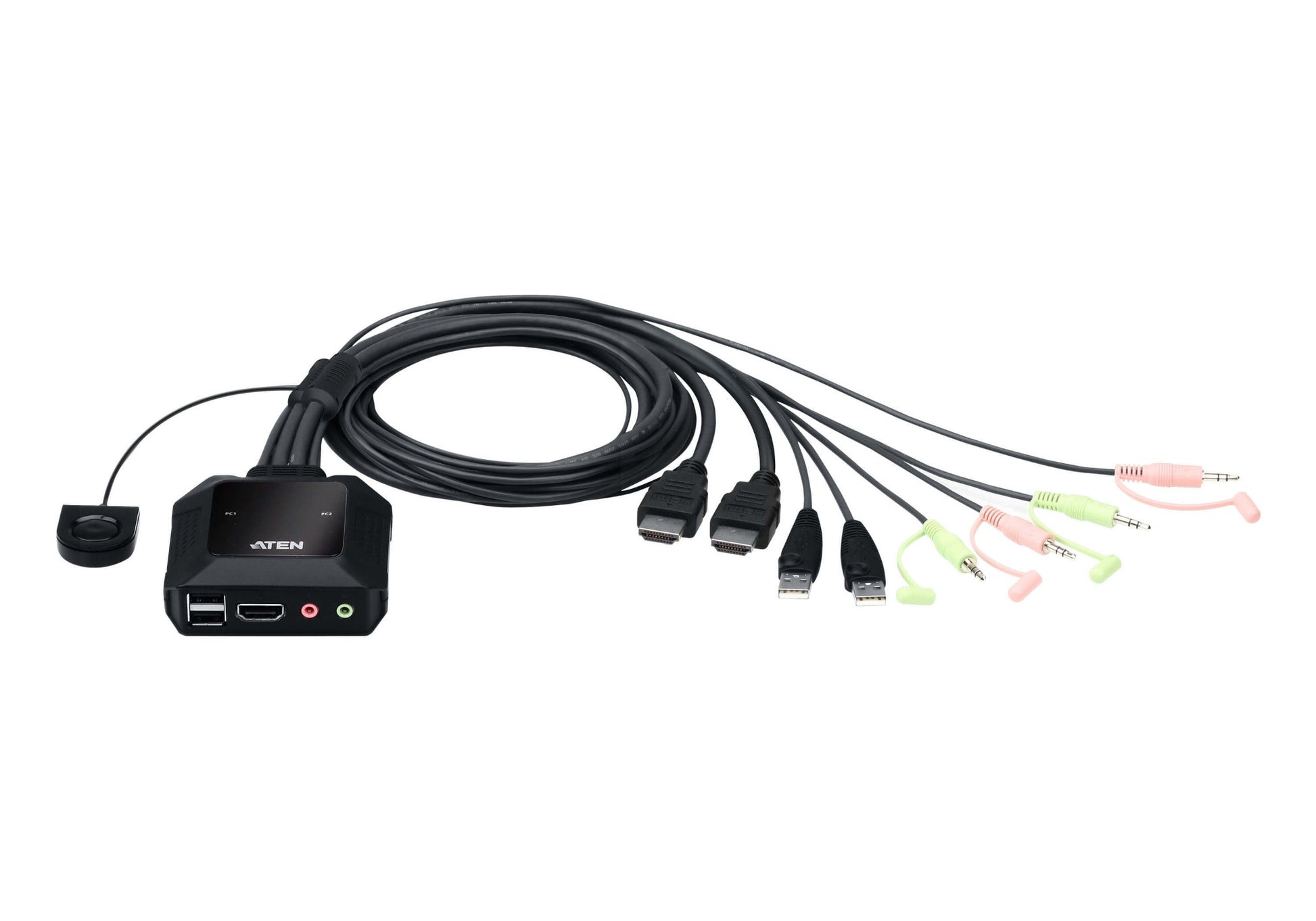

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Regular price
£78.99 GBP
Regular price
Sale price
£78.99 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the ATEN 2-Port.
Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.
Space Efficient Desktop Setup

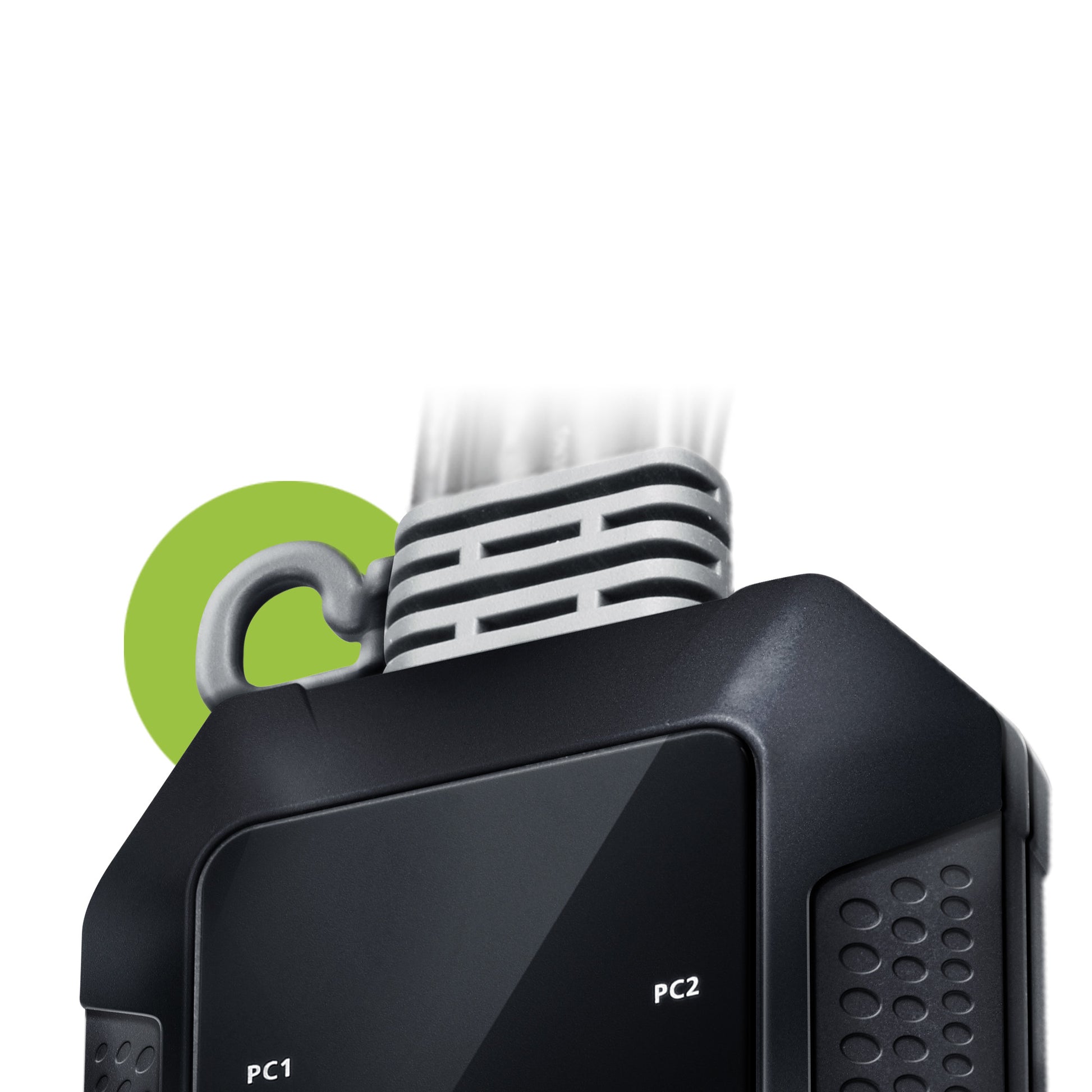

The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

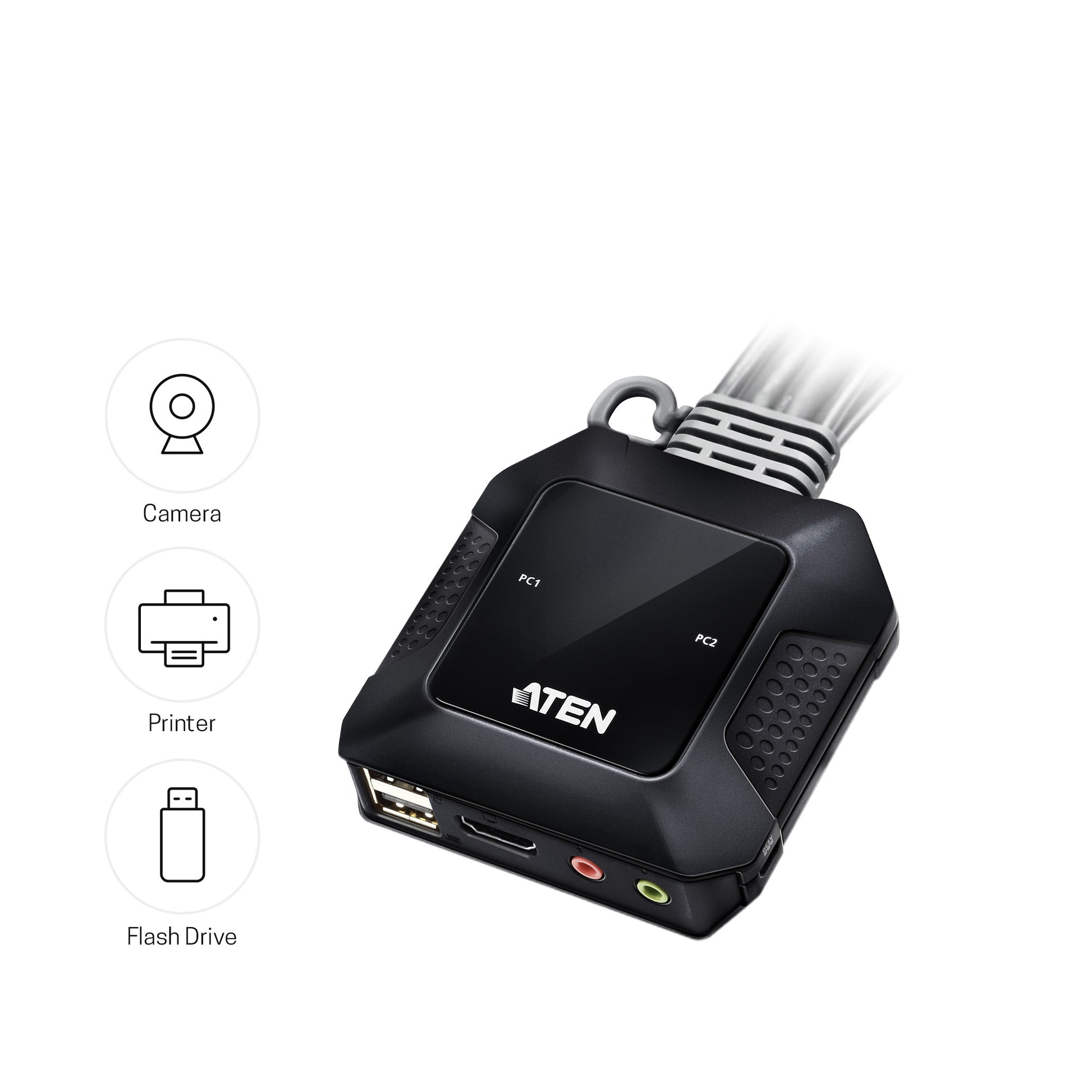

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on

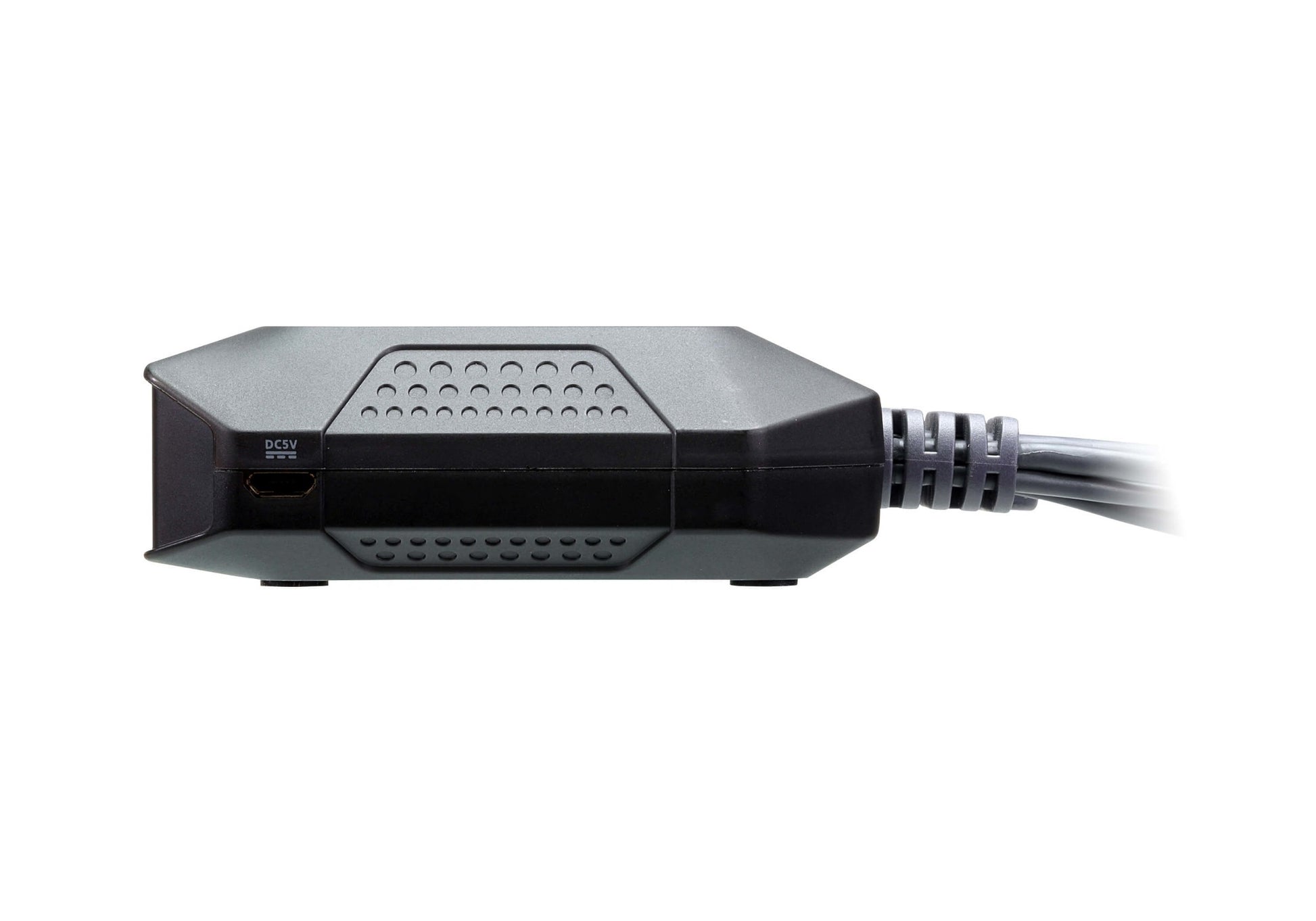

The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |

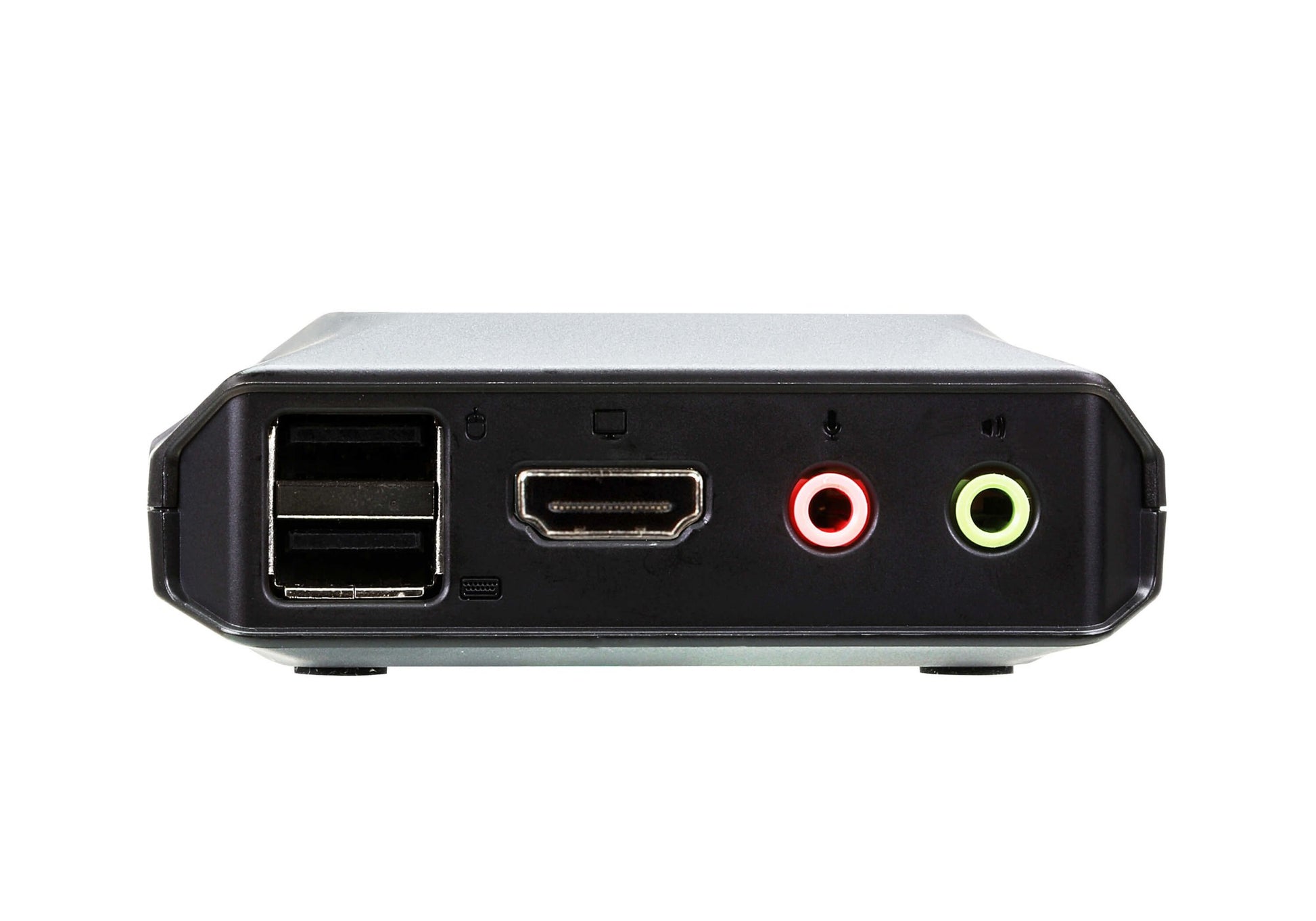

| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 3 |
| HDMI ports quantity | 3 |
| Console HDMI ports quantity | 1 |
| Cable length | 1.2 m |
| HDCP | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.2 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Design | |
| Wired remote switch | Yes |
| Remote switch cable length | 1.8 m |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | USB |
| Power consumption (typical) | 3.47 W |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 84.2 mm |
| Depth | 83.4 mm |
| Height | 30.4 mm |
| Weight | 340 g |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package weight | 420 g |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 9.3 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case net weight | 6.8 kg |
| Harmonized System (HS) code | 85176200 |
