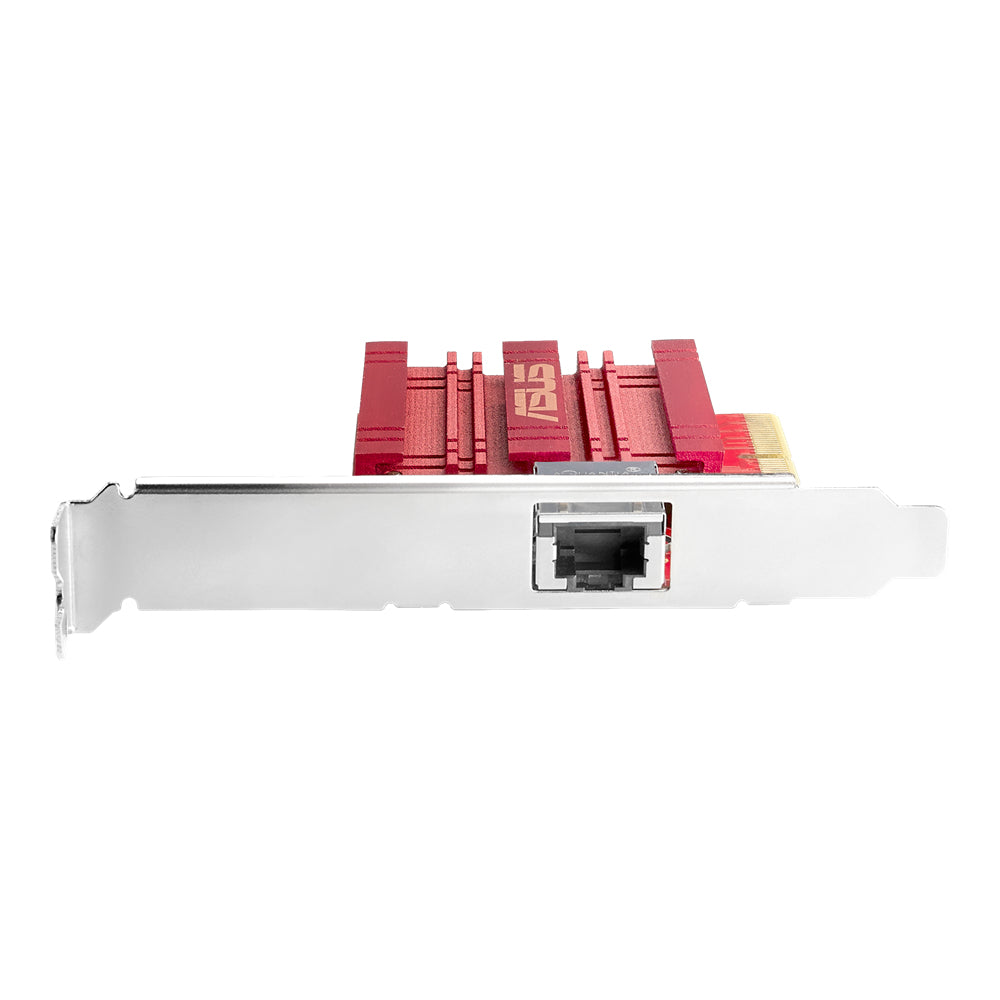

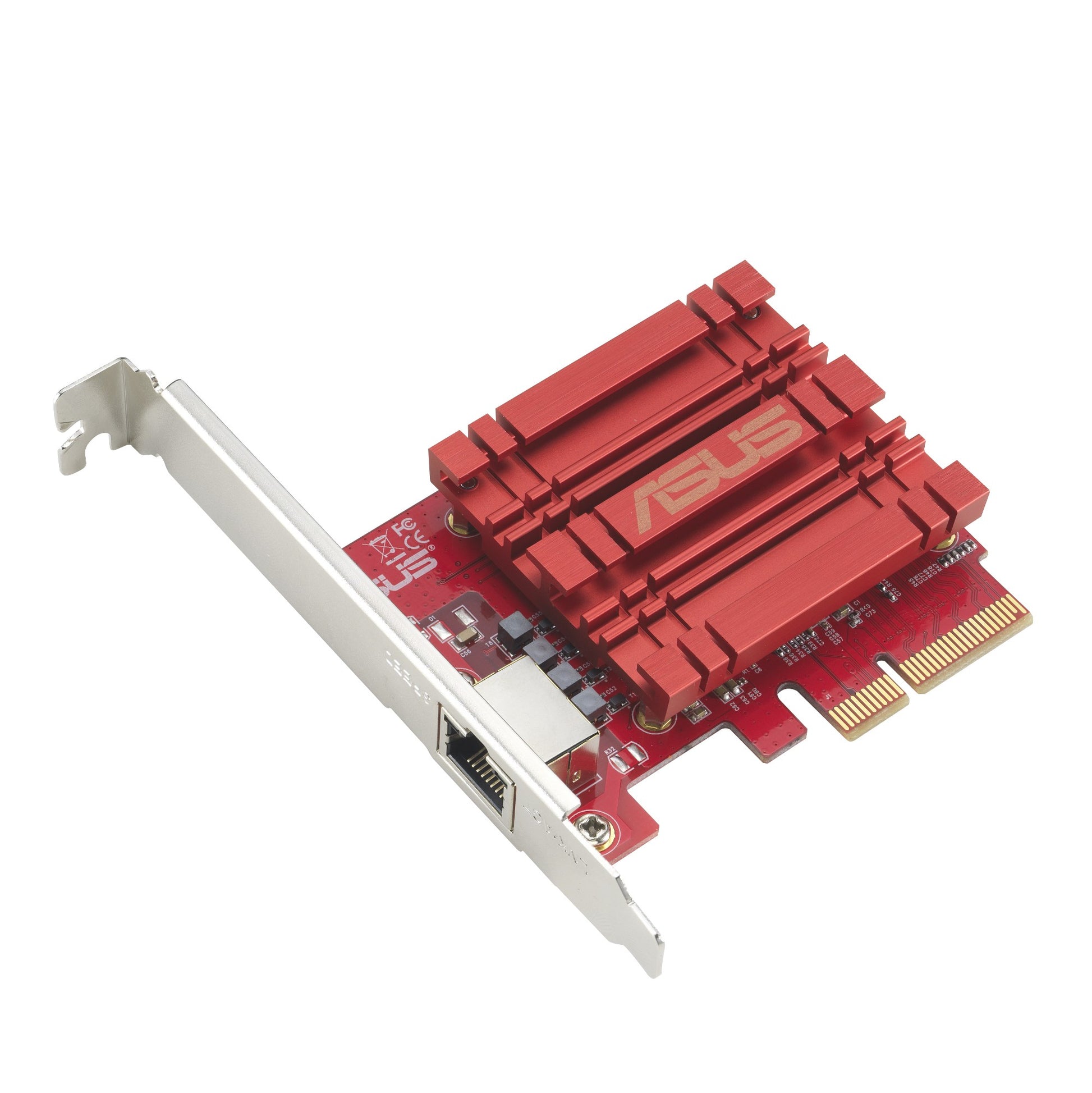

ASUS XG-C100C V3 Internal Ethernet 10000 Mbit/s Network Adapter

Upgrade your connectivity with the ASUS XG-C100C V3 Internal Ethernet — ports, speeds and interface details are in the spec table.

Hyper-fast 10Gbps Networking
XG-C100C uses next-generation 10GBase-T (10G) networking technology to deliver speeds of up to 10Gbps –10X faster than standard gigabit Ethernet. It enables ultra-fast 10Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.
*Minimum Category 5e network cables (within 30m range) required for 10Gbps operation according to ASUS testing result.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Red
Network
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
VLAN support	Yes
Design

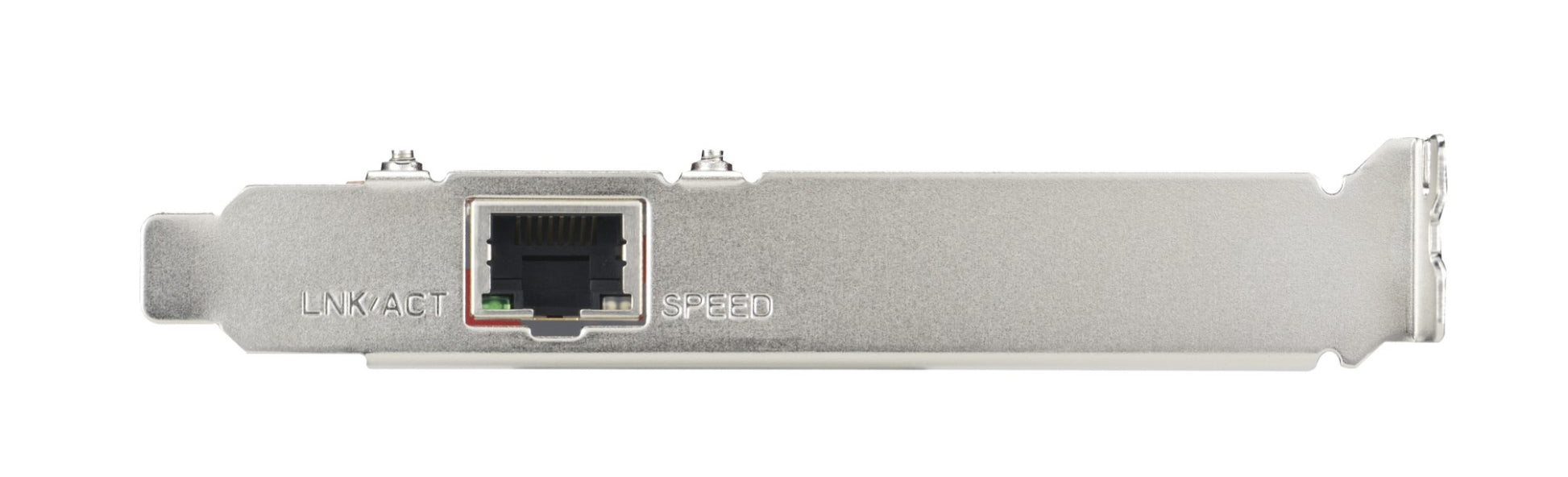

LED indicators	Link, Speed
Component for	PC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	120.5 mm
Depth	95.3 mm
Height	21.6 mm
Weight	90 g
Package width	168 mm
Package depth	146 mm
Package height	45 mm
Package weight	280 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
