ASUS Vivobook 16 M1605YA-MB601W 16" Ryzen 5 7430U 16GB 512GB SSD Laptop

The ASUS Vivobook 16 M1605YA-MB601W handles everyday computing with ease — Ryzen 5 7430U, 16GB RAM and 512GB SSD in a portable design.

Brighten your vision

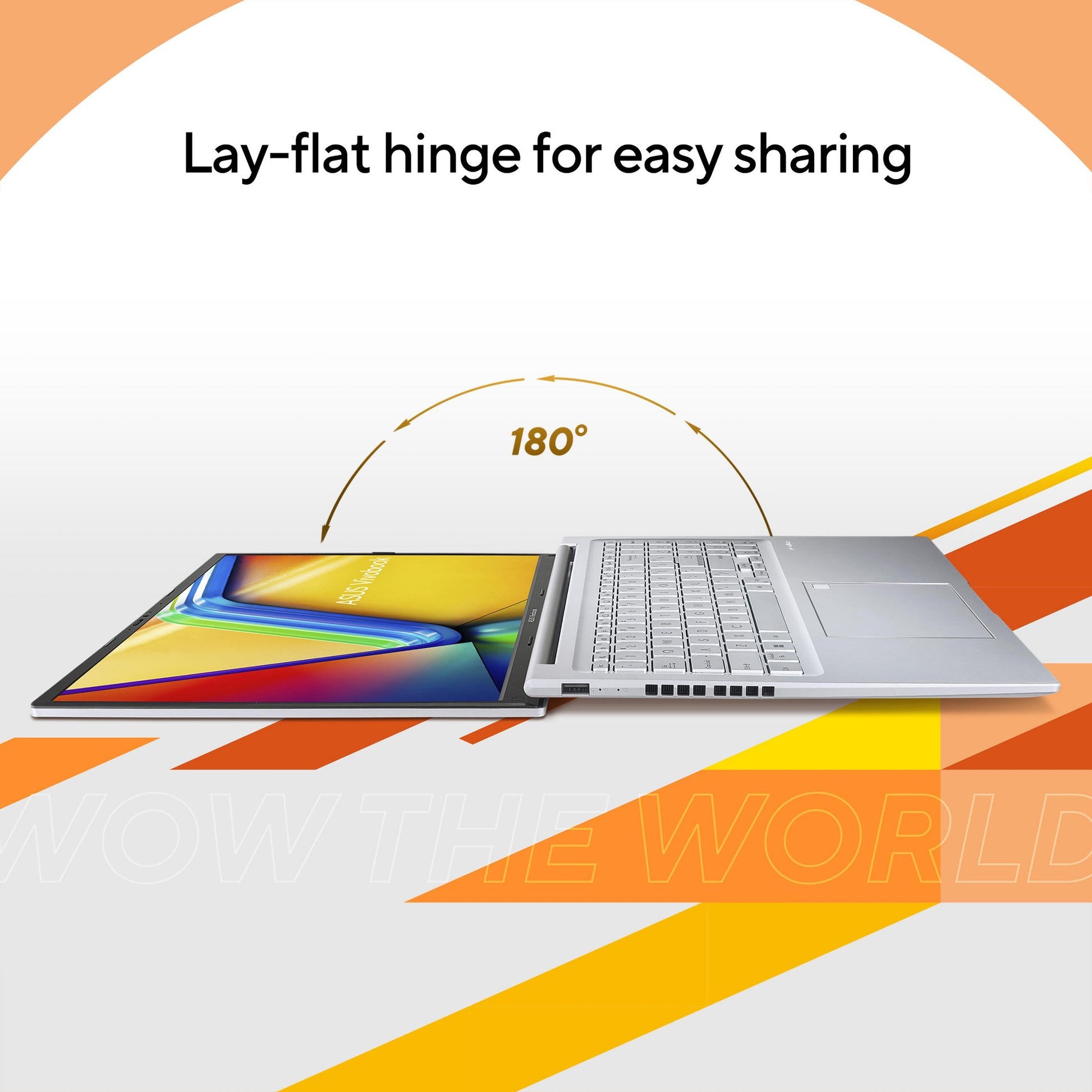

Everything is smoother with the powerful ASUS Vivobook 16, the feature-packed laptop with a brilliant 60 Hz HDR display that has a cinema-grade 100% DCI-P3 gamut. And everything’s easier too, thanks to user-friendly features including a 180° lay-flat hinge, a physical webcam shield and dedicated function keys to turn your mic on or off. Your health is in safe hands with ASUS Antimicrobial Guard Plus protecting frequently-touched surfaces, and the bigger touchpad is now more finger-friendly. Enjoy the smooth power of Vivobook 16!

Specifications

Design
Colour name	Cool Silver
Product type	Laptop
Market positioning	Home
Housing material	Plastic
Form factor	Clamshell
Product colour	Silver
Country of origin	China
Introduction year	2023
Display
HD type	WUXGA
Panel type	IPS-Level
LED backlight	Yes
Display brightness	300 cd/m²
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	40.6 cm (16")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	AMD Ryzen 7000 Series
Processor cache type	L2 & L3
Processor cache	16 MB
Processor frequency	2.3 GHz
Processor model	7430U
Processor boost frequency	4.3 GHz
Processor cores	6
L3 cache	16 MB
L2 cache	3 MB
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 8 GB
Internal memory type	DDR4-SDRAM
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 3.0
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	AMD Radeon Graphics
Discrete graphics card model	Not available
Audio
Audio system	SonicMaster
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3
Antenna type	1x1
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Power adapter barrel connector	4.5 mm
DC-in jack	Yes
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Software
Operating system architecture	64-bit
Bundled software	One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025.
Trial software	1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days
Operating system installed	Windows 11 Home
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver
Commodity Classification Automated Tracking System (CCATS)	8471300000
Compliance certificates	REACH
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh
Power
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.37 A
AC adapter output voltage	19 V
USB Type-C charging port	Yes
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, User
Weight & dimensions
Width	358.7 mm
Depth	249.5 mm
Height	19.9 mm
Weight	1.88 kg
Packaging data
Package width	65 mm
Package height	310 mm
Package depth	488 mm
AC adapter included	Yes

Downloads

• Datasheet (PDF)
