ASUS TUF GAMING A620AM-PLUS WIFI AMD A620A Socket AM5 micro ATX Motherboard

The ASUS TUF GAMING A620AM-PLUS WIFI provides the foundation for your build — socket, chipset and expansion details are in the spec table below.

TUF GAMING
A620AM-PLUS WIFI
ASUS TUF GAMING A620AM-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of RGB LED pin headers	3
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A620A
Supported processor sockets	Socket AM5
Parallel processing technology support	Not supported
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11
RAID levels	0, 1, 5, 10
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC ?ompatibility	ECC & Non-ECC
Storage controllers
Number of storage drives supported	6
RAID support	Yes

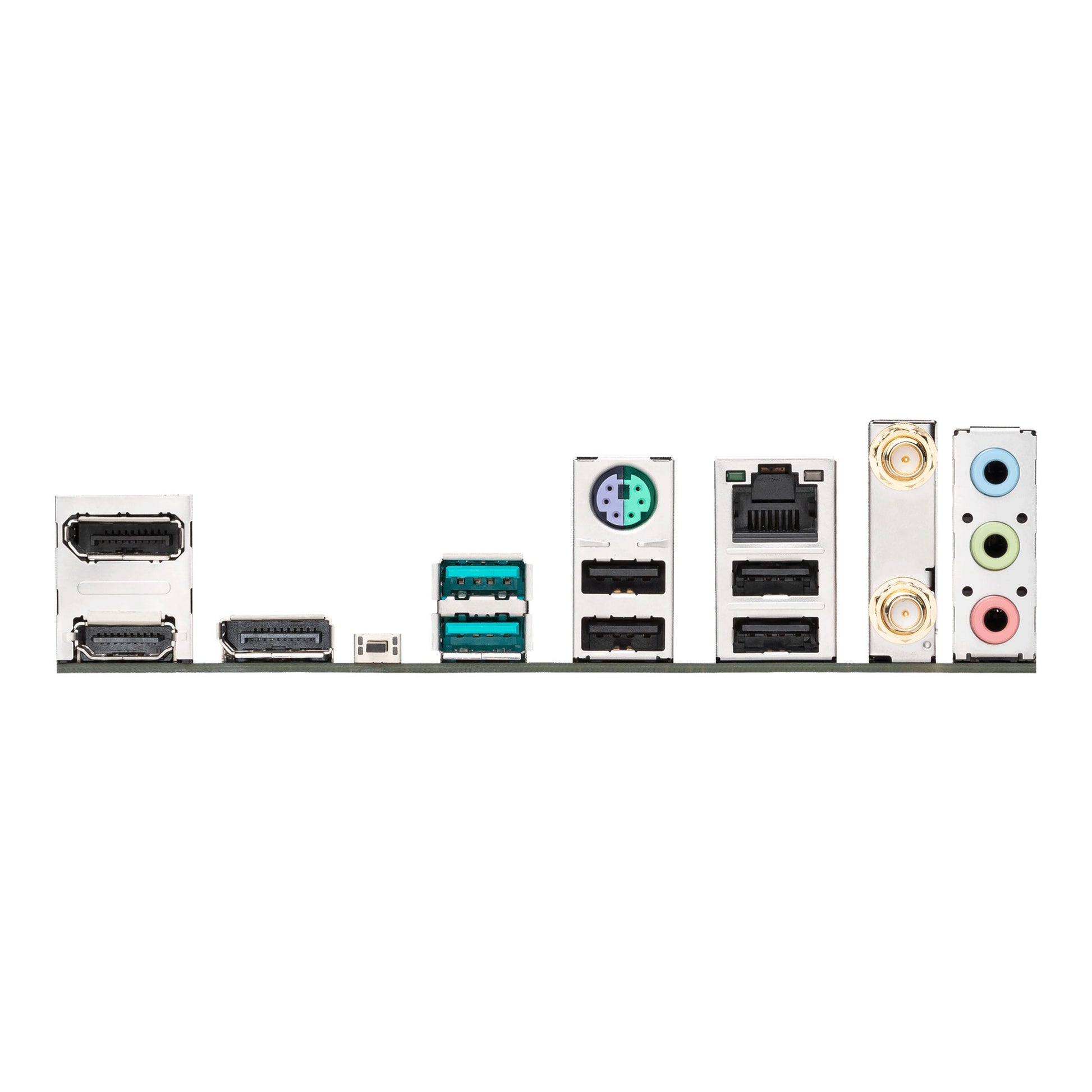

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	275 mm
Package depth	275 mm
Package height	67.5 mm
Package weight	920 g
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes
