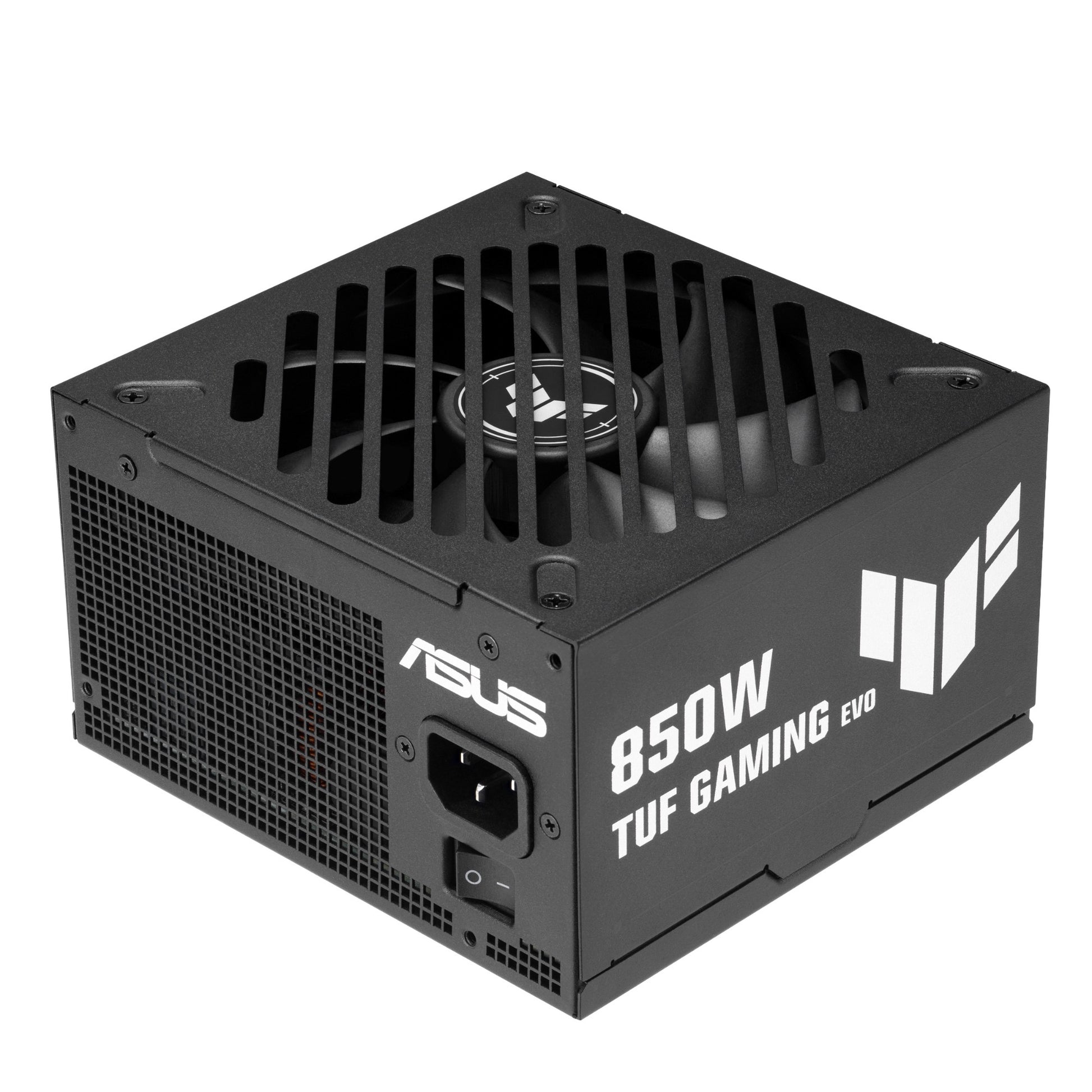

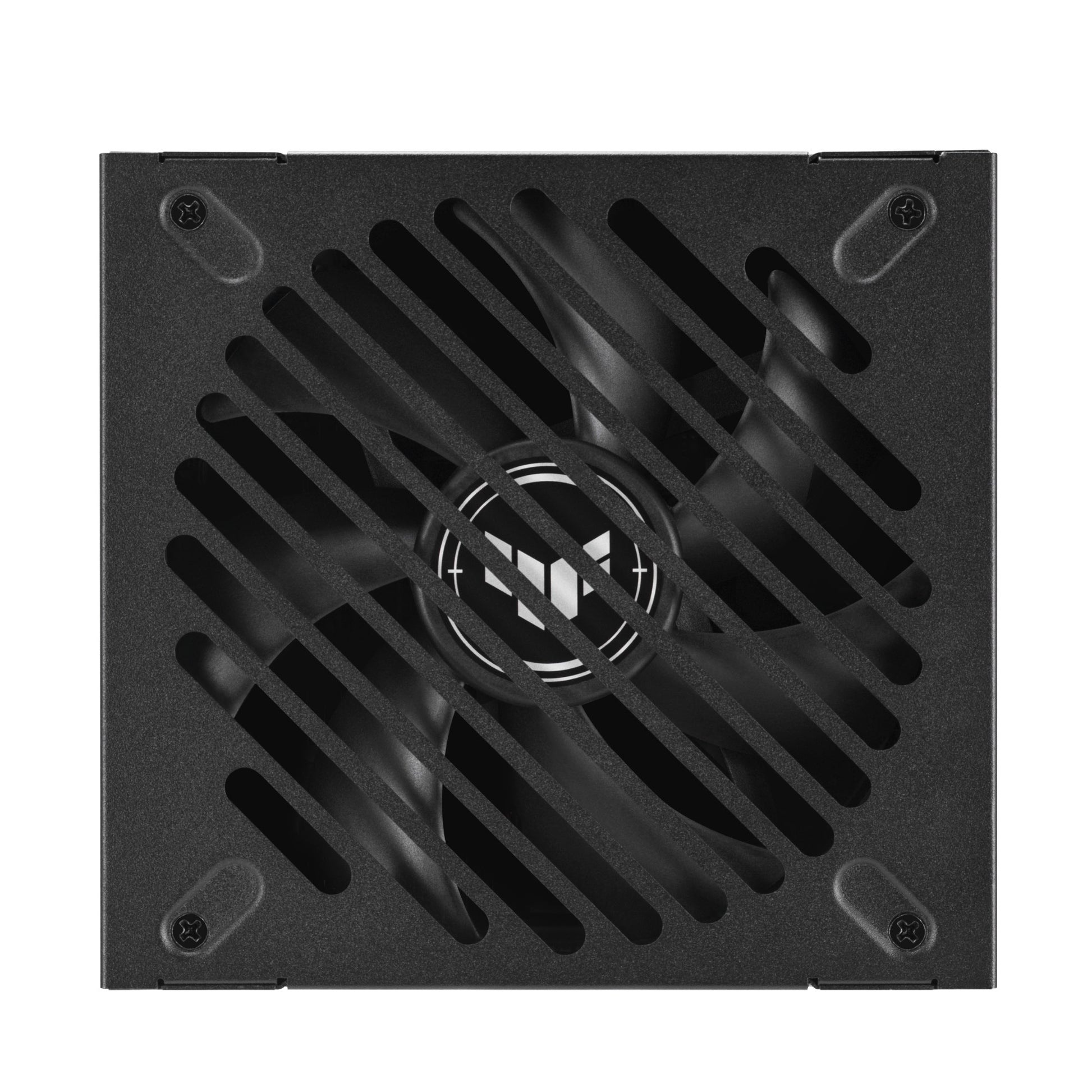

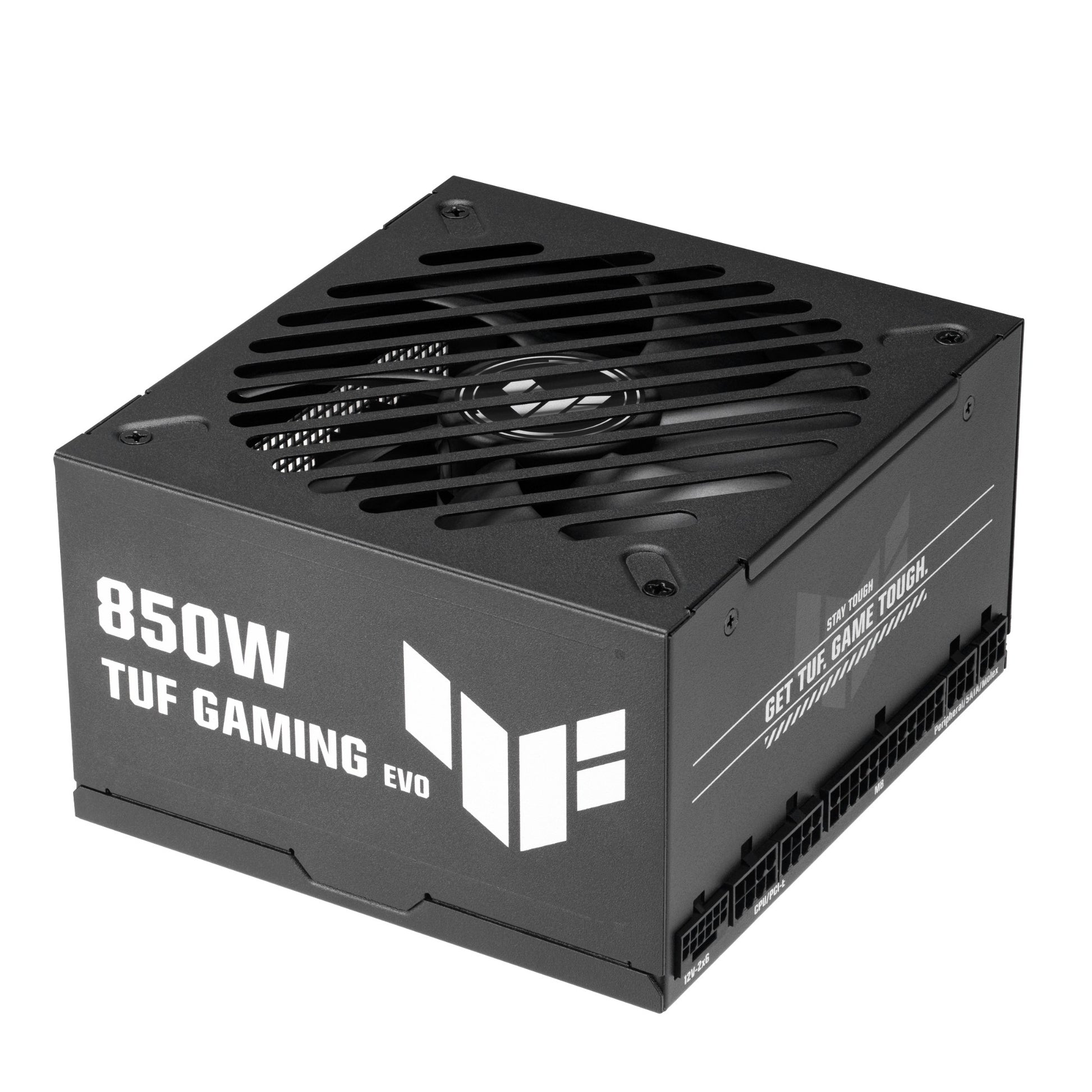

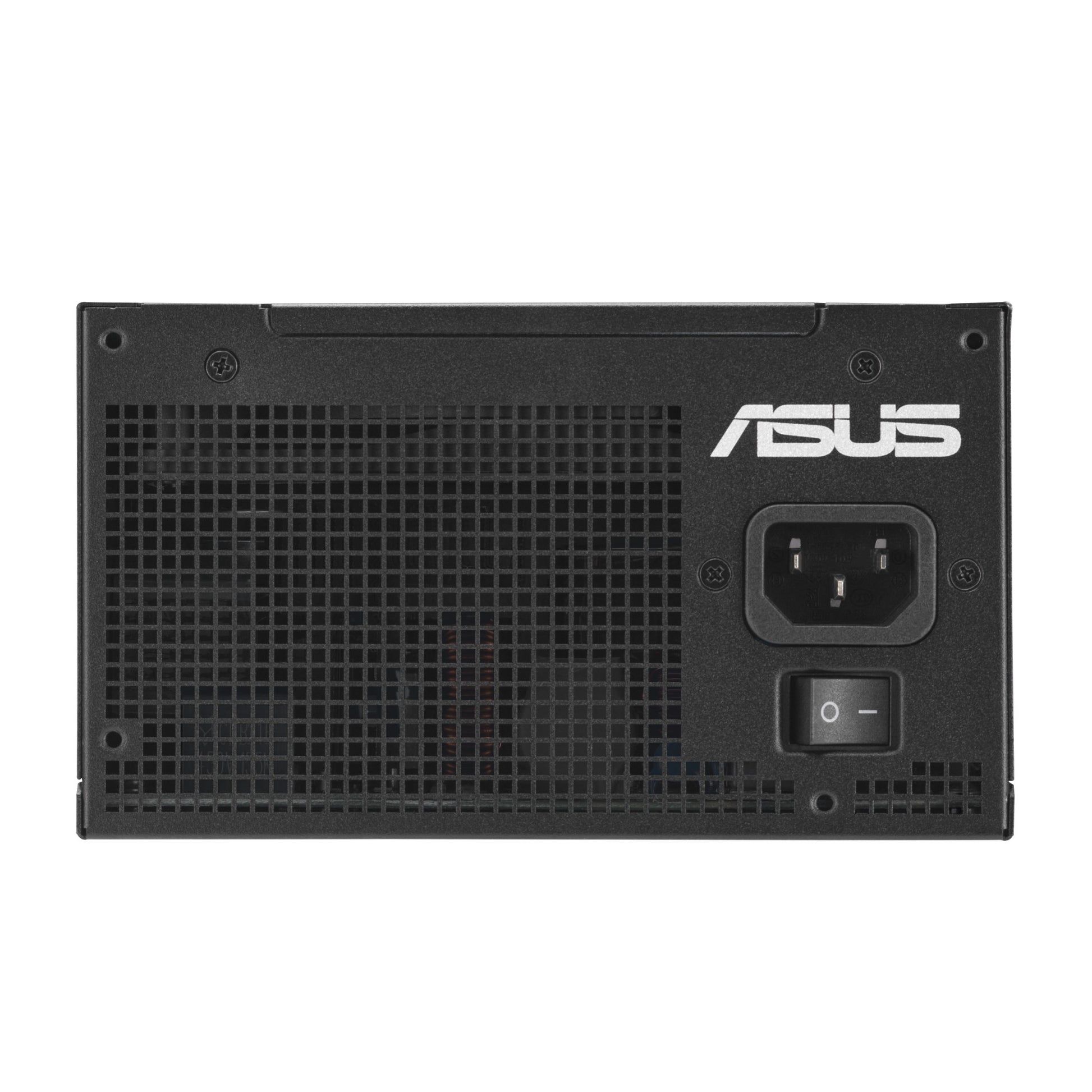

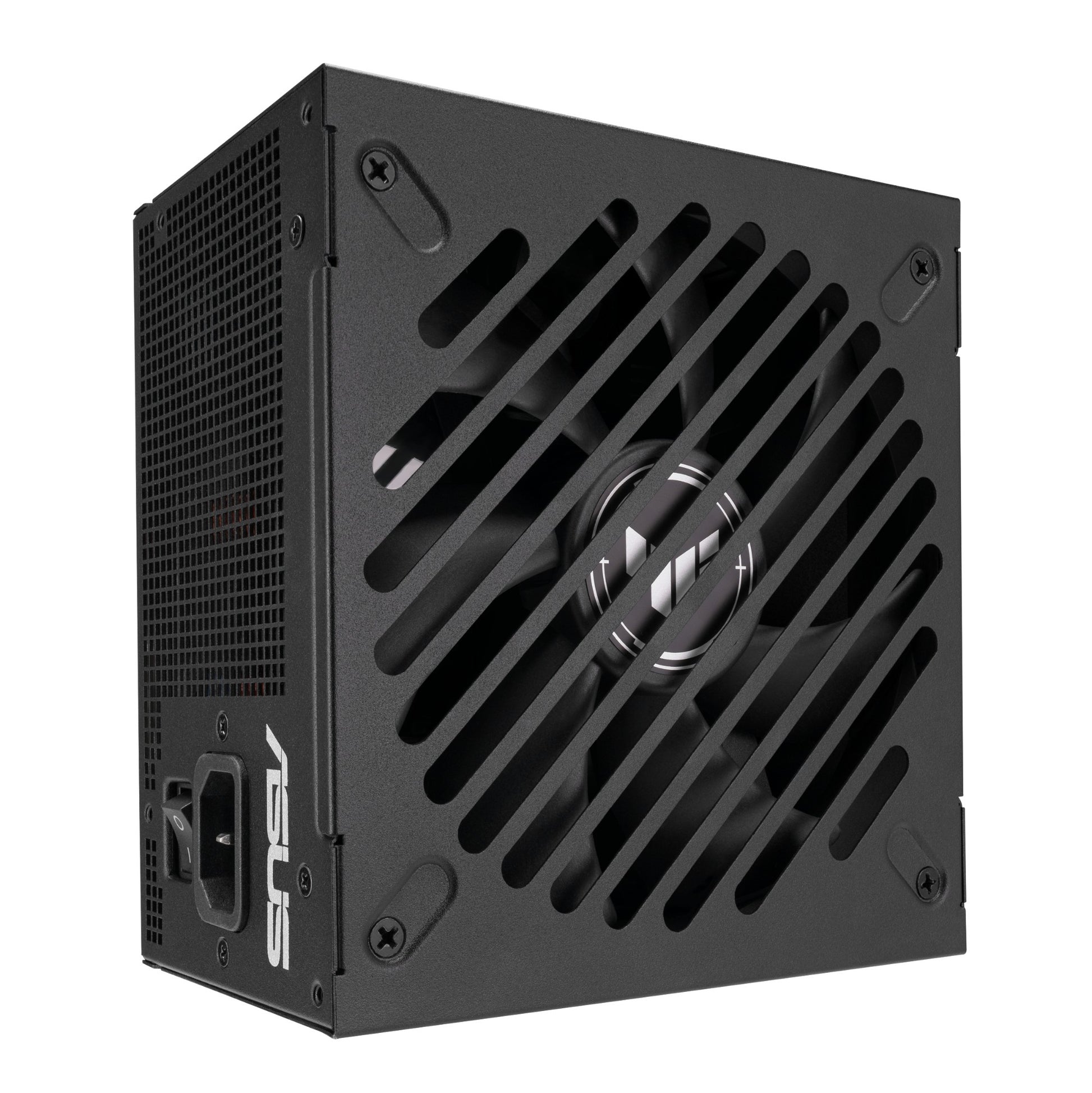

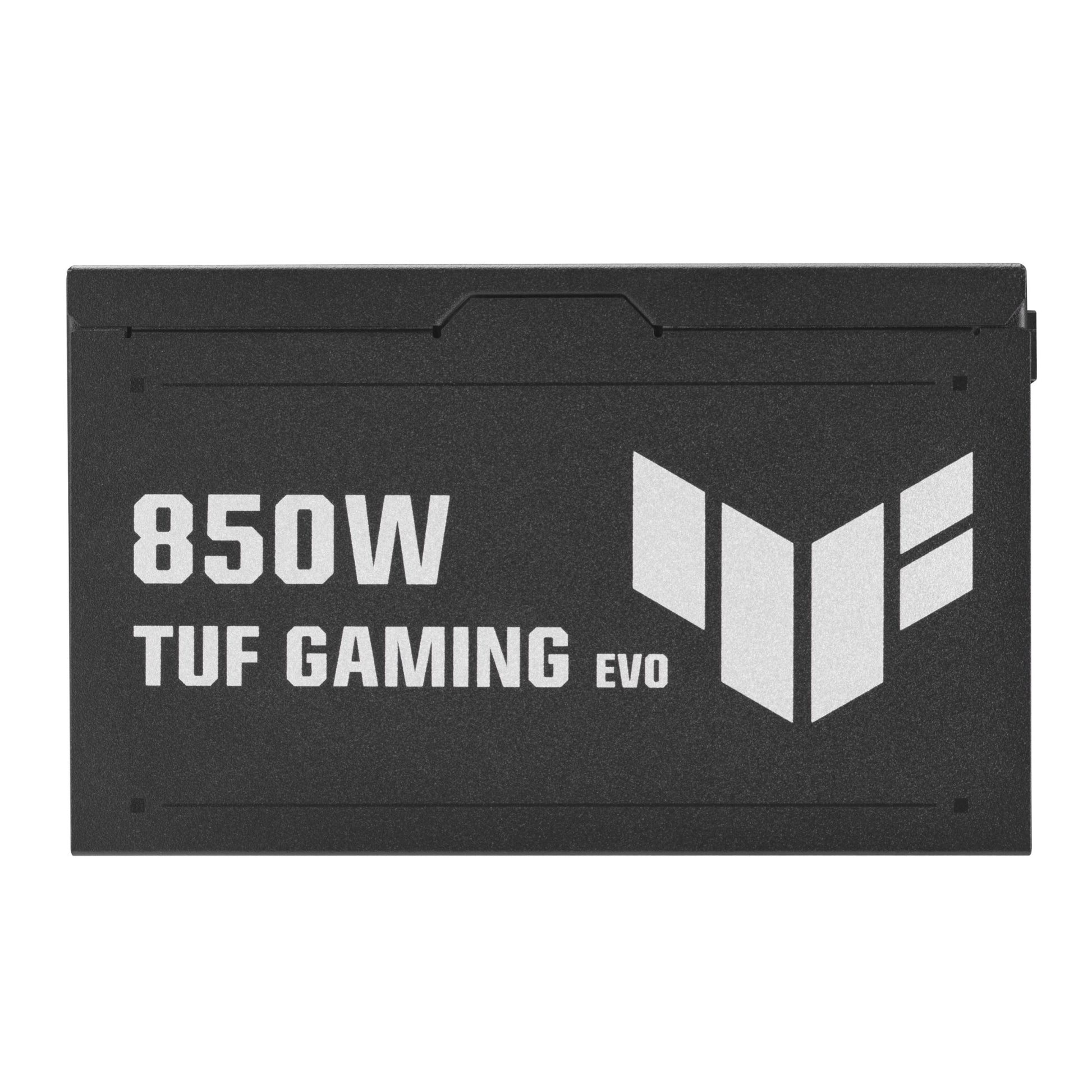

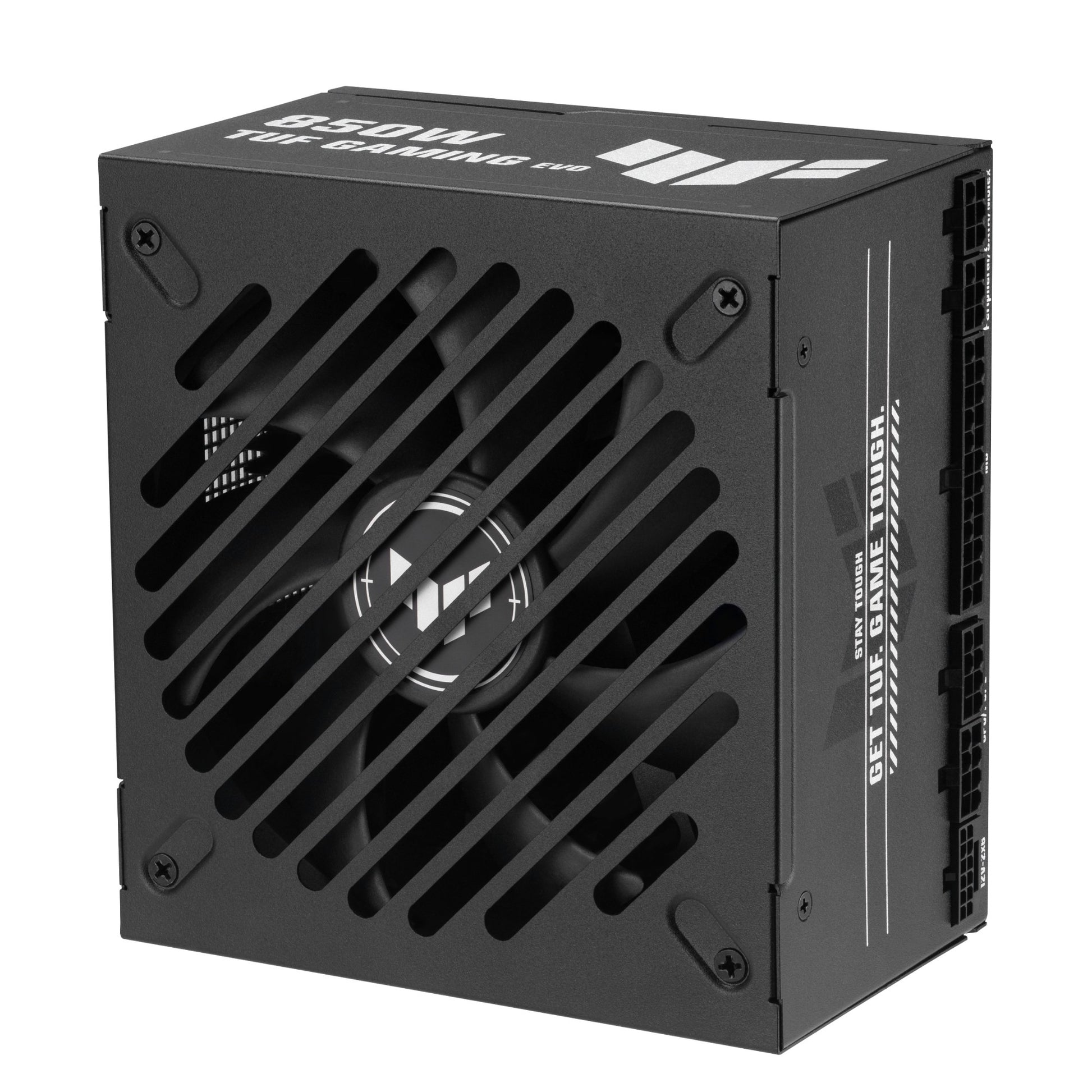

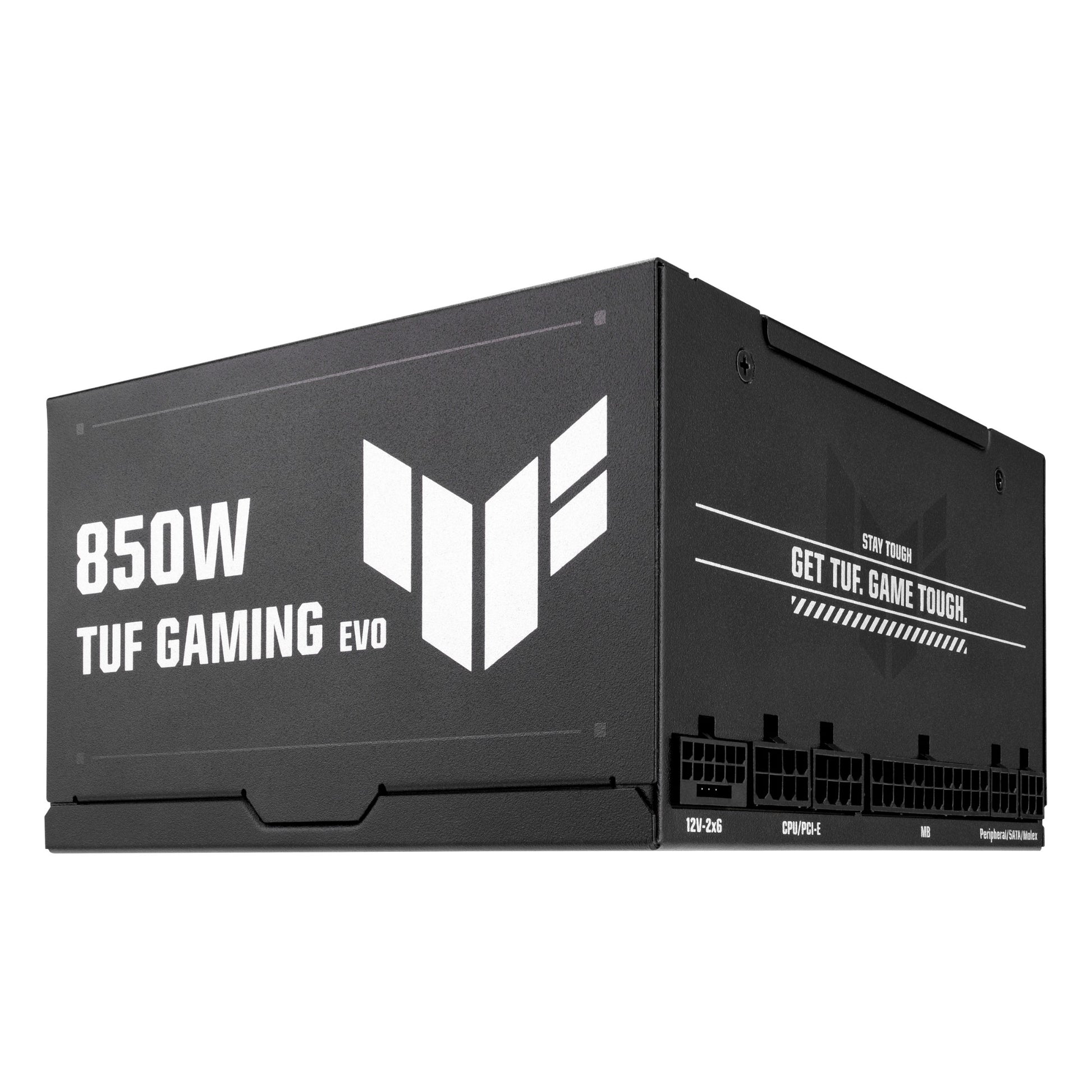

Reliable power for your system: the ASUS TUF-GAMING-850G-EVO power supply unit — wattage and connector details are in the spec table.
TUF Gaming Gold EVO Series Built For The Long Haul The ASUS TUF Gaming 850W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Specifications
Cooling
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
120000 h
Bearing technology
DBB
Design
Product colour
Black
Illumination
No
Power
Total power
850 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
850 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.83 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
