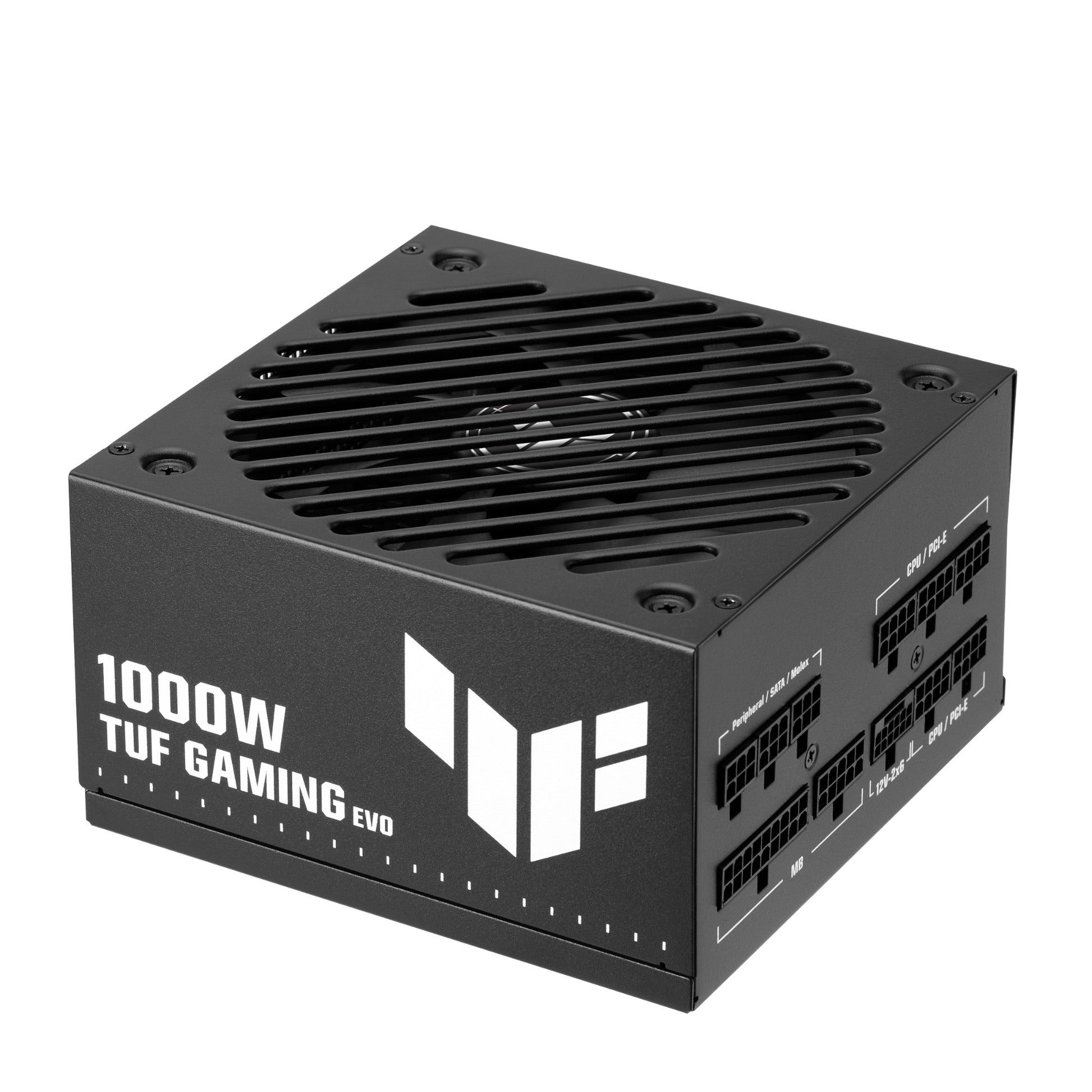

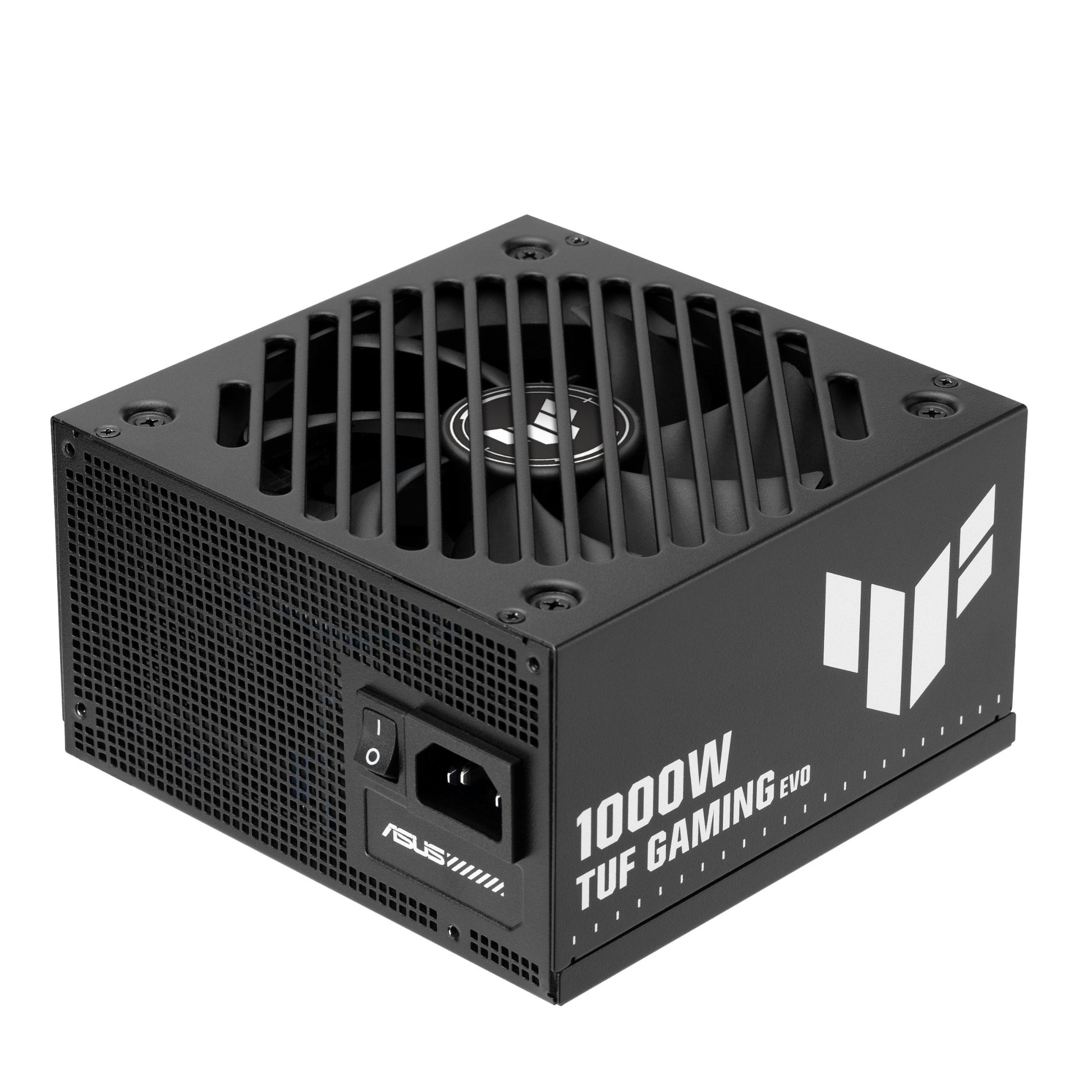

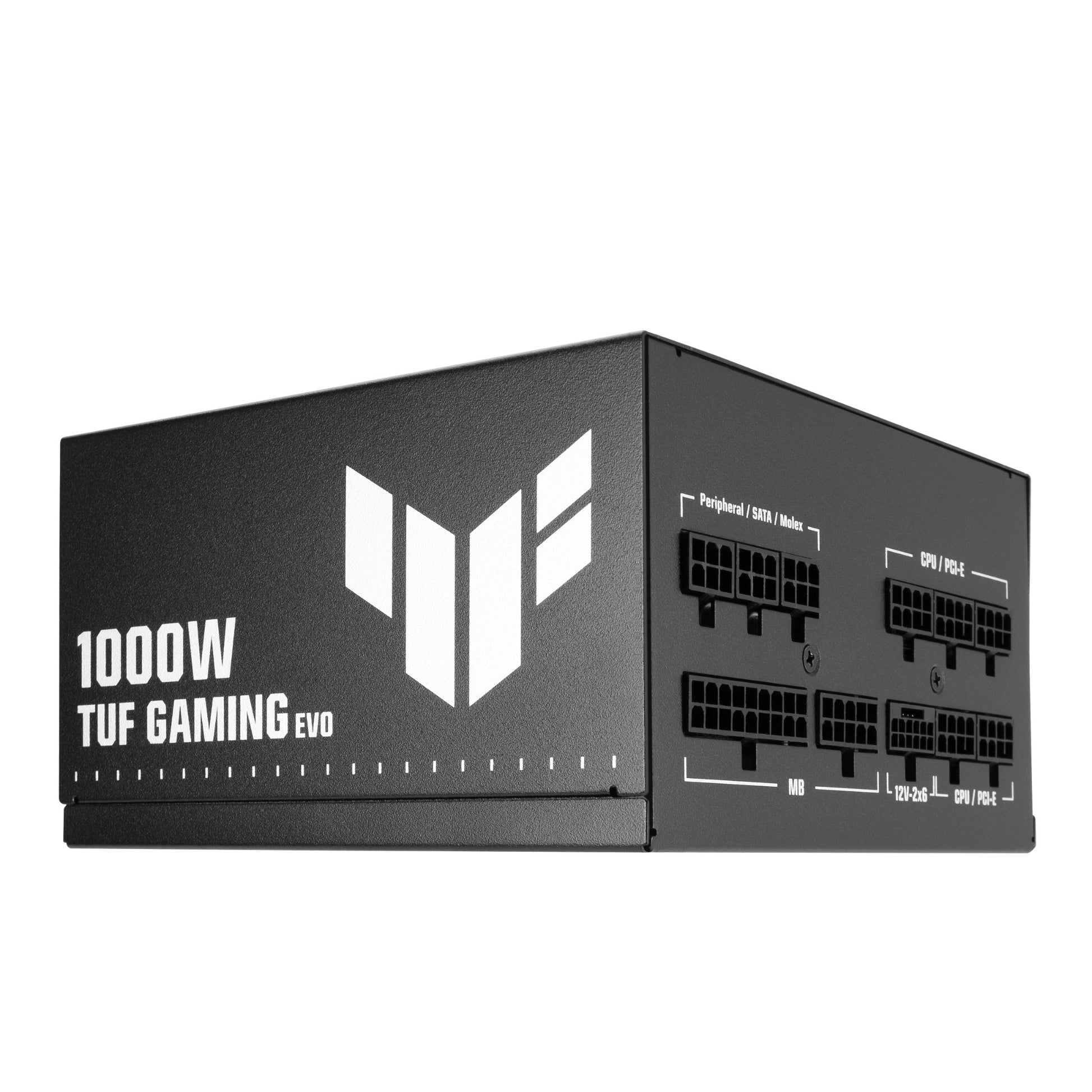

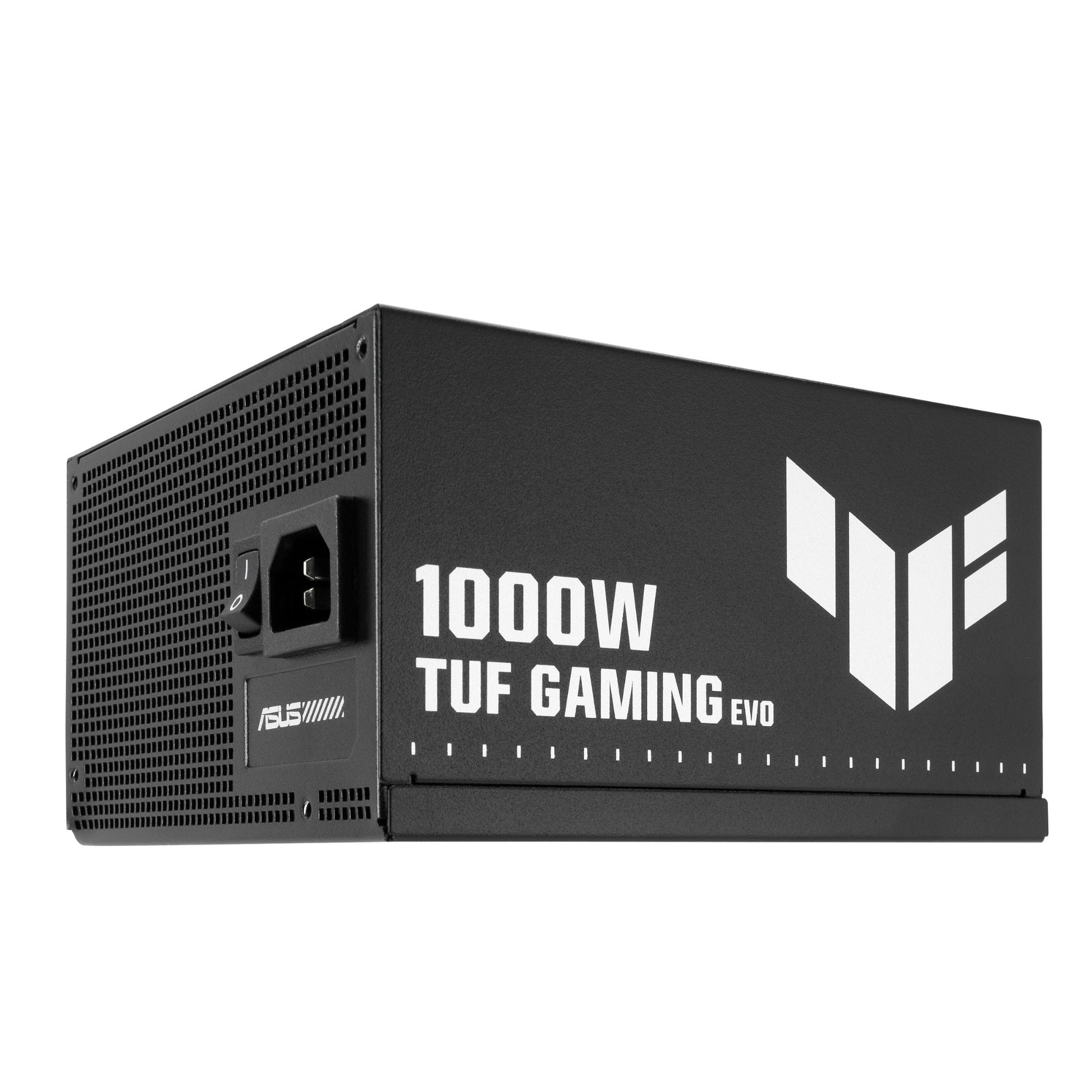

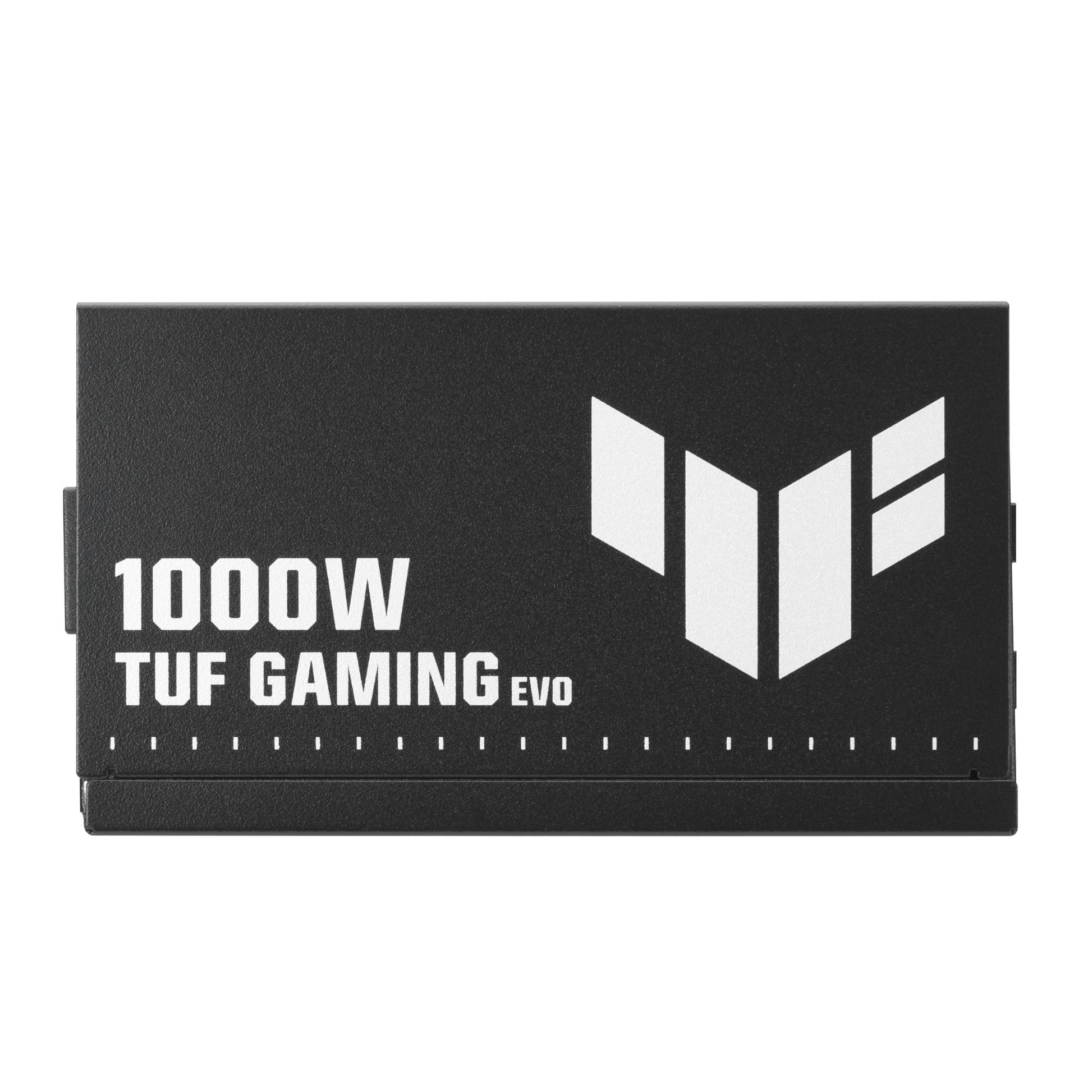

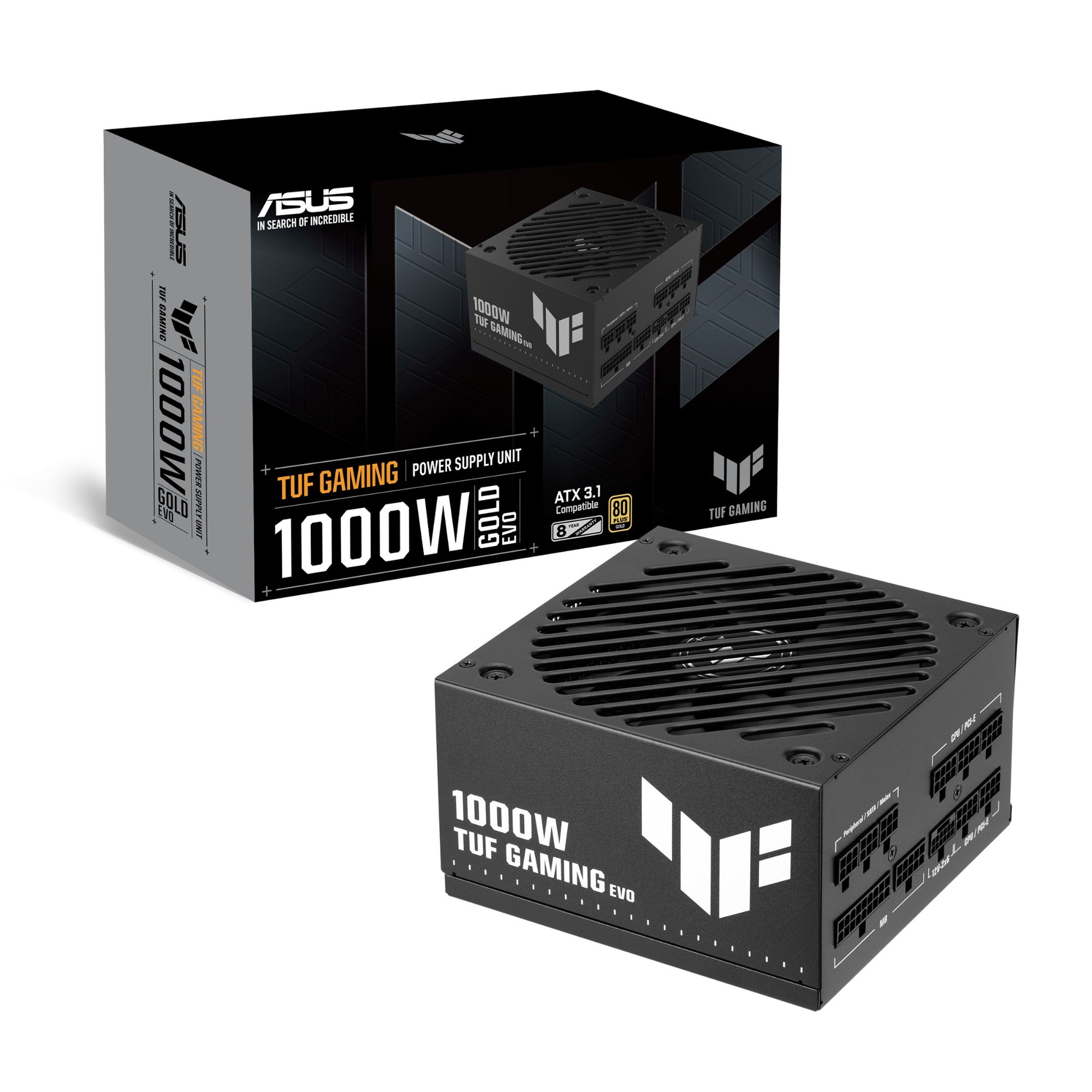

ASUS TUF Gaming 1000W Gold EVO power supply unit 20+4 pin ATX ATX Black

Reliable power for your system: the ASUS TUF Gaming — wattage and connector details are in the spec table.

Built For The Long Haul
The ASUS TUF Gaming 1000W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Premium Durability

Military-Grade Capacitors
Engineered for exceptional durability, the TUF Gaming Gold EVO series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.

Latest Standards

ATX 3.1 & PCIe 5.1 Compatible
The TUF Gaming Gold EVO series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.

EFFICIENCY CERTIFICATION

80 PLUS Gold Efficiency
The TUF Gaming Gold EVO series achieves 80 PLUS Gold certifications by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability.

PREMIUM ETCHED CABLES
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.

PROTECTION
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

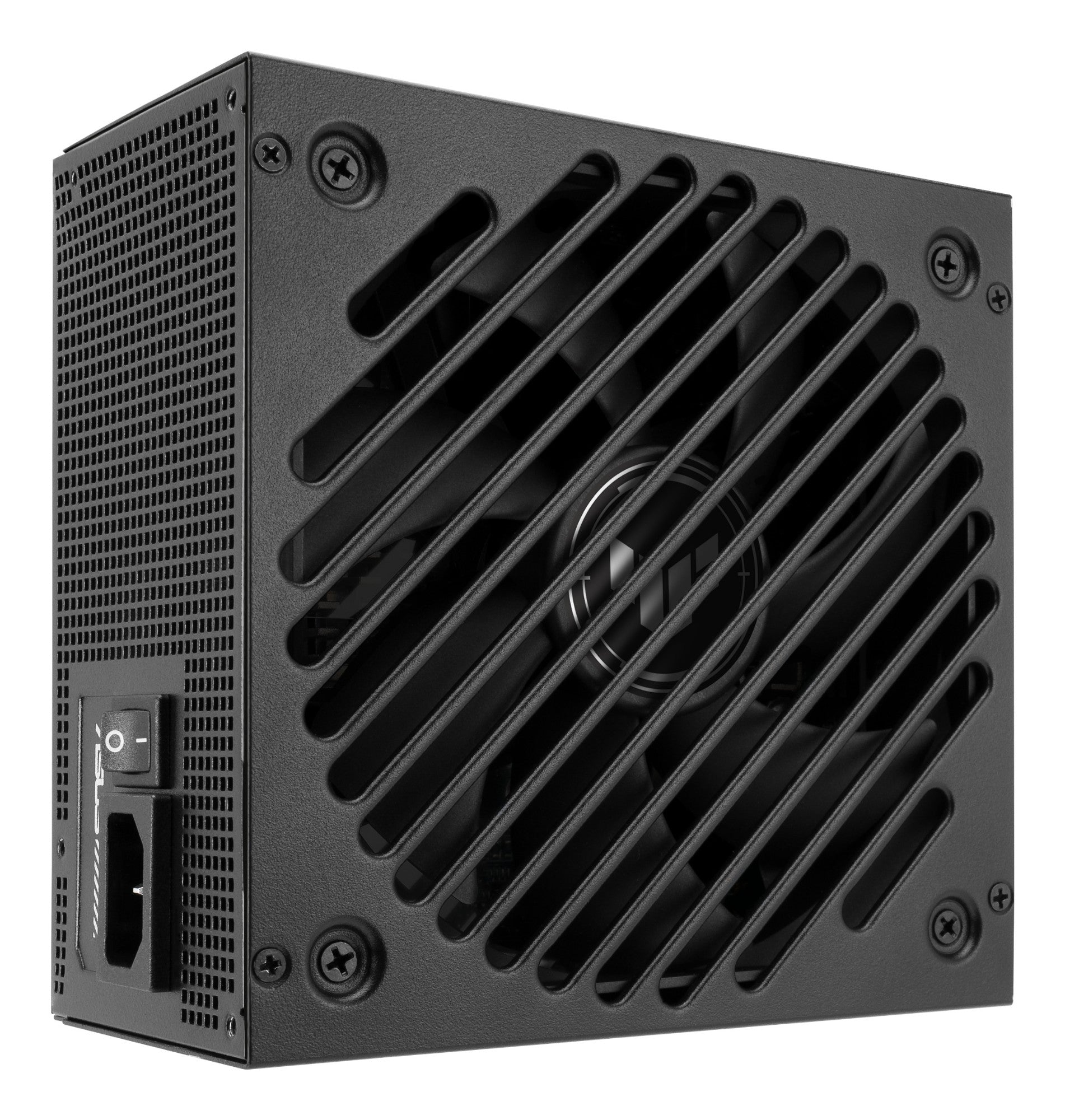

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	120000 h
Bearing technology	Ball bearing
Design
Product colour	Black
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1000 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.33 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating

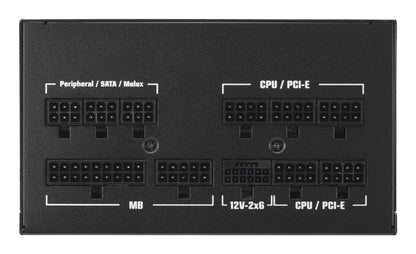

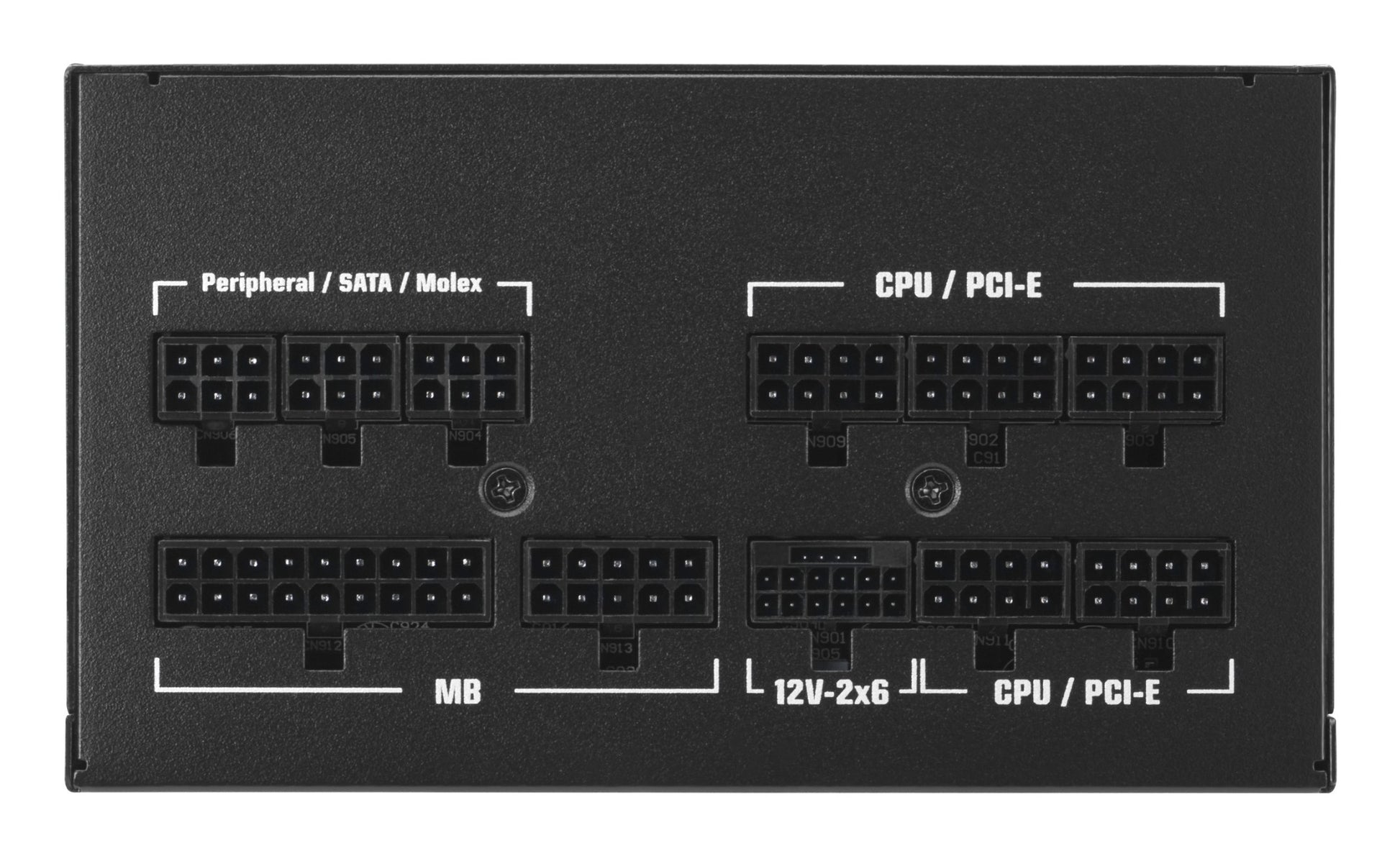

Ports & interfaces
Motherboard power cable length	61 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Certificates
Compliance certificates	RoHS
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1.72 kg
Packaging data
Package depth	182 mm
Package width	282 mm
Package height	127 mm
Package type	Box
Package weight	3.17 kg
