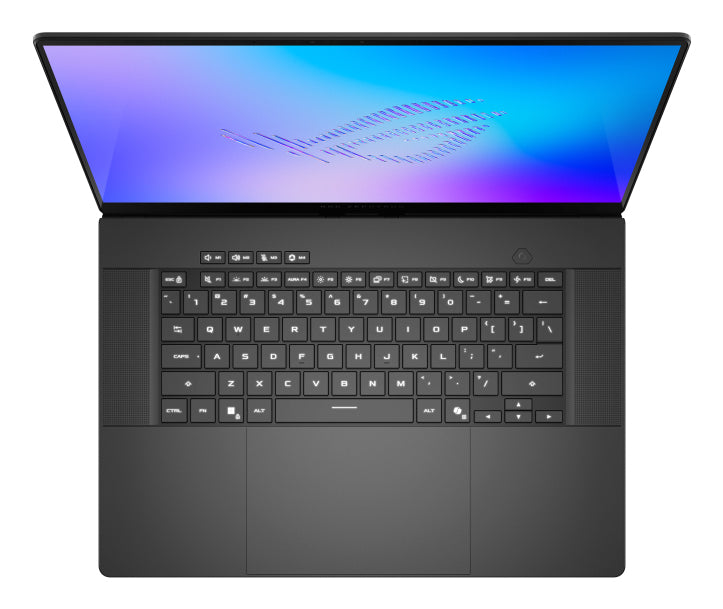

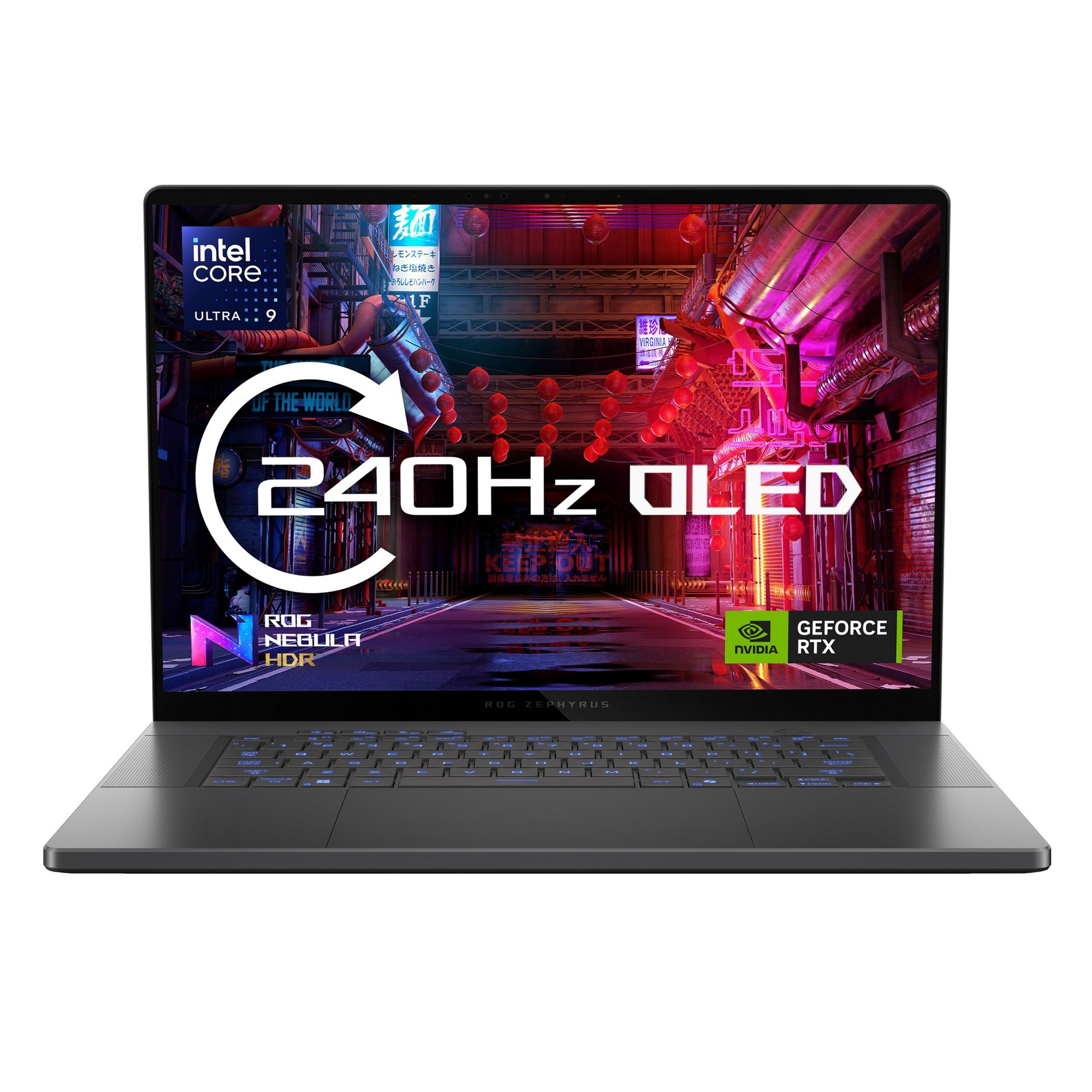

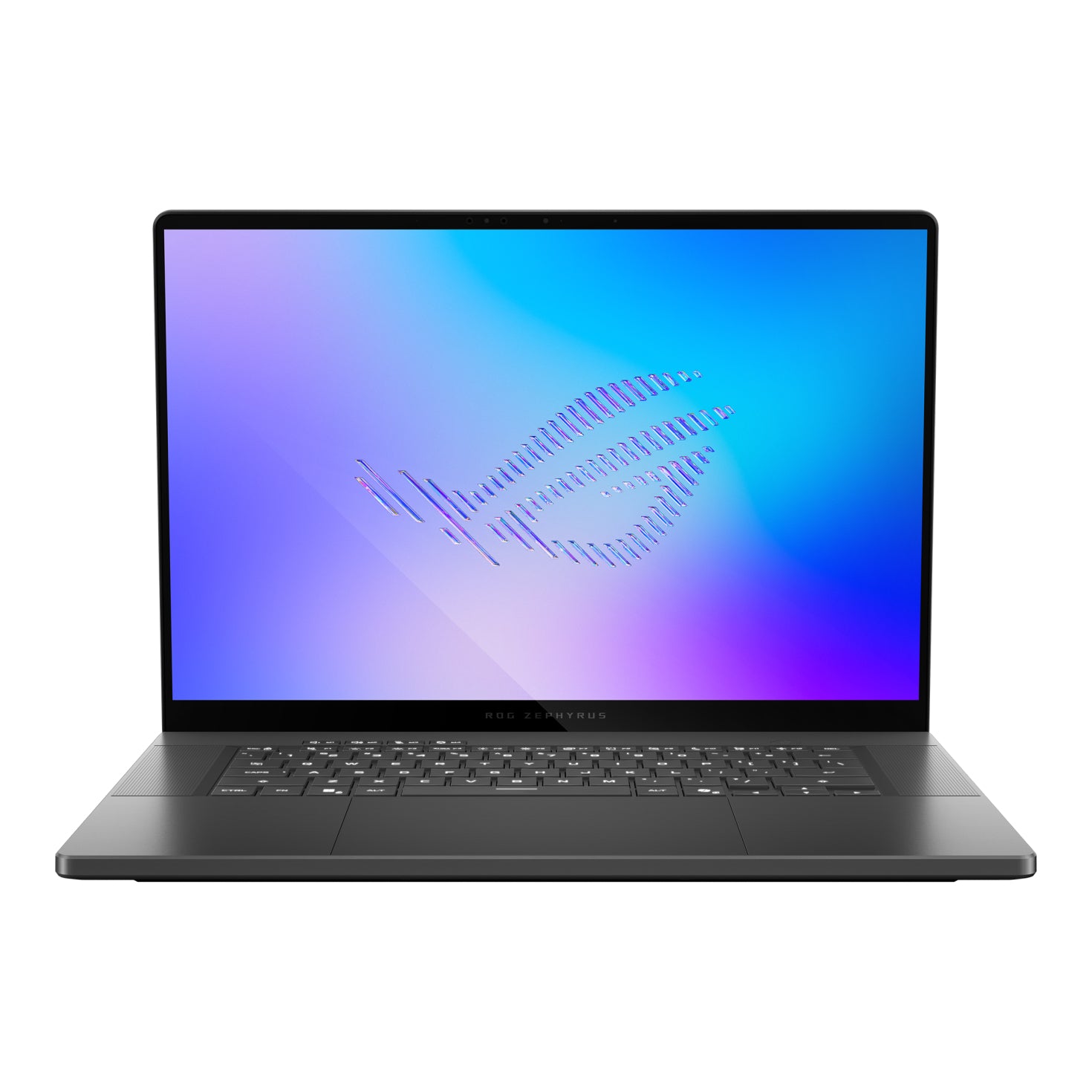

ASUS ROG Zephyrus G16 GU606AR-TB016W 16" Core Ultra 9 386H 32GB 2TB SSD Laptop

Built for gaming, the ASUS ROG Zephyrus G16 GU606AR-TB016W combines its Core Ultra 9 386H and 16" display for smooth, immersive play.

The Dawn of A New Age
The 2026 Zephyrus G16 and Windows 11 Pro make gaming, creation, and everything in between a breeze. Featuring an Intel® Core™ Ultra 9 processor 386H and up to an NVIDIA® GeForce RTX™ 5090 Laptop GPU, this 16-inch machine can easily handle the latest games and cutting-edge creative software alike. The Zephyrus G16 can effortlessly transcribe voice notes into text documents, save valuable time during a video render, and play the latest AAA games at blazingly fast refresh rates. The future is here.

Specifications

Design
Colour name	Eclipce Grey
Product type	Laptop
Market positioning	Gaming
Form factor	Clamshell
Product colour	Grey
Country of origin	China
Introduction year	2026
Display
HD type	2.5K
Panel type	OLED
Contrast ratio (typical)	1000000:1
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16")
Anti-glare screen	Yes
Maximum refresh rate	240 Hz
High Dynamic Range (HDR) technology	Dolby Vision
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Maximum display brightness (HDR)	1100 cd/m²
Processor
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cache type	Smart Cache
Processor cache	18 MB
Processor model	386H
Processor boost frequency	4.9 GHz
Processor cores	16
Processor threads	16
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor base power	25 W
Maximum turbo power	80 W
Efficient-core base frequency	1.6 GHz
Performance-core base frequency	2.1 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-core Base Frequency	1600 MHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	50 TOPs
GPU performance up to	77 TOPs
Memory
Memory form factor	On-board
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Maximum internal memory	32 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	2 TB
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	12 GB
NVIDIA G-SYNC	Yes
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
Discrete graphics card model	NVIDIA GeForce RTX 5070 Ti
Discrete graphics memory type	GDDR7
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Audio
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	6.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB
Copilot key	Yes
Software
Operating system architecture	64-bit
Bundled software	Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Trial software	1-month trial for new Microsoft 365 customers; McAfee 30 days free trial
Operating system installed	Windows 11 Home
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	250 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	100 W
Security
Password protection	Yes
Password protection type	BIOS, User
Face recognition	Yes
Weight & dimensions
Width	354 mm
Depth	246 mm
Height (front)	1.49 cm
Height (rear)	1.79 cm
Weight	1.95 kg
Packaging data
Package width	90 mm
Package height	335 mm
Package depth	465 mm
AC adapter included	Yes
