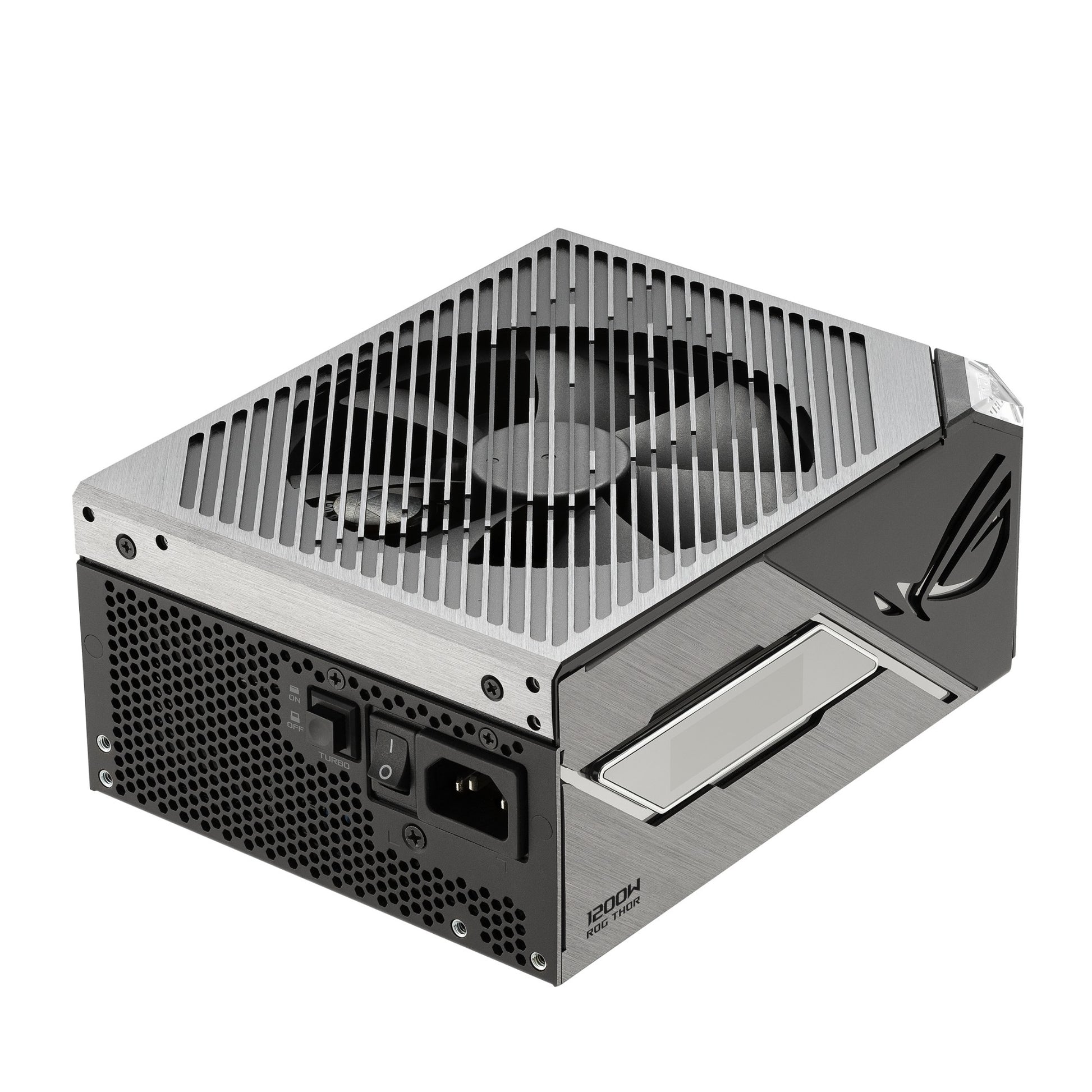

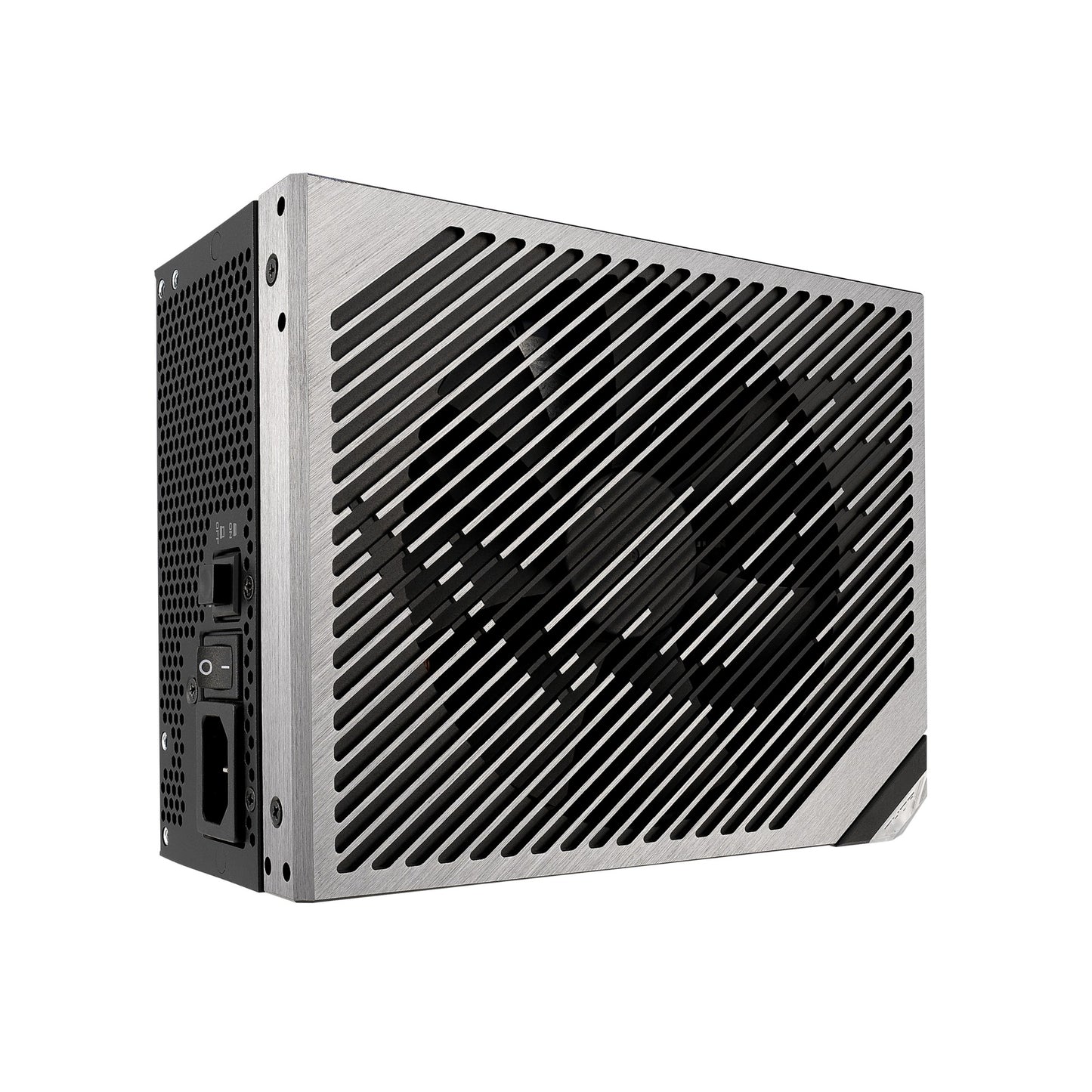

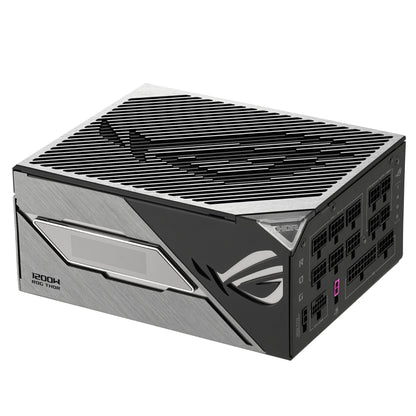

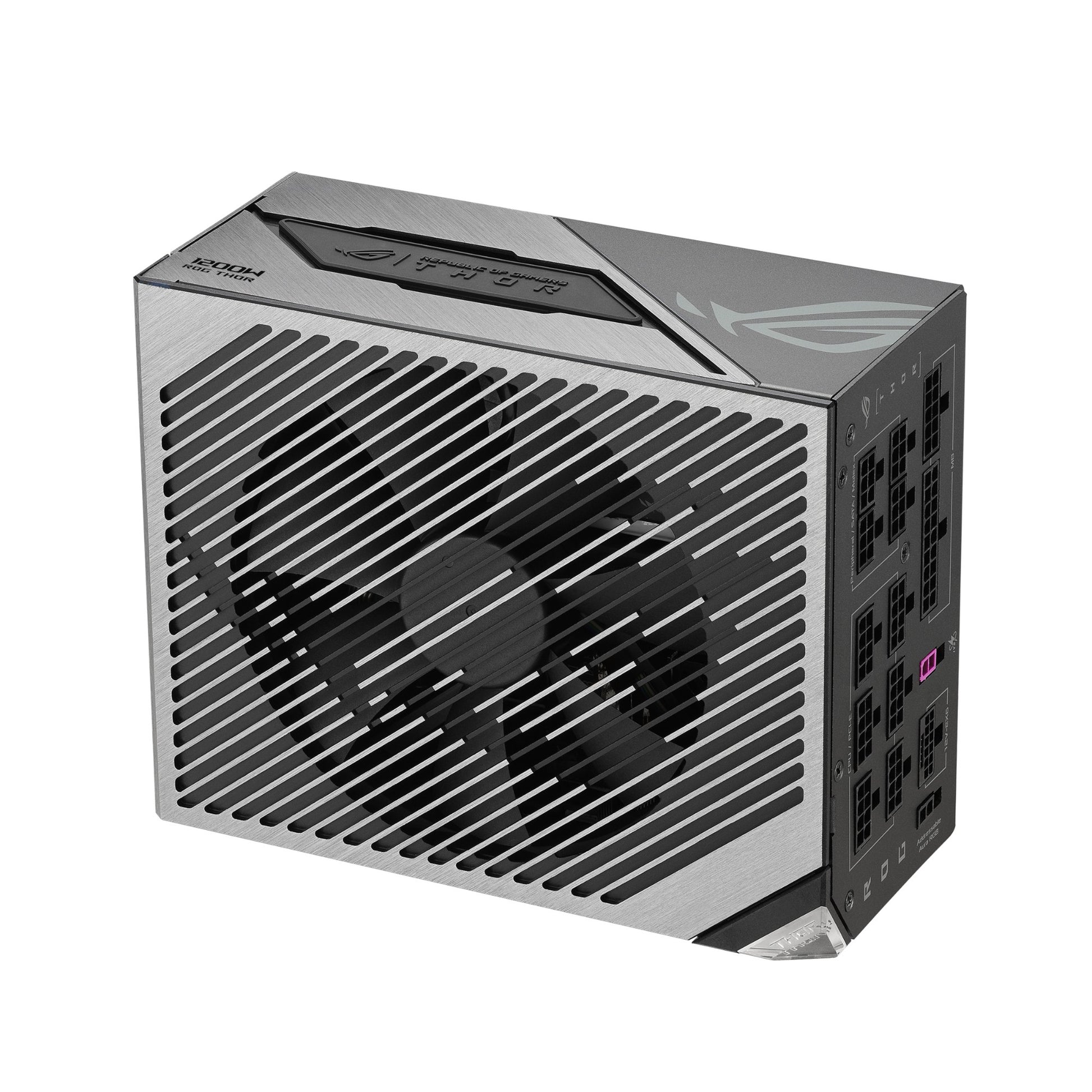

ASUS ROG -THOR-1200P3-GAMING power supply unit 1200 W 20+4 pin ATX ATX Black

Reliable power for your system: the ASUS ROG -THOR-1200P3-GAMING power supply — wattage and connector details are in the spec table.

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

ROG THOR 1200W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

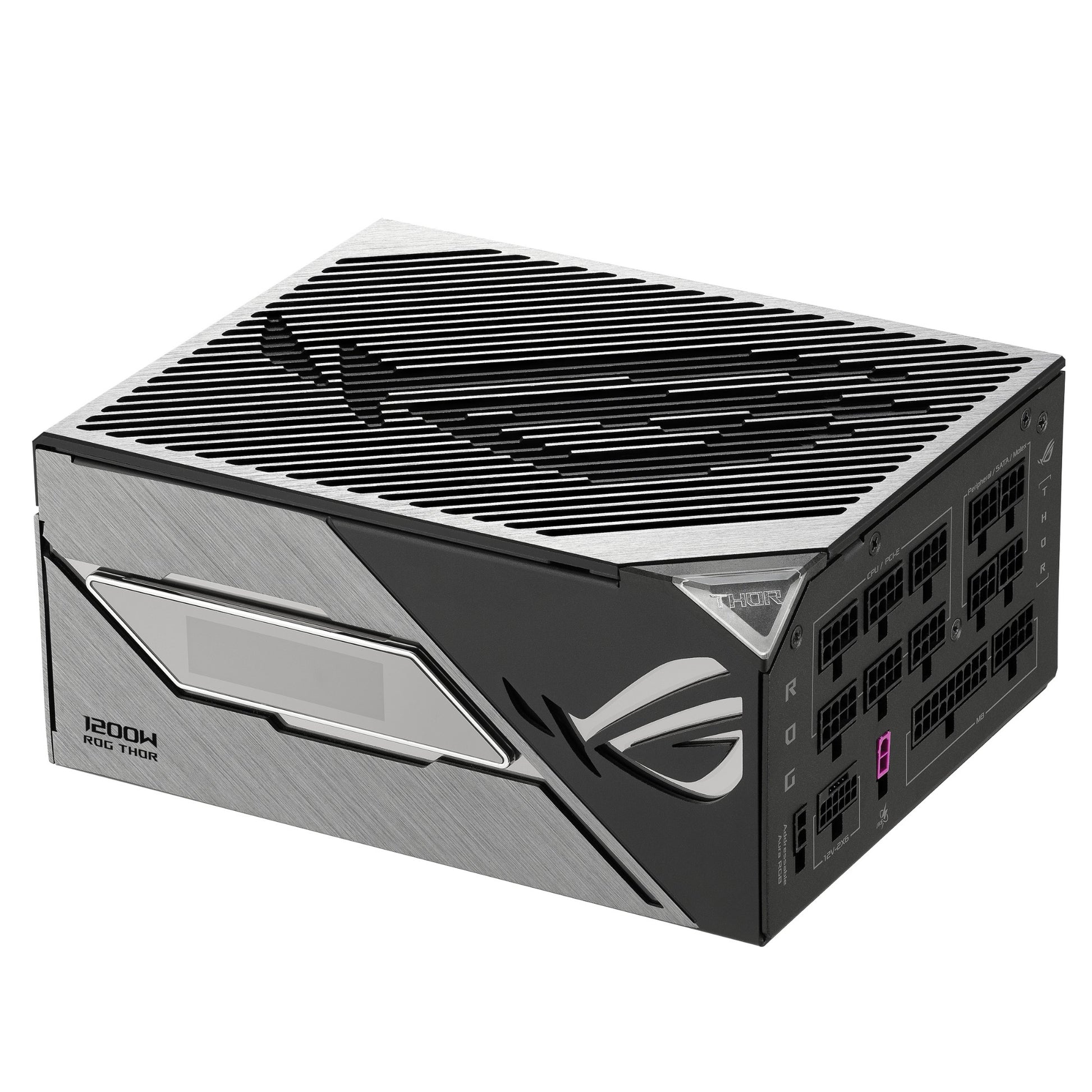

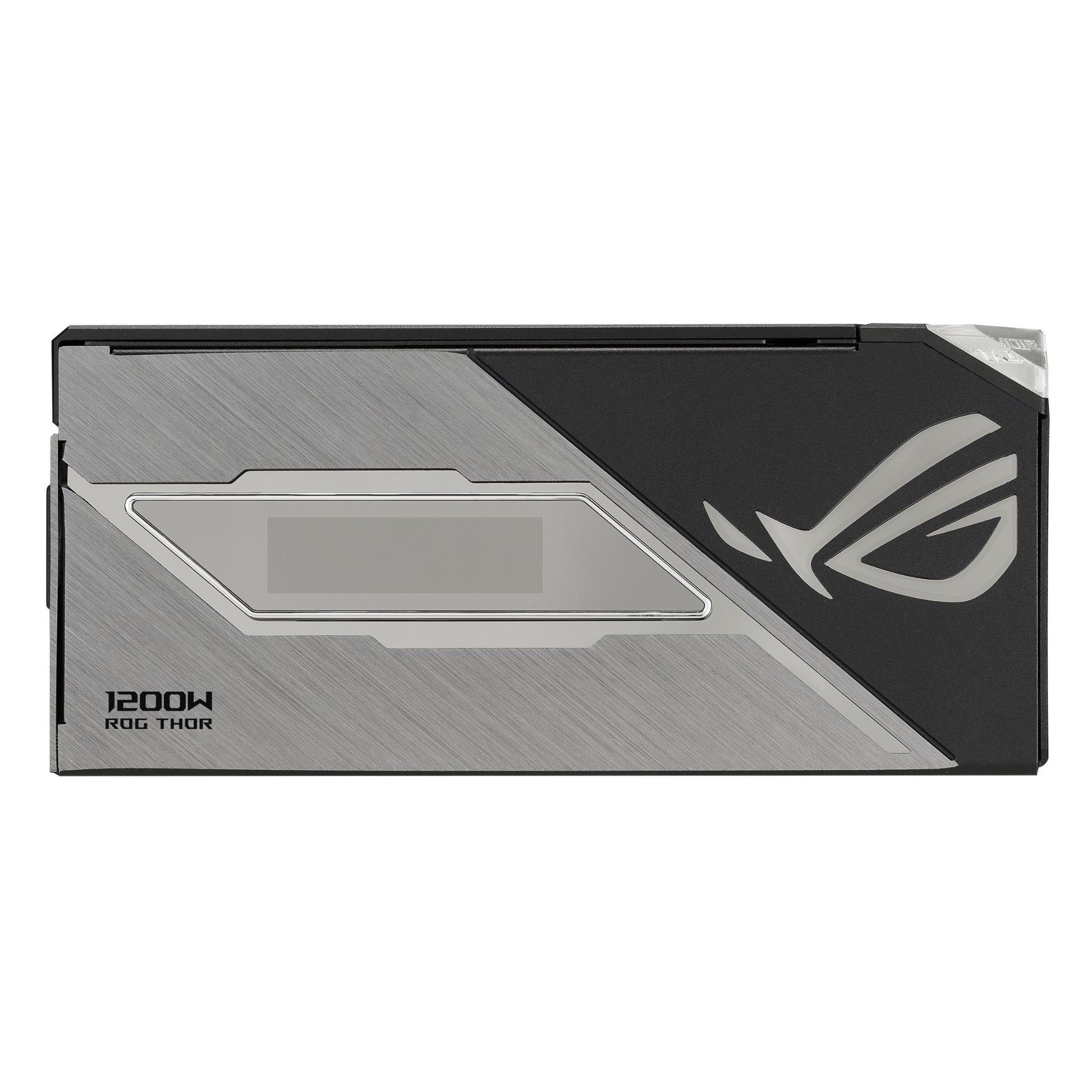

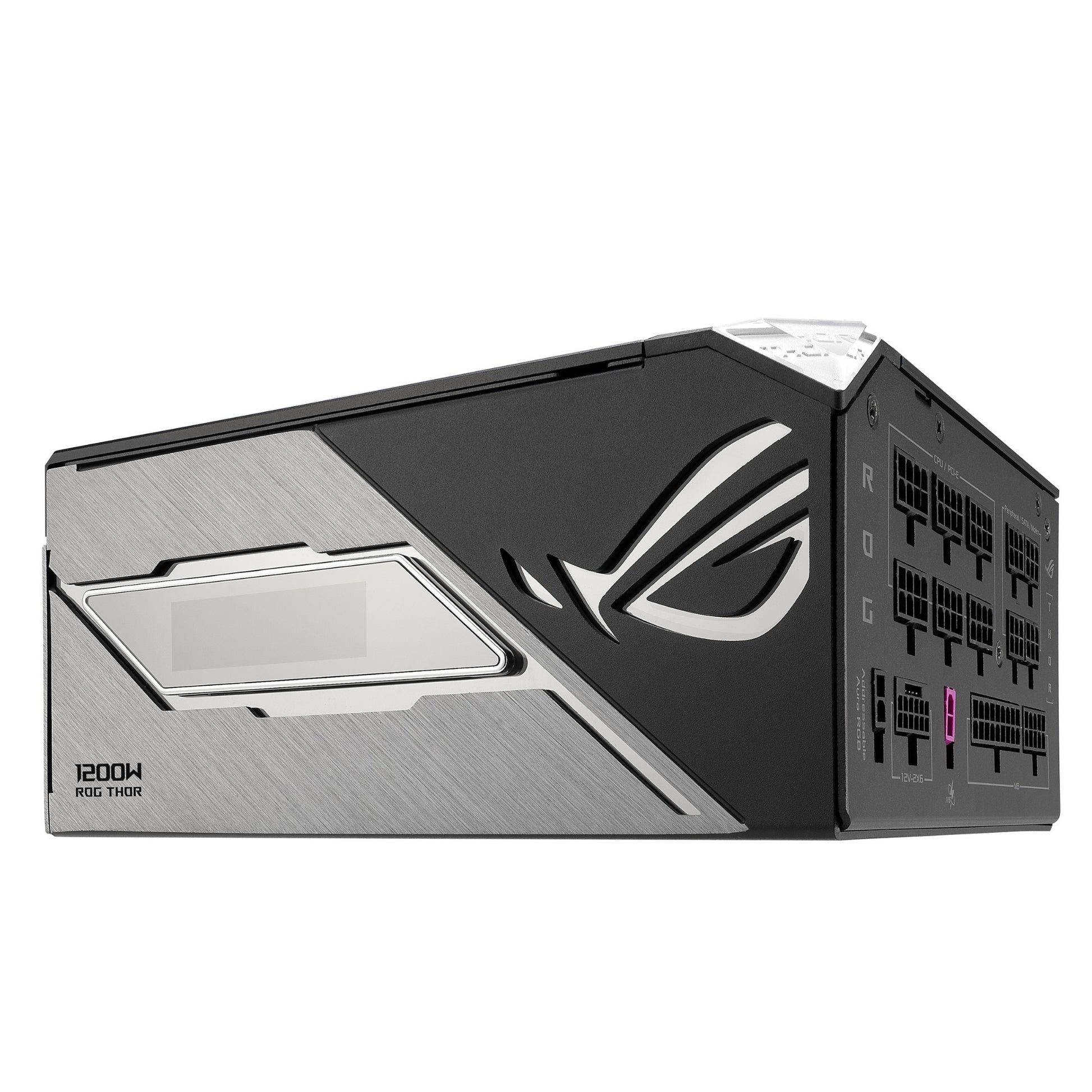

The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Specifications

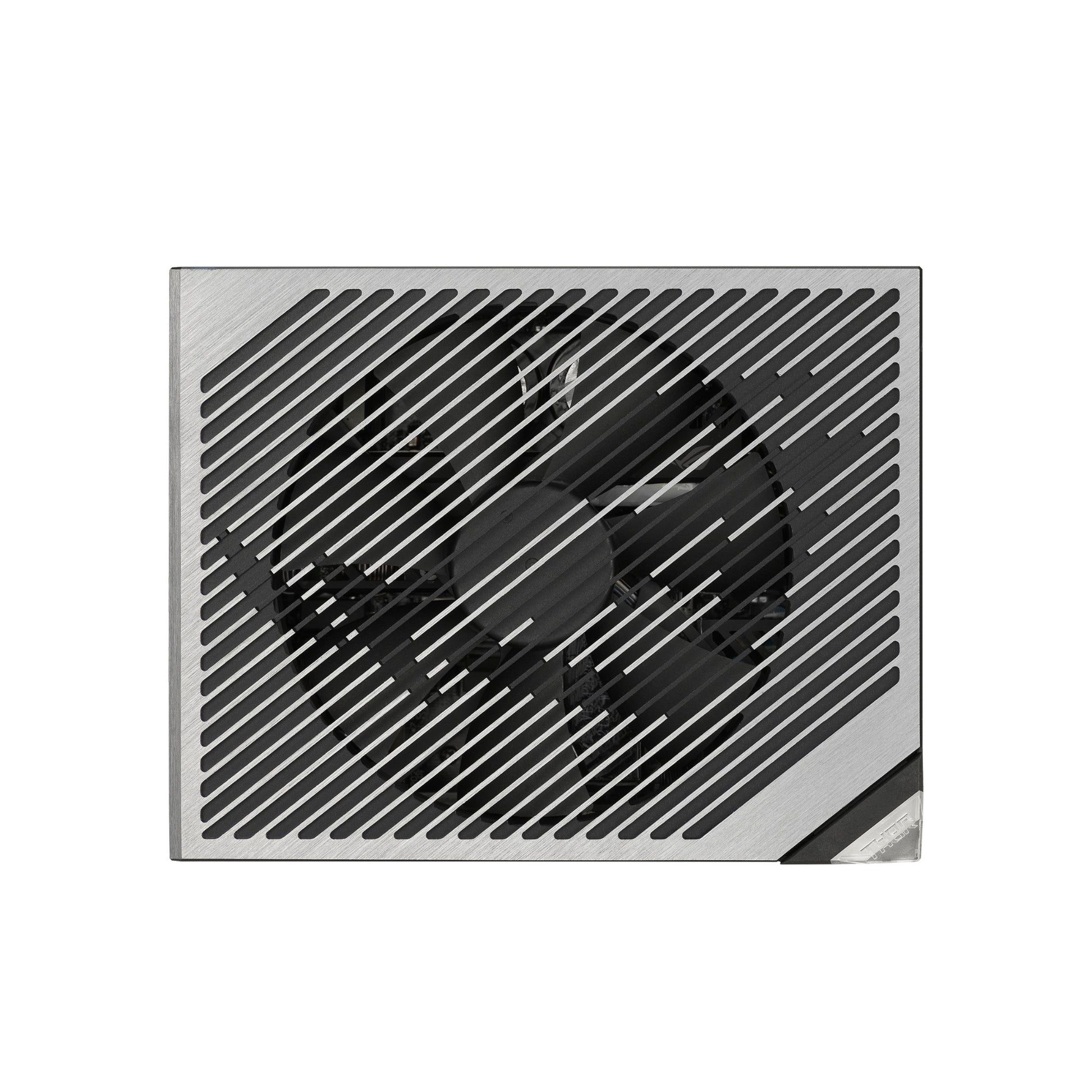

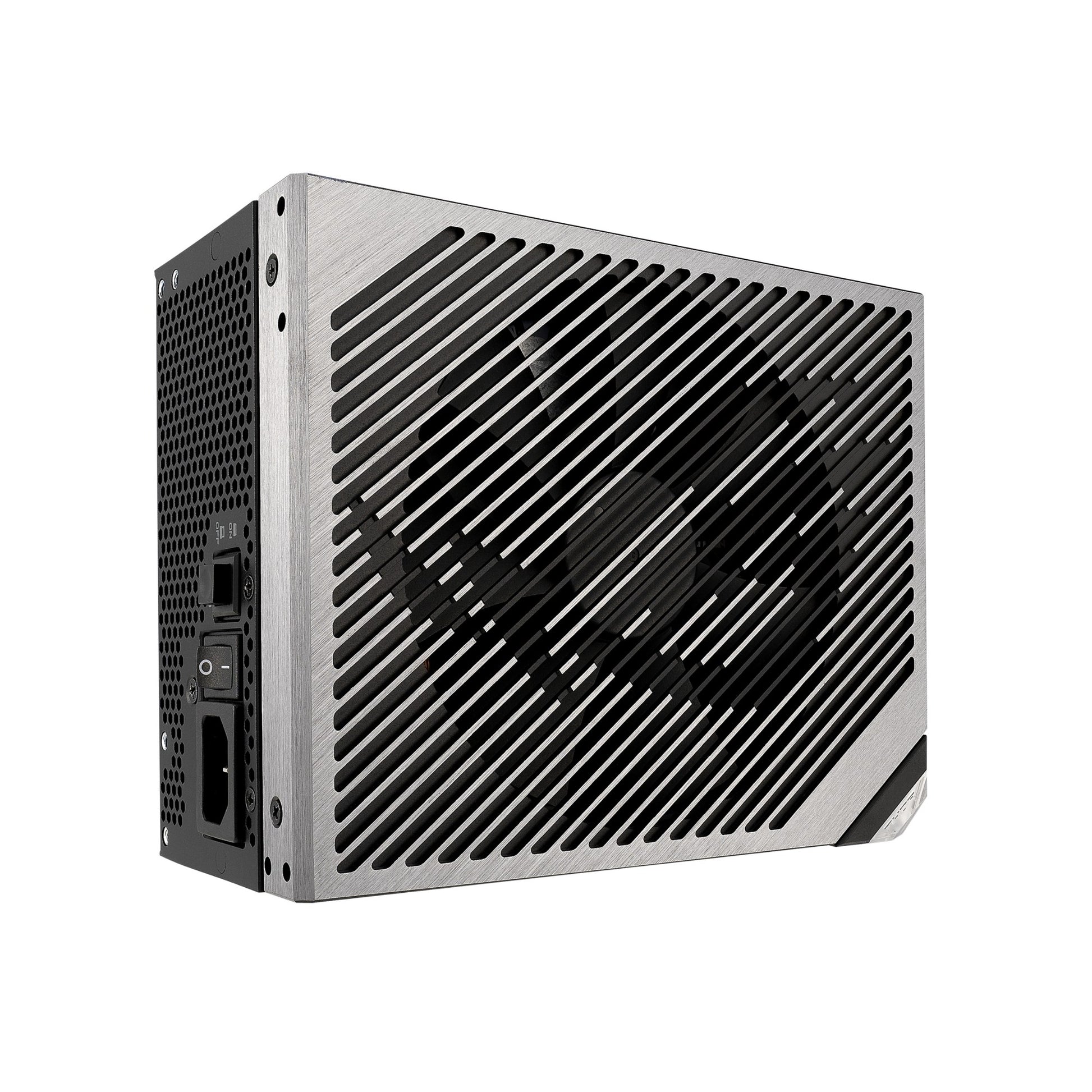

Cooling
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Illumination	Yes
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1200 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Overheating, Over current, Over power, Over voltage, Short circuit, Under power

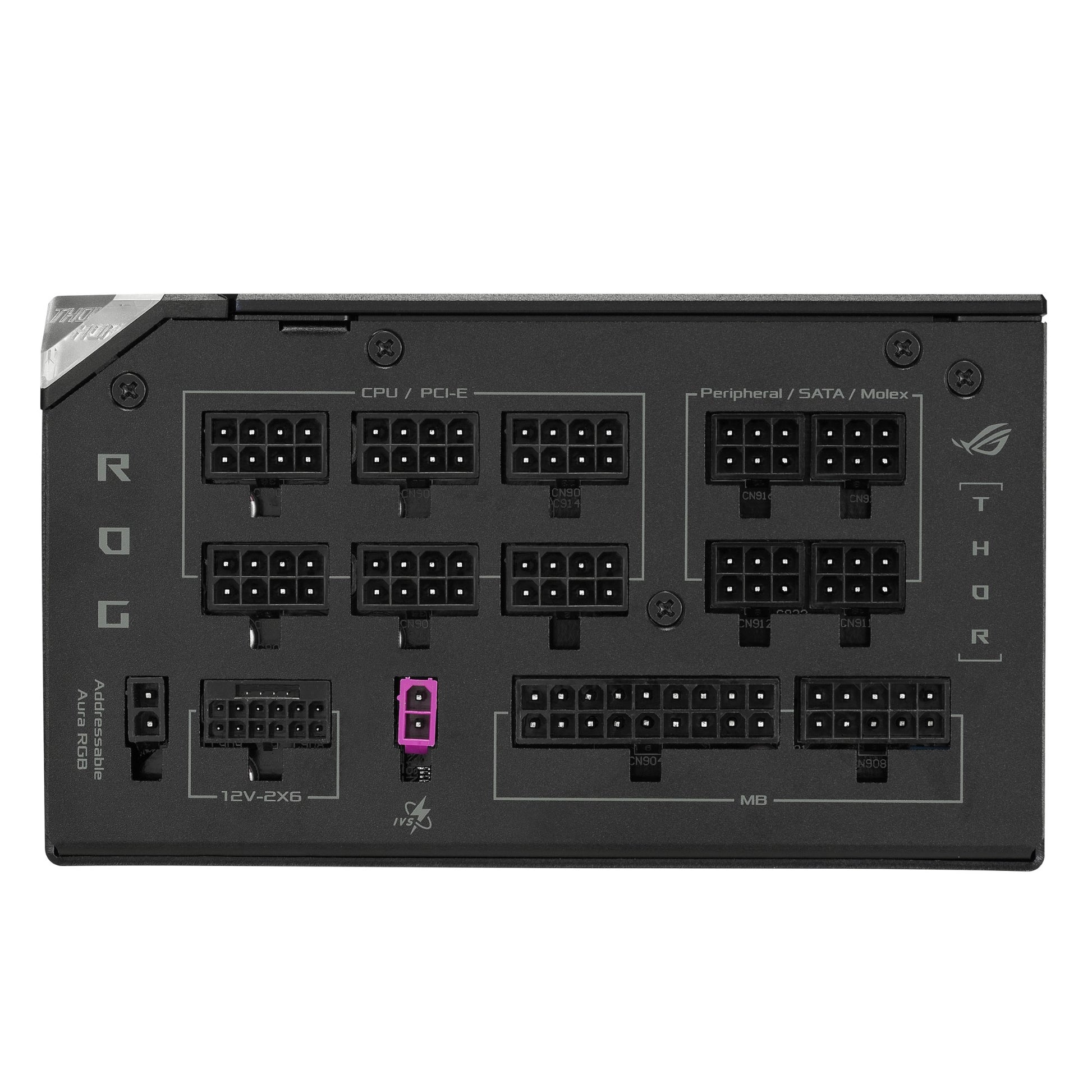

Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	400,120 mm
Peripheral (Molex) power cable length	400,150 mm
PCI Express power cable length	75 cm
CPU power cable length	100 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	7
Peripheral (Molex) power connectors (4-pin)	6
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Performance
Power supply unit (PSU) form factor	ATX
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	120000 h
Bearing technology	DBB
Packaging content
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2.37 kg
Packaging data
Package depth	241 mm
Package width	379 mm
Package height	127 mm
Package type	Box
Package weight	5.14 kg
