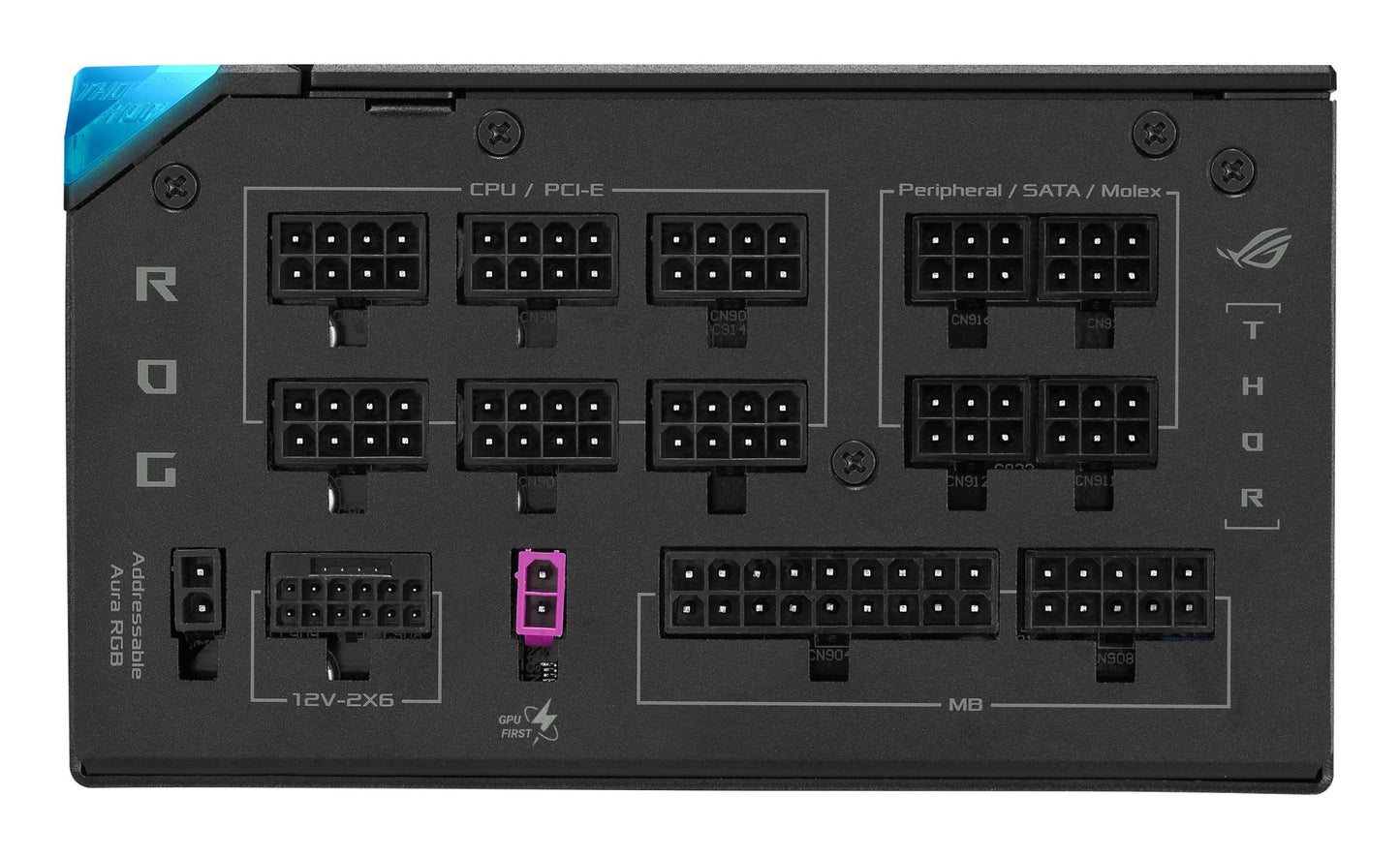

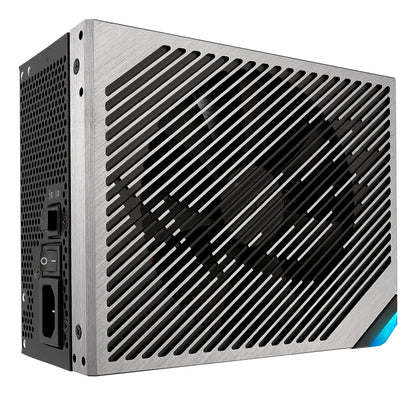

ASUS ROG -THOR-1200P3-GAMING-E power supply unit 1200 W 24-pin ATX ATX Black

Reliable power for your system: the ASUS ROG -THOR-1200P3-GAMING-E power supply — wattage and connector details are in the spec table.

ROG Thor 1200W Platinum III
Ultimate Power. Unmatched Stability

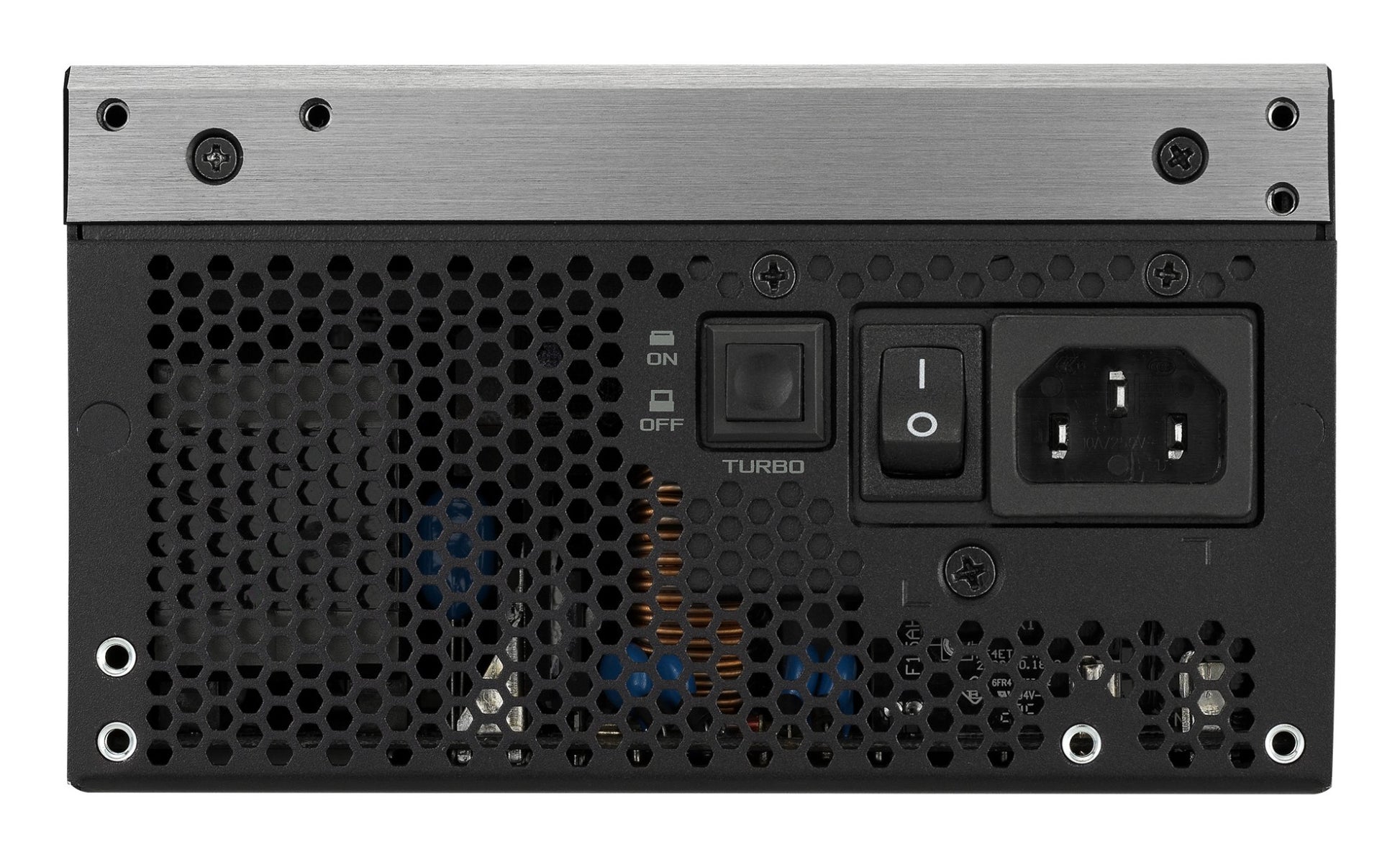

The ROG Thor 1200W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.

The ROG Thor 1200W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

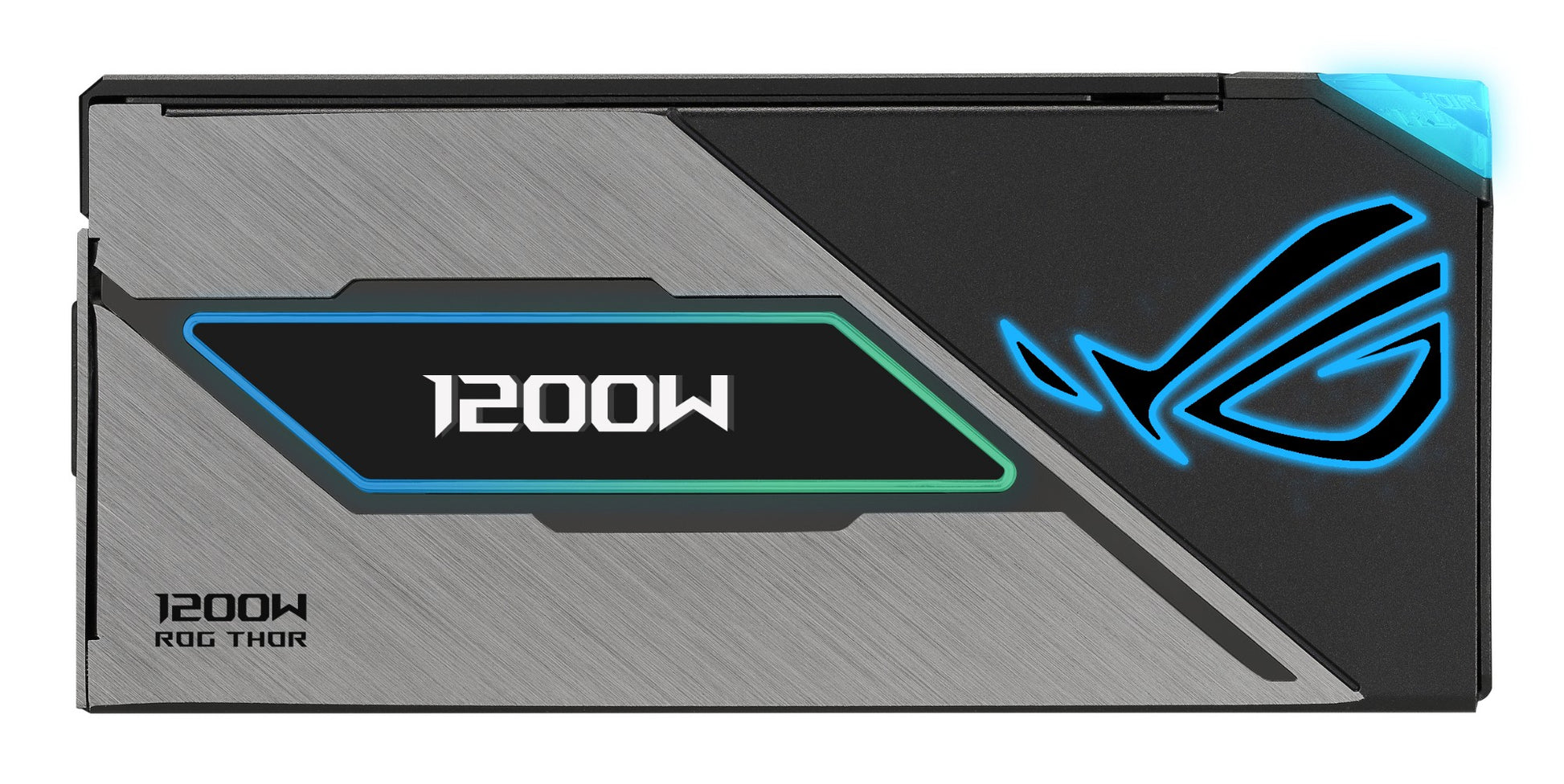

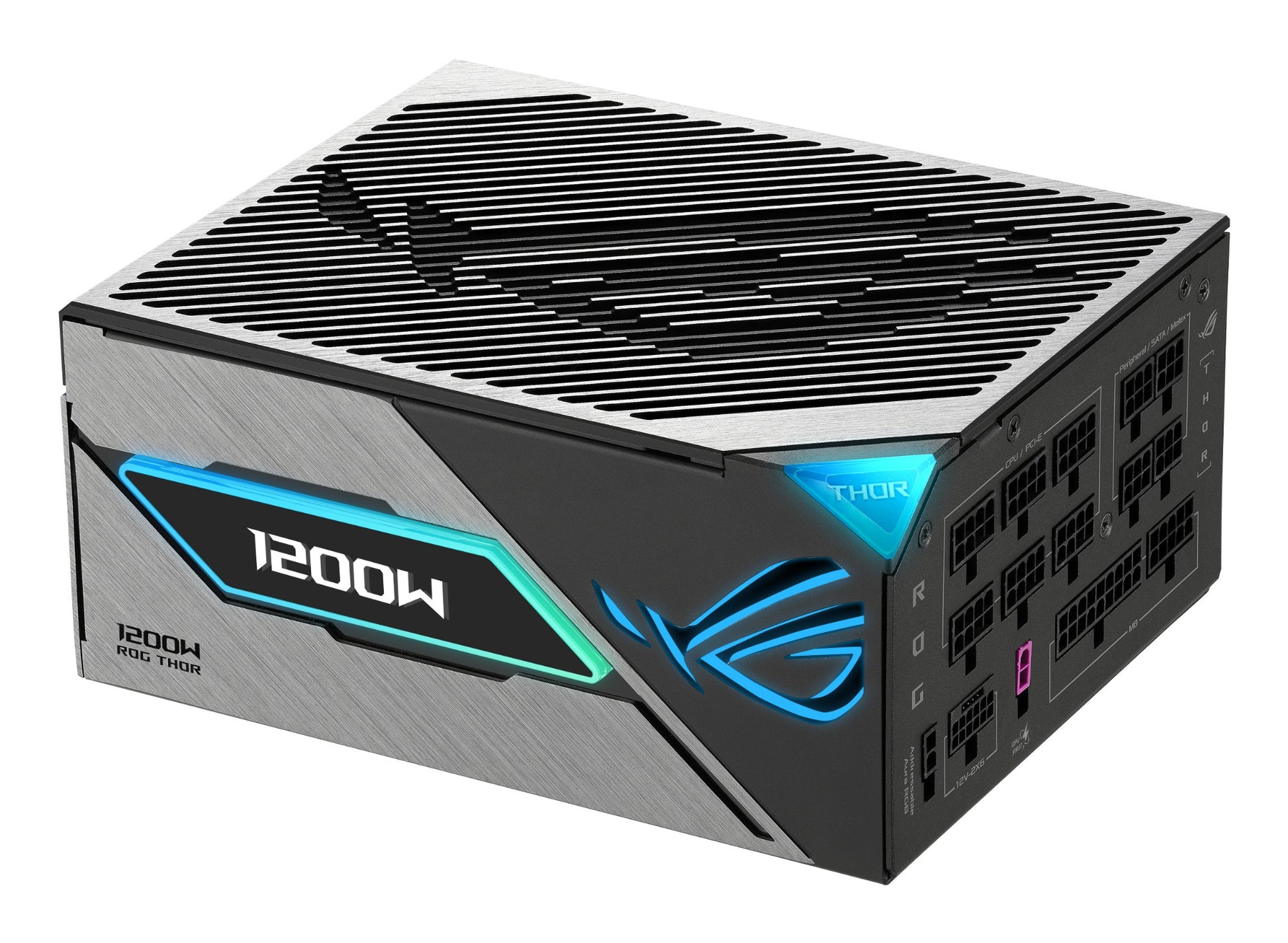

The ROG Thor 1200W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.

Specifications

Cooling
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	120000 h
Cybenetics certification	Platinum
Design
Product colour	Black
Illumination	Yes
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1200 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	120,400 mm
Peripheral (Molex) power cable length	150,400 mm
PCI Express power cable length	75 cm
CPU power cable length	100 cm

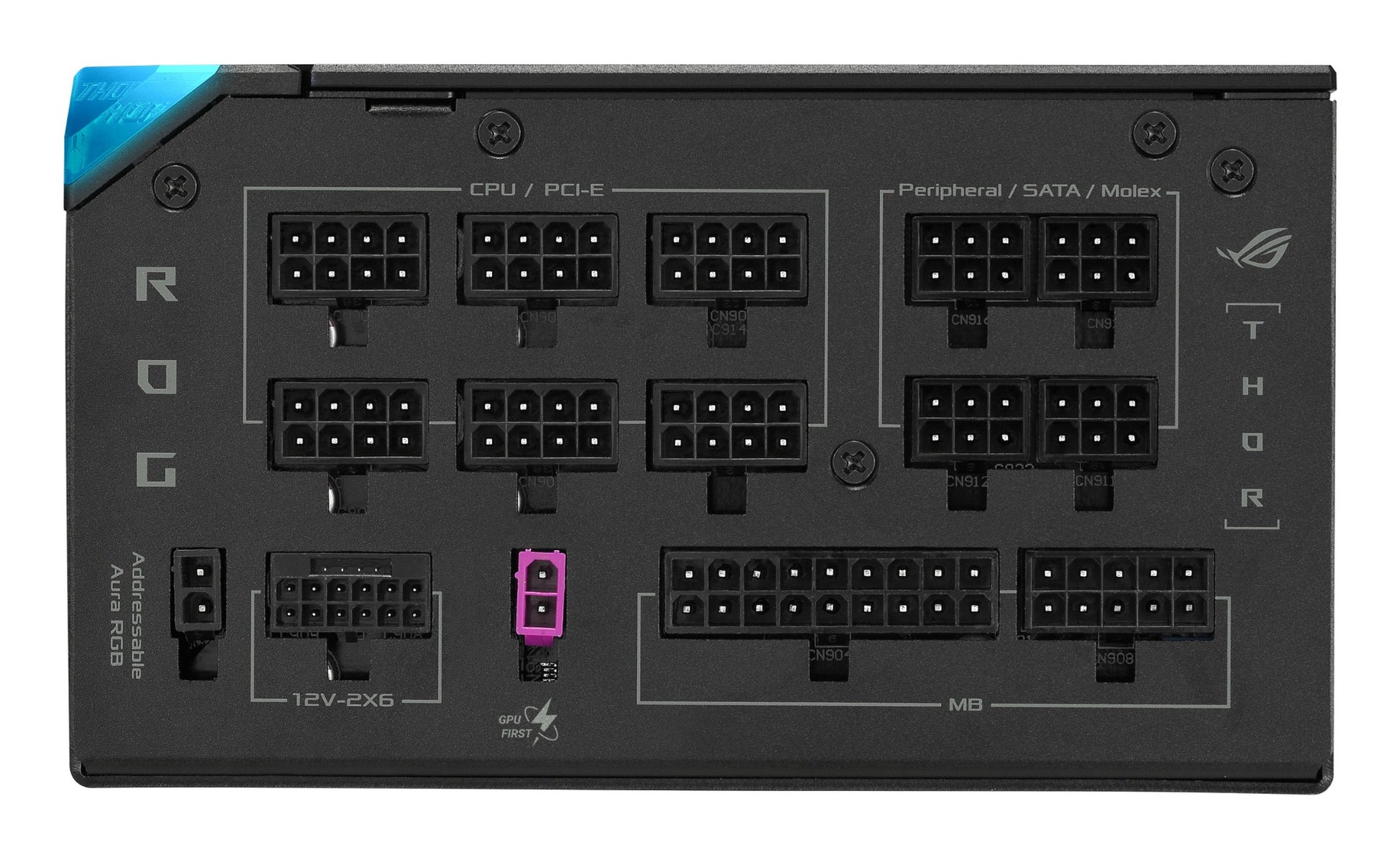

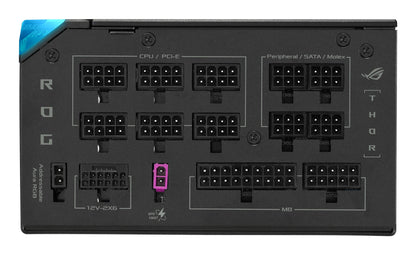

Motherboard power connector	24-pin ATX
Number of SATA power connectors	7
Peripheral (Molex) power connectors (4-pin)	6
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2.37 kg

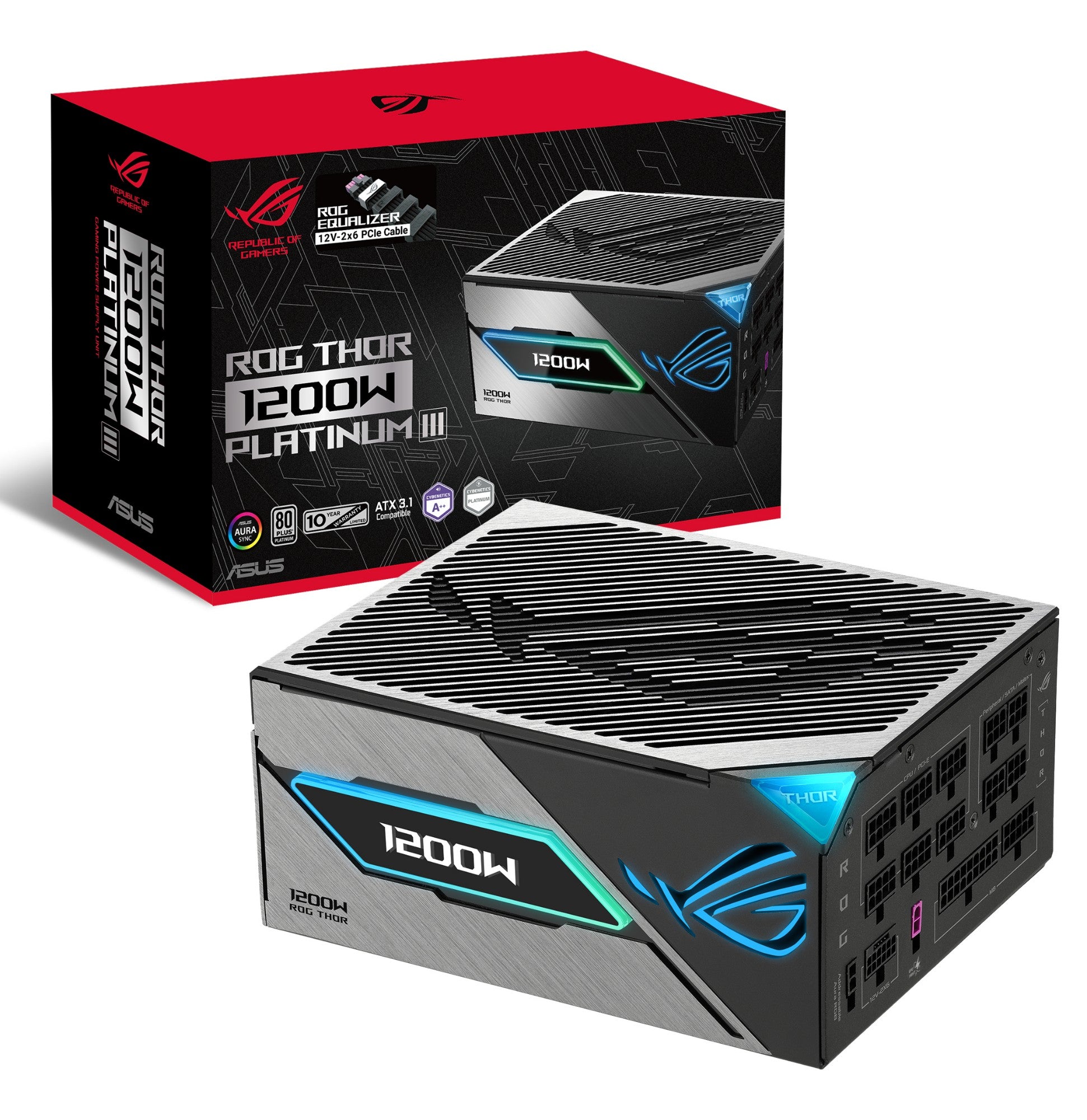

Packaging data
Package depth	241 mm
Package width	379 mm
Package height	127 mm
Package type	Box
Package weight	5.22 kg
