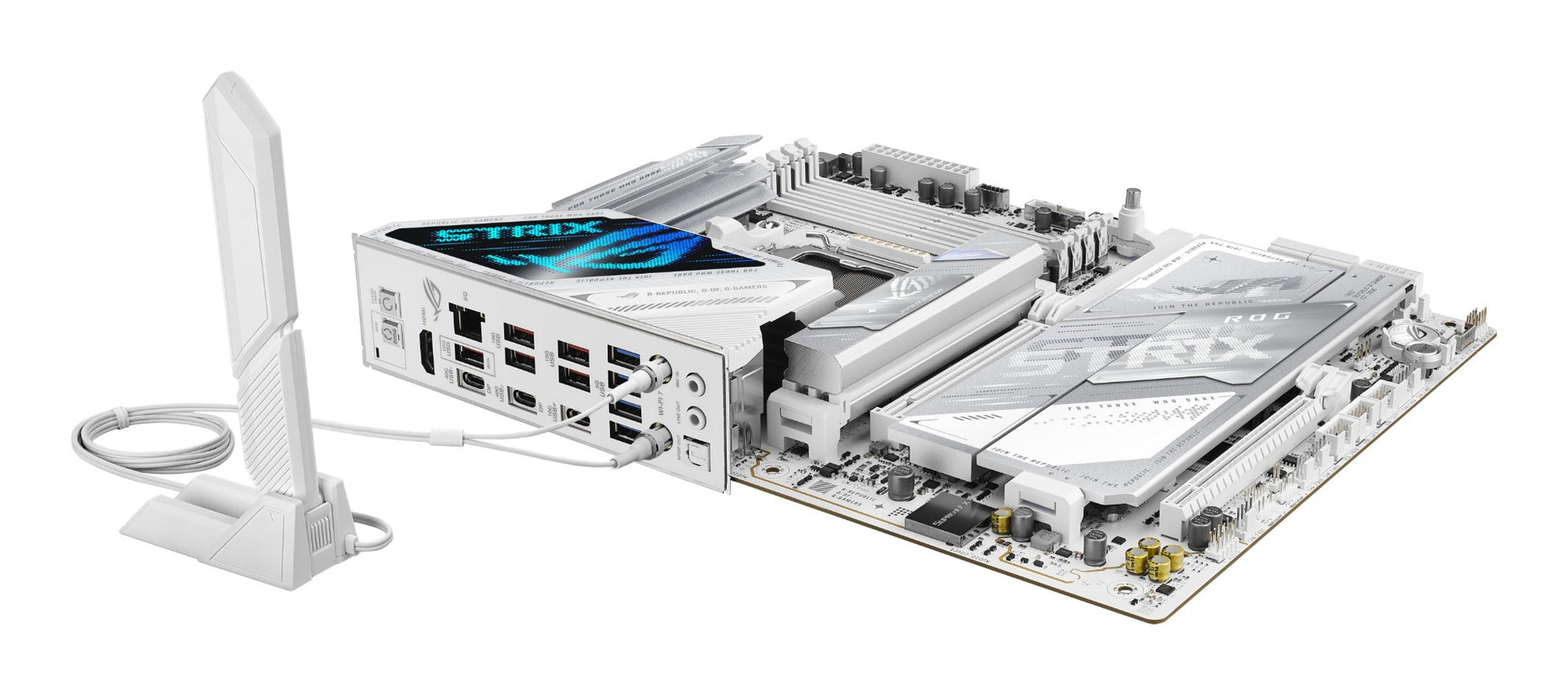

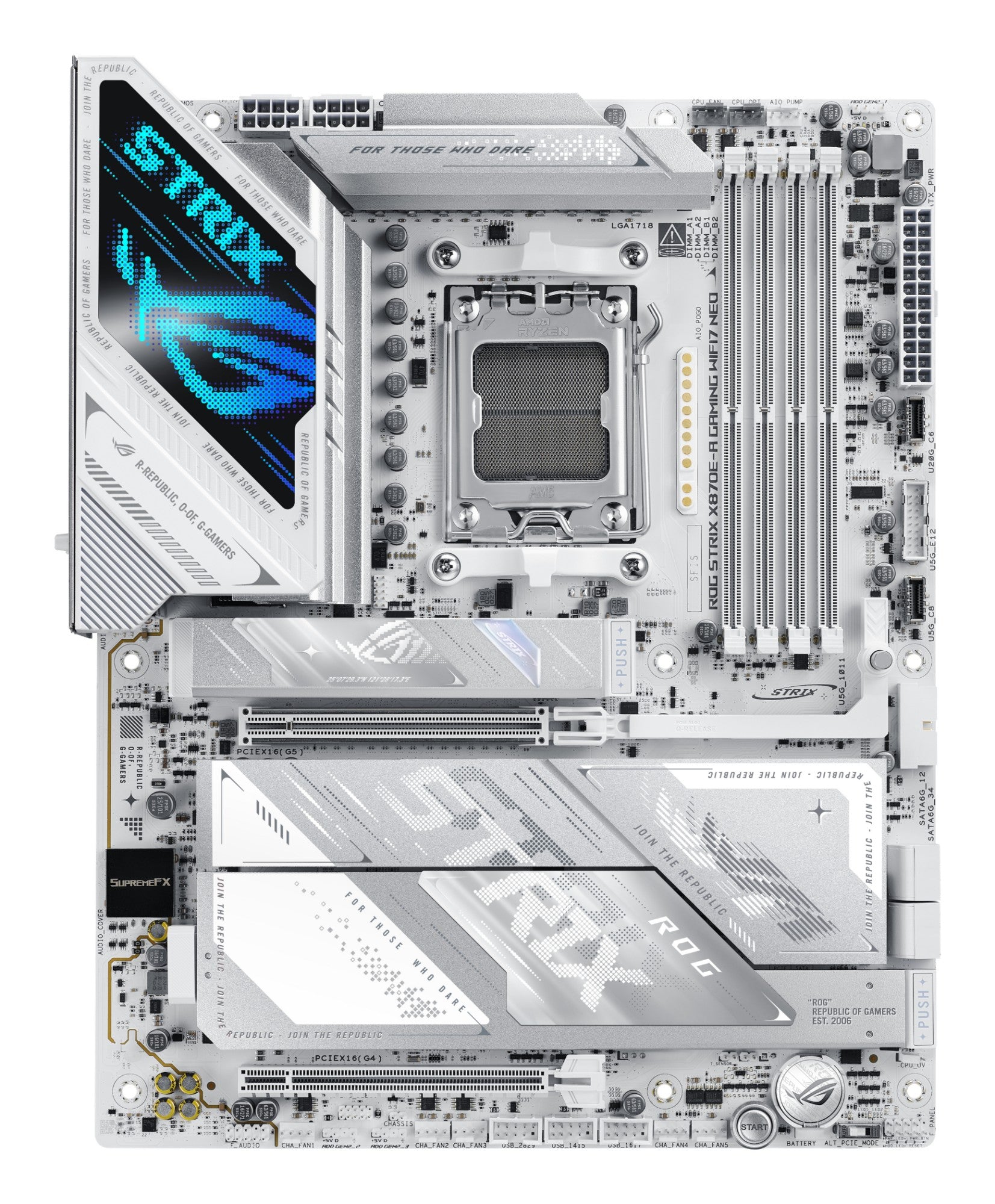

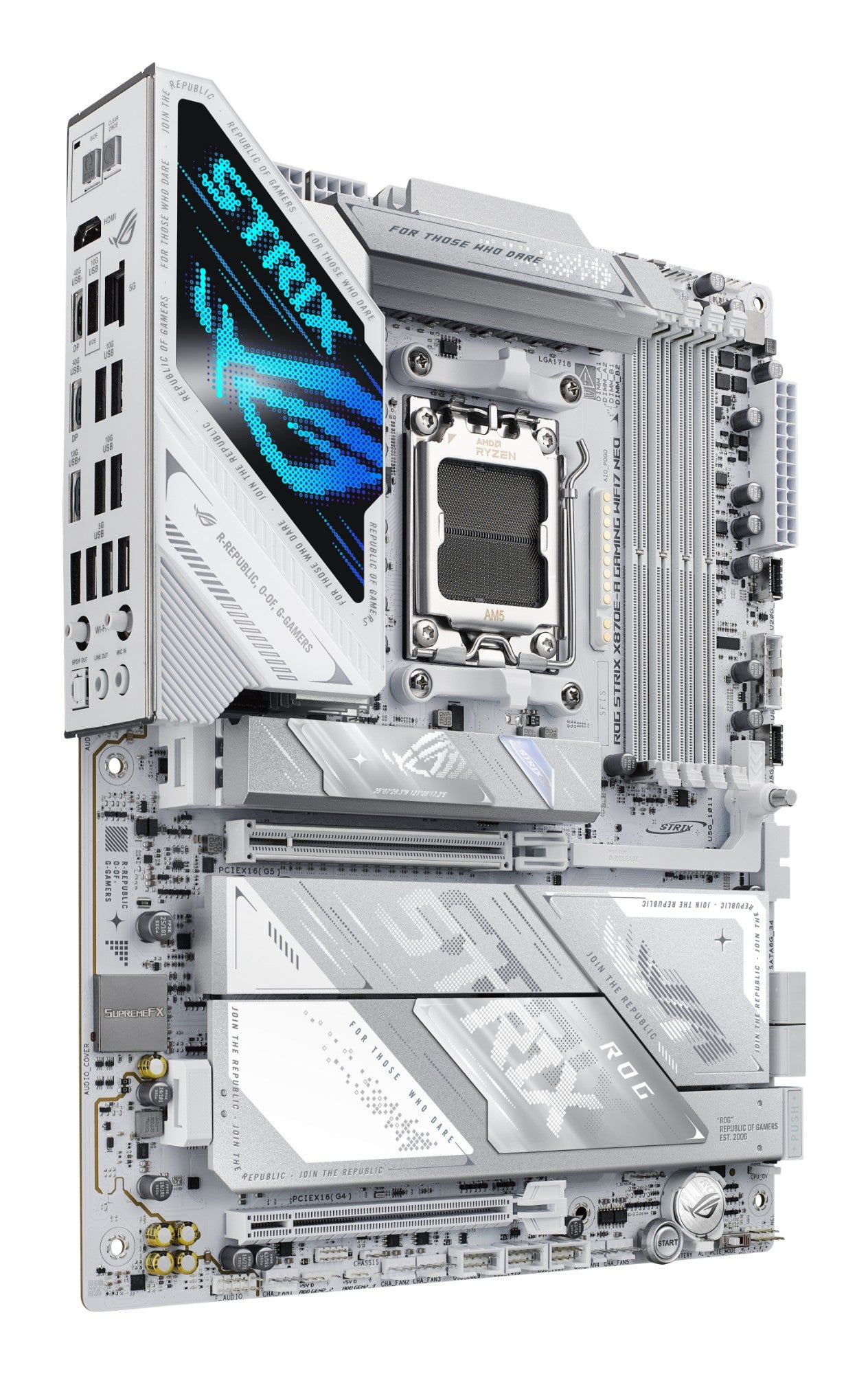

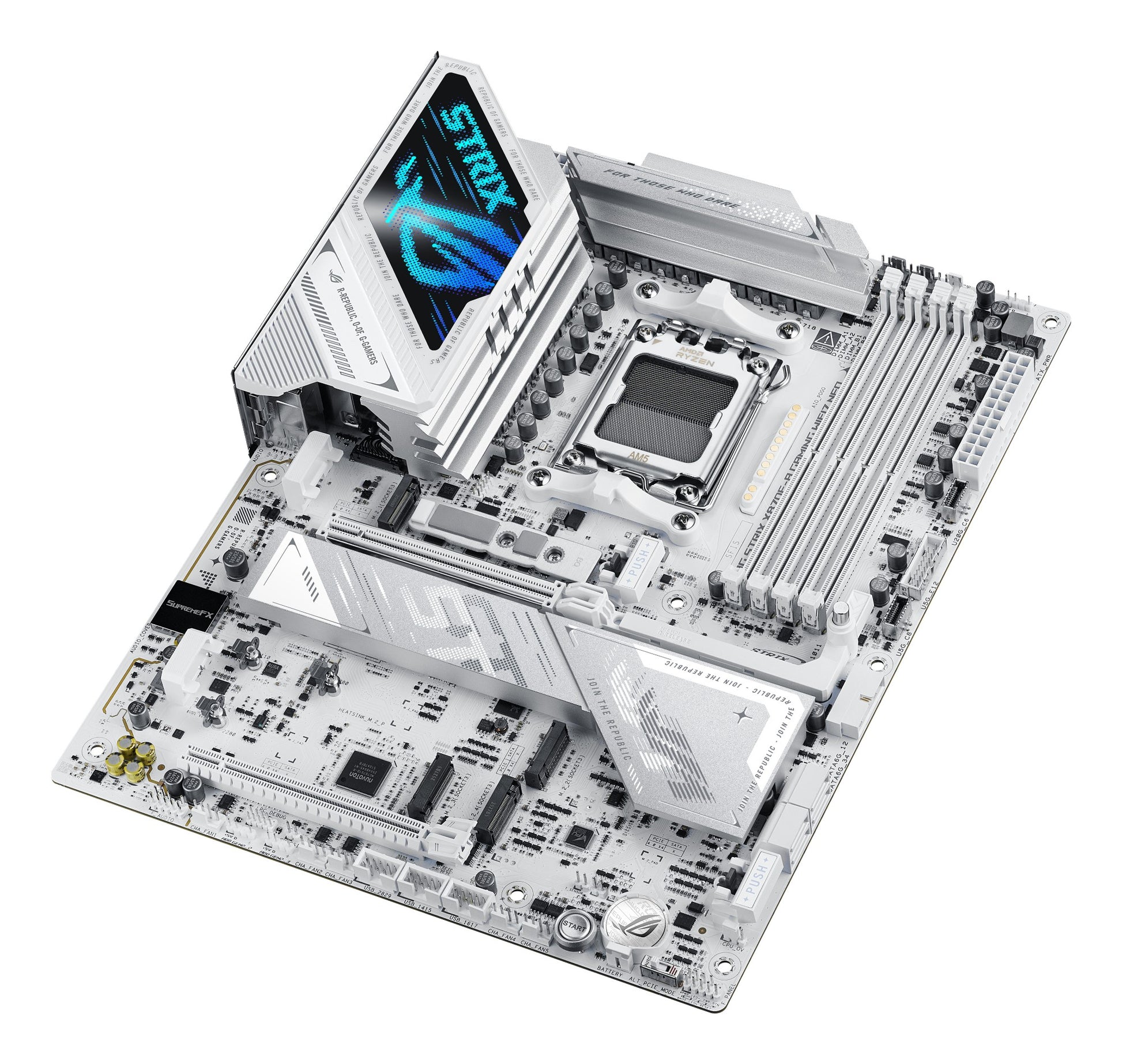

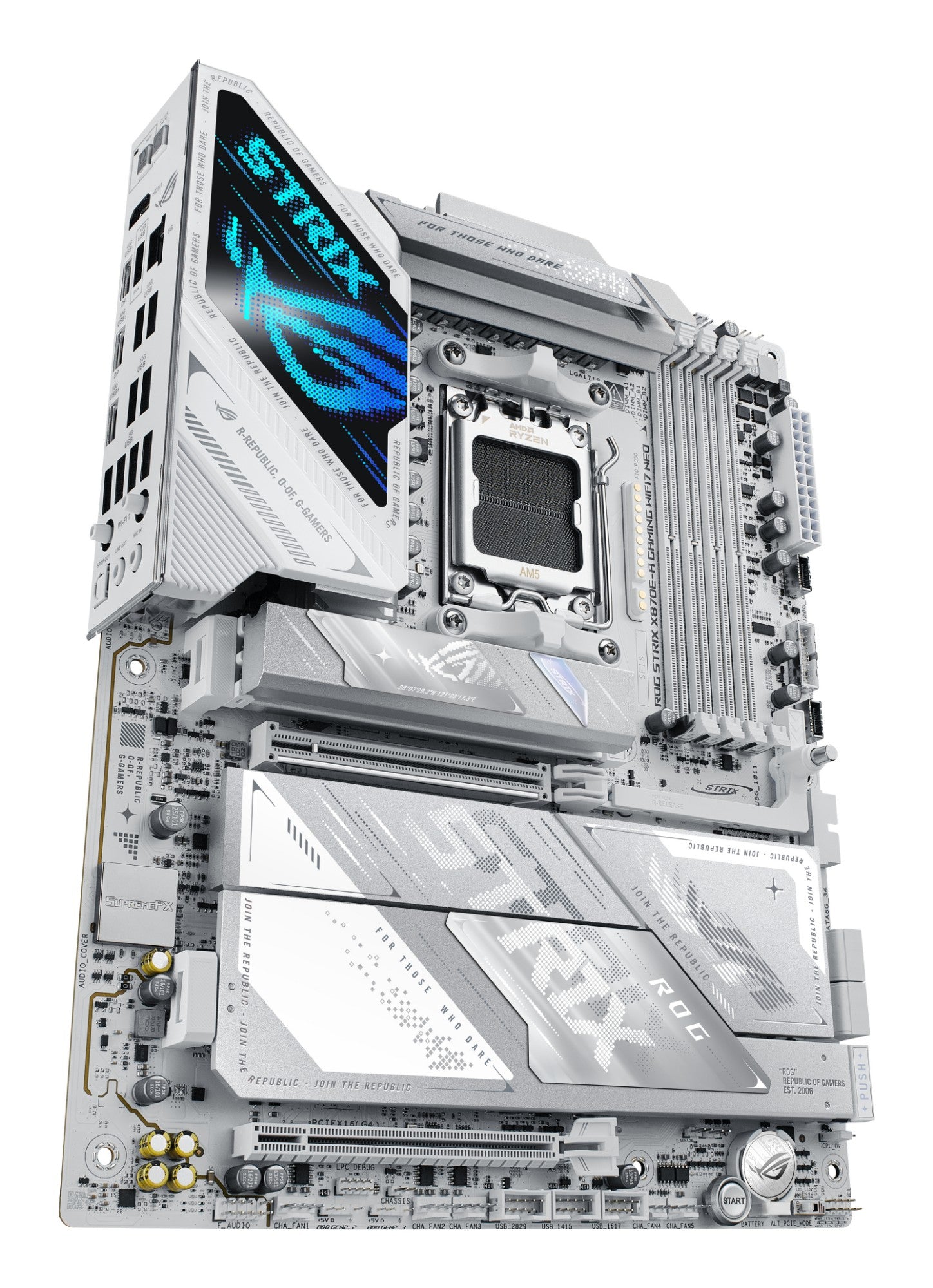

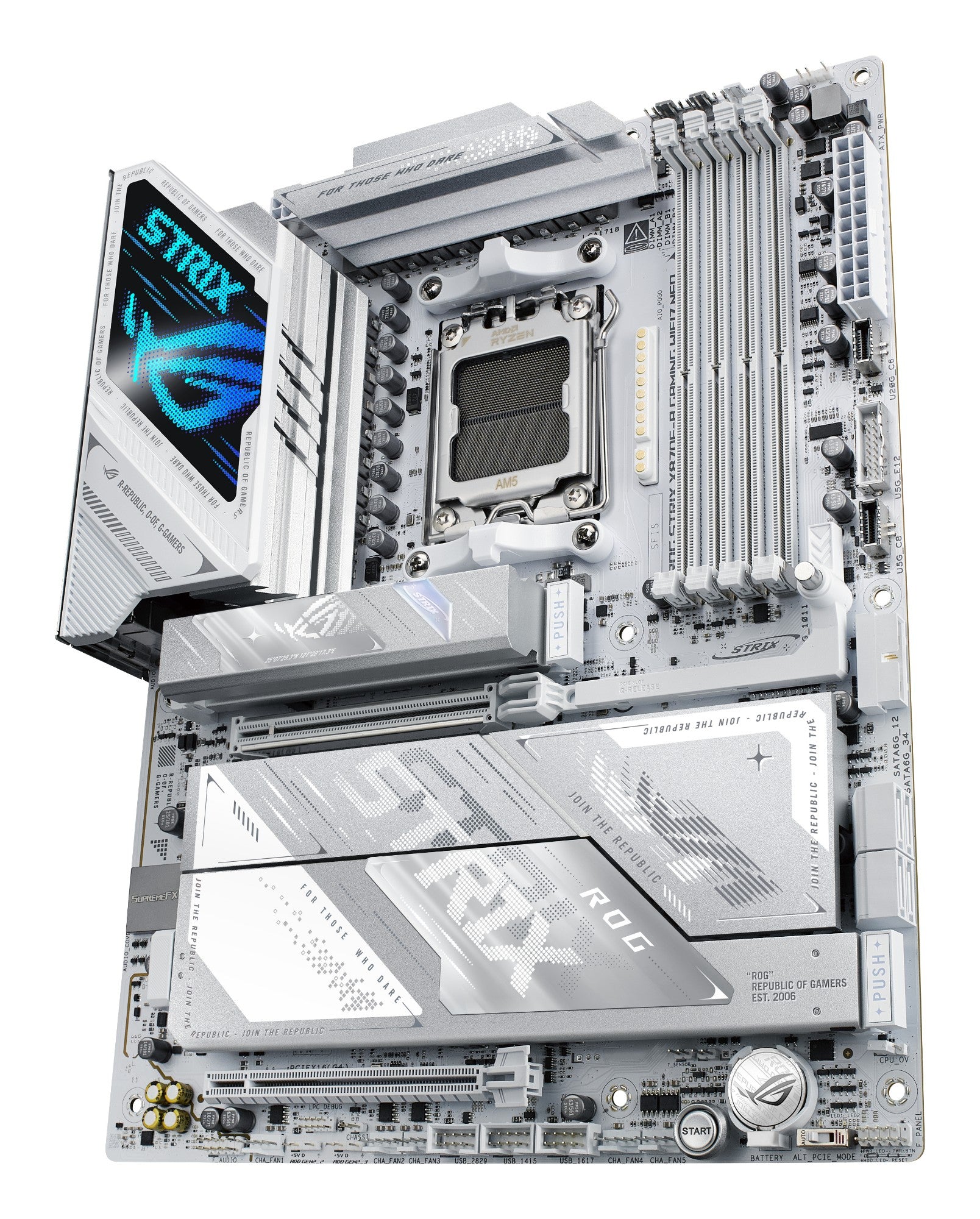

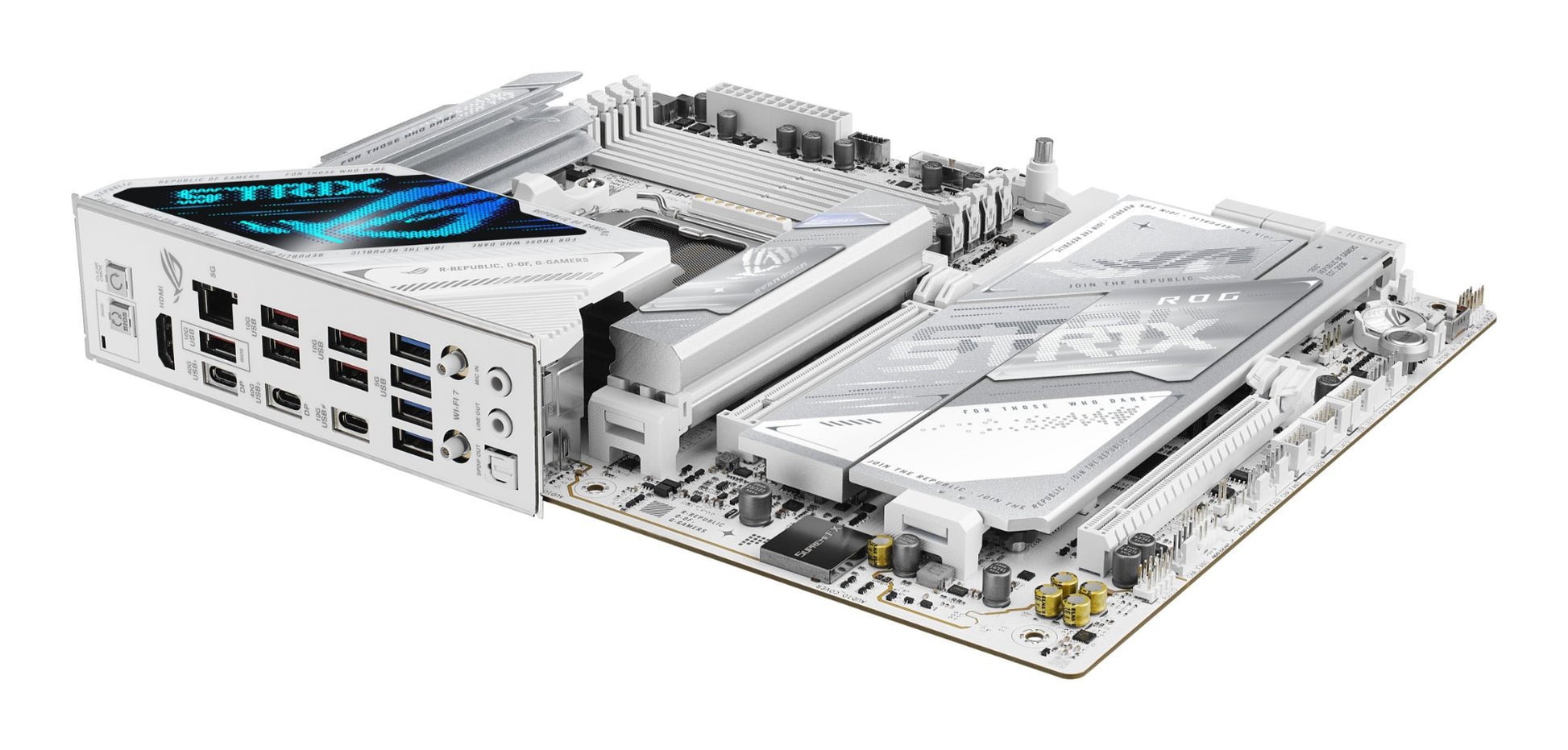

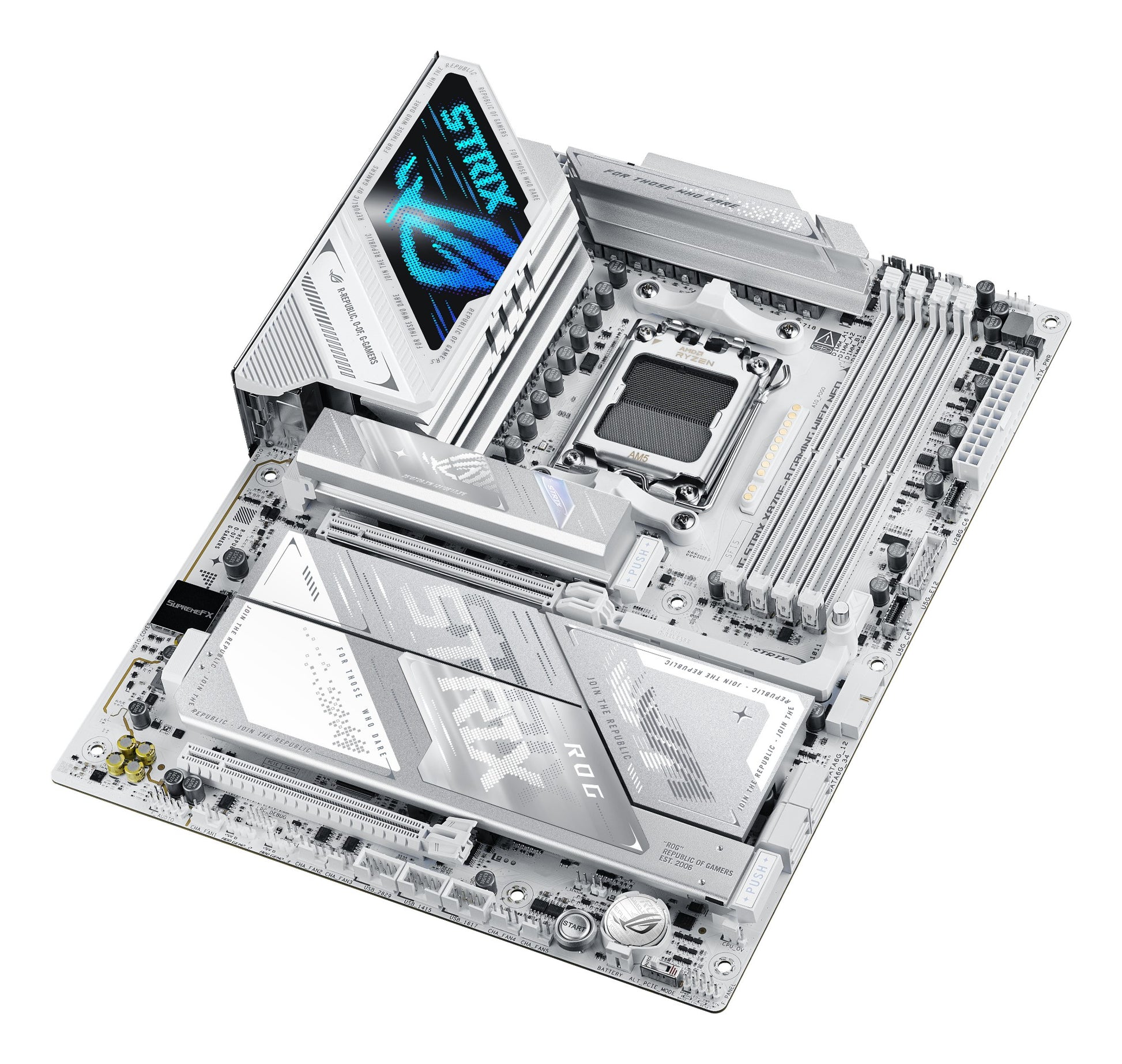

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO AMD X870E Socket AM5 ATX Motherboard

The ASUS ROG STRIX X870E-A GAMING provides the foundation for your build — socket, chipset and expansion details are in the spec table below.

ROG STRIX X870E-A gaming wifi7 Neo
Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	SATA III, M.2
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	4
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	1
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Parallel processing technology support	Not supported
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
RAID levels	0, 1, 5, 10
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9600 MHz
ECC ?ompatibility	ECC & Non-ECC
Storage controllers
Number of storage drives supported	8
RAID support	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Features
Product colour	Multicolour
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2260
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2242
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	5.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Clear CMOS button	Yes
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.7 kg
Weight & dimensions
Height	50 mm
Weight	1.9 kg
Width	305 mm
Depth	244 mm
