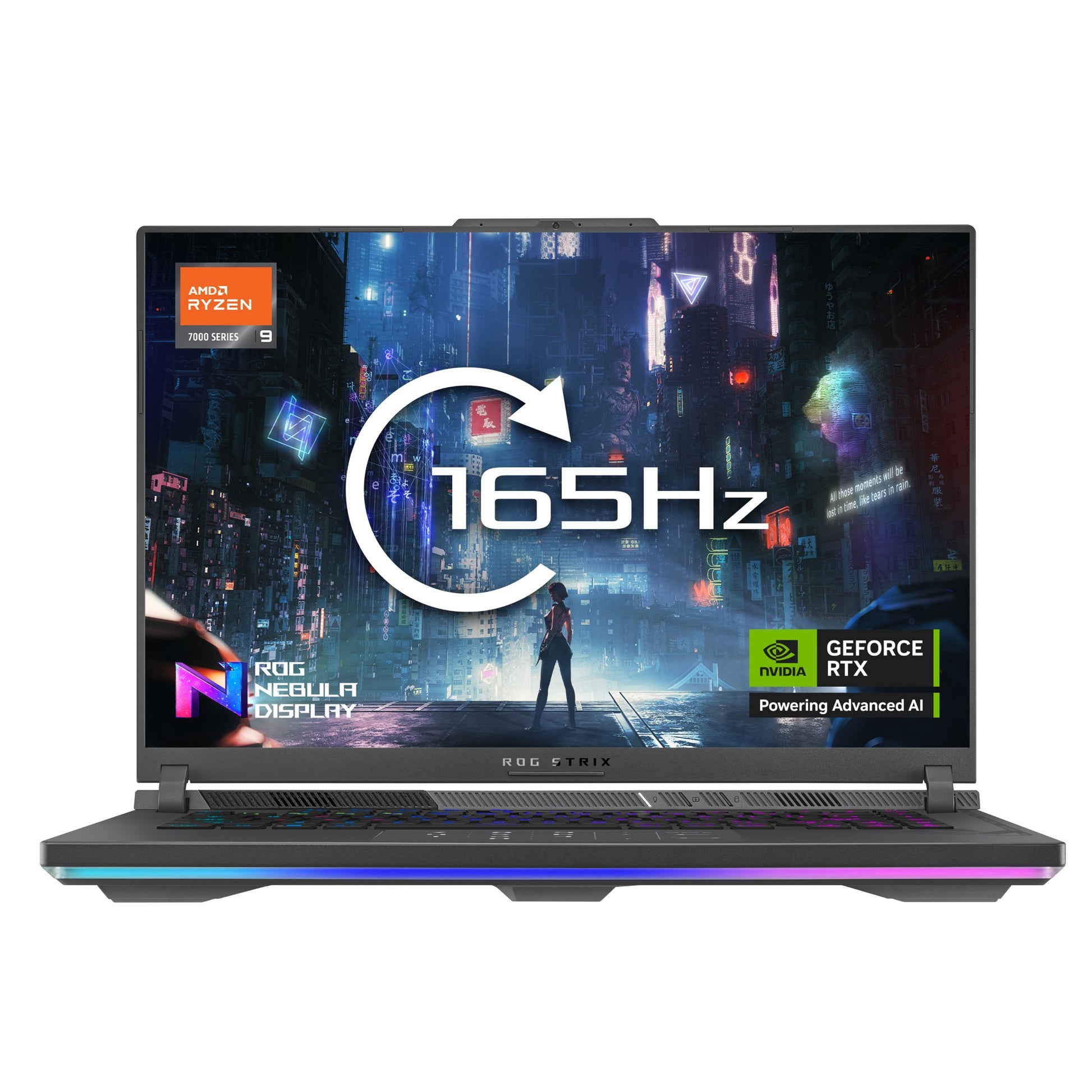

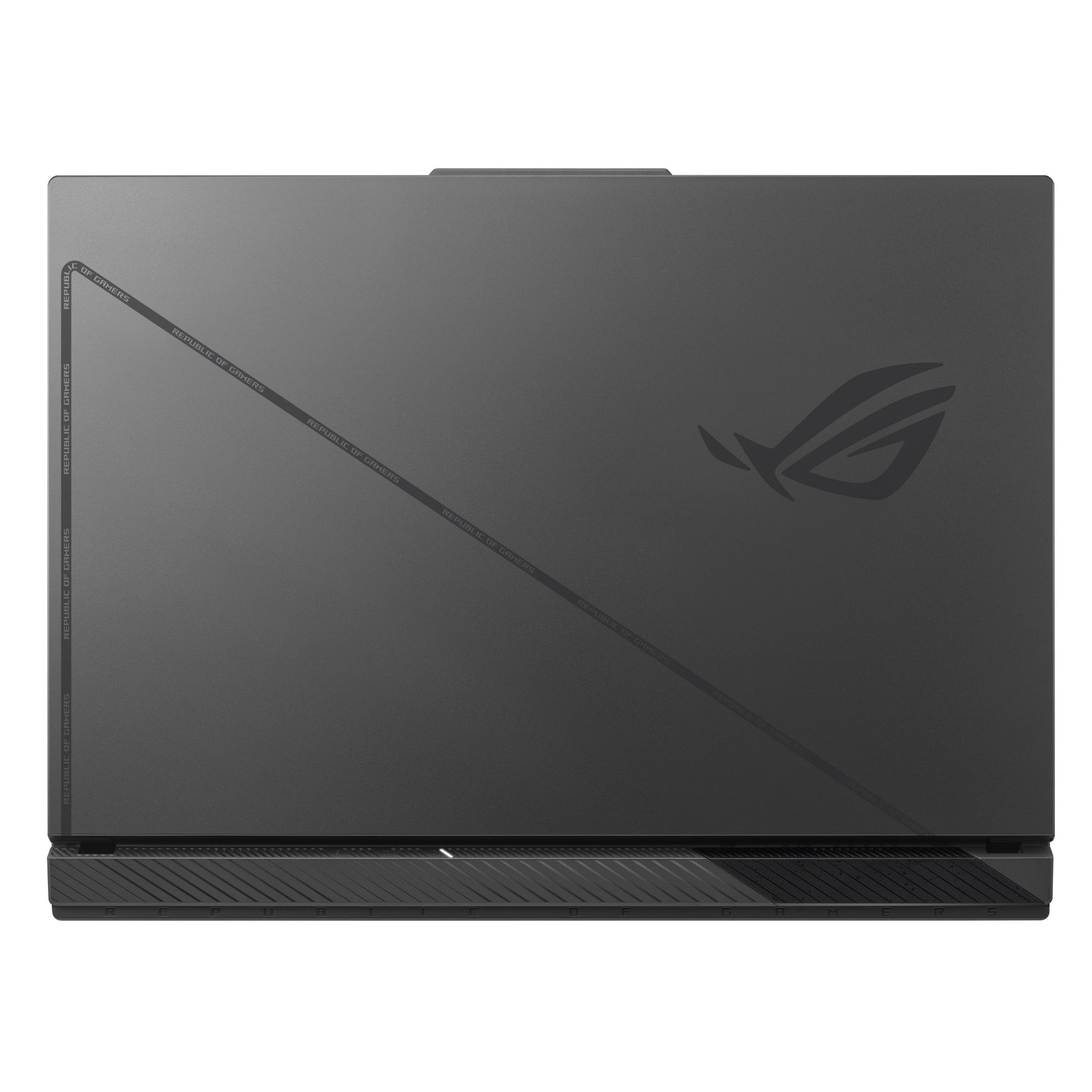

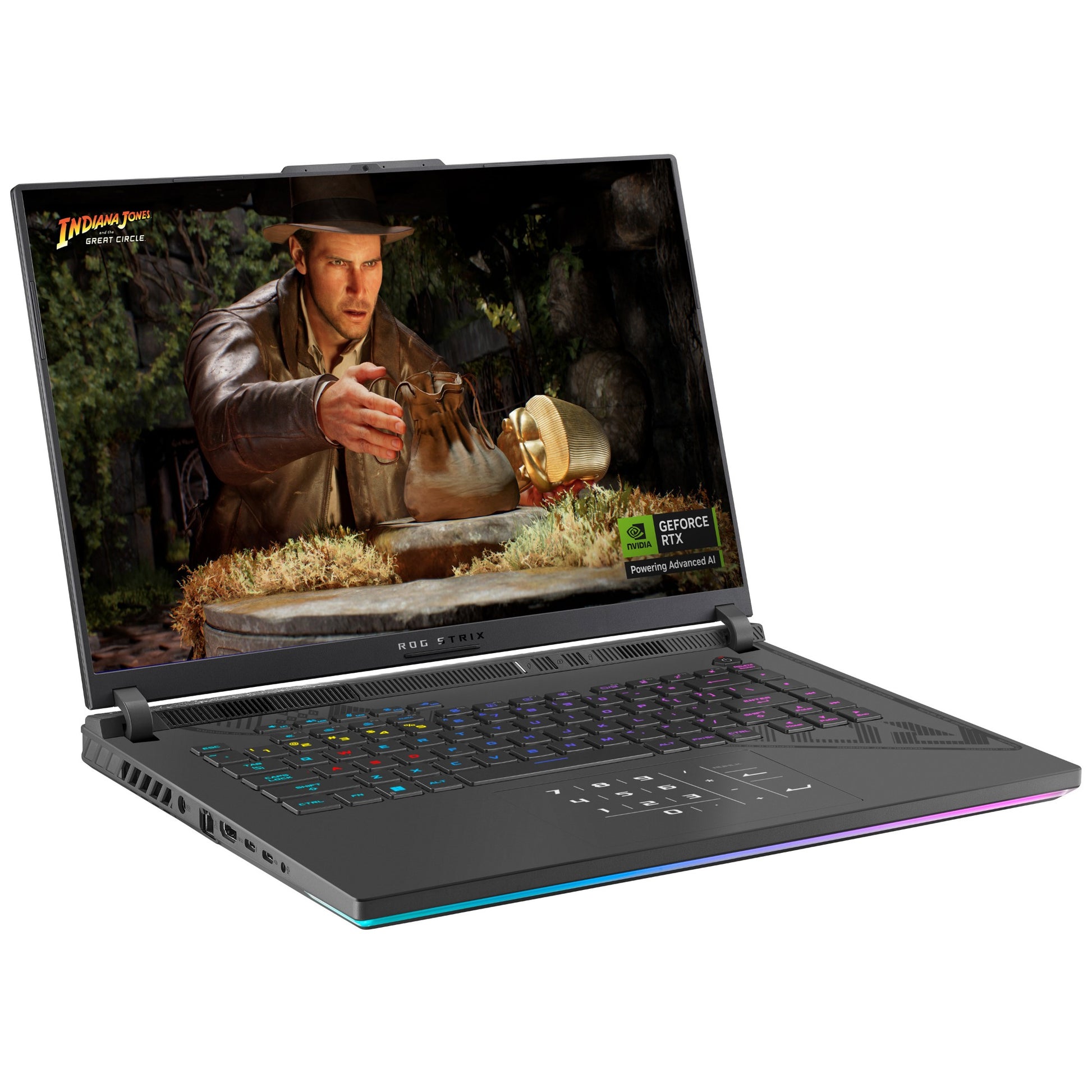

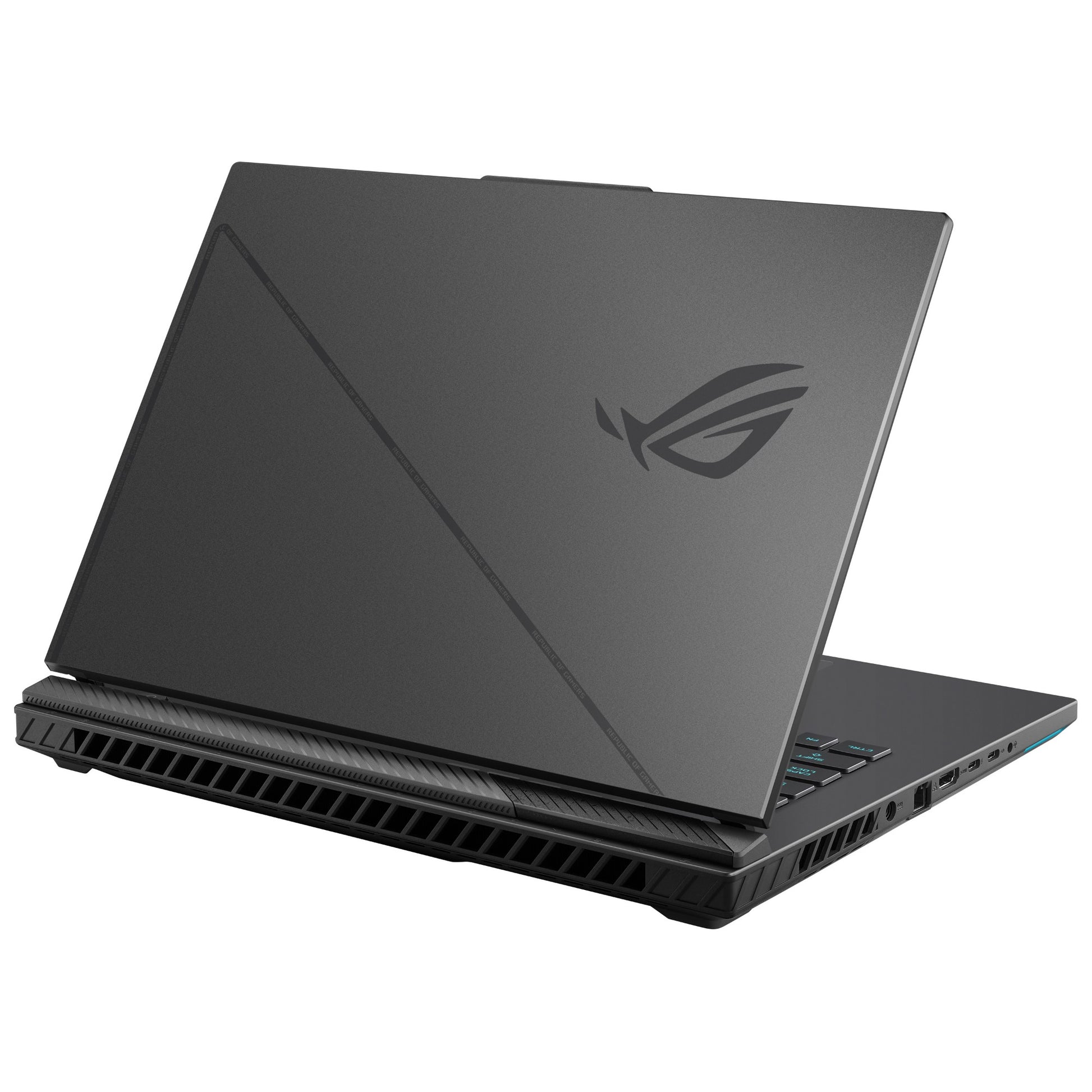

ASUS ROG Strix G16 G614PM-RV007W 16" Ryzen 9 8940HX 16GB 1TB SSD Laptop

Built for gaming, the ASUS ROG Strix G16 G614PM-RV007W combines its Ryzen 9 8940HX and 16" display for smooth, immersive play.

Raise your game. Carry your squad.
Game with confidence thanks to the raw horsepower of the 2024 Strix G16. Powered by an AMD Ryzen™ 9 8940HX and an NVIDIA® GeForce® RTX 5060 (572 AI TOPS) Laptop GPU with a dedicated MUX Switch and NVIDIA Advanced Optimus, be ready to dominate the competition in all of the latest games. Sporting 16-inch and full-surround heat sinks with Tri-fan Technology, the Strix G16 is here to change the way you game.

Specifications

Design
Colour name	Eclipse Gray
Product type	Laptop
Market positioning	Gaming
Housing material	Plastic
Form factor	Clamshell
Product colour	Black, Grey
Country of origin	China
Introduction year	2025
Display
HD type	WUXGA
Panel type	IPS-Level
Display brightness	300 cd/m²
Display response rise/fall	3 ms
Contrast ratio (typical)	1000:1
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	40.6 cm (16")
Anti-glare screen	Yes
Maximum refresh rate	165 Hz
RGB colour space	sRGB
High Dynamic Range (HDR) technology	Dolby Vision
Colour gamut	100%
Native aspect ratio	16:10
High Dynamic Range (HDR) supported	Yes
Processor
Processor generation	AMD Ryzen 8000 Series
Processor cache type	L2 & L3
Processor frequency	2.4 GHz
Processor model	8940HX
Processor boost frequency	5.3 GHz
Processor cores	16
Processor threads	32
L3 cache	64 MB
L2 cache	16 MB
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	2 x 8 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	1 TB
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
NVIDIA G-SYNC	Yes
On-board graphics card family	AMD Radeon
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 610M
Discrete graphics card model	NVIDIA GeForce RTX 5060
Discrete graphics memory type	GDDR7
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	AMD
Audio
Audio system	Smart Amp
Number of built-in speakers	2
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera HD type	Full HD
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Antenna type	2x2

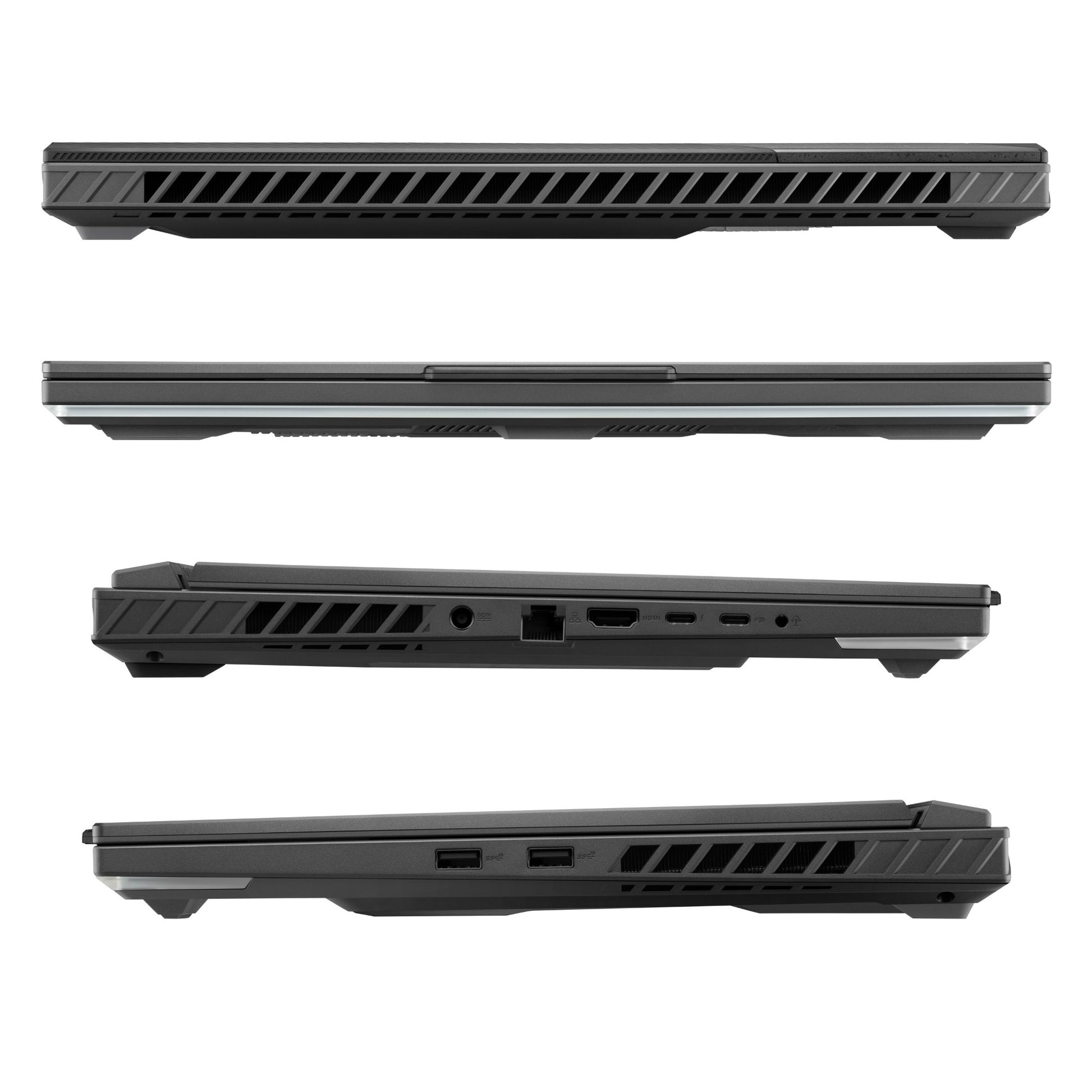

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
USB4 Gen 3x2 ports quantity	2
Power adapter barrel connector	6.0 mm
DC-in jack	Yes

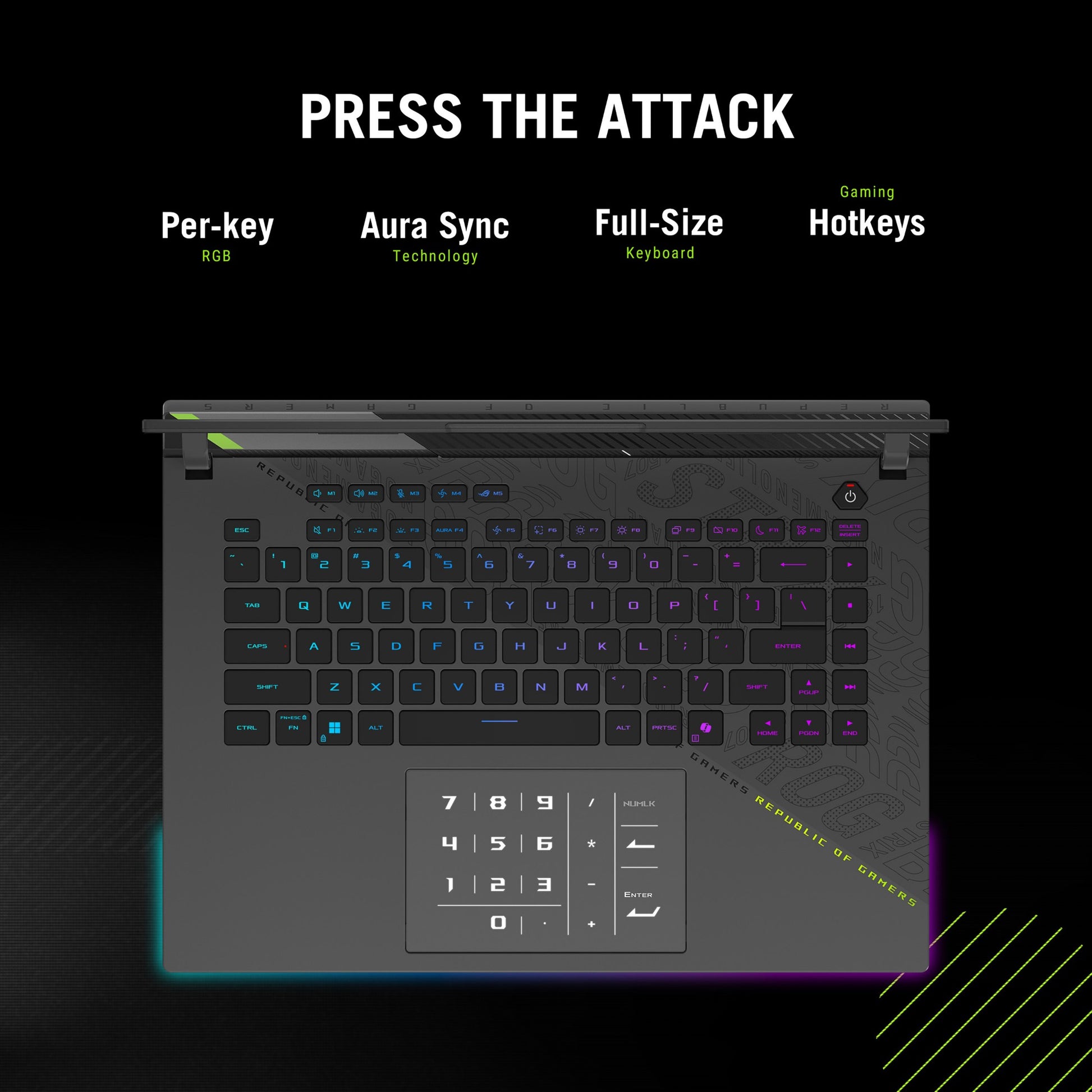

Keyboard
Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB
Copilot key	Yes
Software
Operating system architecture	64-bit
Bundled software	Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Trial software	1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days
Operating system installed	Windows 11 Home
Microsoft Copilot	Yes
Technical details
Commodity Classification Automated Tracking System (CCATS)	8471300000
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Fast charging	Yes
Fast charging time (50%)	30 min
Power
AC adapter power	280 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	14 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	100 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, User
Weight & dimensions
Width	354 mm
Depth	264 mm
Height (front)	2.26 cm
Height (rear)	3.04 cm
Weight	2.5 kg
Packaging data
Package width	106 mm
Package height	420 mm
Package depth	335 mm
AC adapter included	Yes

Downloads

• Datasheet (PDF)
