ASUS ROG -STRIX-1200P-GAMING-E power supply unit 1200 W 20+4 pin ATX ATX Black

Reliable power for your system: the ASUS ROG -STRIX-1200P-GAMING-E power supply — wattage and connector details are in the spec table.

Superior Stability. Next-Level Efficiency
The ROG Strix 1200W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.

The ROG Strix 1200W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

Specifications

Cooling
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Noise level	25 dB
Mean time between failures (MTBF)	120000 h
Bearing technology	DBB
Design
Product colour	Black, Multicolour
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	1200 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	61 cm
PCI Express power cable length	75 cm
CPU power cable length	100 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Packaging content

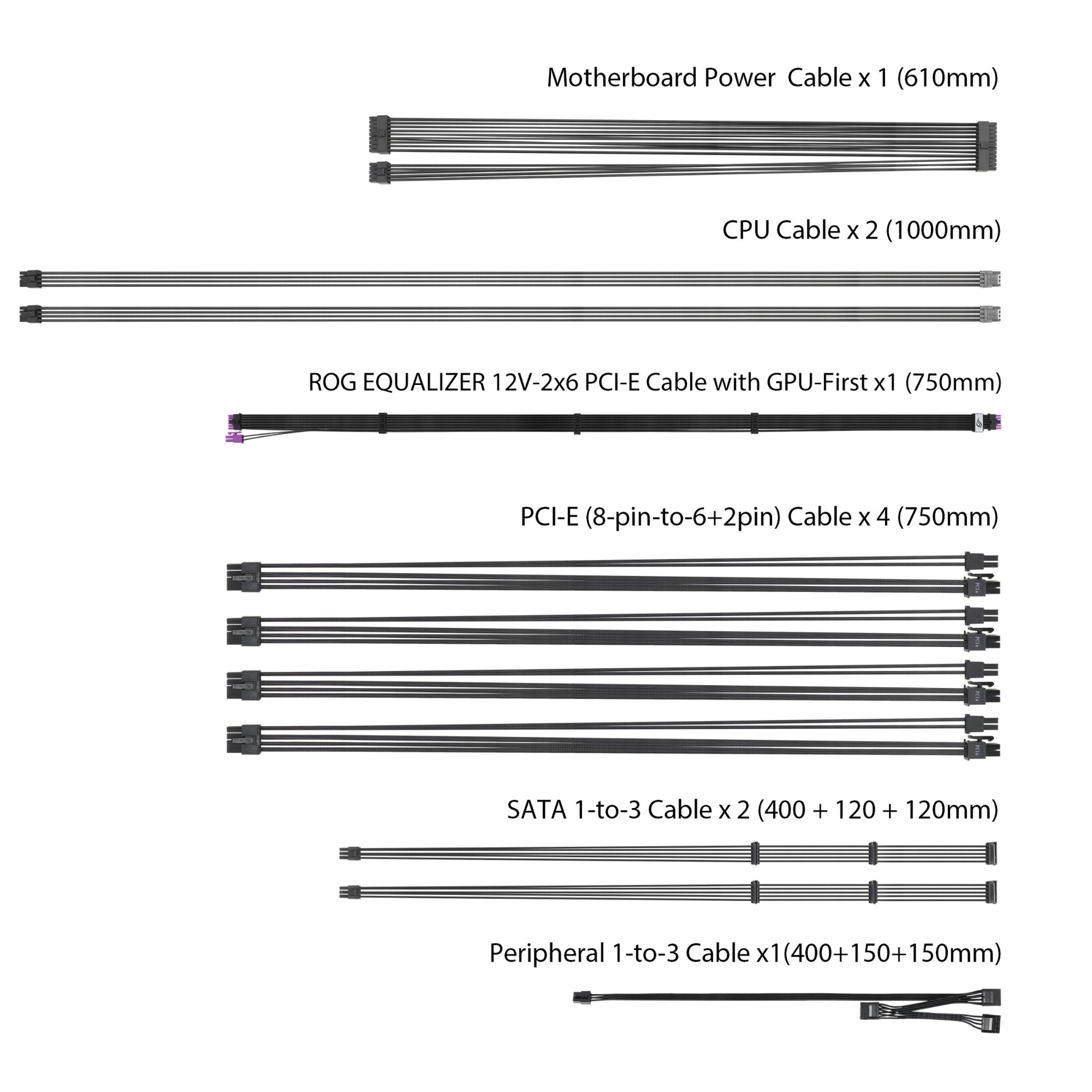

Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	160 mm
Depth	150 mm
Height	86 mm
Weight	1.84 kg
Packaging data
Package depth	200 mm
Package width	320 mm
Package height	108 mm
Package type	Box
Package weight	3.65 kg
