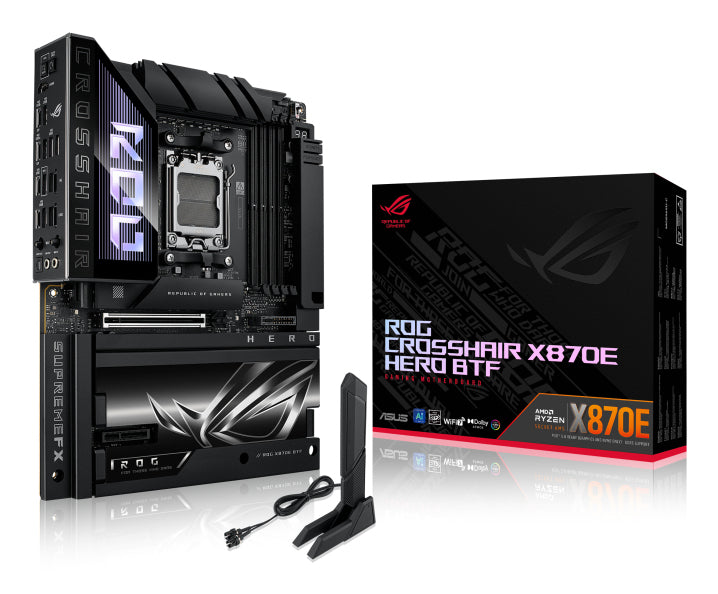

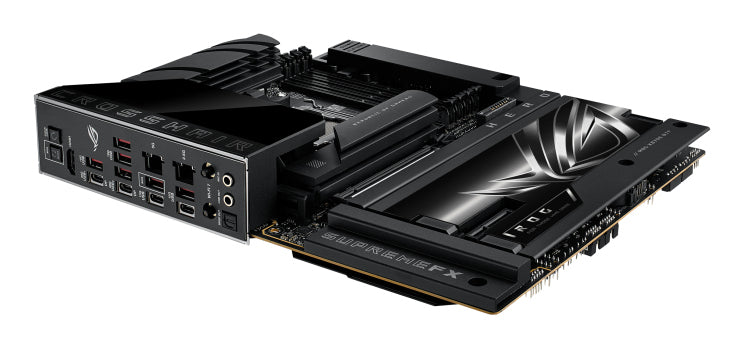

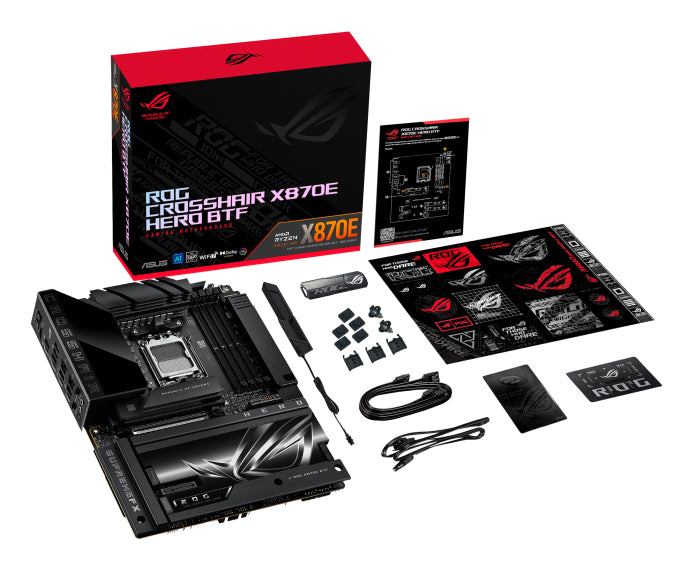

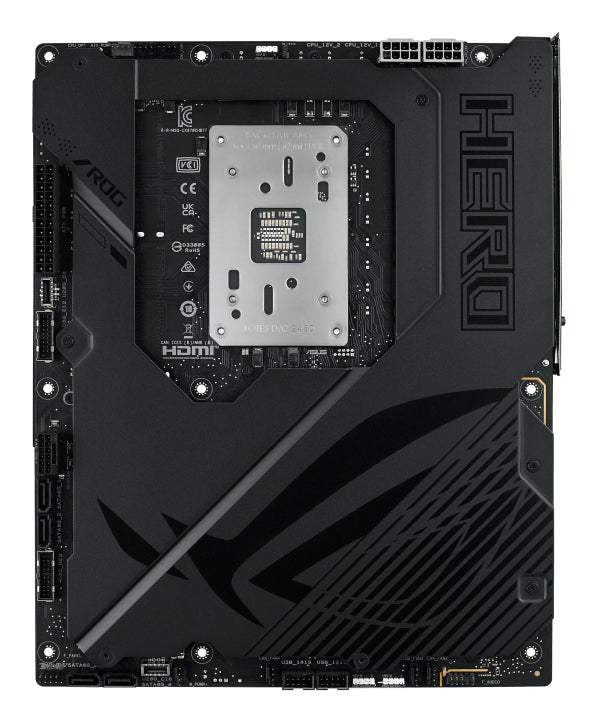

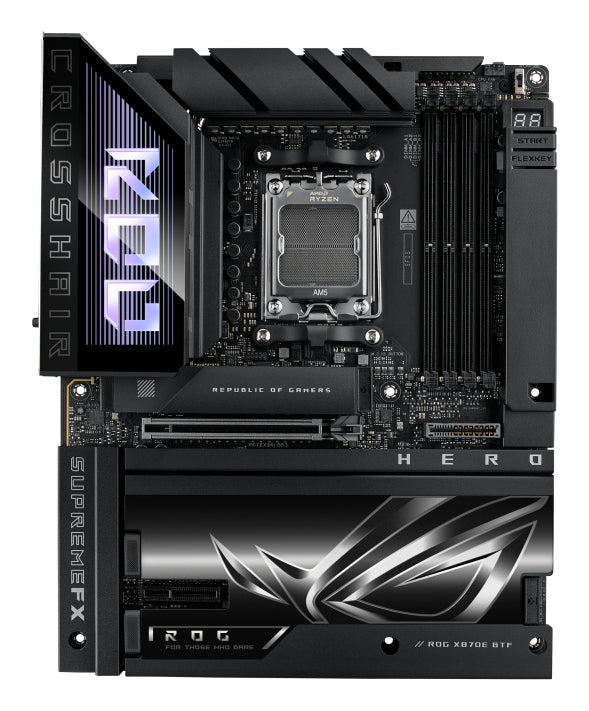

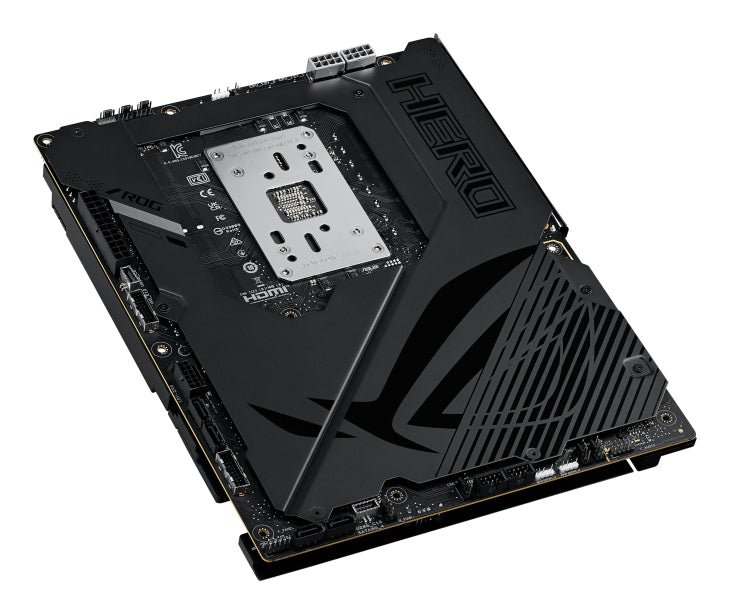

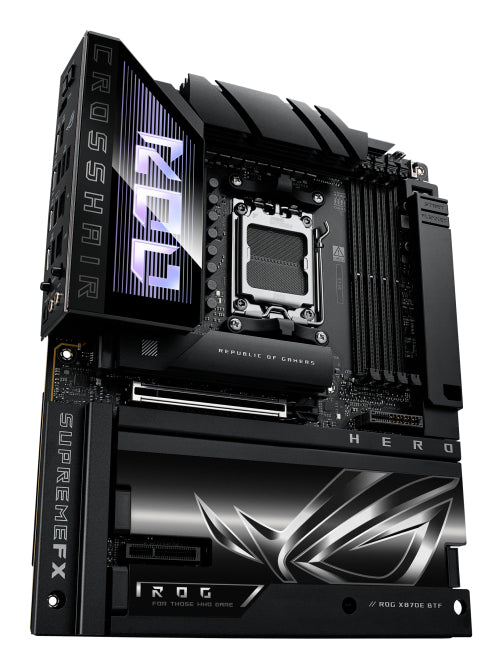

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX Motherboard
ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX Motherboard
Regular price
£545.04 GBP
Regular price
Sale price
£545.04 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The ASUS ROG CROSSHAIR X870E HERO provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
ROG Crosshair X870E HERO BTFThe ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| mSATA ports quantity | 0 |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 connectors | 2 |
| Number of CPU fan connectors | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| RAID levels | 0, 1, 5, 10 |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8600 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of storage drives supported | 9 |
| RAID support | Yes |

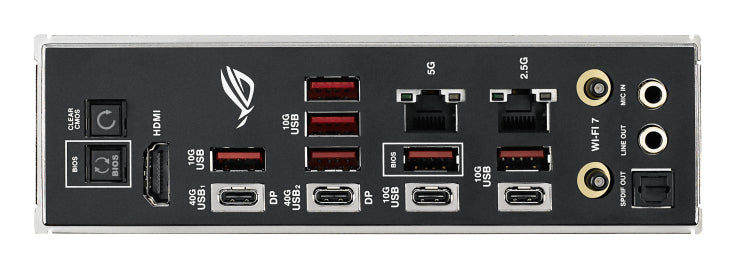

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Product colour | Multicolour |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 366 mm |
| Package depth | 308 mm |
| Package height | 110 mm |
| Package weight | 4.47 kg |
| Weight & dimensions | |
| Height | 57 mm |
| Weight | 2.62 kg |
| Width | 305 mm |
| Depth | 244 mm |
