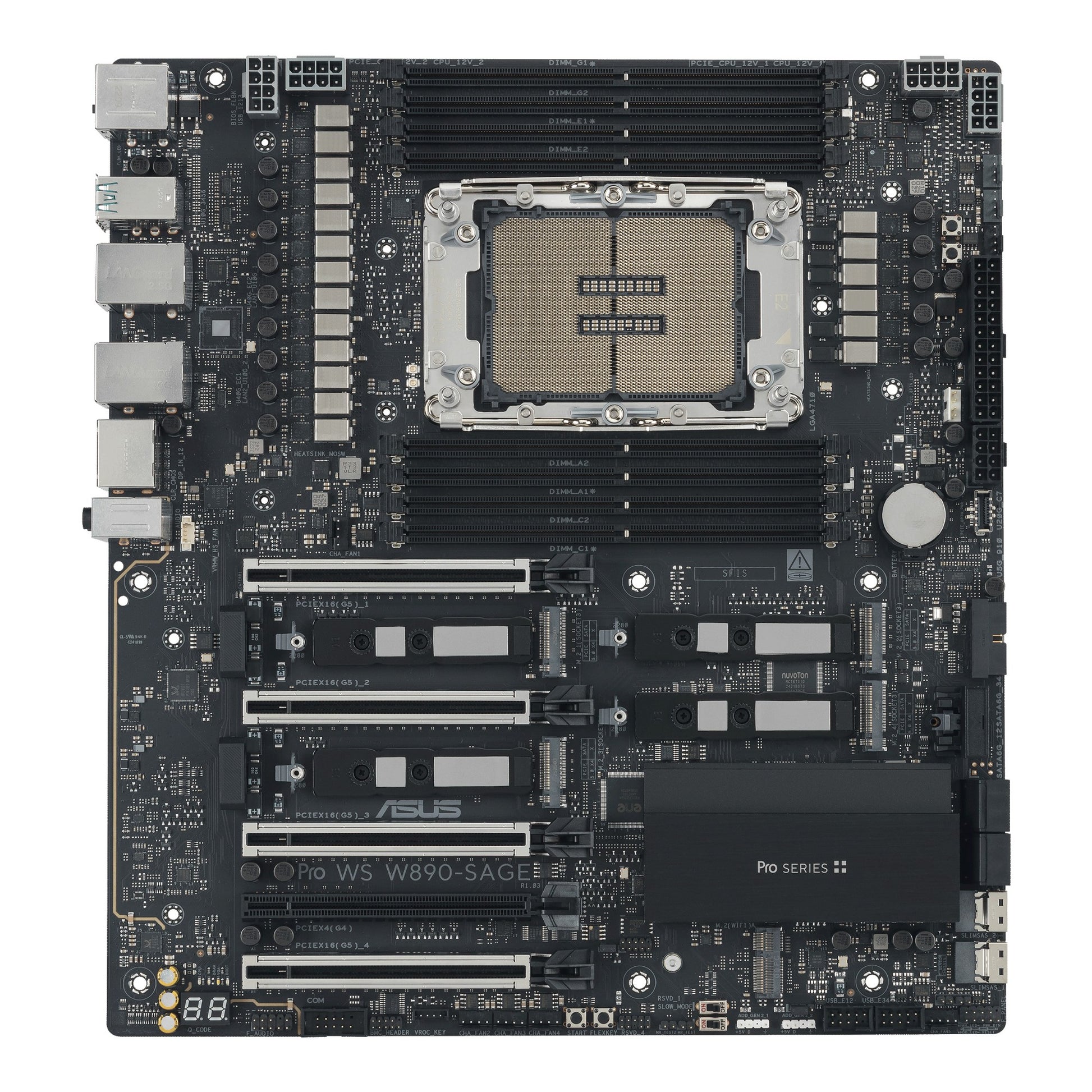

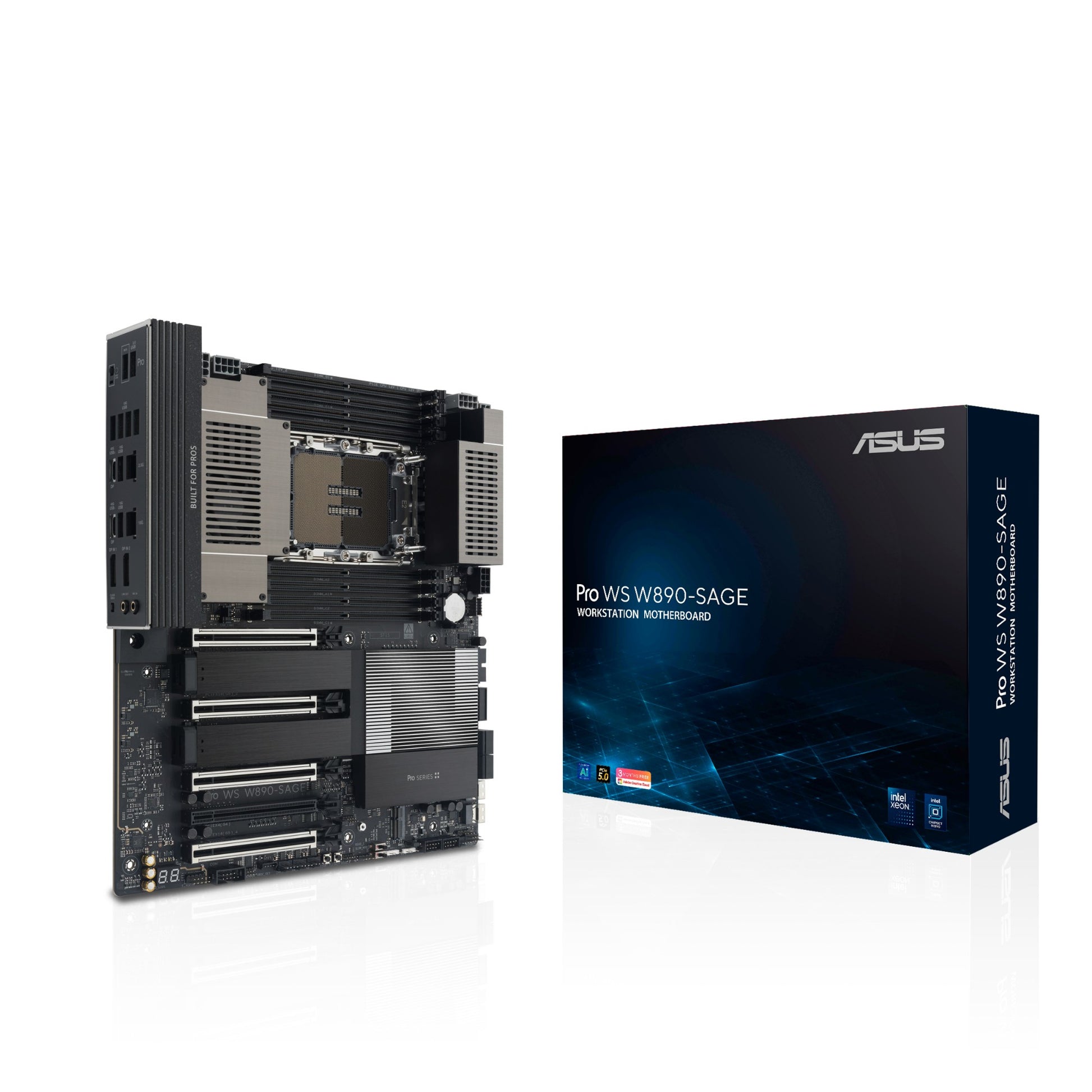

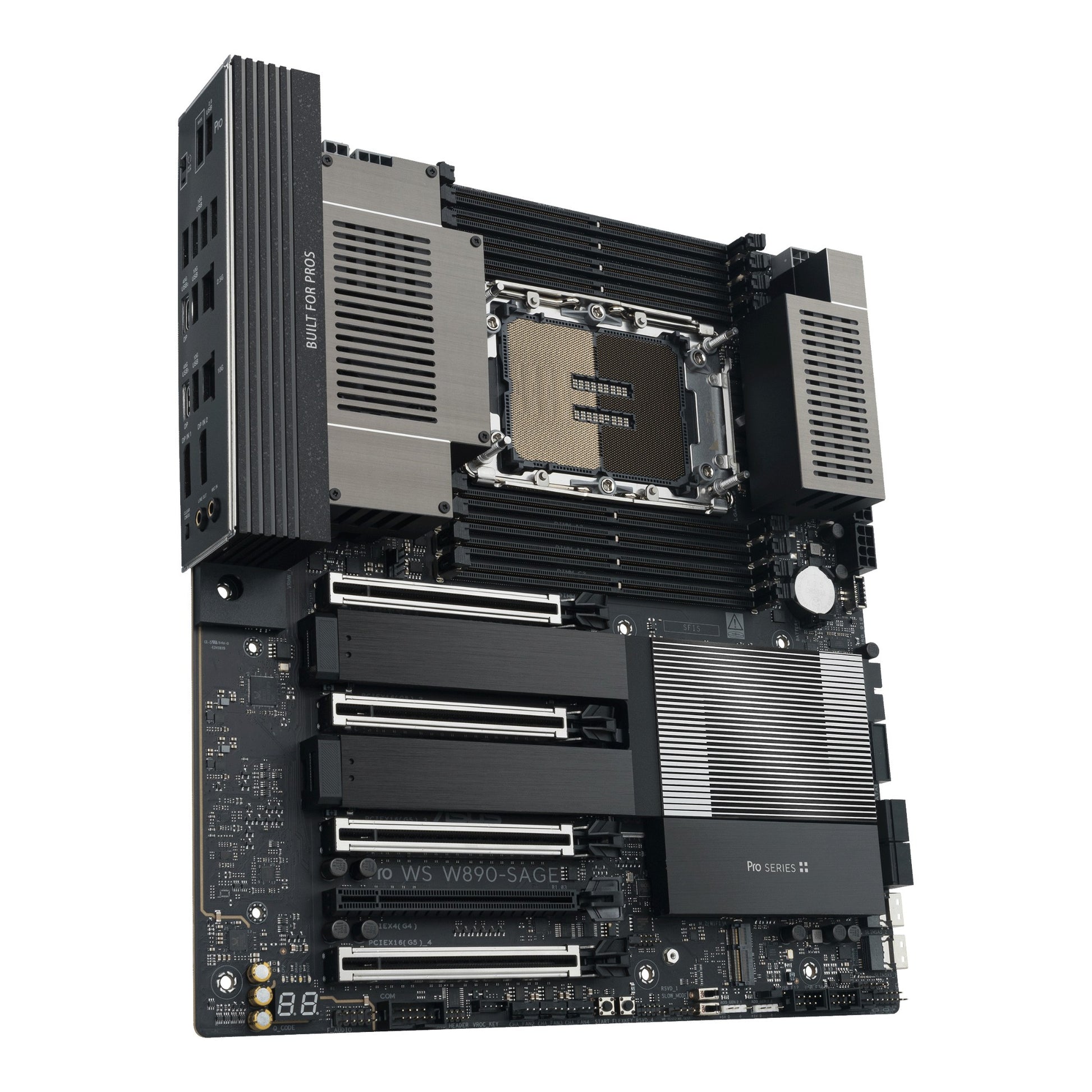

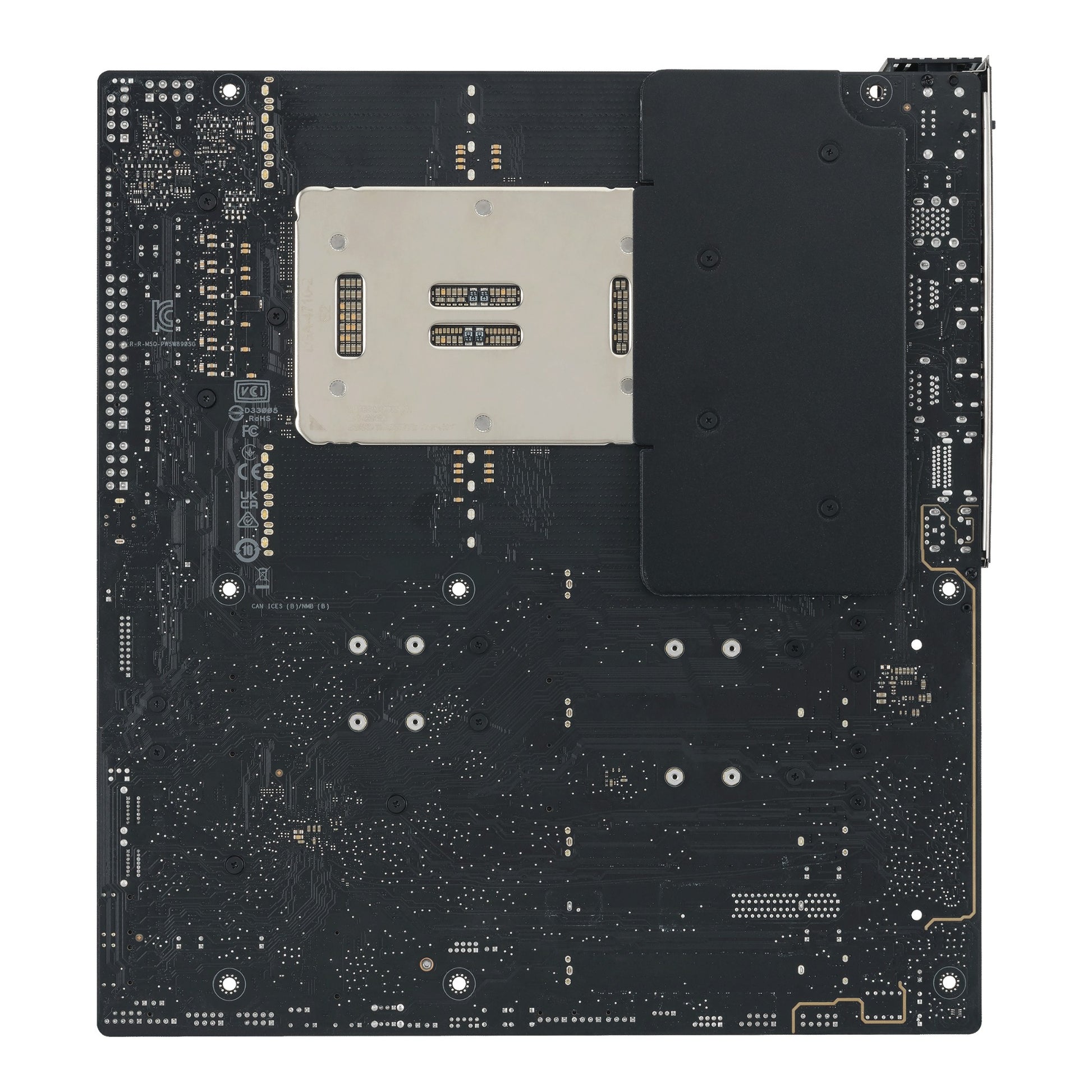

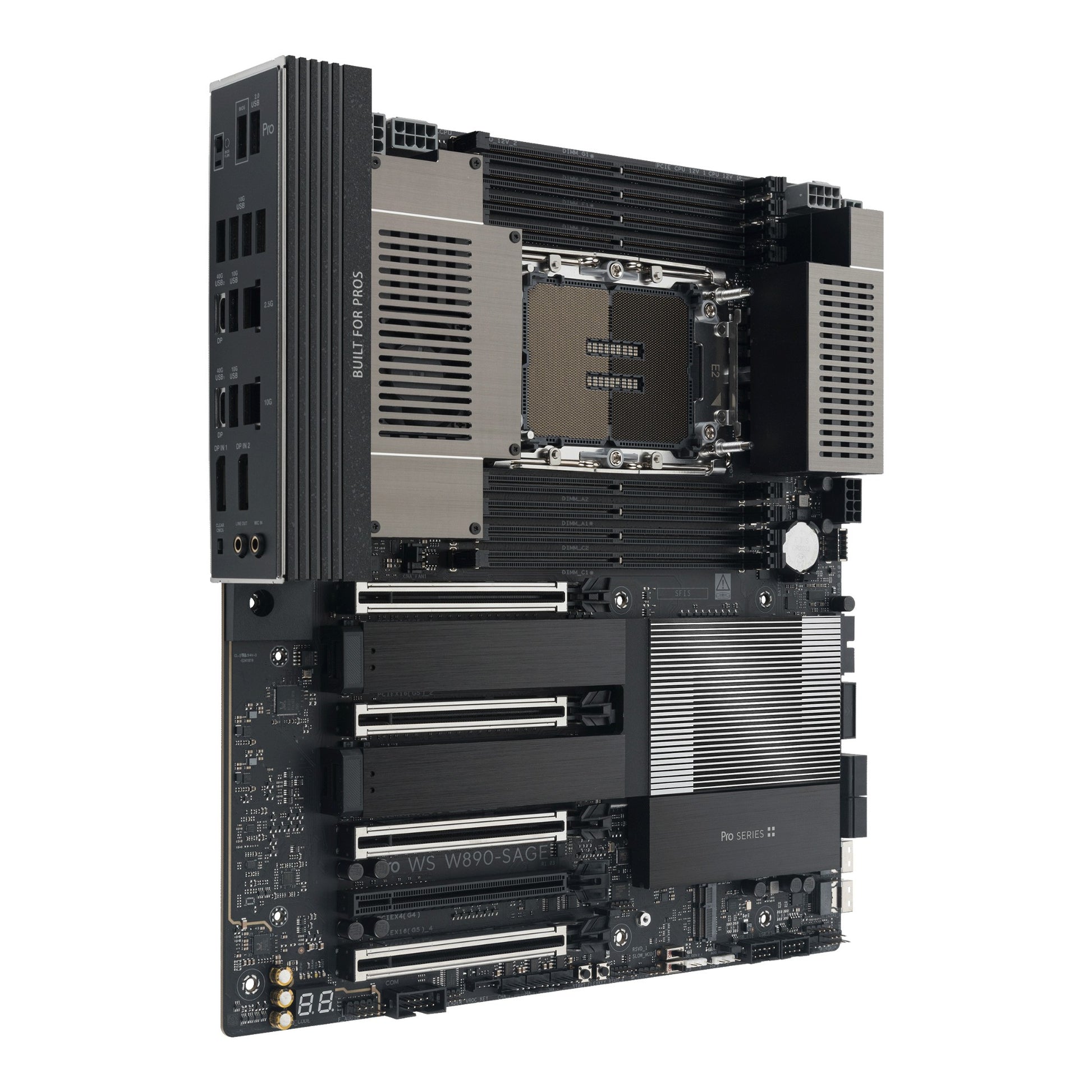

ASUS PRO WS W890-SAGE Intel W890 LGA 4710-2 CEB Motherboard

The ASUS PRO WS W890-SAGE Intel provides the foundation for your build — socket, chipset and expansion details are in the spec table below.

The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Specifications

Internal I/O
Number of M.2 (M) slots	4
Number of M.2 (E) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III, SlimSAS
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Integrated SAS ports	2
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	5
Number of water pump connectors	1
Number of temperature sensor headers	1
Number of RGB LED pin headers	2
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel W890
Supported processor sockets	LGA 4710-2
Parallel processing technology support	Not supported
Cooling type	Passive
Motherboard form factor	CEB
Component for	Workstation
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
RAID levels	0, 5, 1, 10
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Processor socket	LGA 4710-2
Memory
Number of memory slots	8
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Quad-channel
Maximum internal memory	4 TB
ECC ?ompatibility	ECC
Storage controllers
Number of storage drives supported	10
RAID support	Yes
Graphics
Maximum resolution	7680 x 4320 pixels

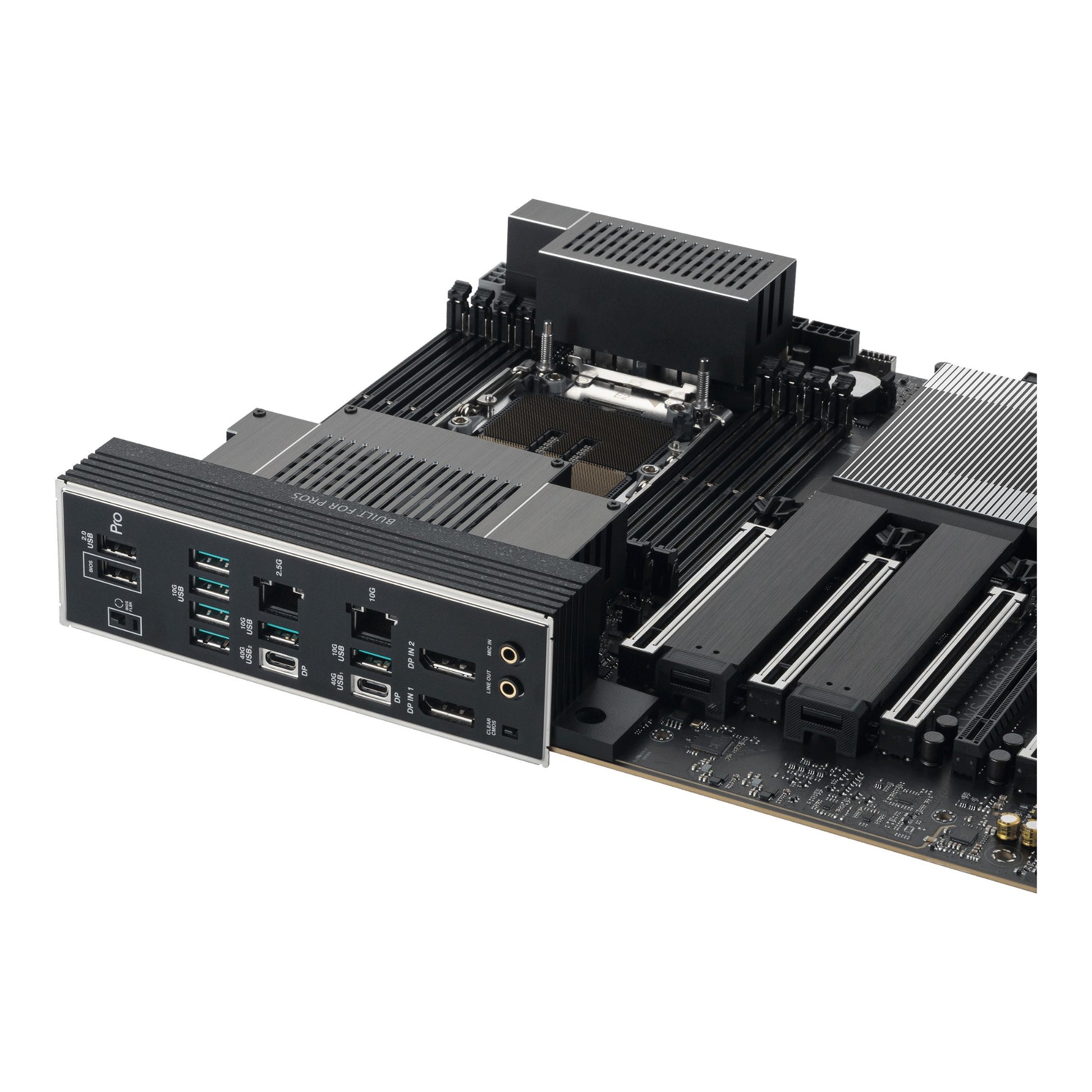

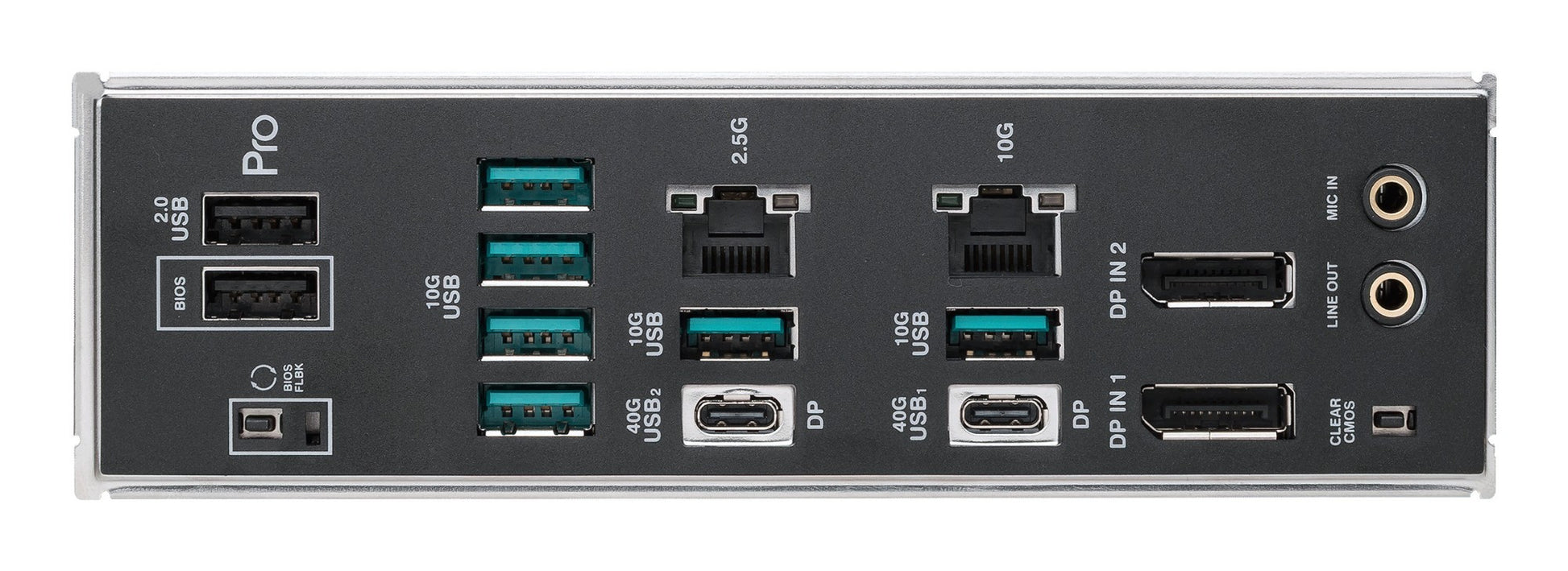

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
DisplayPorts quantity	2
USB4 Gen 3x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Top Wi-Fi standard	Not available
Features
Power source type	ATX
Audio chip	Realtek ALC1220P
Product colour	Black

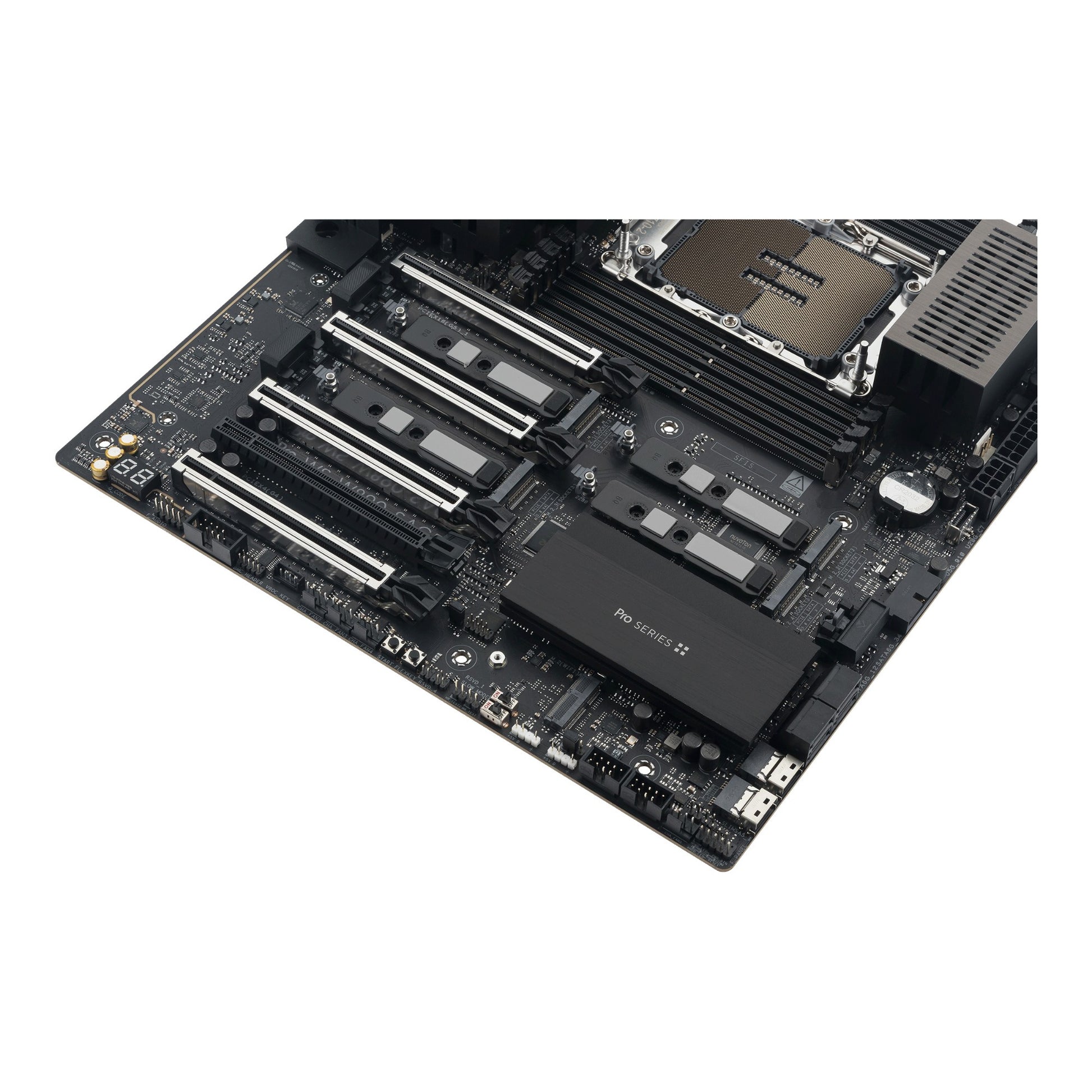

Expansion slots
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	4
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
BIOS flashback button	Yes
Packaging data
Package width	376 mm
Package depth	320 mm
Package height	100 mm
Package weight	4.12 kg
Weight & dimensions
Height	50 mm
Weight	2.75 kg
Width	305 mm
Depth	280 mm
Packaging content
Cables included	SATA, DisplayPort
Screws included	Yes
