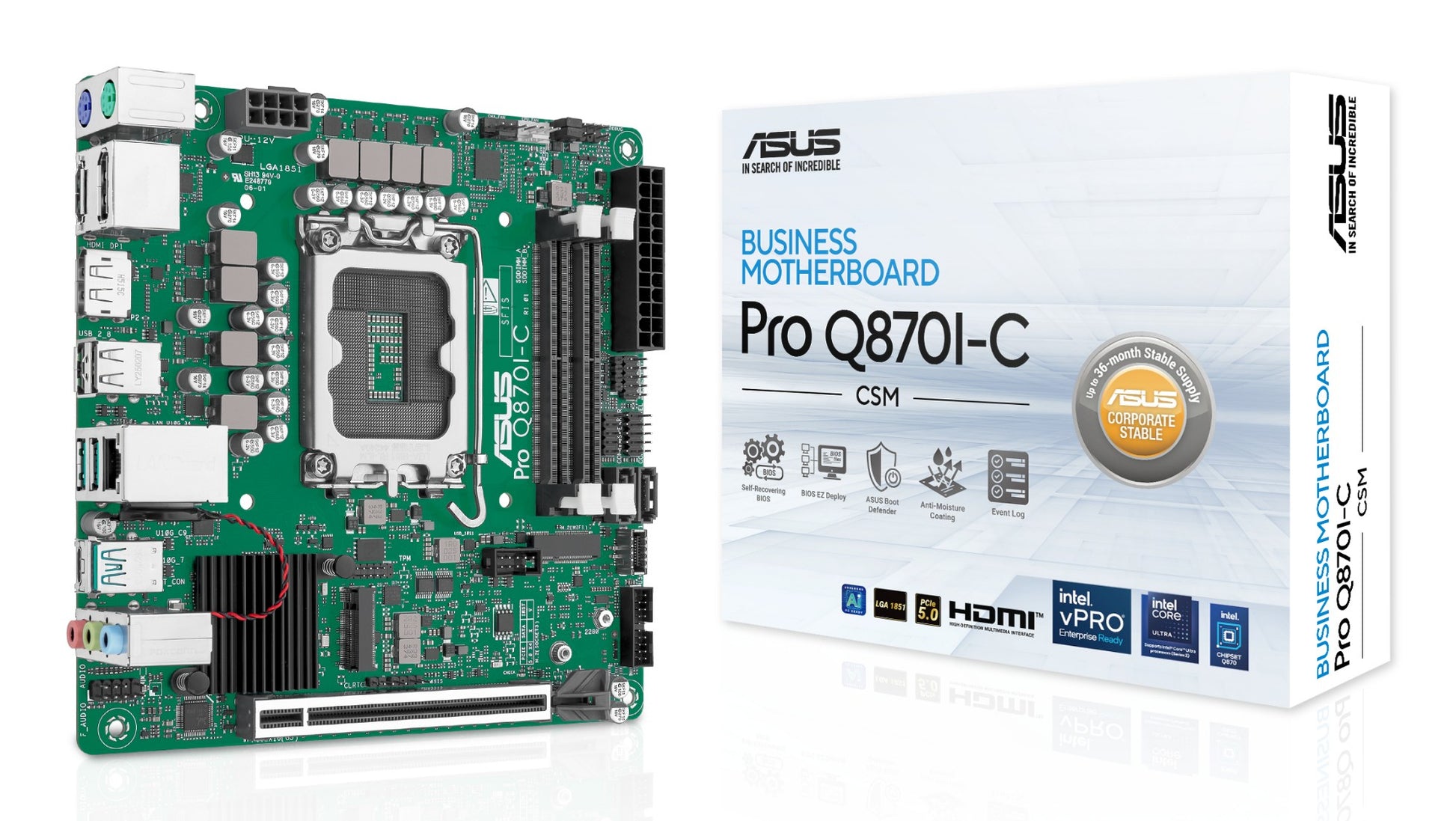

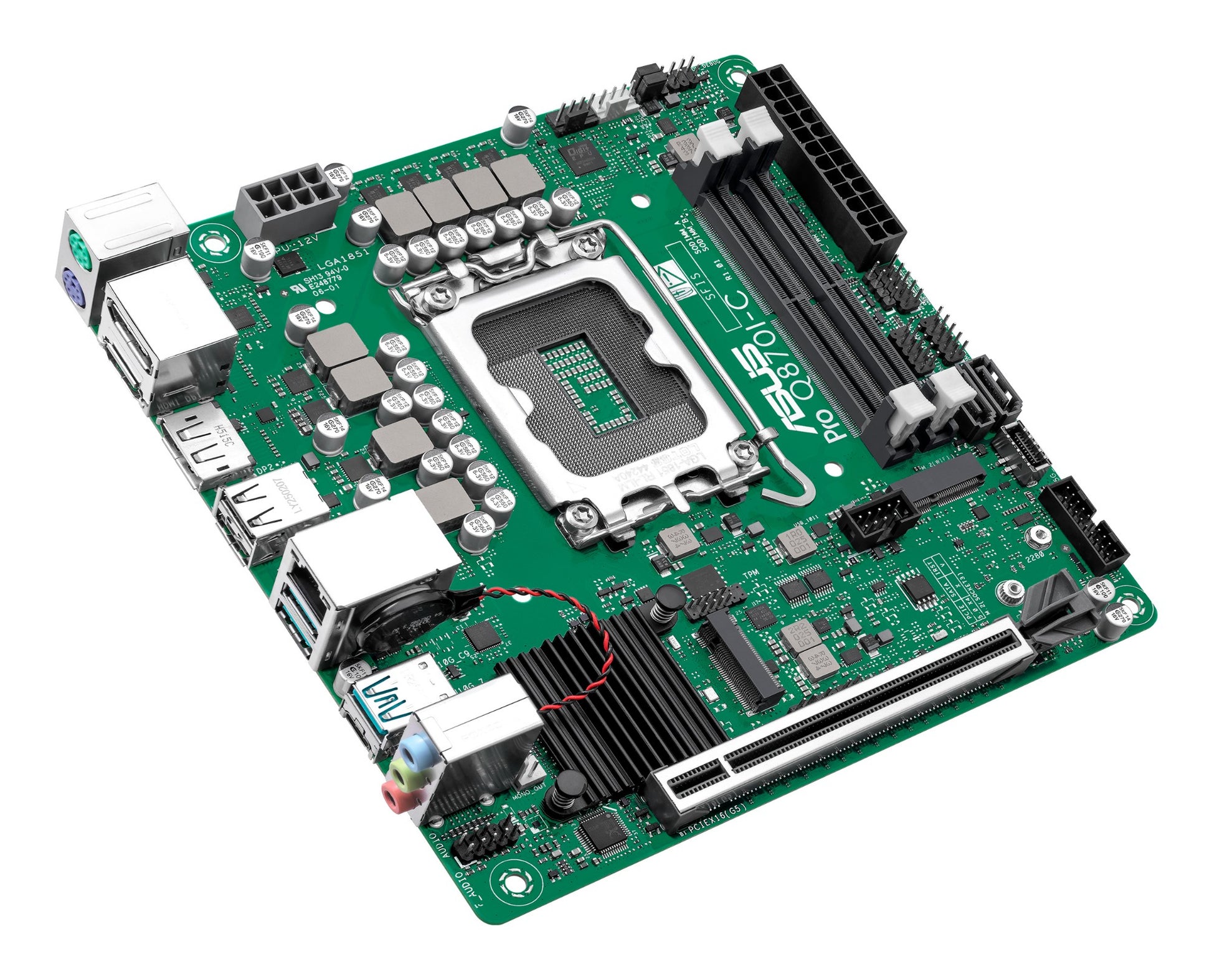

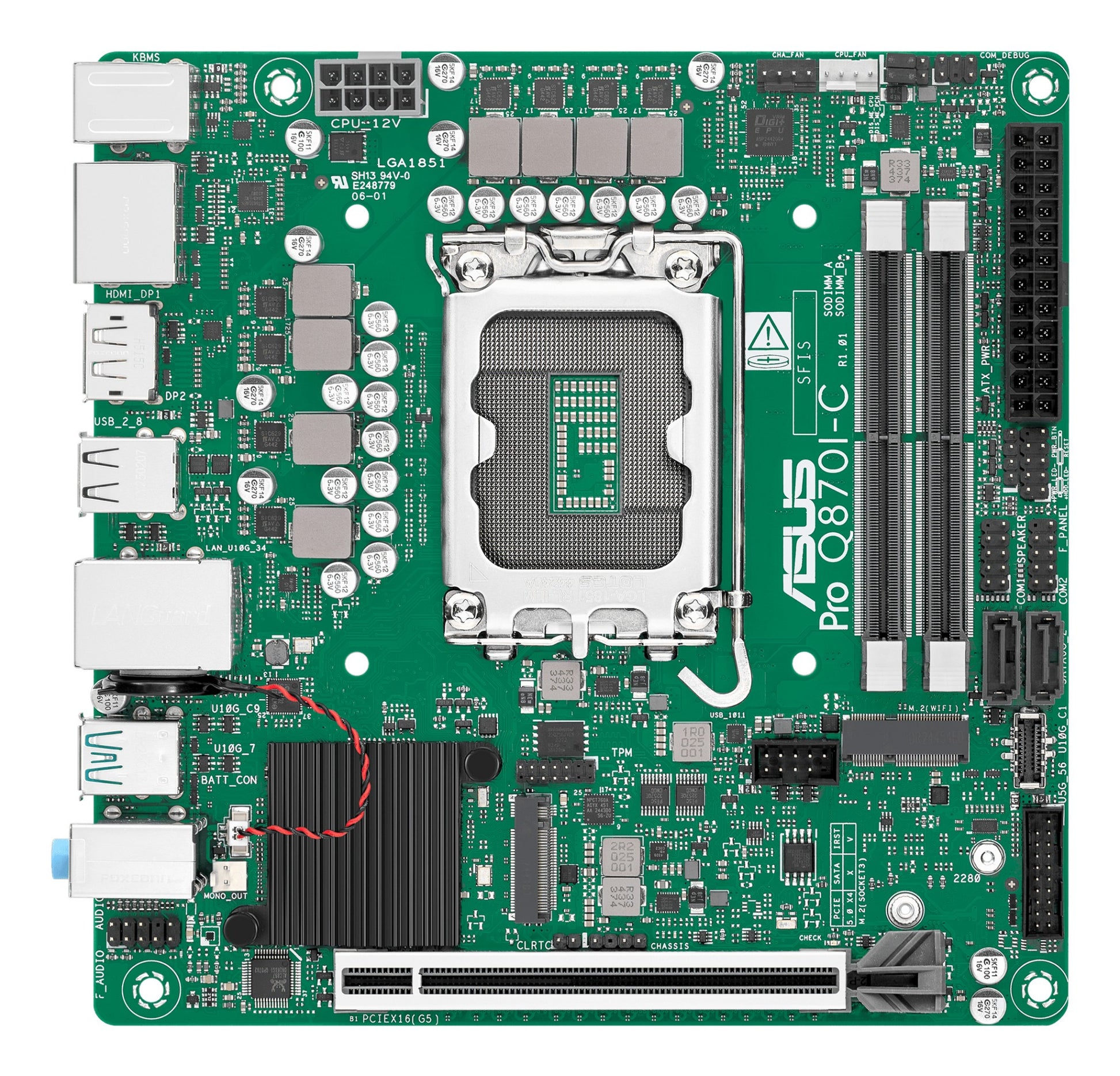

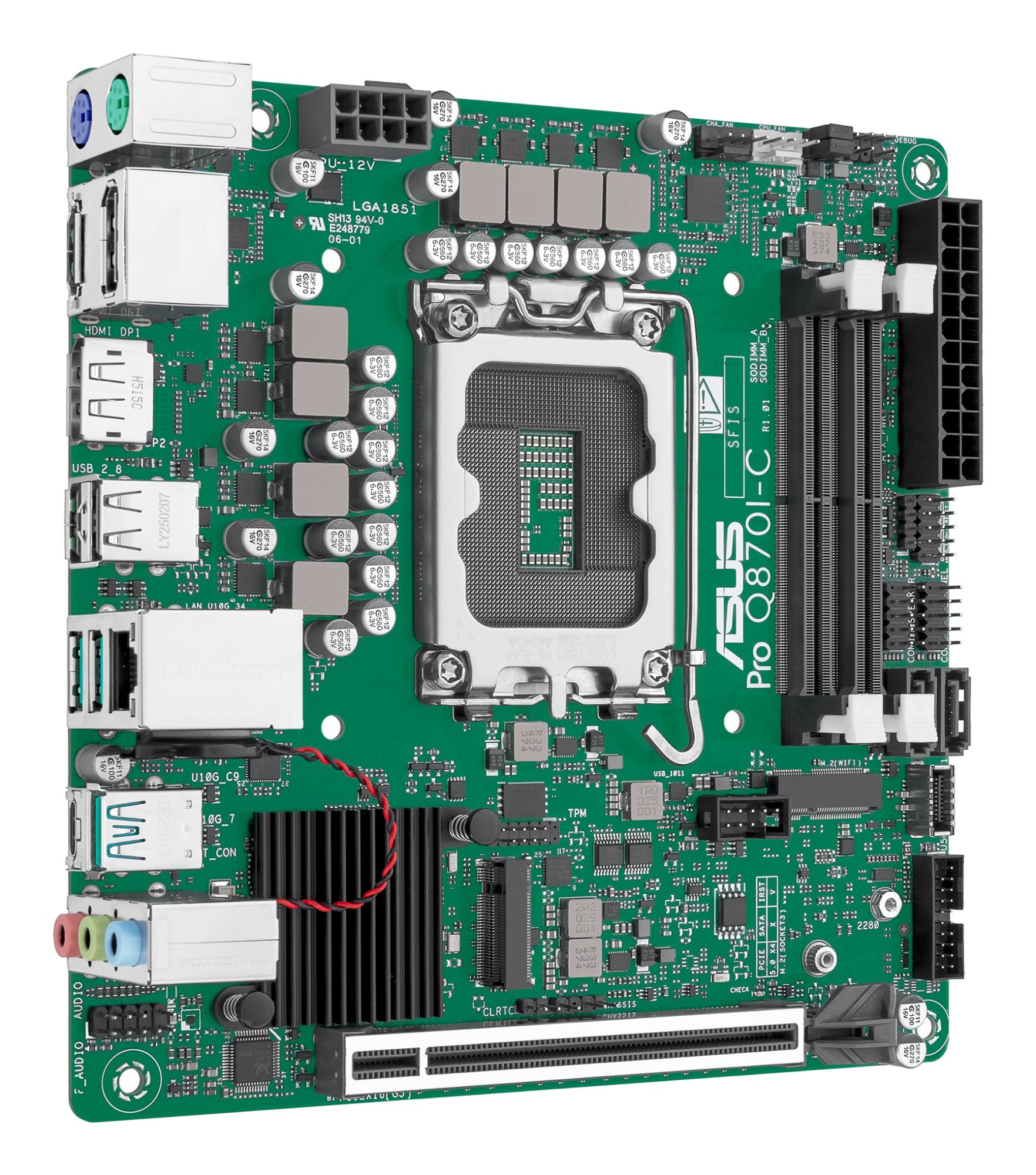

ASUS PRO Q870I-C-CSM Intel Q870 LGA 1851 (Socket V1) mini ITX Motherboard
ASUS PRO Q870I-C-CSM Intel Q870 LGA 1851 (Socket V1) mini ITX Motherboard
Regular price
£180.67 GBP
Regular price
Sale price
£180.67 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The ASUS PRO Q870I-C-CSM Intel Q870 provides the foundation for your build — socket, chipset and expansion details are in the spec table below.
Mini-ITX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageabilityASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of COM connectors | 2 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Q870 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Number of storage drives supported | 3 |

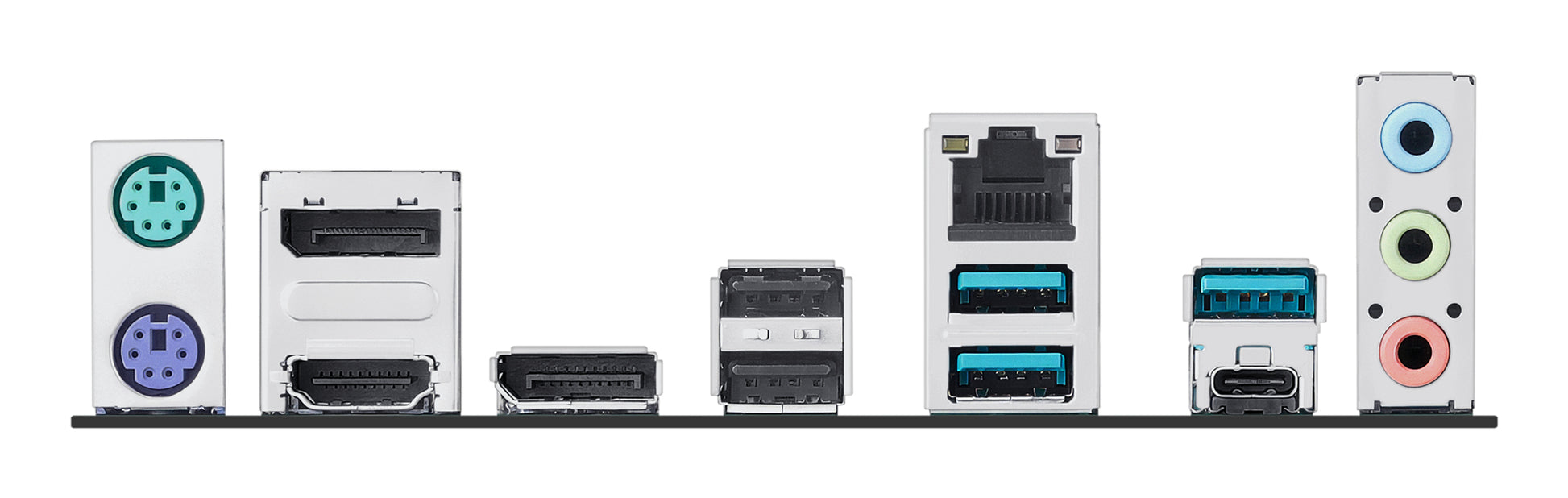

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel WGI219LM |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Features | |
| Product colour | Multicolour |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 185 mm |
| Package height | 60 mm |
| Package weight | 640 g |
| Weight & dimensions | |
| Height | 50 mm |
| Weight | 405 g |
| Width | 170 mm |
| Depth | 170 mm |
