ASUS

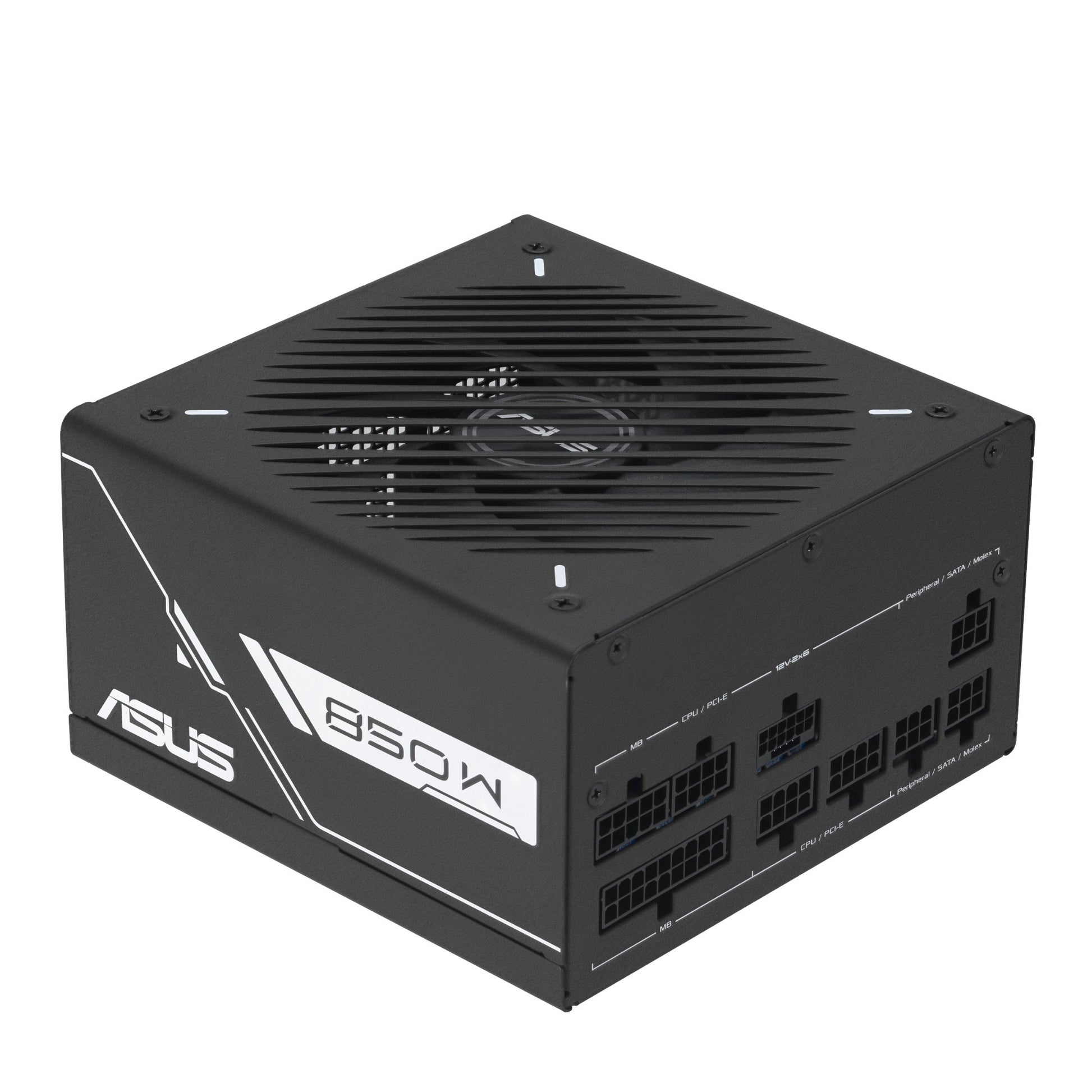

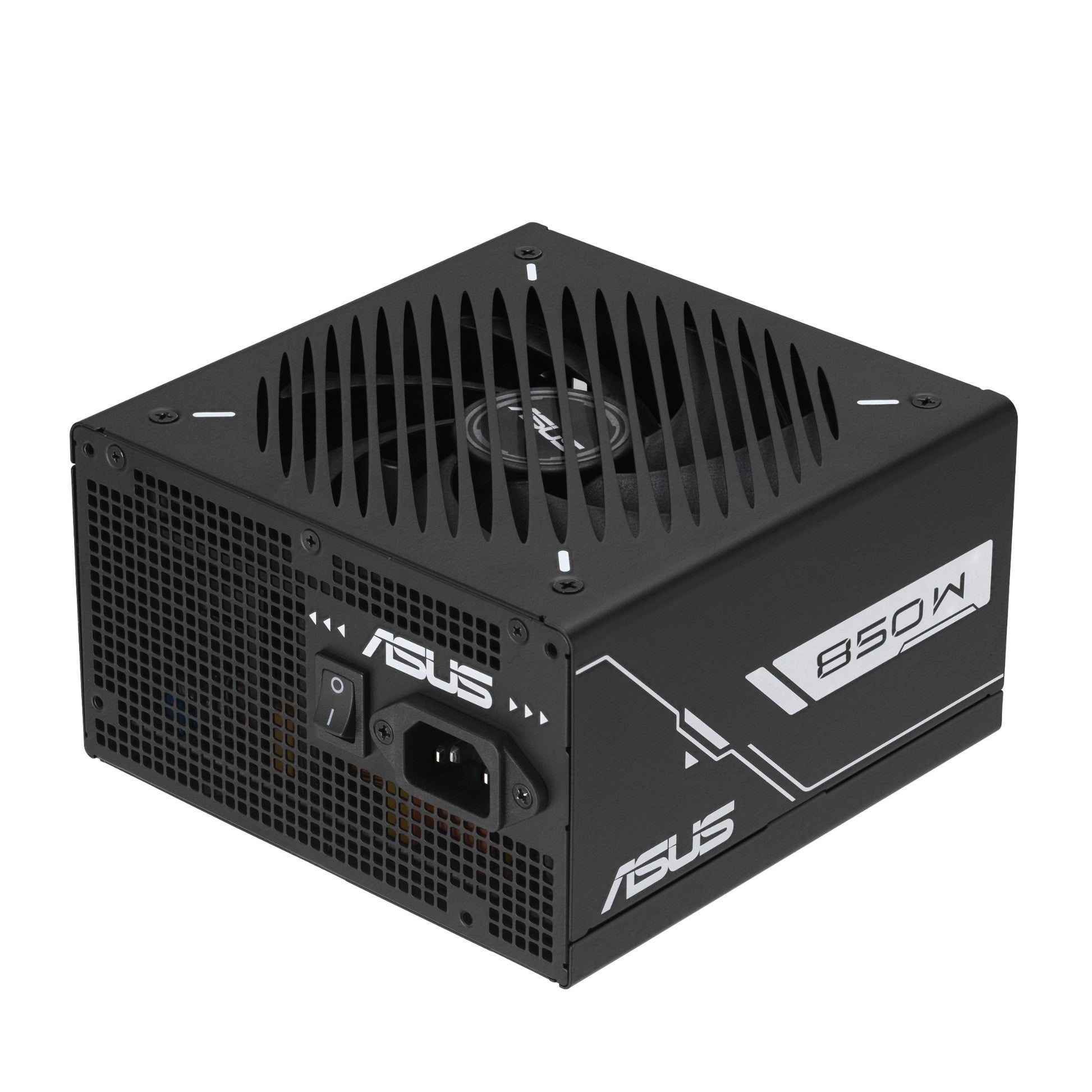

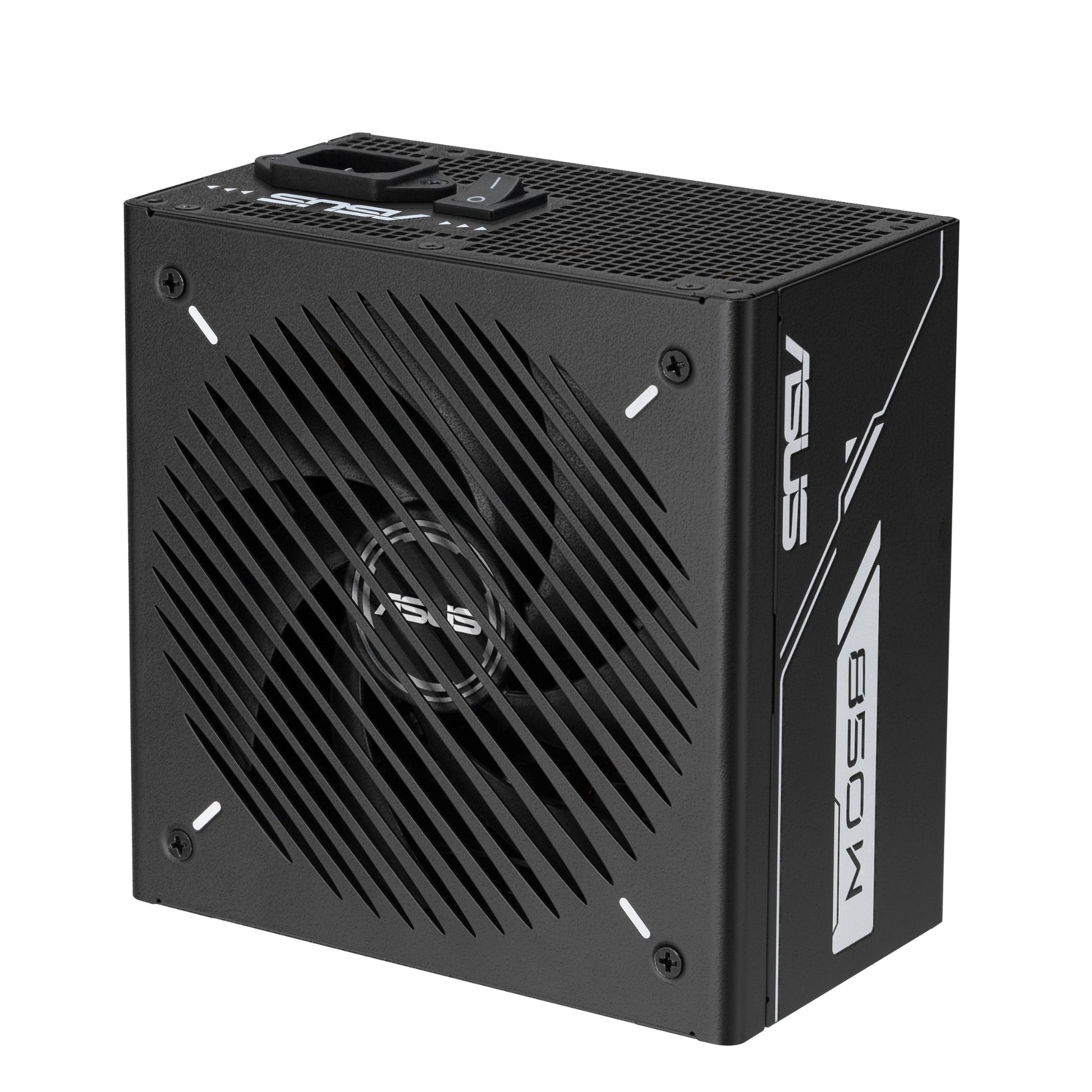

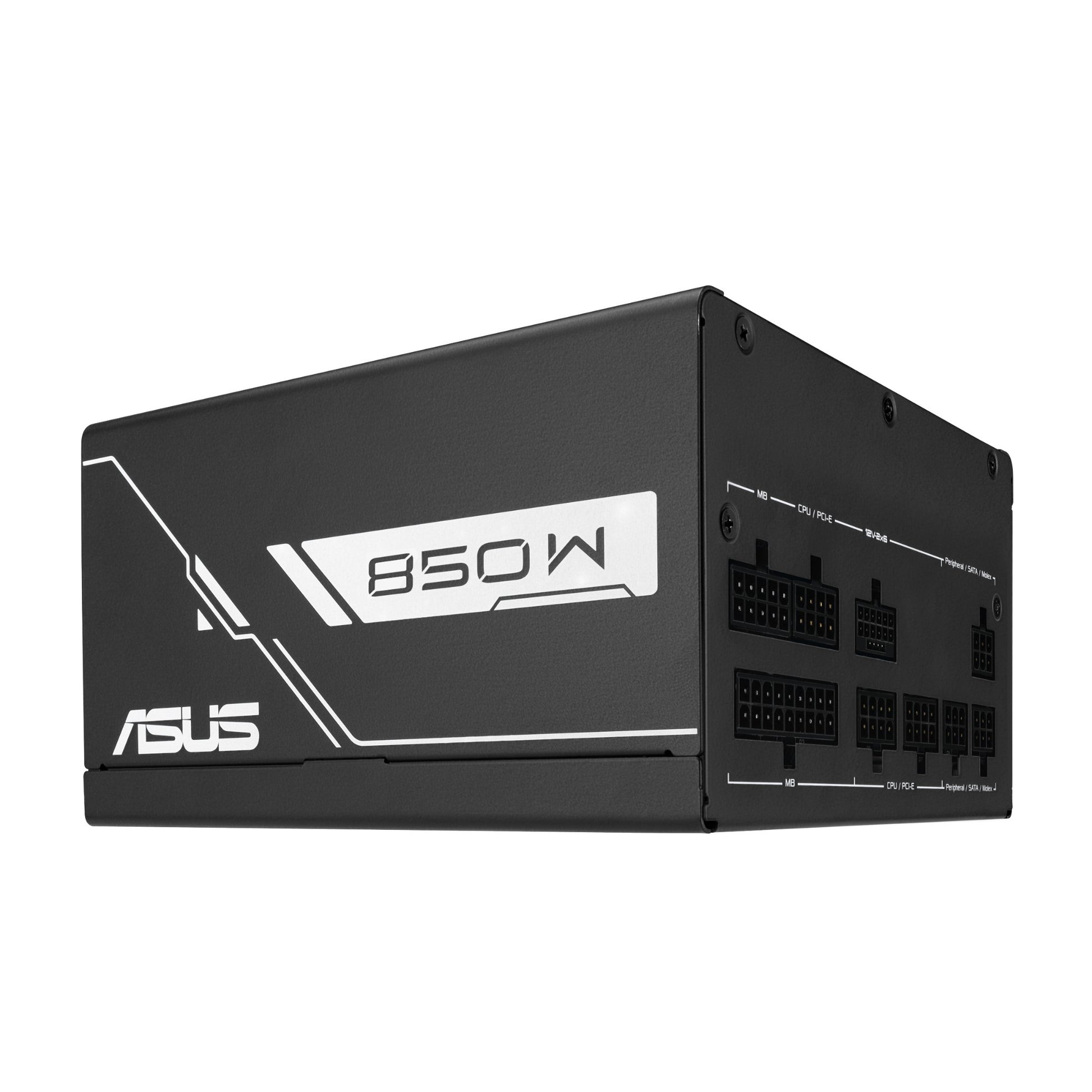

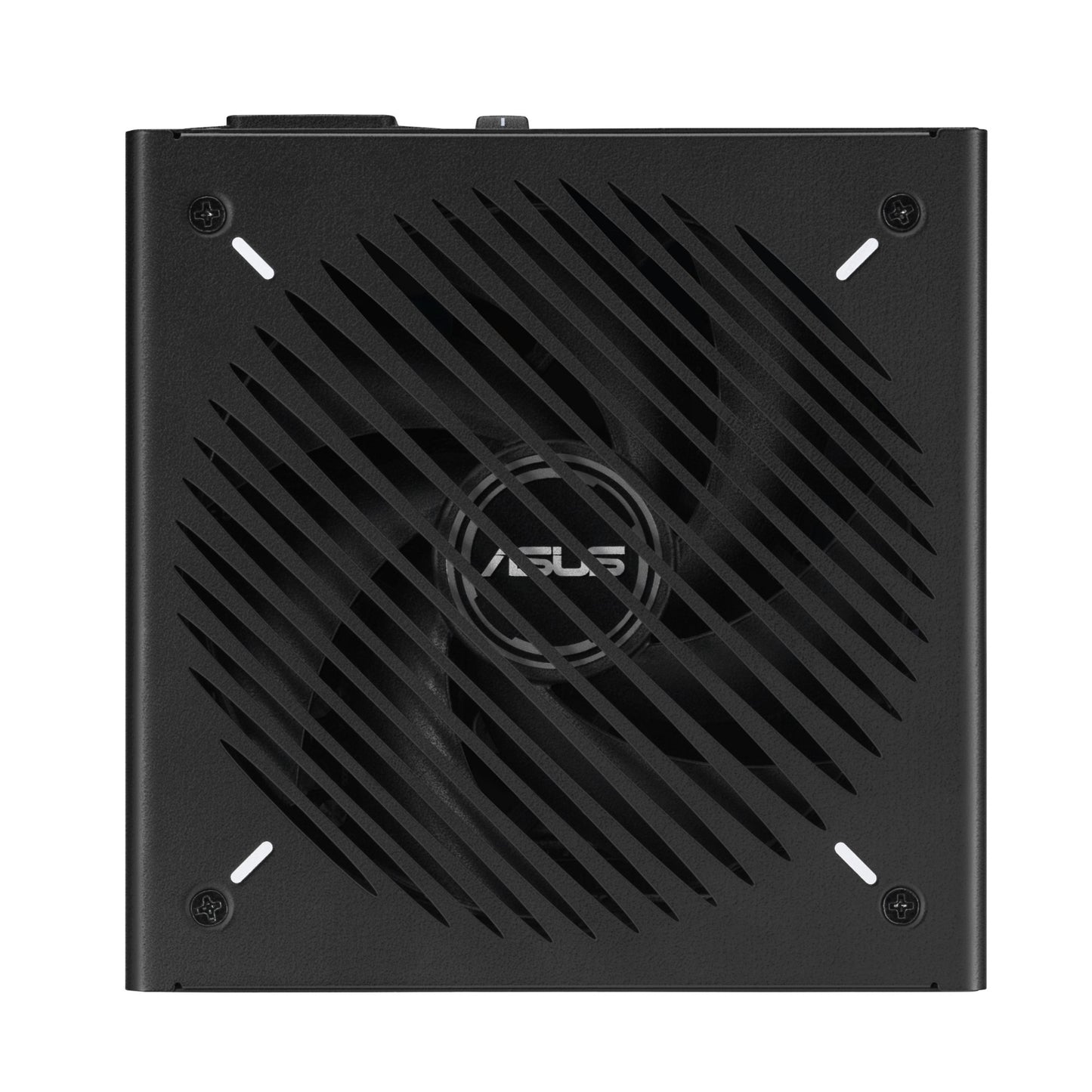

ASUS Prime -850G power supply unit 850 W 20+4 pin ATX ATX Black
ASUS Prime -850G power supply unit 850 W 20+4 pin ATX ATX Black
Regular price
£104.21 GBP
Regular price
Sale price
£104.21 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Reliable power for your system: the ASUS Prime -850G power supply — wattage and connector details are in the spec table.
Prime 850W Gold Black EditionSTELLAR
PERFORMANCE
A Prime Gold Black Edition power supply unit in a blue, space vibe background.
With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Specifications
| Cooling | |
|---|---|
| Number of fans | 1 fan(s) |

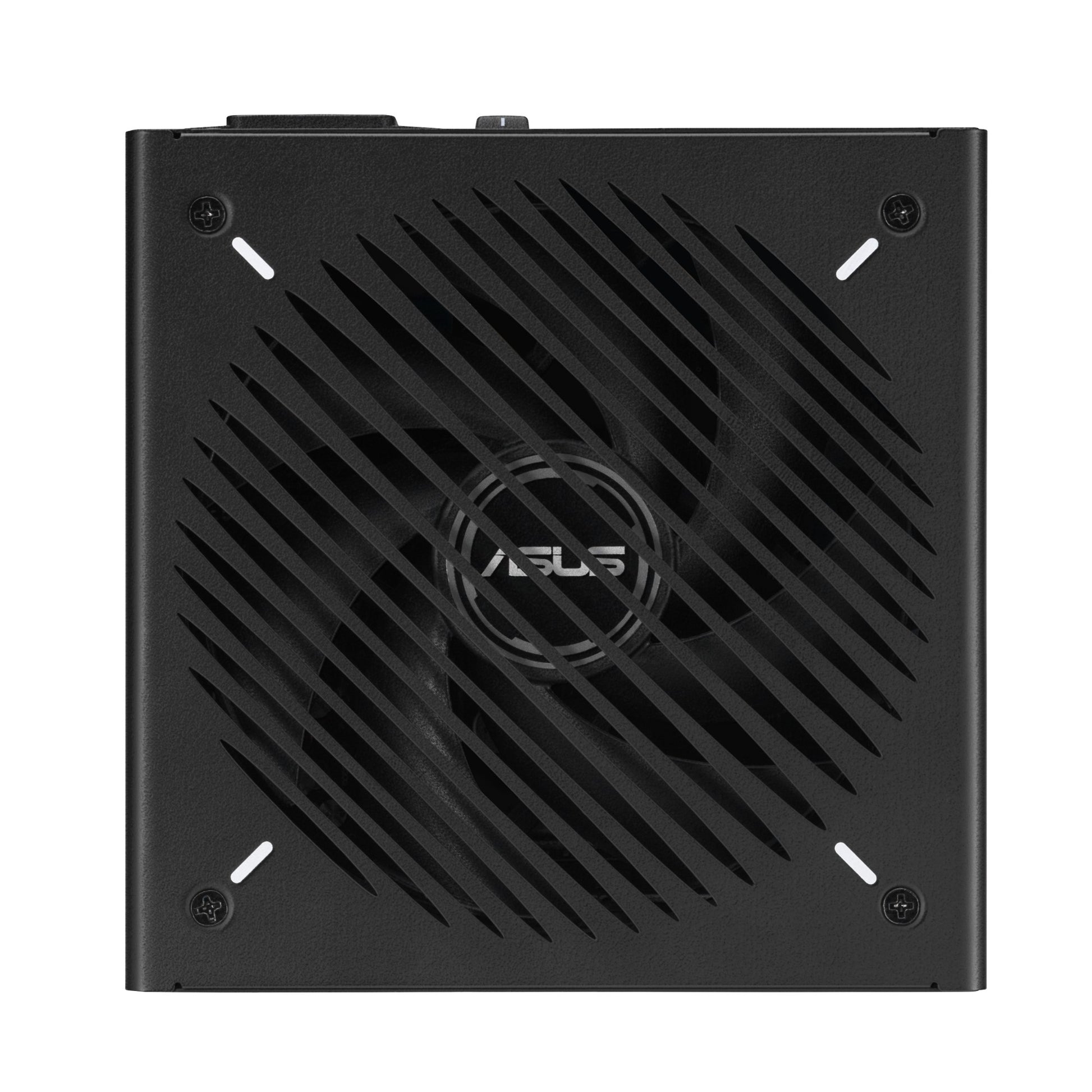

| Fan location | Top |
| Cooling type | Active |
| Performance | |

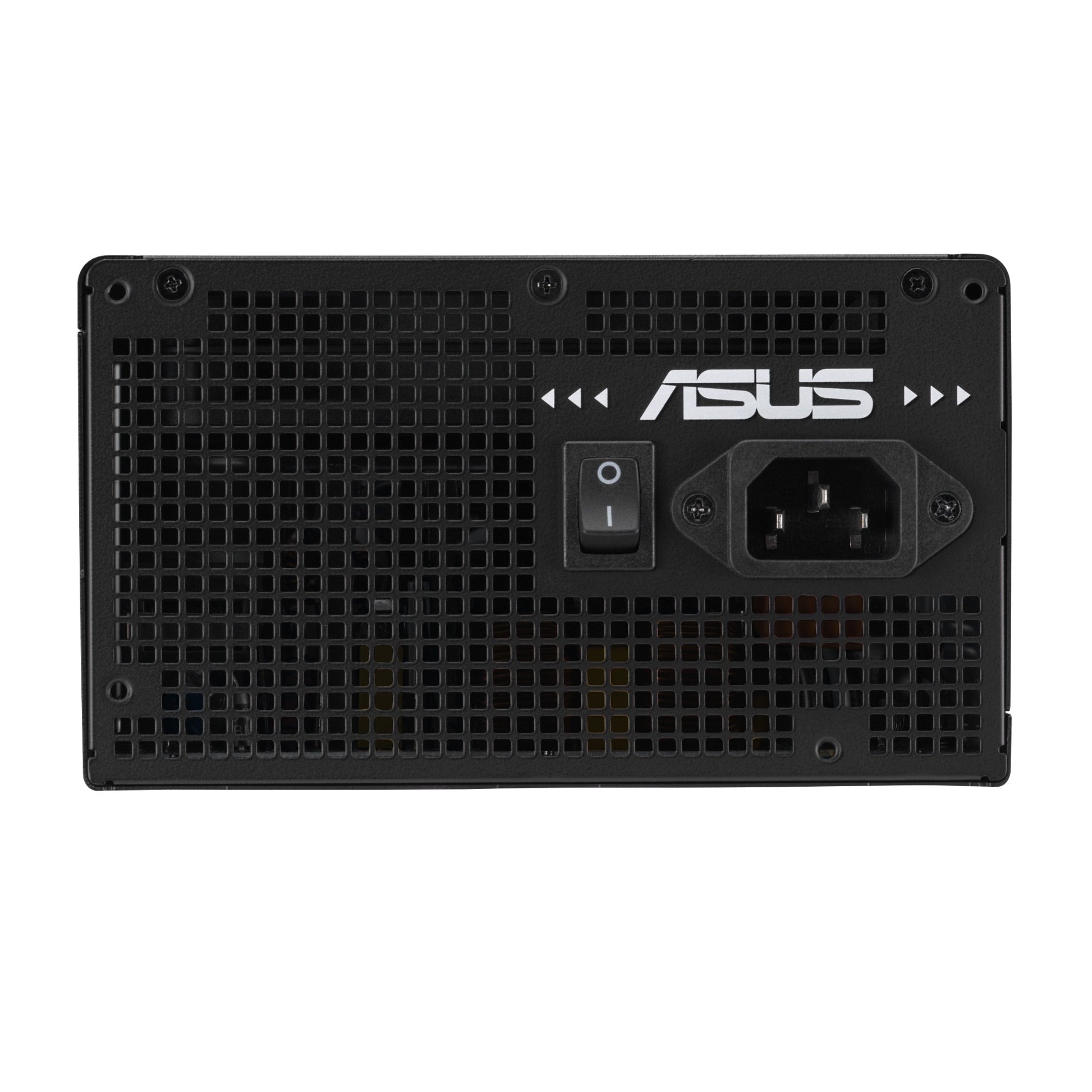

| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 120000 h |
| Bearing technology | DBB |
| Design | |
| Product colour | Black |
| Illumination | No |
| Power | |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 400,120 mm |
| Peripheral (Molex) power cable length | 400,150 mm |
| PCI Express power cable length | 60 cm |

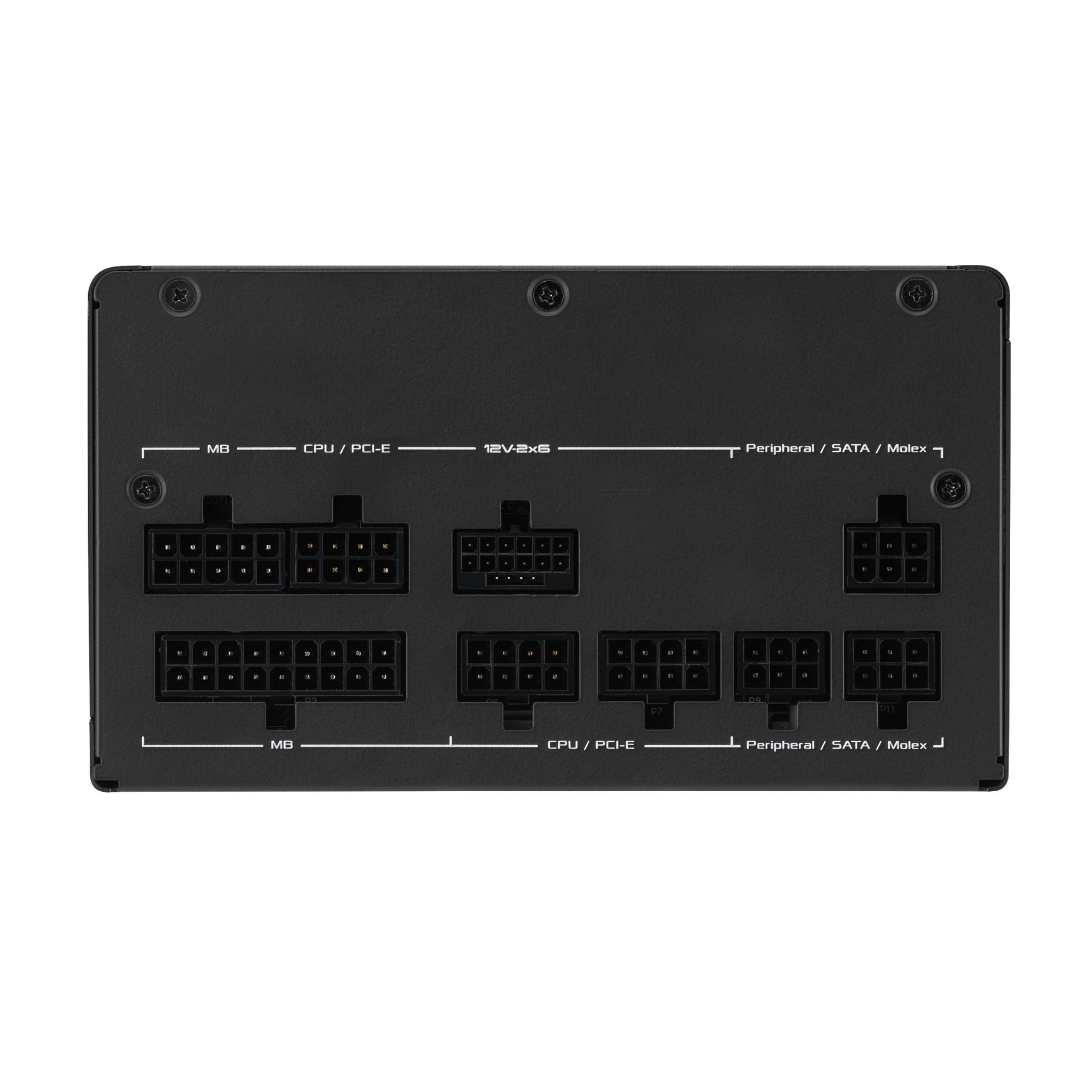

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.48 kg |
| Packaging data | |
| Package depth | 213 mm |
| Package width | 320 mm |
| Package height | 113 mm |

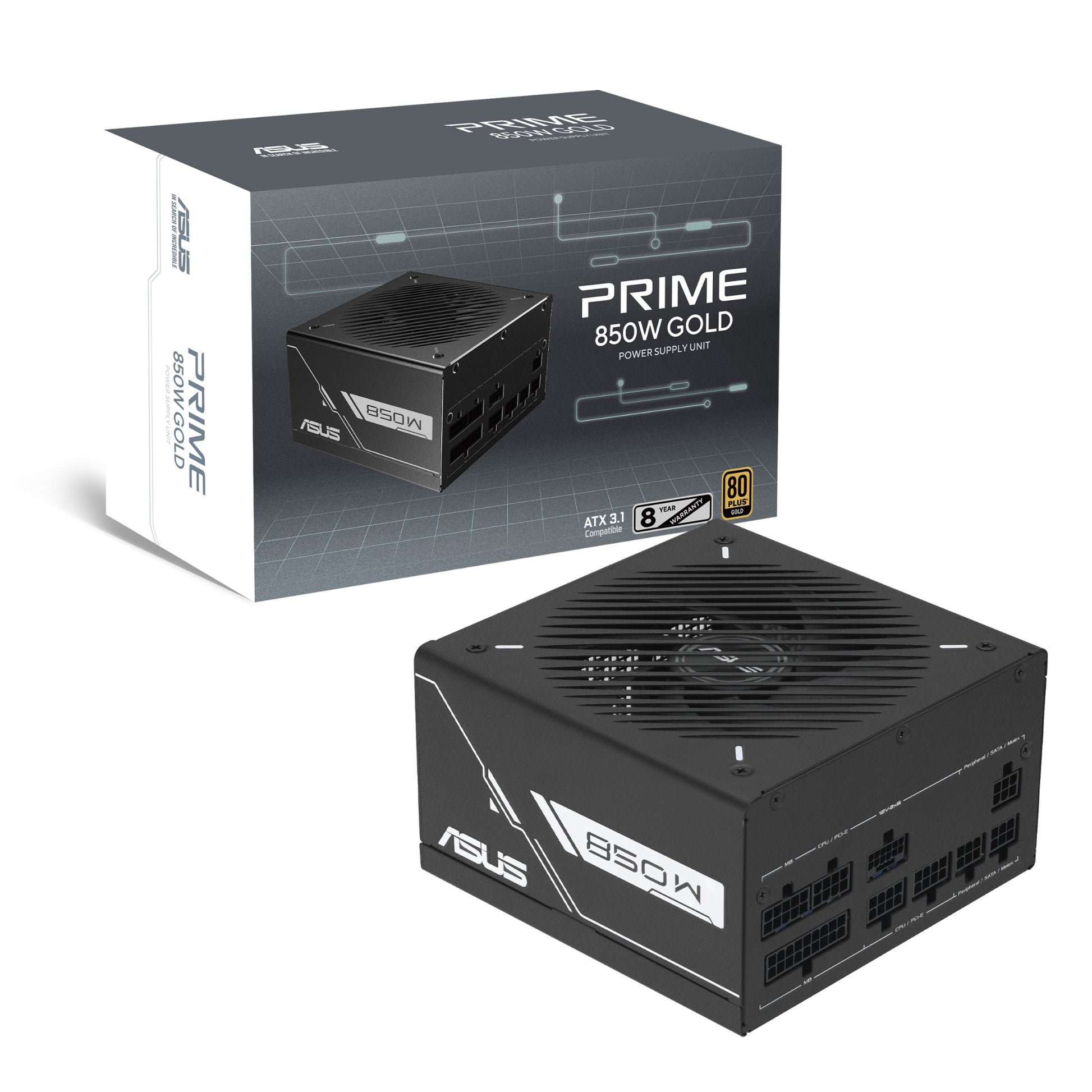

| Package type | Box |
| Package weight | 2.88 kg |
