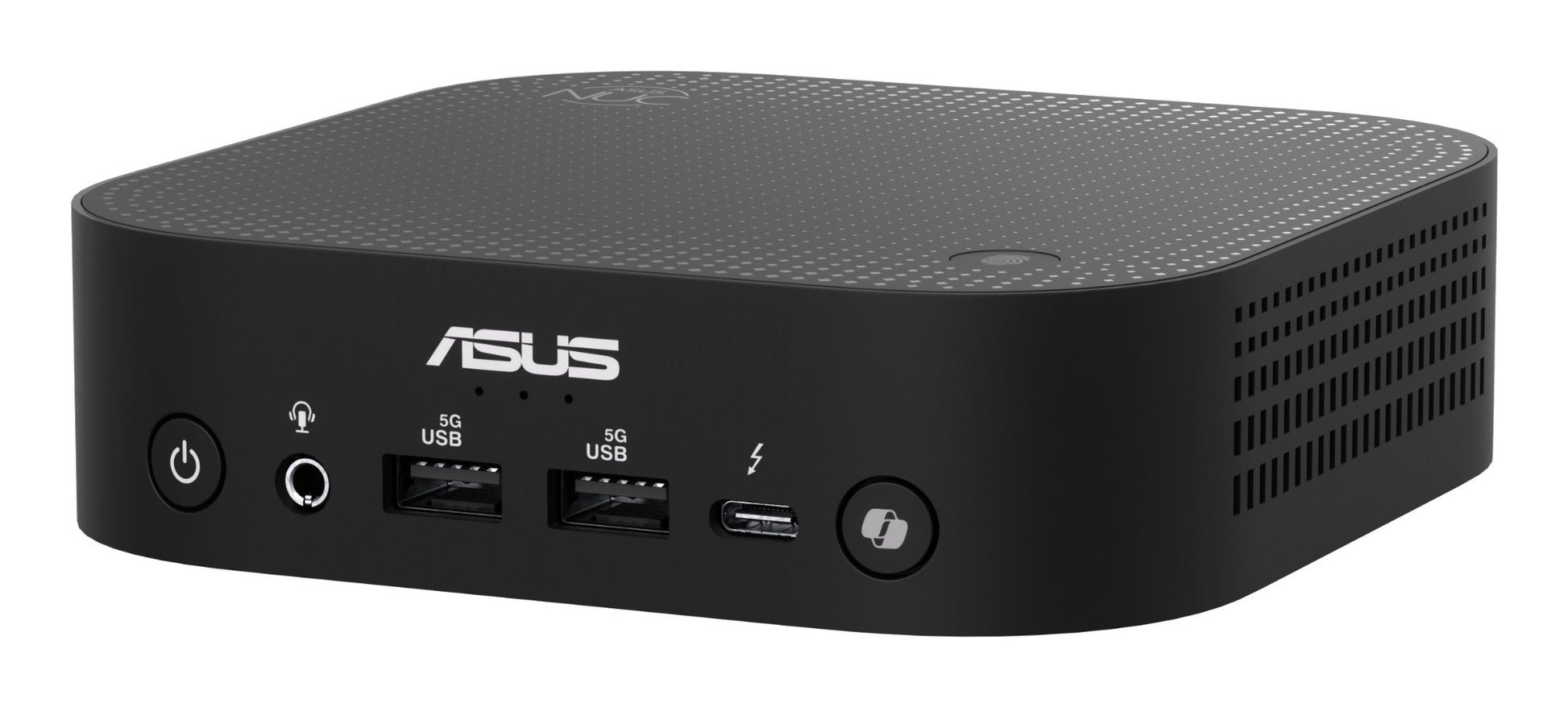

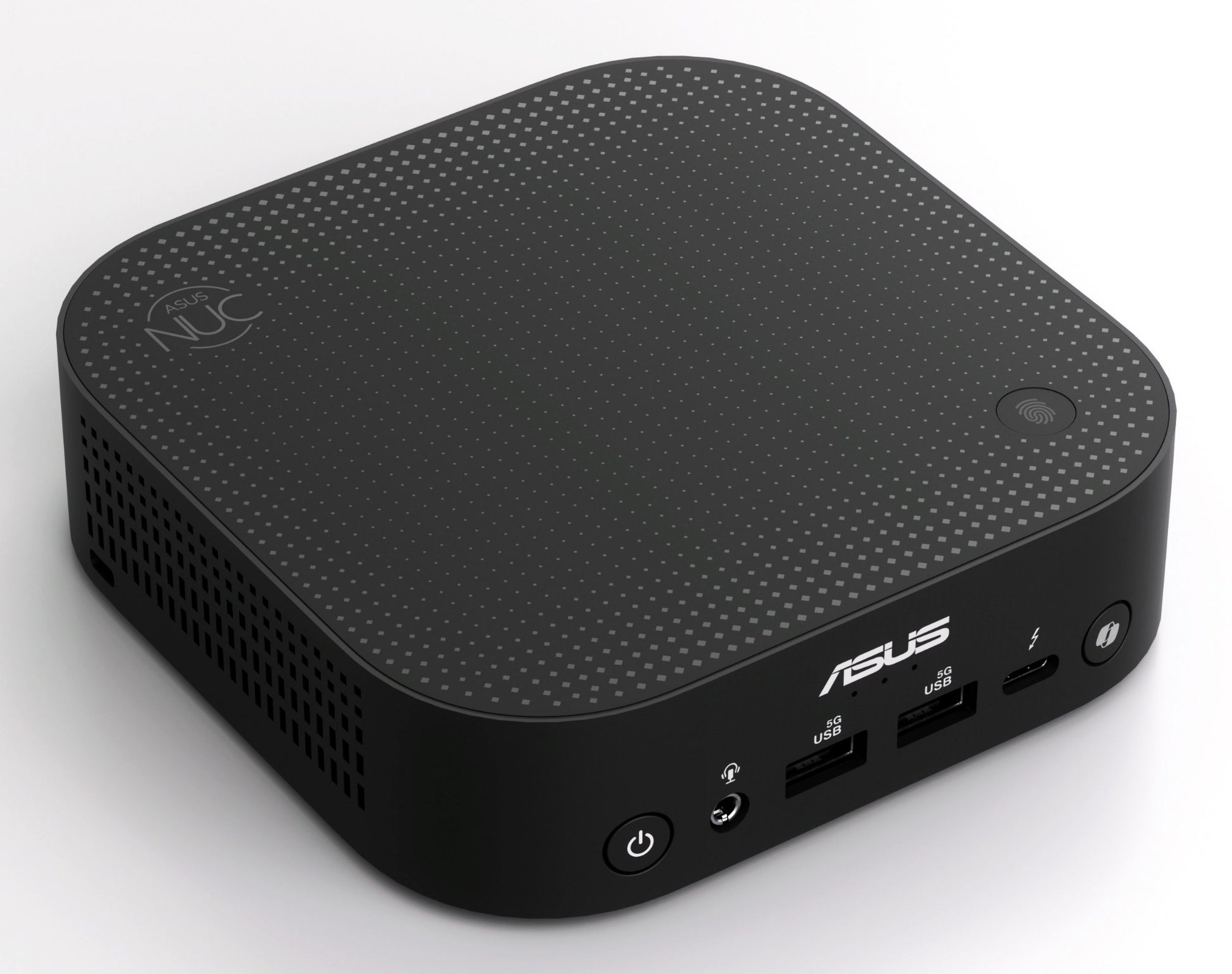

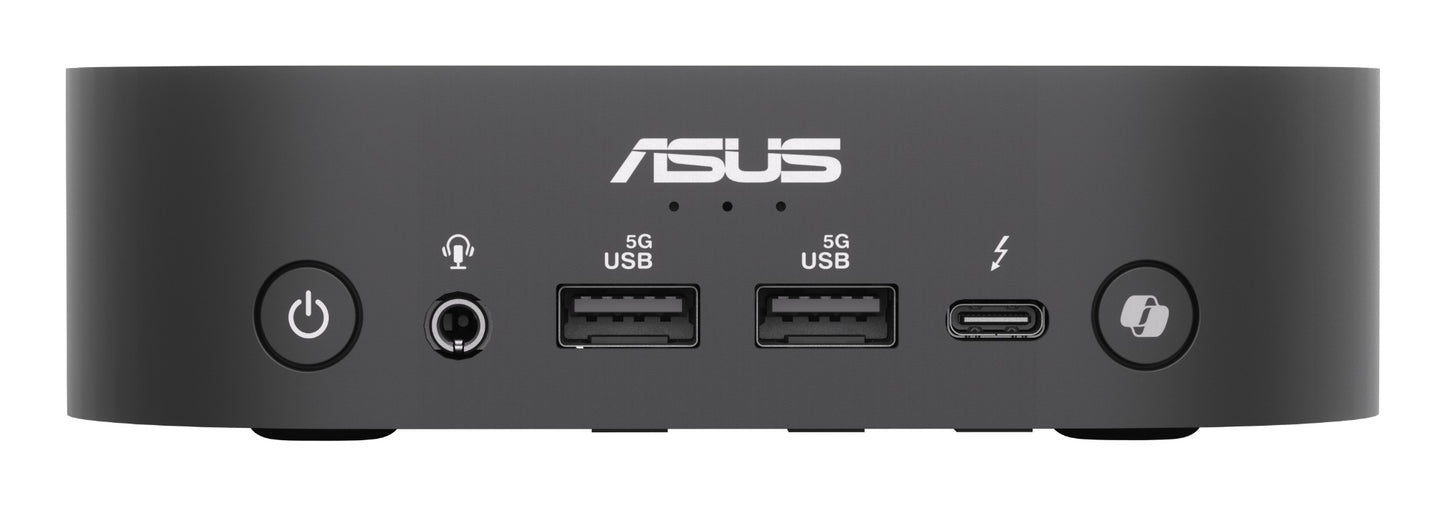

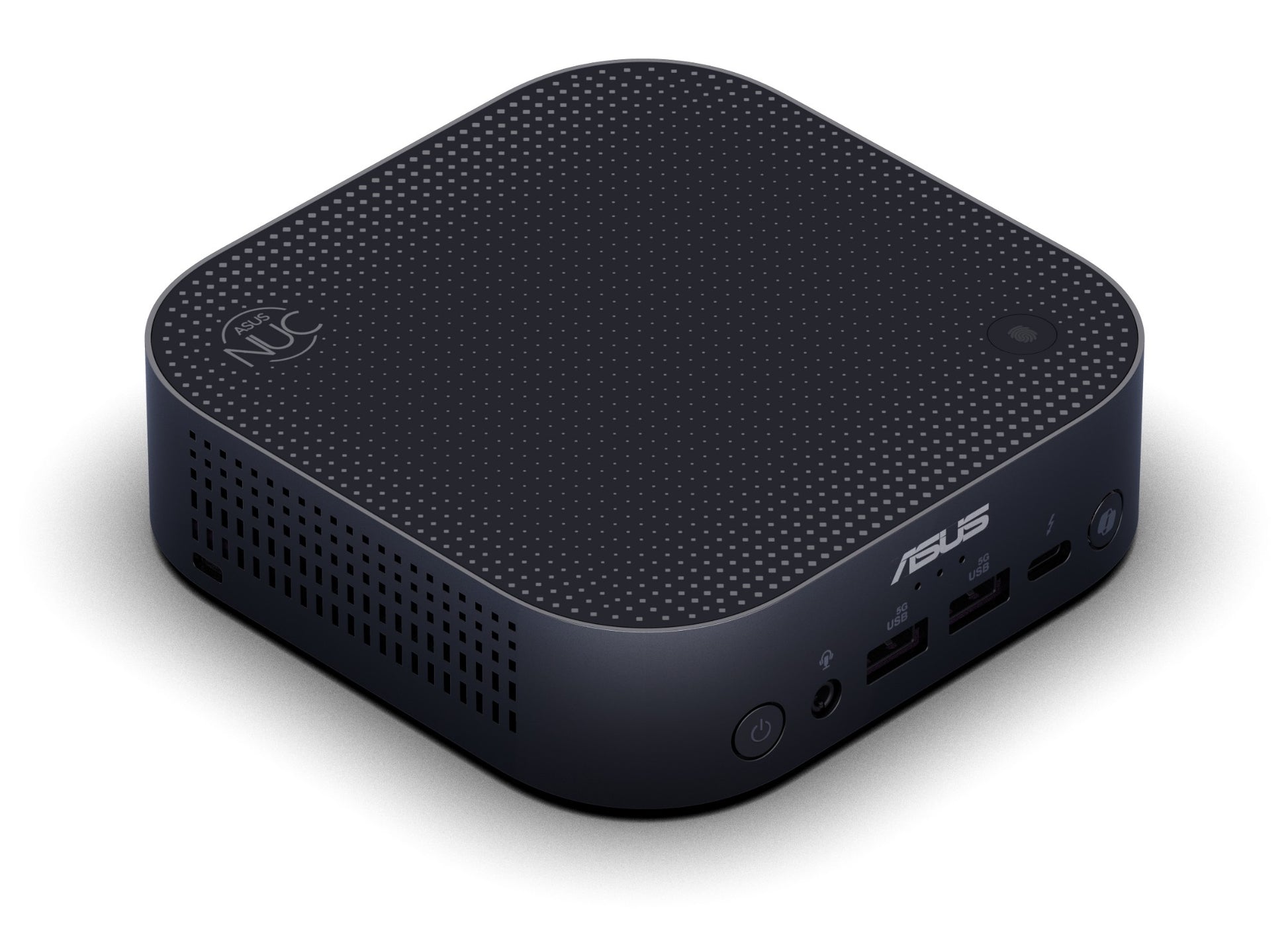

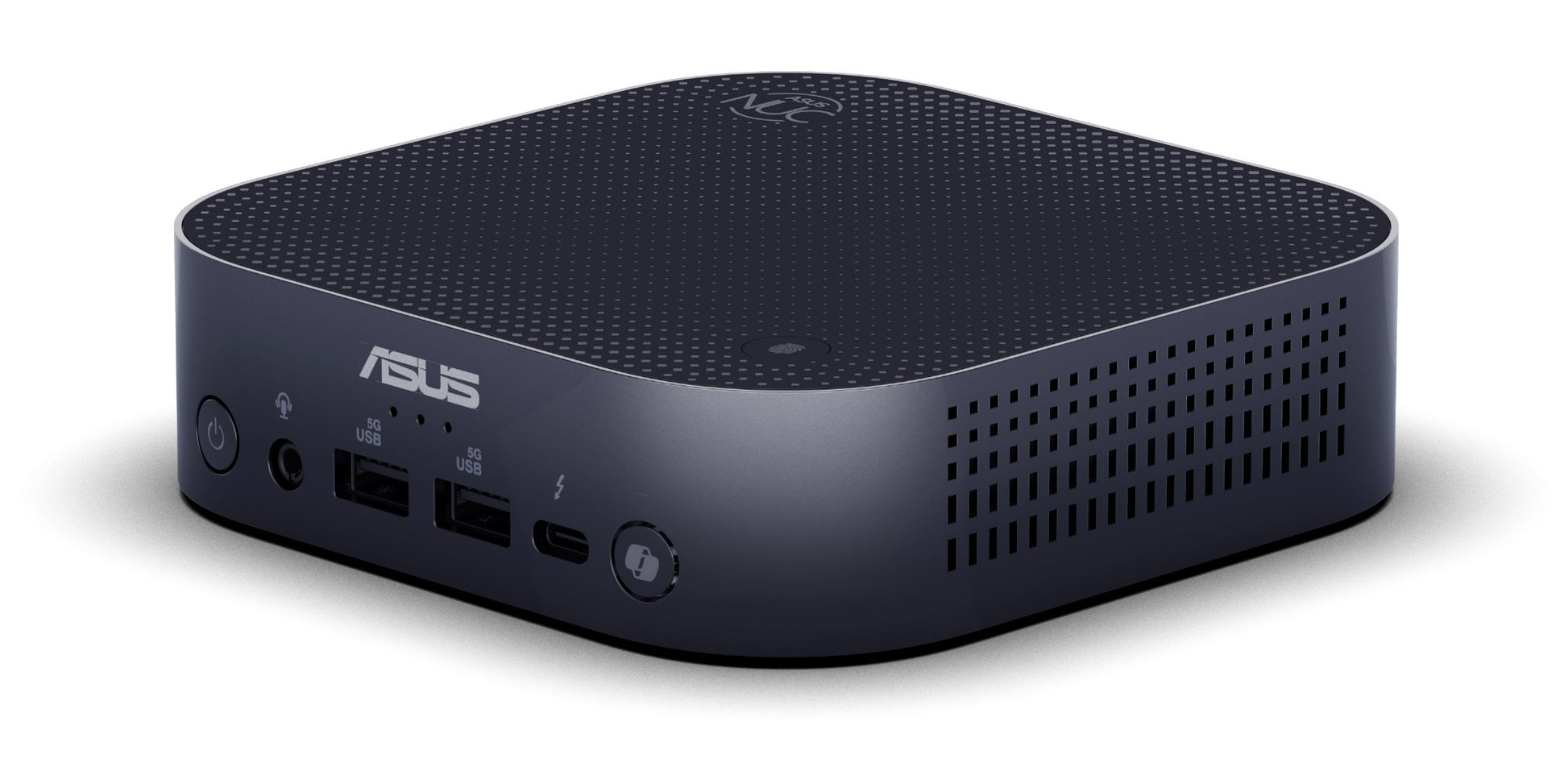

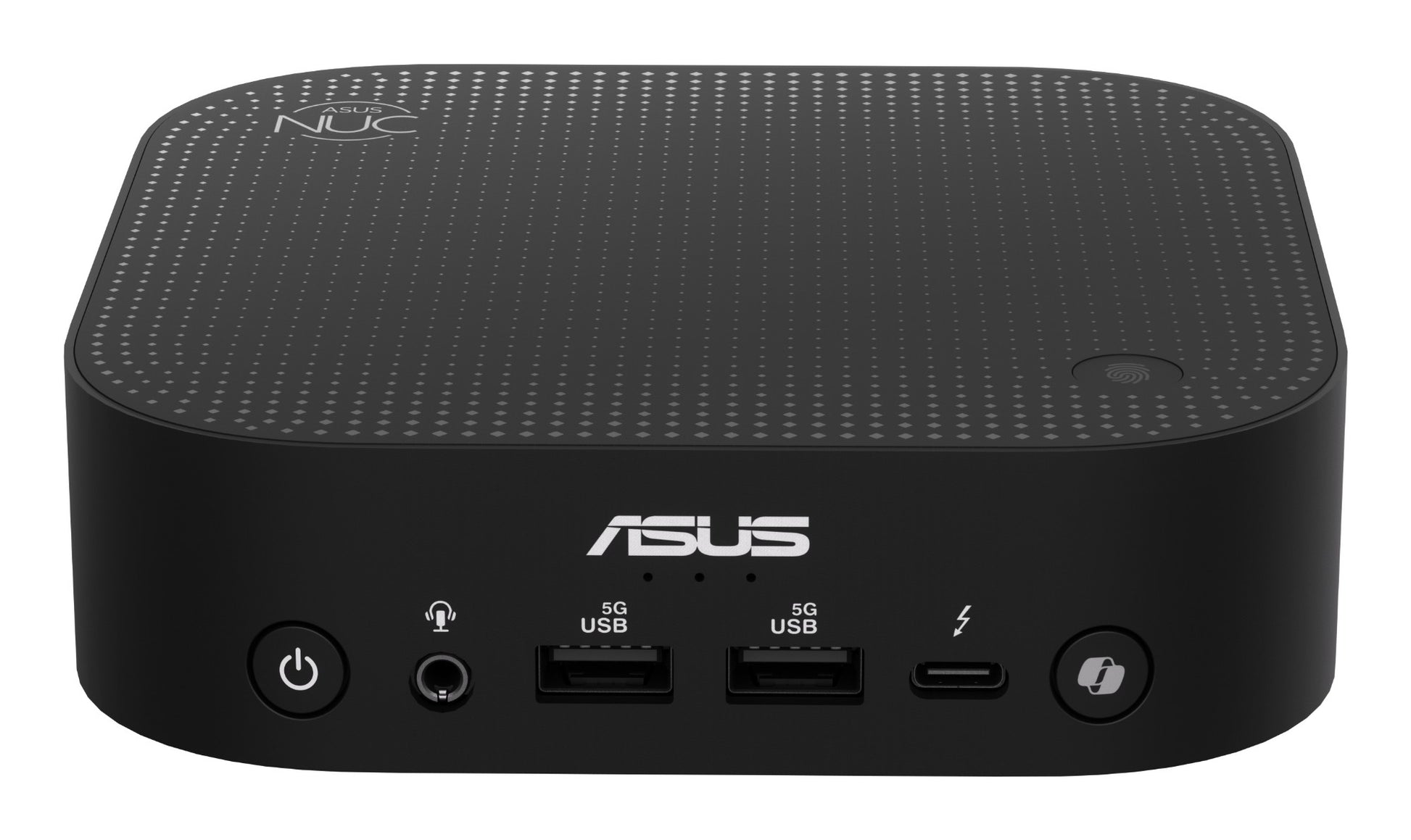

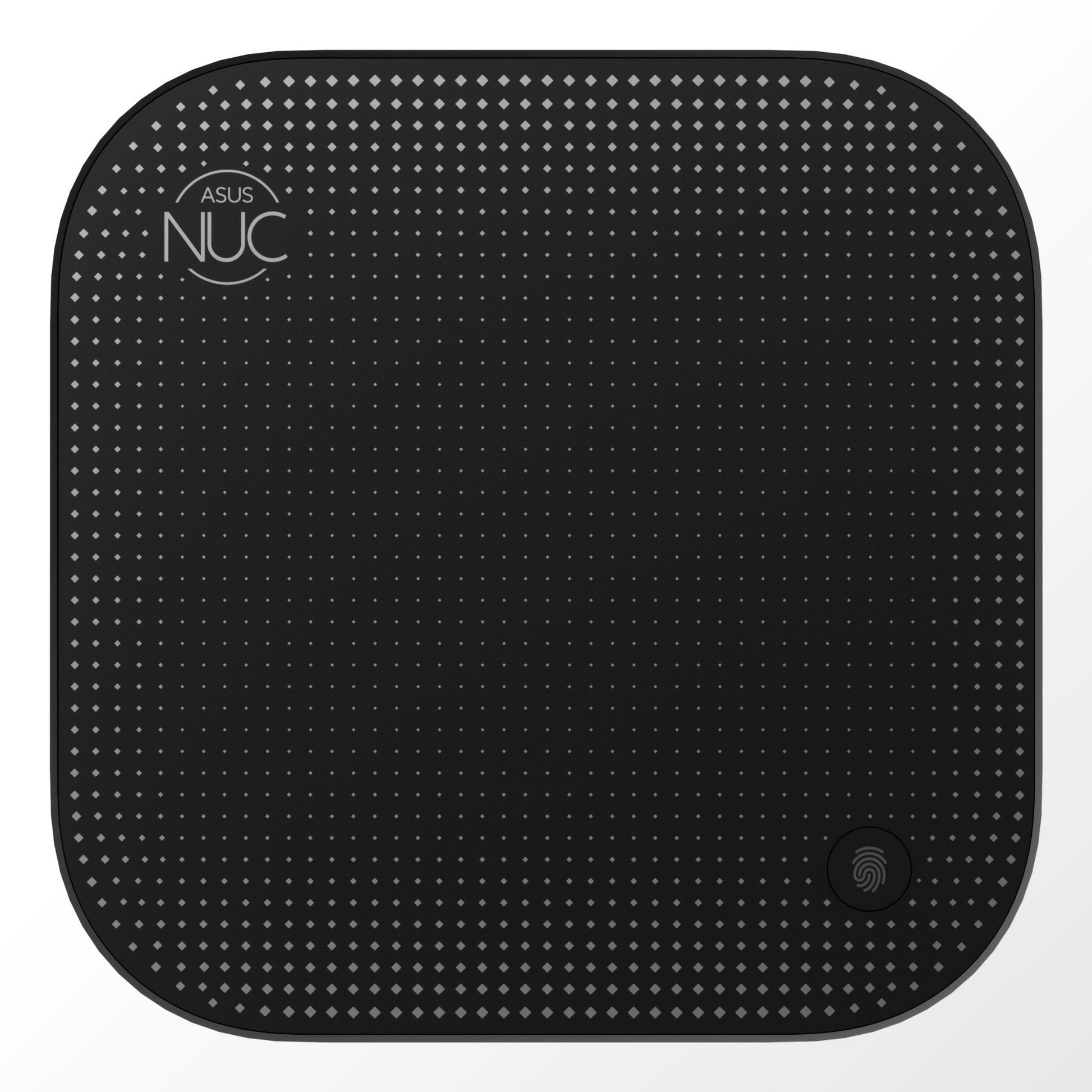

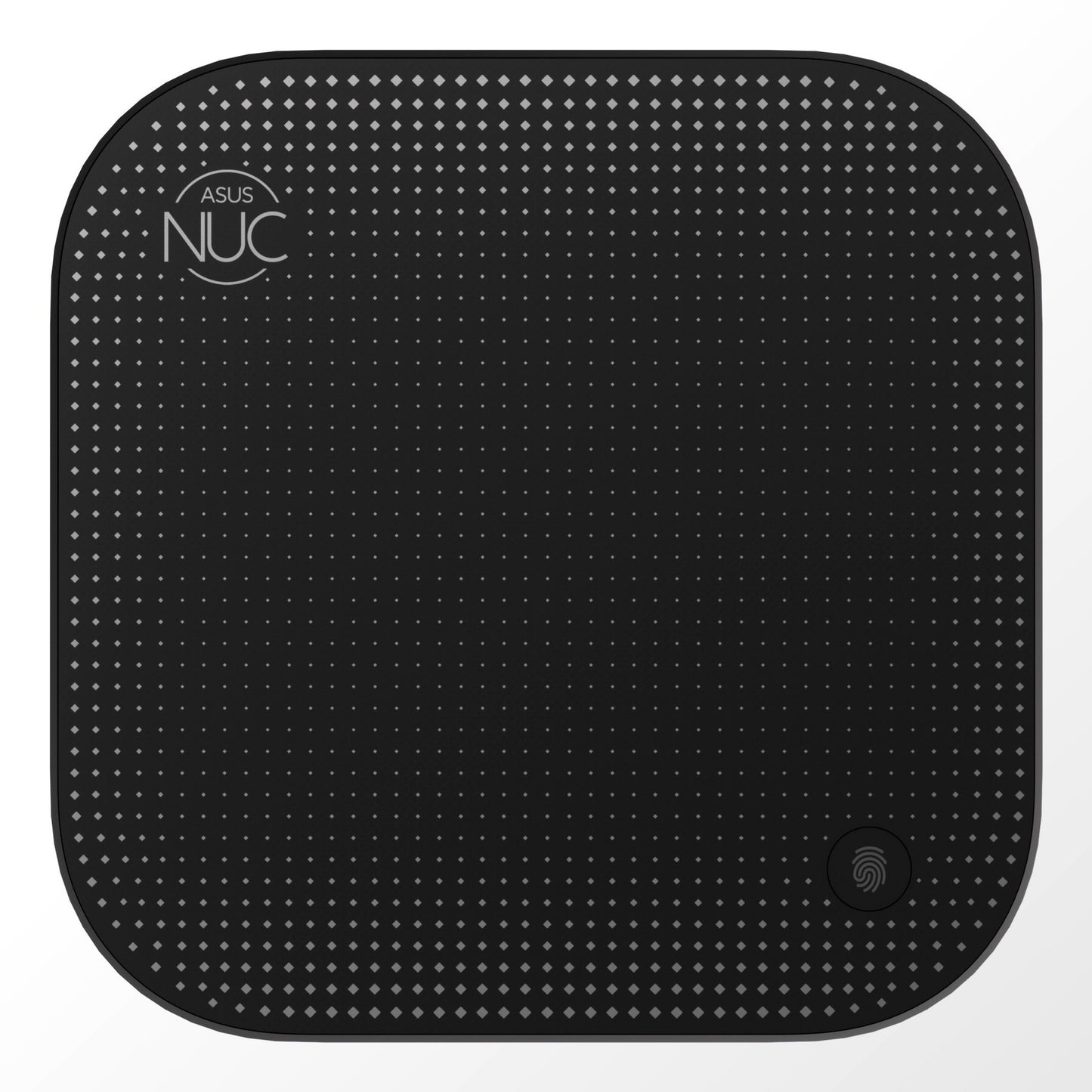

ASUS NUC RNUC14LNKU7094H2 Core Ultra 7 258V 32GB 1TB SSD Mini PC

Small enough to hide behind a monitor, the ASUS NUC RNUC14LNKU7094H2 still packs Core Ultra 7 258V with 32GB RAM for full desktop duty.

World’s first Mini PC Powered by the Intel® Core™ Ultra processor (Series 2, formerly ‘Lunar Lake’), featuring Copilot+, Bluetooth® 5.4, voice commands, and fingerprint recognition with Secure Boot for enhanced security.

Create, achieve, and stay secure with AI Innovation
The World’s First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact <0.6L design. it features Copilot+ button, Wi-Fi 7, Bluetooth 5.4, voice command, and fingerprint recognition with Secure Boot for enhanced security, plus effortless tool-free installation. This revolutionary device sets a new benchmark for mini PC innovation, providing unparalleled performance across business, entertainment, and industrial applications.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	258V
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
Processor threads	8
Processor cores	8
Processor family	Intel Core Ultra 7
Performance cores	4
Performance-core base frequency	2.2 GHz
Processor base power	17 W
Maximum turbo power	37 W
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.7 GHz
Low Power Efficient-core Base Frequency	2200 MHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	115 TOPs
NPU performance up to	47 TOPs
GPU performance up to	64 TOPs
Memory
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics 140V
On-board GPU manufacturer	Intel
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	10,1000,2500,100 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 7 BE201
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
LAN controller	Intel I226-V

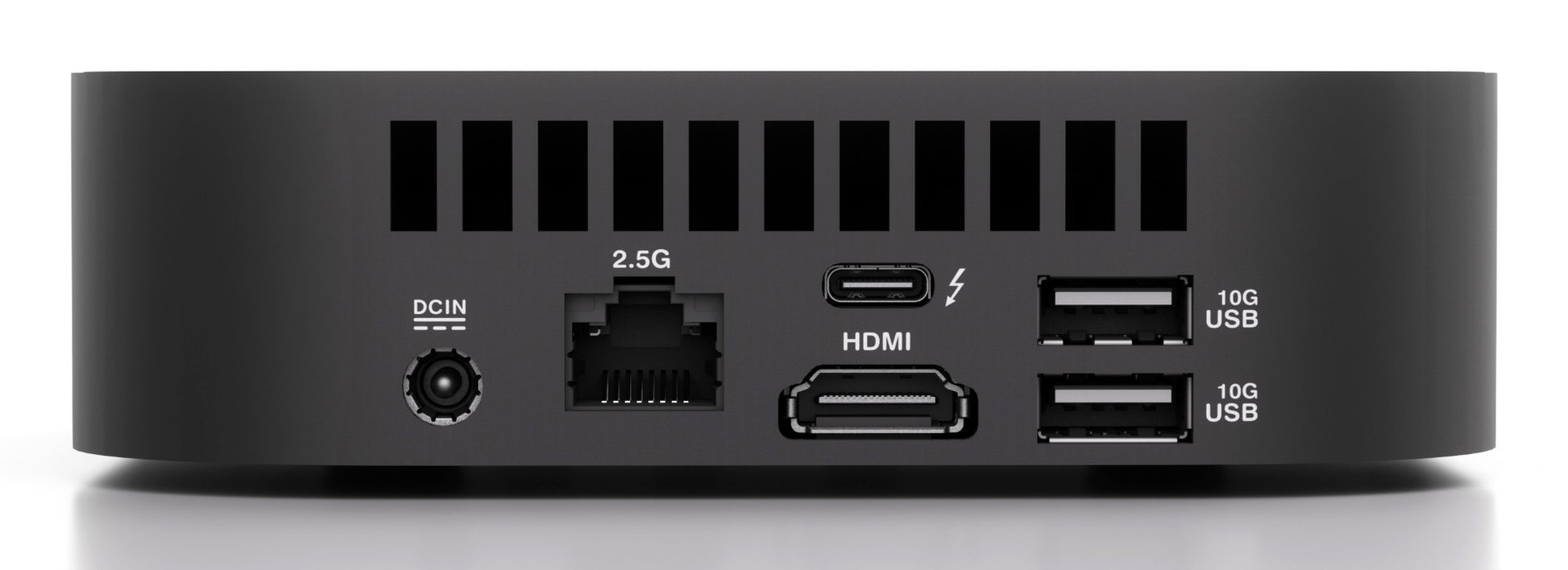

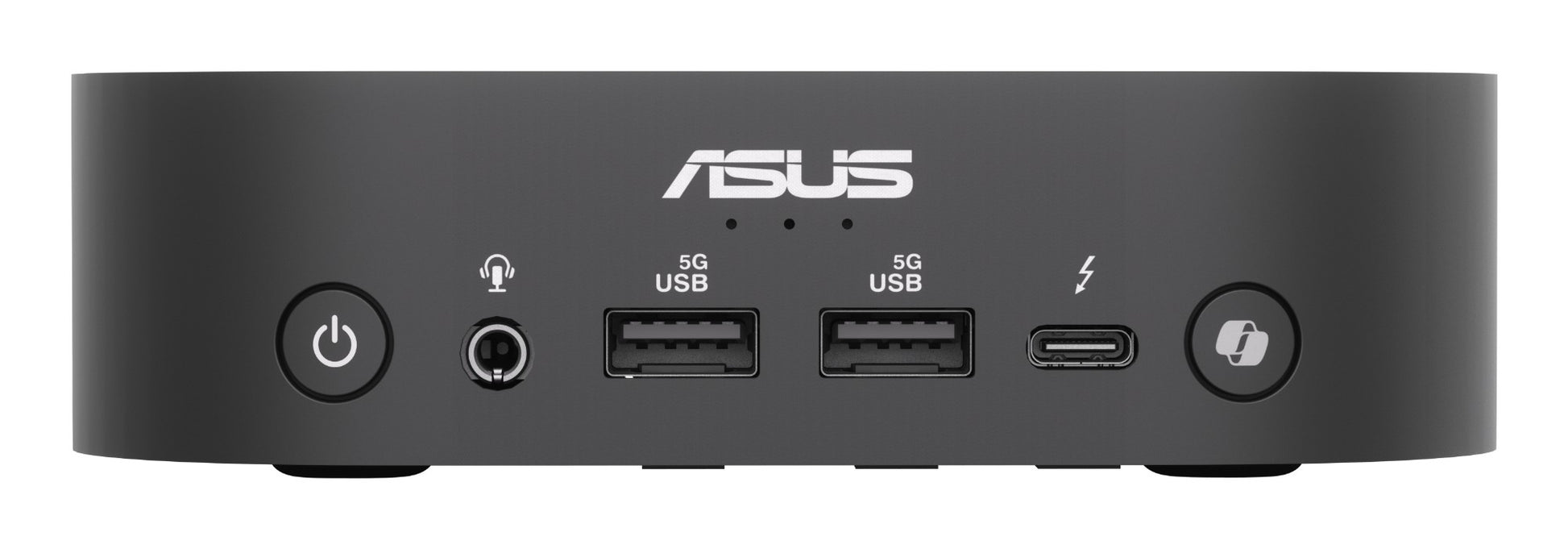

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Performance
Audio chip	Realtek ALC3288
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Home
Power
Power supply	120 W
Weight & dimensions
Width	130 mm
Depth	130 mm
Height	34 mm
Weight	500 g
Packaging content
Display included	No
