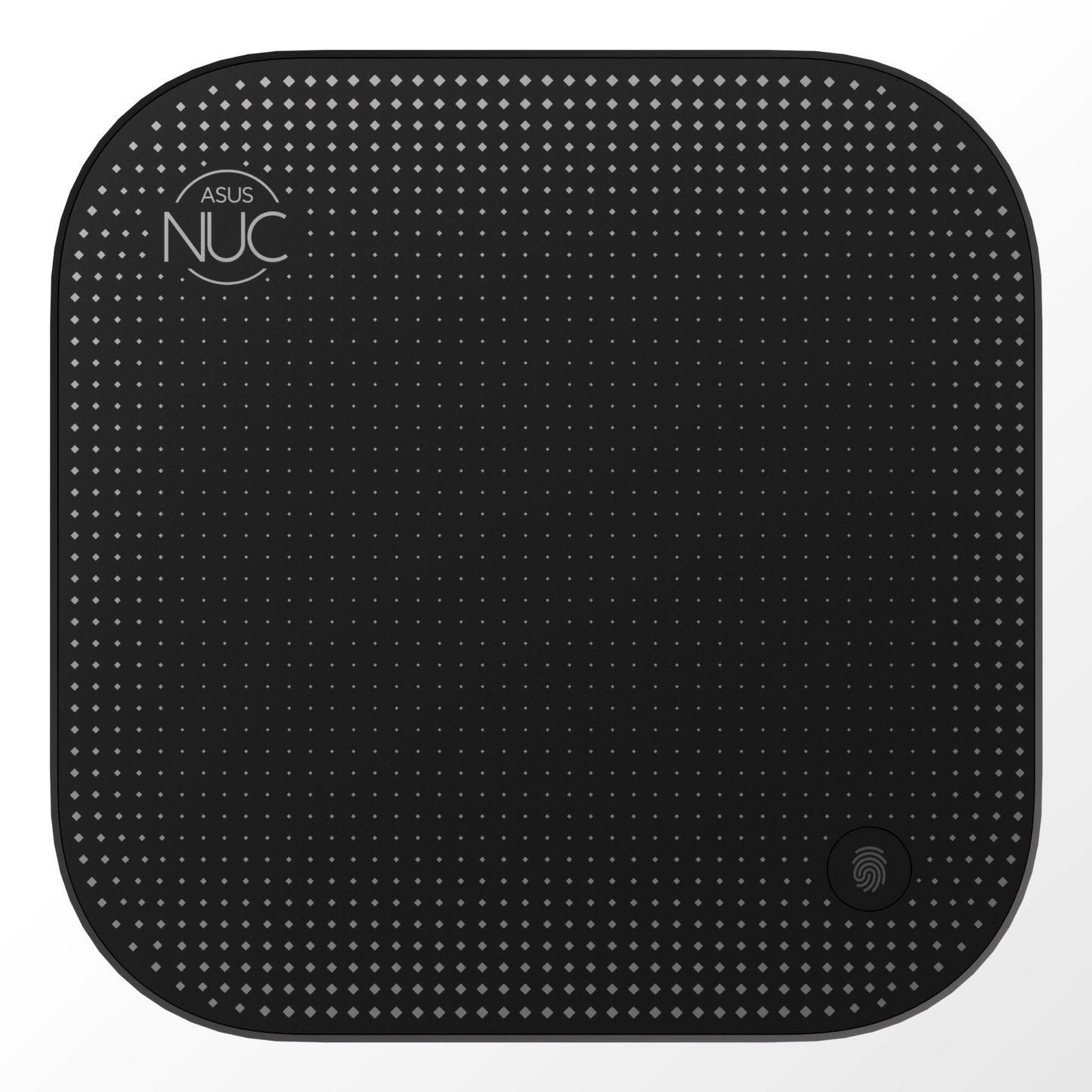

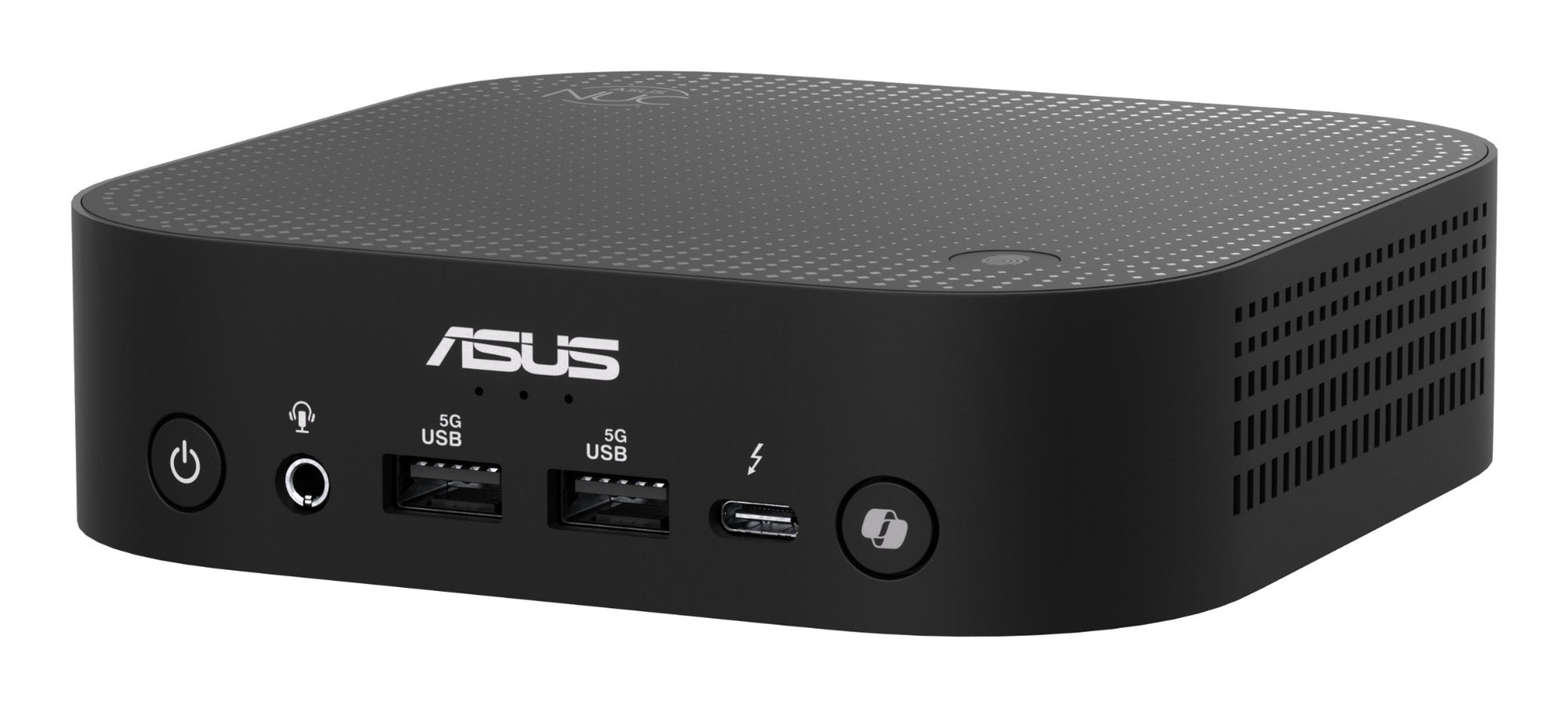

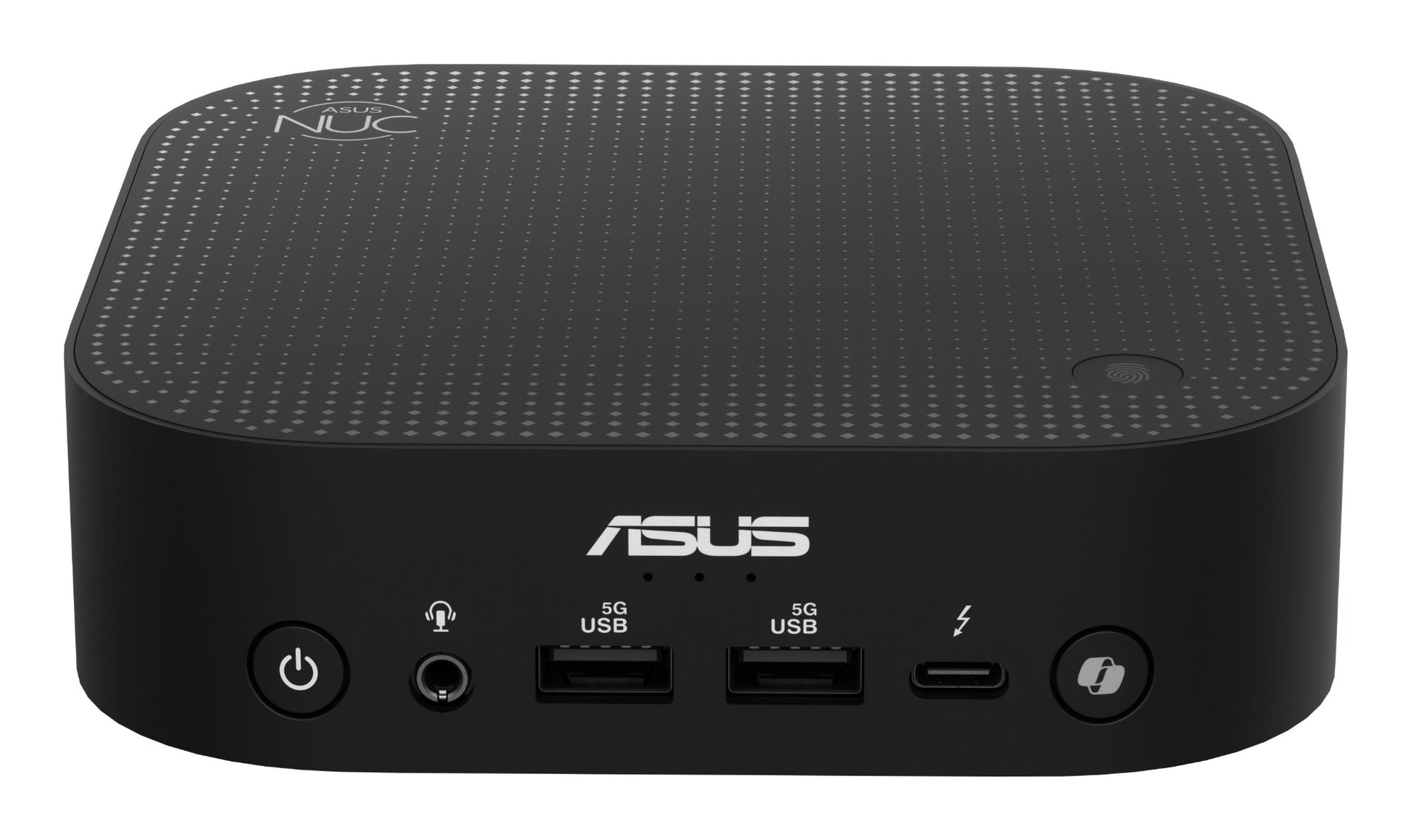

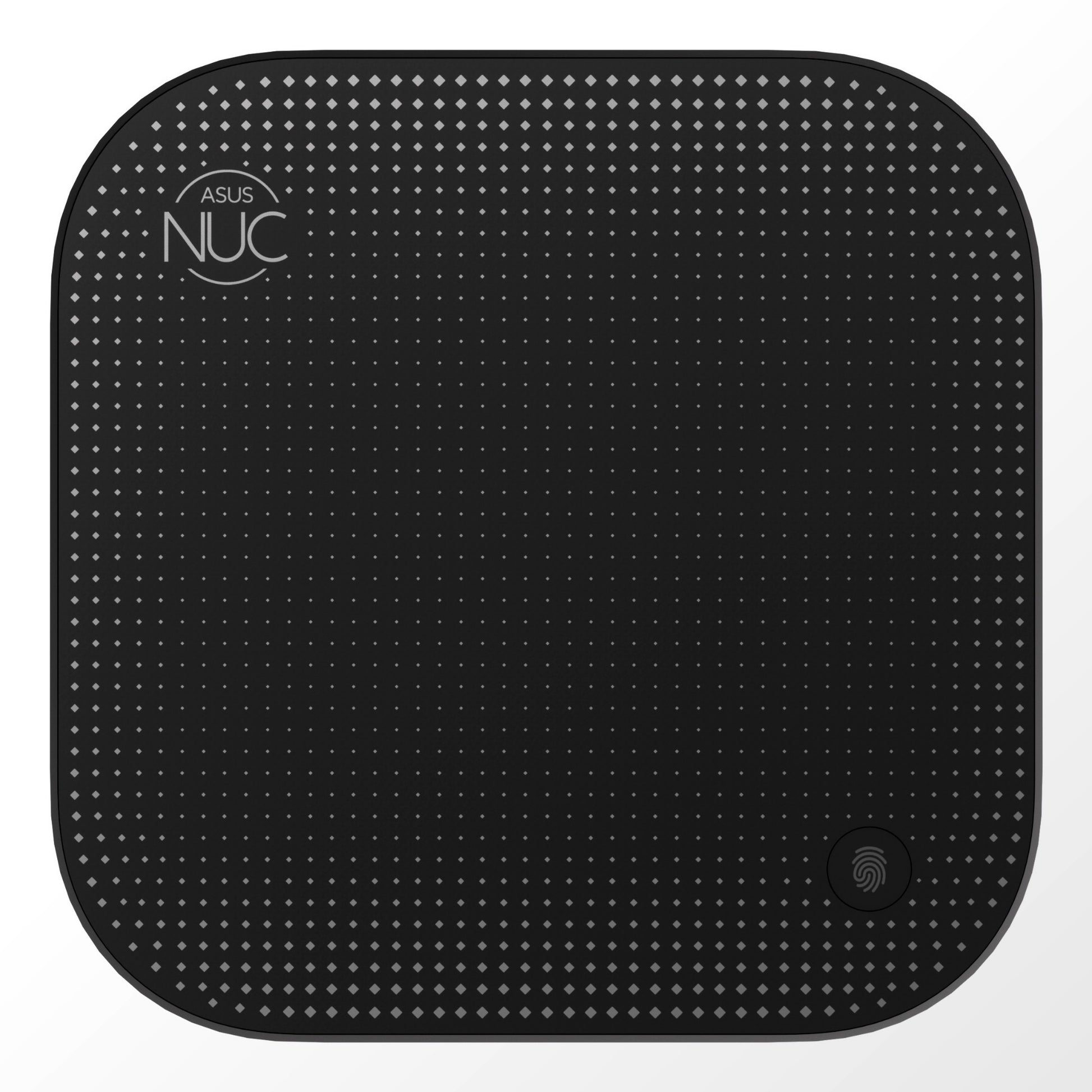

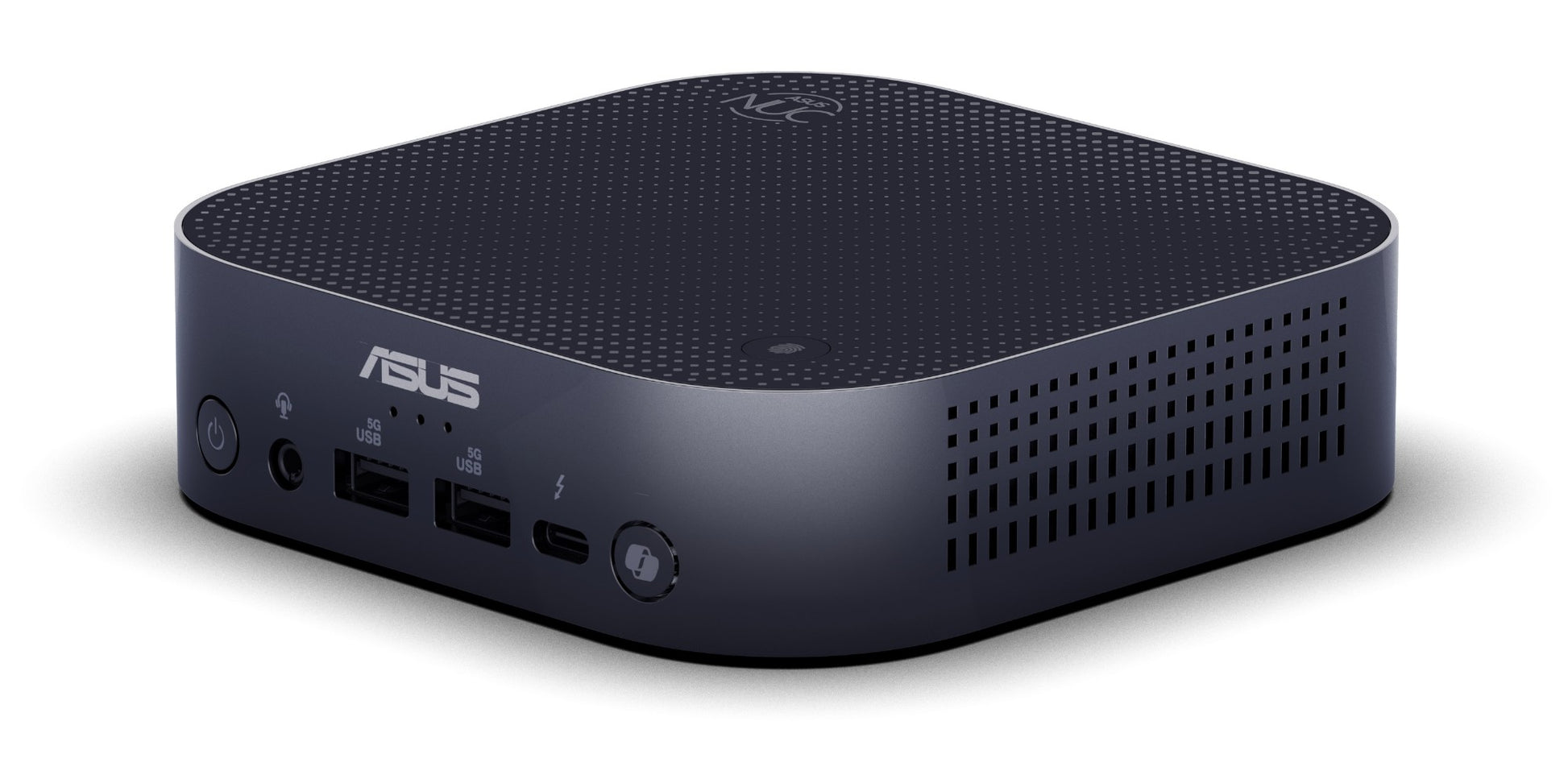

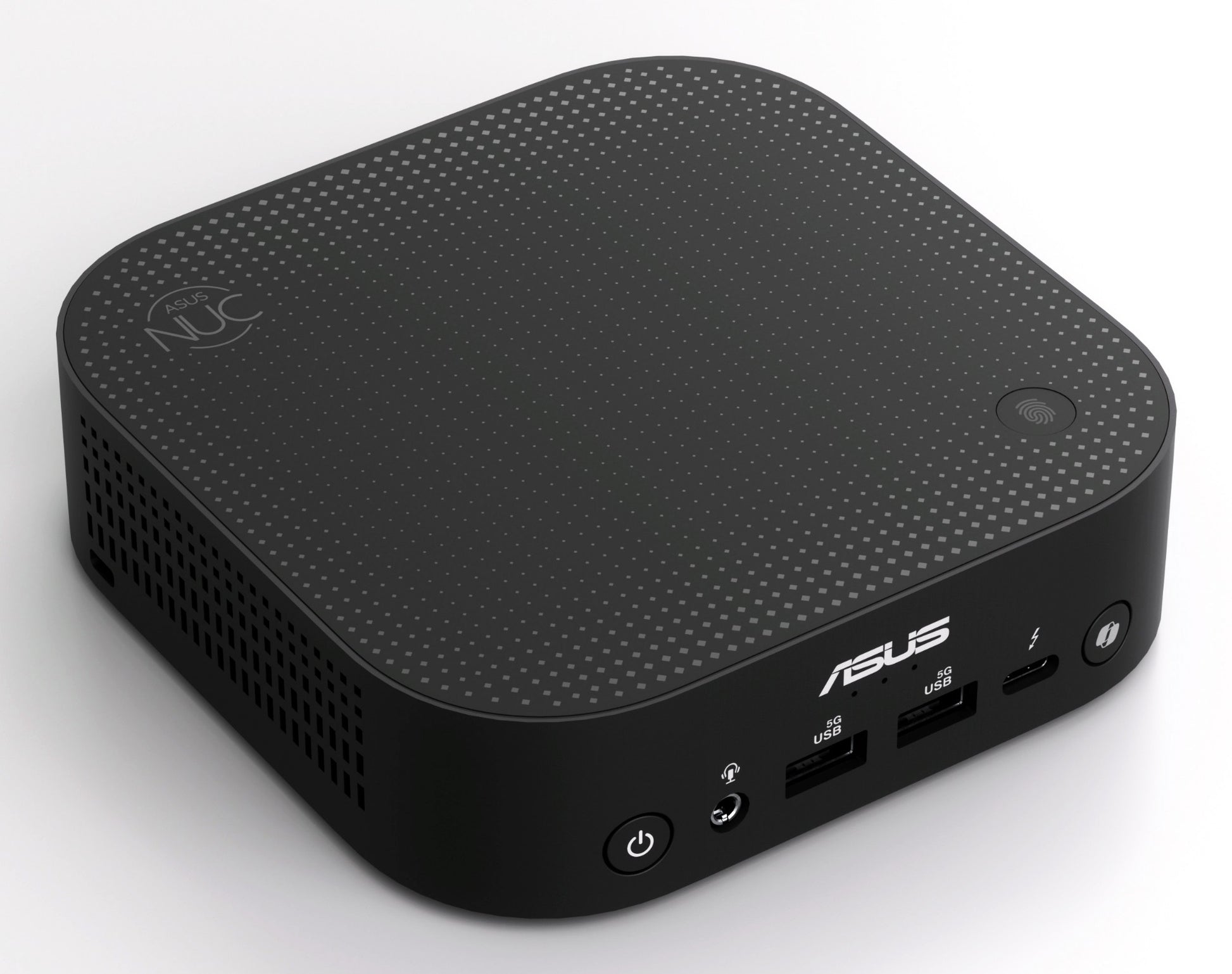

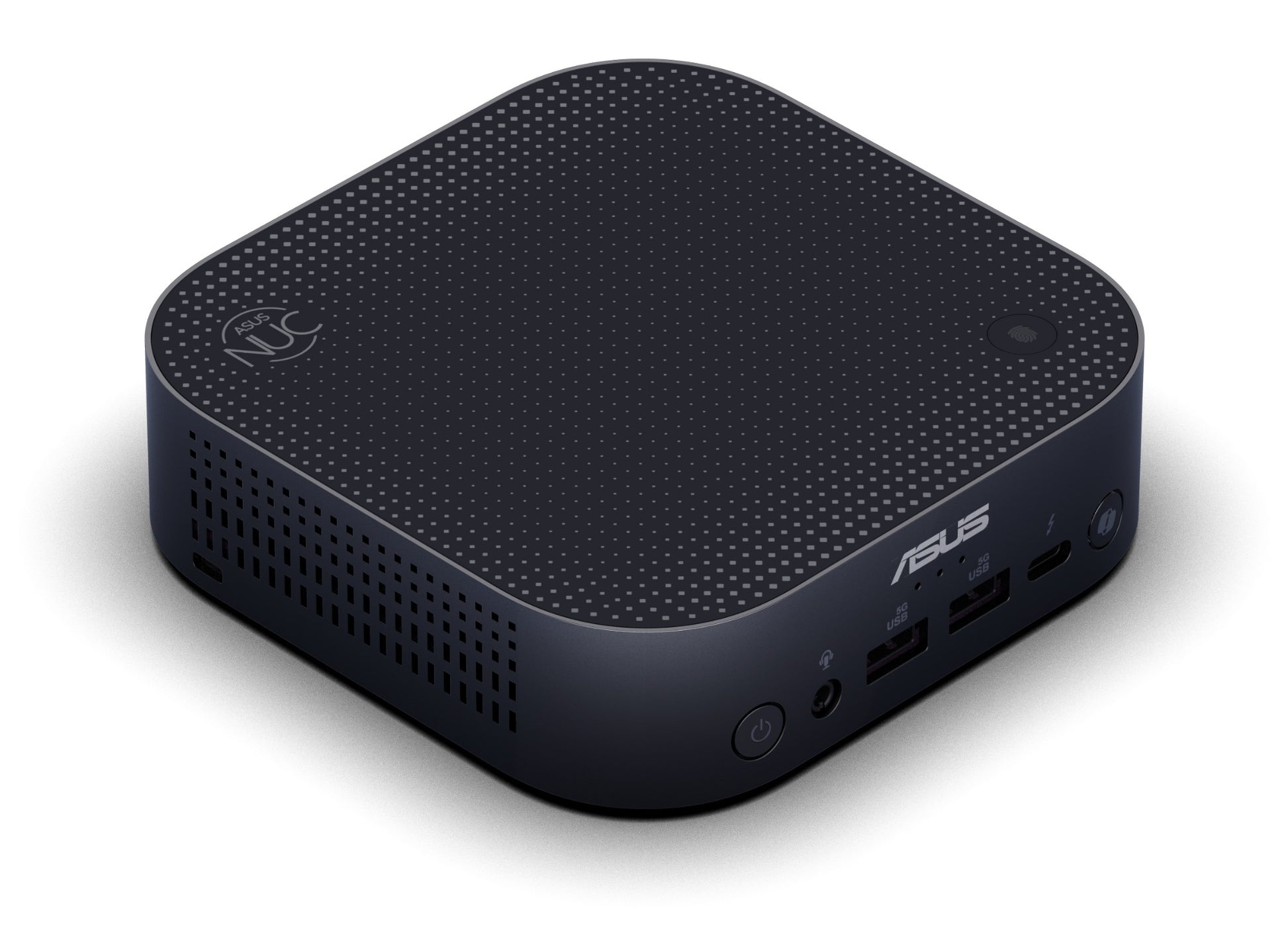

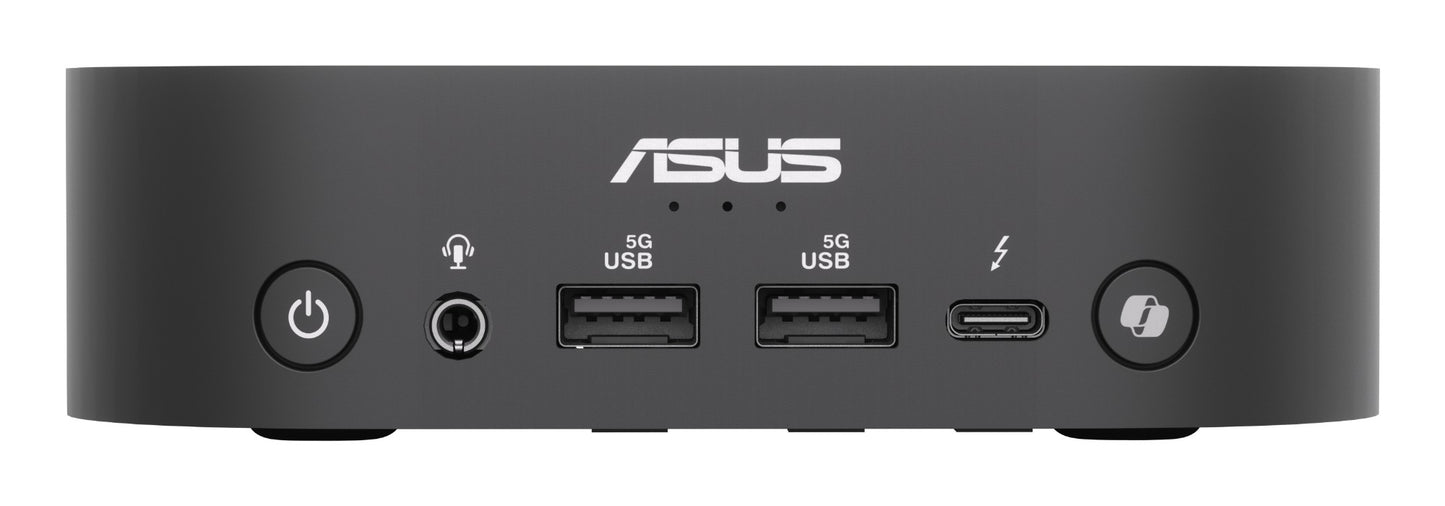

ASUS NUC RNUC14LNKU5073N2 Core Ultra 5 226V 16GB 512GB SSD Mini PC

Small enough to hide behind a monitor, the ASUS NUC RNUC14LNKU5073N2 still packs Core Ultra 5 226V with 16GB RAM for full desktop duty.

Create, achieve, and stay secure with AI Innovation
The World’s First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact <0.6L design. it features Copilot+ button, Wi-Fi 7, Bluetooth 5.4, voice command, and fingerprint recognition with Secure Boot for enhanced security, plus effortless tool-free installation. This revolutionary device sets a new benchmark for mini PC innovation, providing unparalleled performance across business, entertainment, and industrial applications.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	8 MB
Processor model	226V
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Processor threads	8
Processor cores	8
Processor family	Intel Core Ultra 5
Performance cores	4
Performance-core base frequency	2.1 GHz
Processor base power	17 W
Maximum turbo power	37 W
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-cores	4
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Base Frequency	2100 MHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Memory
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics 130V
On-board GPU manufacturer	Intel
Performance
Market positioning	Business
Product type	Mini PC
Motherboard chipset	Intel SoC
Audio chip	Realtek ALC3288
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
WLAN controller model	Intel Wi-Fi 7 BE201
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
LAN controller	Intel I226-V

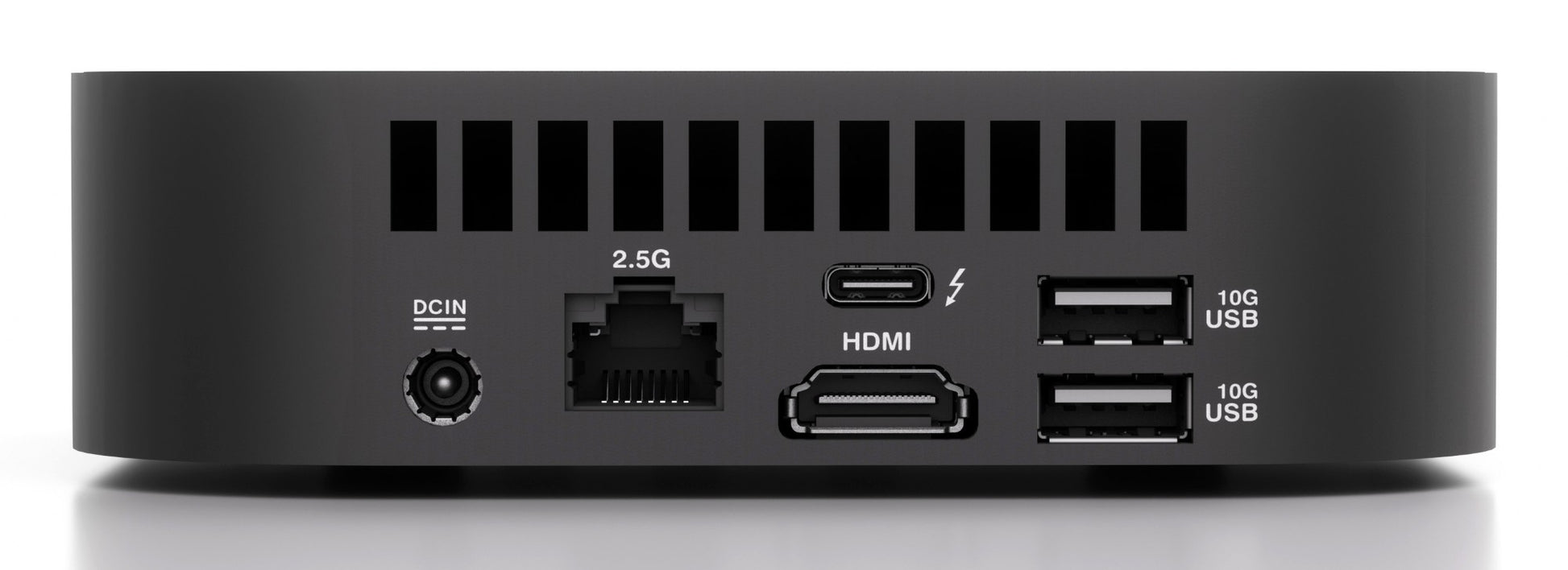

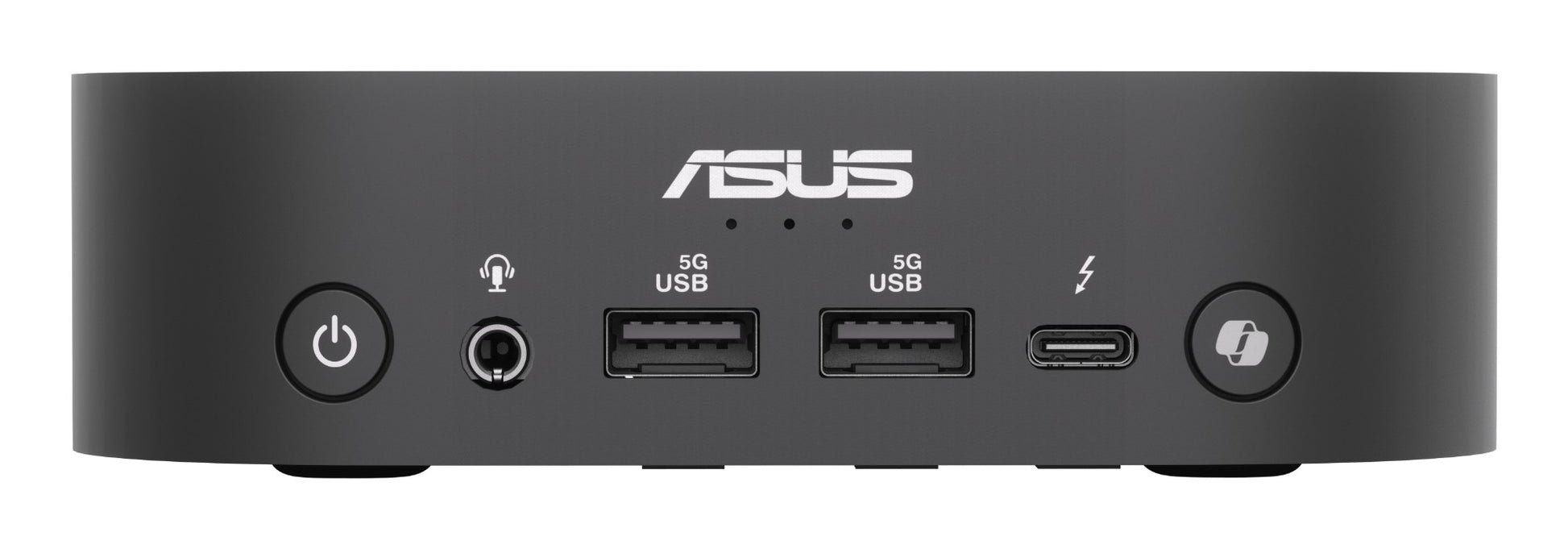

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Number of rear USB ports	3
Number of front USB ports	3
Number of front audio ports	1
Technical details
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal
Cable lock slot	Yes
Design
Introduction year	2025
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Display
Display included	No
Weight & dimensions
Width	130 mm
Depth	130 mm
Height	34 mm
Weight	500 g
