ASUS GeForce RTX 5060 8GB GDDR7 Graphics Card

The ASUS GeForce RTX 5060 brings 8GB GDDR7 graphics muscle for high-refresh gaming and GPU-accelerated creative work — see the spec table for clocks, outputs and cooling.

The ASUS GeForce RTX™ 5060 LP BRK 8GB GDDR7 OC Edition is big productivity in a small package

Big Productivity in a Small Package
ASUS GeForce RTX™ 5060 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2550 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	3840
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5060
Processor frequency (OC mode)	2580 MHz
Memory
Discrete graphics card memory	8 GB
Data transfer rate	28 Gbit/s
Memory bus	128 bit
Graphics card memory type	GDDR7

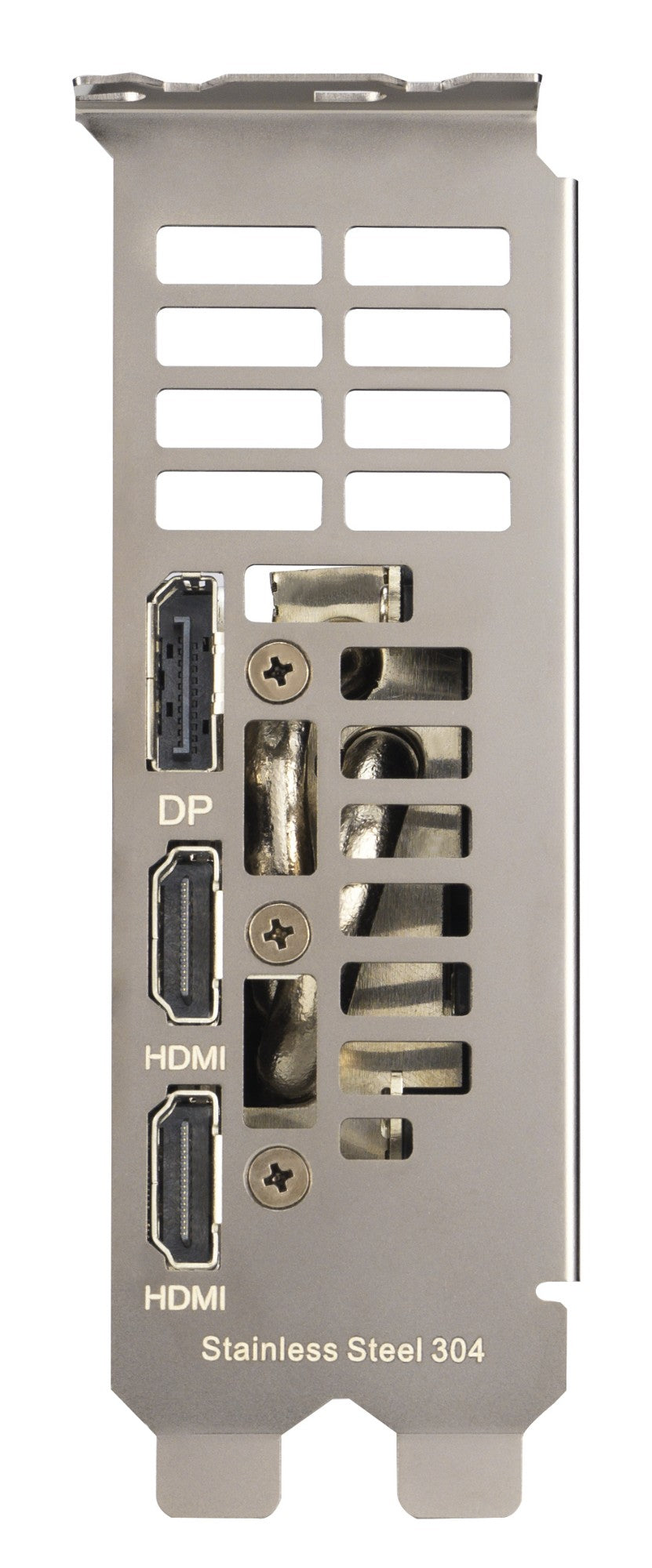

Ports & interfaces
HDMI version	2.1
HDMI ports quantity	2
DisplayPort version	2.1a
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	1
Interface type	PCI Express 5.0
USB Type-C ports quantity	0
Video
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
HDCP version	2.3
NPU performance up to	614 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination	No
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
Number of slots	2
Bracket height	Full-Height (FH)
SFF ready	No
Software
Windows operating systems supported	Yes
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	550 W
Weight & dimensions
Height	69 mm
Depth	38 mm
Length	175.8 mm
Packaging data
Package type	Box
Package width	300 mm
Package height	218 mm
Package depth	55 mm
